Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Basic Concepts of Vibrations
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we'll discuss the foundational concepts of vibrations, primarily focusing on free and forced vibrations. Can anyone tell me what they think free vibration means?
Isn't free vibration when a structure vibrates by itself after being disturbed?
Exactly! It occurs without external forces acting on it. Now, how about forced vibration?
Forced vibration happens when there’s an external force acting on the structure, right?
Correct! Excellent job. Now, let’s talk about undamped and damped systems. Remember this: 'Damping helps systems return to equilibrium.' Can someone explain what an undamped system is?
An undamped system doesn’t lose energy in the vibrations, so they can continue indefinitely.
Precisely! Great understanding, everyone. To recap, we’ve covered how different types of vibrations can affect structure responses—free vibrations are natural while forced are influenced externally.
Natural Frequency Definition
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s focus on the definition of natural frequency. It’s the rate at which a system oscillates in the absence of external forces. Who can give me the formula for a Single-Degree-of-Freedom system?
I think it’s f_n = (1/2π) * √(k/m).
Spot on! Remember, f (natural frequency) equals one over two pi times the square root of stiffness divided by mass. This relationship shows that higher stiffness means a higher frequency. Why do you think this matters in structural design?
Because if the structural frequency is lower, it may resonate with seismic energy!
Exactly! It’s crucial to keep this in mind when designing for earthquakes.
Multi-Degree of Freedom Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let’s talk about Multi-Degree of Freedom systems. Who can explain why structures like tall buildings have multiple natural frequencies?
Because they can bend and sway in different ways, right?
Exactly, great point! Each mode shape corresponds to a natural frequency. Think of them as different dance styles that the building can perform during an earthquake. How can we identify these natural frequencies?
By solving the eigenvalue problem involving the stiffness and mass matrices?
Yes! Remember the formula: [K - ω²M]ϕ = 0. Fantastic work. Recall how each eigenvalue corresponds to a frequency, essential for understanding a MDOF system’s behavior.
Factors Affecting Natural Frequency
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s consider what factors affect a structure’s natural frequency. Can anyone name a factor?
Mass distribution! More mass lowers the frequency, right?
Exactly! Also, how does stiffness play a role?
Increased stiffness raises the frequency.
Very good! And let’s not forget boundary conditions. Who can elaborate on that?
How the structure is supported changes its stiffness characteristics, impacting the frequency.
Perfect! In summary, mass, stiffness, and boundary conditions all significantly impact natural frequencies.
Resonance and Structural Response
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, let’s analyze resonance. What happens when the frequency of external excitation matches a structure’s natural frequency?
It leads to amplified vibrations, which can result in structural failure.
Exactly! How can we design to avoid this situation?
We can alter mass or stiffness or incorporate dampers and isolators.
Great insights! It’s vital to ensure that designs account for these resonances, especially in earthquake-prone areas. As a recap, remember these methods to prevent resonance to ensure safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Understanding natural frequencies is essential for the dynamic analysis of structures subjected to external forces like earthquakes. These frequencies are influenced by a structure's mass and stiffness, and are pivotal in preventing severe damage during seismic events. This section covers various types of vibrations, mathematical modeling, and factors affecting natural frequencies, highlighting their importance in the design of earthquake-resistant structures.
Detailed
Natural Frequencies
In earthquake engineering, natural frequencies play a pivotal role as they define how structures react under dynamic loads, particularly during an earthquake. Each structure exhibits a certain frequency of vibration which, if matched by an external seismic force, can lead to resonance—a phenomenon characterized by amplified vibrations that may result in catastrophic structural failure.
Key Concepts in Vibrations
- Free vs. Forced Vibrations: Free vibrations occur when a structure oscillates without any external influence while forced vibrations result from external periodic forces.
- Natural Frequency Definition: It is the frequency at which a system oscillates without any external or damping forces. For a Single-Degree-of-Freedom (SDOF) system, natural frequency is defined mathematically as:
f_n= rac{1}{2 ext{π}} rac{ ext{√}(k)}{m}
where 'k' is the stiffness, and 'm' is the mass.
SDOF and MDOF Systems
- Mathematical Modeling: The Mass-Spring-Damper model represents a simple structural system.
- Undamped Natural Frequency: Higher stiffness correlates with a higher natural frequency.
- MDOF Systems: Structures with multiple natural frequencies; analyzed using eigenvalues and mode shapes.
Modal Analysis and Numerical Methods
- Modal Superposition: The response of MDOF systems can be described by the superposition of SDOF systems.
- Eigenvalue Problems: Involves solving for natural frequencies and mode shapes using matrices.
- Rayleigh’s Method and FEM: Techniques for estimating natural frequencies.
Factors Influencing Natural Frequencies
- Mass Distribution: More mass generally leads to lower natural frequencies.
- Stiffness Variation: Increased stiffness raises natural frequency, while flexible stories can reduce it.
- Boundary Conditions: The way a structure is supported greatly influences its natural frequency.
Resonance in Structural Response
Resonance occurs when the frequency of an external force aligns with the structure’s natural frequency, causing potentially dangerous vibrations. Prevention involves design adjustments such as mass alteration, damping systems, or isolation techniques.
The section concludes by emphasizing the importance of natural frequency analysis in the design and retrofitting of structures to withstand seismic events.
Youtube Videos

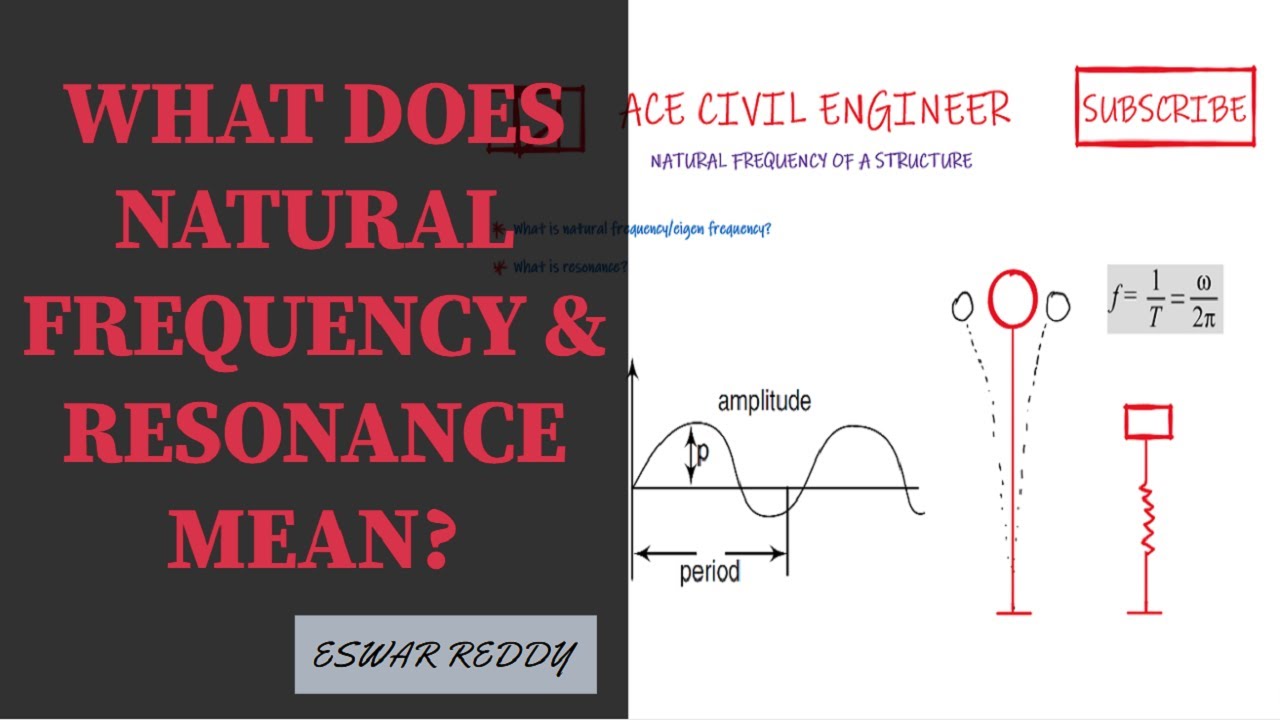

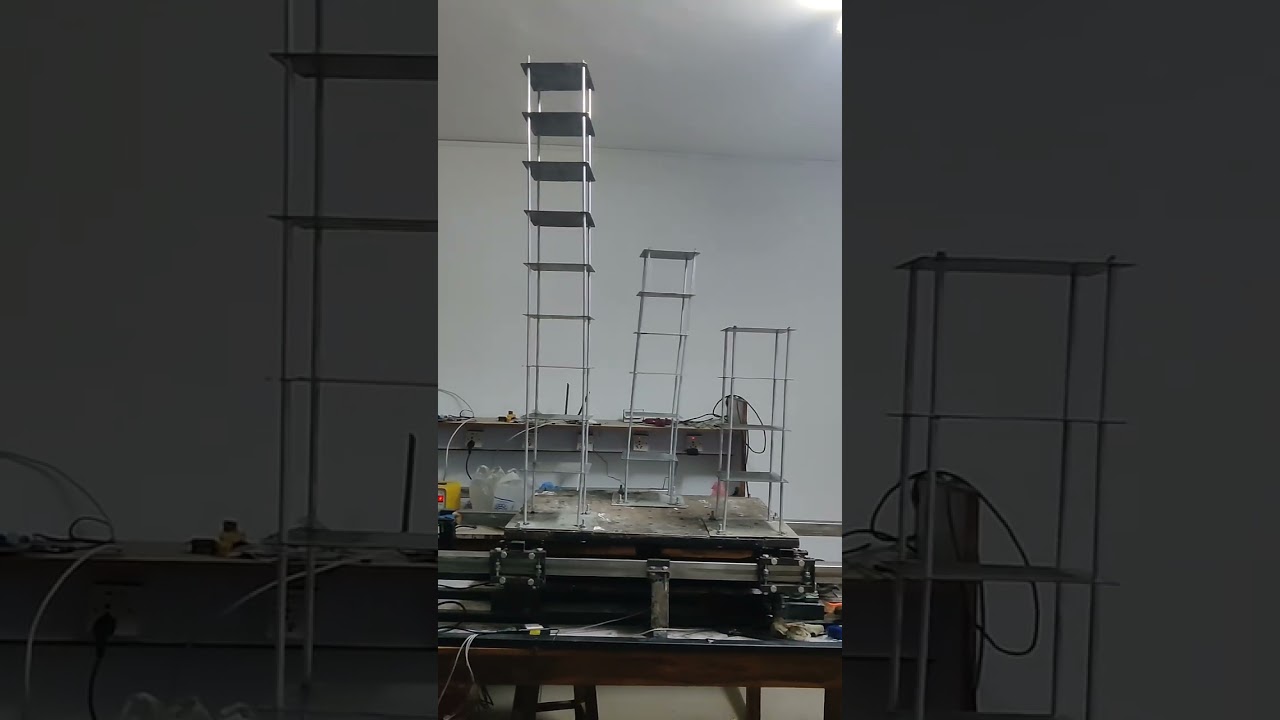

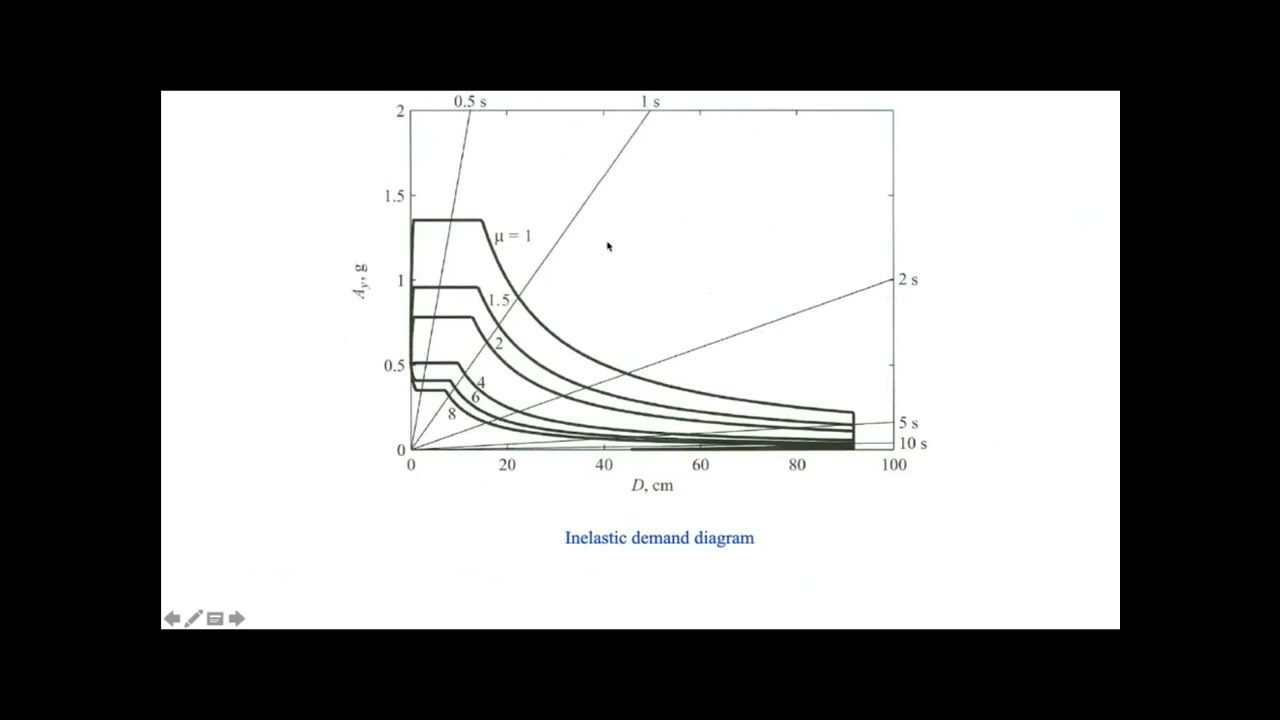

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Natural Frequencies
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In earthquake engineering, understanding the concept of natural frequency is fundamental to the dynamic analysis of structures. Every structure, whether a building, bridge, or tower, has a certain frequency at which it naturally vibrates when subjected to a dynamic force. When the frequency of an external force, such as an earthquake, matches the structure’s natural frequency, resonance occurs—leading to amplified vibrations that can cause severe damage or failure.
Detailed Explanation
Natural frequency is a critical concept in earthquake engineering. It refers to the specific frequency at which a structure can vibrate freely. Every structure, like a building or a bridge, vibrates in a particular way when a force, like an earthquake, is applied. If the earthquake’s frequency aligns with the structure’s natural frequency, it can lead to resonance. Resonance significantly amplifies the vibrations, potentially causing destruction or failure of the structure. Understanding how to determine and mitigate these natural frequencies is essential for engineers in designing safe and resilient buildings.
Examples & Analogies
Think of a swing at a park. Every swing has a natural rhythm at which it moves back and forth. If you push the swing at exactly the right moment (matching its natural frequency), it swings higher and higher. However, if you push at the wrong time, it won’t swing effectively. Similarly, in buildings, if the tremors from an earthquake match the building’s natural frequency, it can cause the building to sway dangerously, just like the swing that goes too high.
Types of Vibrations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Free Vibration: Occurs when a structure is displaced and allowed to vibrate on its own.
• Forced Vibration: When a structure is subjected to an external periodic or random force.
• Undamped and Damped Systems: Ideal vs. real-world systems that account for energy dissipation.
Detailed Explanation
Vibrations can be classified into two main types: free and forced vibrations. Free vibrations happen when a structure is disturbed and allowed to oscillate on its own—think of a bell being struck. When struck, it rings naturally without any outside influence. On the other hand, forced vibrations occur when an external force is applied repeatedly, like a person pushing a child on a swing. Additionally, vibrations can be damped or undamped. Undamped systems do not lose energy as they vibrate, which is an ideal scenario, whereas damped systems are realistic as they lose energy over time due to friction or other forces that prevent continuous oscillation.
Examples & Analogies
Consider a guitar string. When you pluck it, it vibrates freely—that's free vibration. If someone continuously strums the string, they're applying a force, and the string vibrates with forced vibration, which changes how it sounds. In buildings, free vibrations can occur as a result of wind or minor movements, while forced vibrations may happen during an earthquake or other man-made activities.
Natural Frequency Definition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Natural frequency is the rate at which a system oscillates in the absence of any driving or damping force. Mathematically, for a single-degree-of-freedom (SDOF) system:
f_n = rac{1}{2 ext{π}} imes rac{ ext{√}k}{m}
Where:
• f_n = natural frequency (Hz)
• k = stiffness (N/m)
• m = mass (kg)
Detailed Explanation
Natural frequency can be formally defined as the rate of oscillation of a system when there are no external forces acting upon it. For a simple system, like a mass attached to a spring (referred to as a single-degree-of-freedom system), the natural frequency depends on two main factors: stiffness (how strong the spring is) and mass (how heavy the object is). The formula shows that natural frequency increases with higher stiffness and decreases with larger mass. Understanding this relationship allows engineers to predict how structures will behave during seismic activity.
Examples & Analogies
Imagine a child on a swing. If the swing is made of a strong, thick chain (higher stiffness), the swing will go back and forth quickly (higher natural frequency). If the child grows heavier (increased mass), the swing will move slower, indicating a lower natural frequency. Just like this swing, structures respond to forces based on their mass and stiffness.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Free vs. Forced Vibrations: Free vibrations occur when a structure oscillates without any external influence while forced vibrations result from external periodic forces.
-
Natural Frequency Definition: It is the frequency at which a system oscillates without any external or damping forces. For a Single-Degree-of-Freedom (SDOF) system, natural frequency is defined mathematically as:
-
f_n= rac{1}{2 ext{π}} rac{ ext{√}(k)}{m}
-
where 'k' is the stiffness, and 'm' is the mass.
-
SDOF and MDOF Systems
-
Mathematical Modeling: The Mass-Spring-Damper model represents a simple structural system.
-
Undamped Natural Frequency: Higher stiffness correlates with a higher natural frequency.
-
MDOF Systems: Structures with multiple natural frequencies; analyzed using eigenvalues and mode shapes.
-
Modal Analysis and Numerical Methods
-
Modal Superposition: The response of MDOF systems can be described by the superposition of SDOF systems.
-
Eigenvalue Problems: Involves solving for natural frequencies and mode shapes using matrices.
-
Rayleigh’s Method and FEM: Techniques for estimating natural frequencies.
-
Factors Influencing Natural Frequencies
-
Mass Distribution: More mass generally leads to lower natural frequencies.
-
Stiffness Variation: Increased stiffness raises natural frequency, while flexible stories can reduce it.
-
Boundary Conditions: The way a structure is supported greatly influences its natural frequency.
-
Resonance in Structural Response
-
Resonance occurs when the frequency of an external force aligns with the structure’s natural frequency, causing potentially dangerous vibrations. Prevention involves design adjustments such as mass alteration, damping systems, or isolation techniques.
-
The section concludes by emphasizing the importance of natural frequency analysis in the design and retrofitting of structures to withstand seismic events.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A suspension bridge swaying in harmony with wind forces displays significant vibrations, showcasing its natural frequency.
-
Tall buildings in urban areas are designed considering their natural frequencies to ensure they withstand seismic waves.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Free to sway, vibrations play - in natural frequency's game, stay.
📖 Fascinating Stories
-
Imagine a swing at a playground. When you push it at the right moment, it goes higher. That's resonance in action – when external force matches the swing's natural frequency, it amplifies the motion.
🧠 Other Memory Gems
-
F.R.E.E. - Free vibrations occur without external forces, while Resonance occurs when frequencies match and Amplify.
🎯 Super Acronyms
S.M.A.R.T. - Stiffness increases, Mass affects, Amplification occurs, Resonance matters, Tuning is essential.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Natural Frequency
Definition:
The frequency at which a system oscillates in the absence of external forces.
-
Term: Free Vibration
Definition:
Vibration that occurs when a structure is displaced and allowed to oscillate without external forces.
-
Term: Forced Vibration
Definition:
Electric power or mechanical force applied externally to a system that causes vibrations.
-
Term: Damped Systems
Definition:
Systems that lose energy over time, resulting in reduced vibrations.
-
Term: MDOF System
Definition:
Multi-Degree of Freedom system, where structures have multiple natural frequencies due to their complexities.
-
Term: Eigenvalue Problem
Definition:
A mathematical approach used to determine the natural frequencies and mode shapes of structures.
-
Term: Resonance
Definition:
A phenomenon that occurs when the frequency of an external force matches a system's natural frequency, leading to amplified vibrations.
