Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Modal Participation Factor
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will discuss the Modal Participation Factor, or MPF. Can anyone tell me why it's crucial to understand how different modes contribute to a structure's response?
Is it because some modes might affect the structure more than others during an earthquake?
Exactly! The MPF quantifies this contribution, helping engineers prioritize which modes are essential to consider. Who remembers the formula for MPF?
It involves a mode shape vector and the mass matrix, right?
Correct! Let's break that down a bit— the formula is \(\Gamma_i = \frac{\phi_i^T M 1}{\phi_i^T M \phi}\). This tells us how much each mode, represented by \(\phi_i\), participates in the overall response of the structure.
How does a higher MPF impact our analysis?
Great question! A higher MPF means that mode is significant for the structure's seismic response, which is important when deciding how many modes to include in an analysis. If a mode's contribution is minimal, it may not need to be part of our calculations.
In conclusion, understanding MPF helps us focus on the most impactful modes during dynamic analysis, ensuring structural safety during seismic events.
Applying the Modal Participation Factor
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we understand what the Modal Participation Factor is, let's discuss how to apply it. Why would we want to focus on certain modes during seismic evaluations?
To ensure we're using our computational resources efficiently and not overloading unnecessary data!
Exactly! And typically, engineers aim for a cumulative participation of at least 90-95% of the total mass. Why do you think this threshold is important?
To ensure we capture most of the dynamic responses without too much complexity?
Right! Practical application of MPF helps in deciding how many modes we need to include. Typically, we might include only the first 3 to 5 modes in low-rise structures. What about tall buildings?
For tall buildings, we might need to consider more— up to 15 to 20 modes, perhaps?
Exactly. Higher modes may become significant due to the increased flexibility of tall structures. So remember, the key is ensuring comprehensive analysis while maintaining efficiency. Always think about those MPFs!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore Modal Participation Factors (MPF) that measure the contribution of individual vibration modes to a structure's overall response under seismic loading. A higher MPF indicates a mode's significant impact on the response, highlighting the need to consider varying contributions during analysis.
Detailed
Modal Participation Factors
In structural dynamics, the response of a structure during dynamic loading, particularly during seismic events, can involve many vibrational modes. The Modal Participation Factor (MPF) serves as a quantitative measure of how much each mode contributes to the overall dynamic response of a structure.
The MPF is defined mathematically as:
\[ \Gamma_i = \frac{\phi_i^T M 1}{\phi_i^T M \phi} \]
Where:
- \( \phi_i \): Represents the mode shape vector of the ith mode.
- M: The mass matrix.
- 1: A unit vector for uniform ground motion.
The significance of the MPF lies in its ability to provide insights regarding each mode's participation in the seismic response. A higher MPF signifies that the respective mode has a substantial contribution to the structure's response during seismic events. This understanding is crucial for engineers when analyzing and designing structures to withstand dynamic forces.

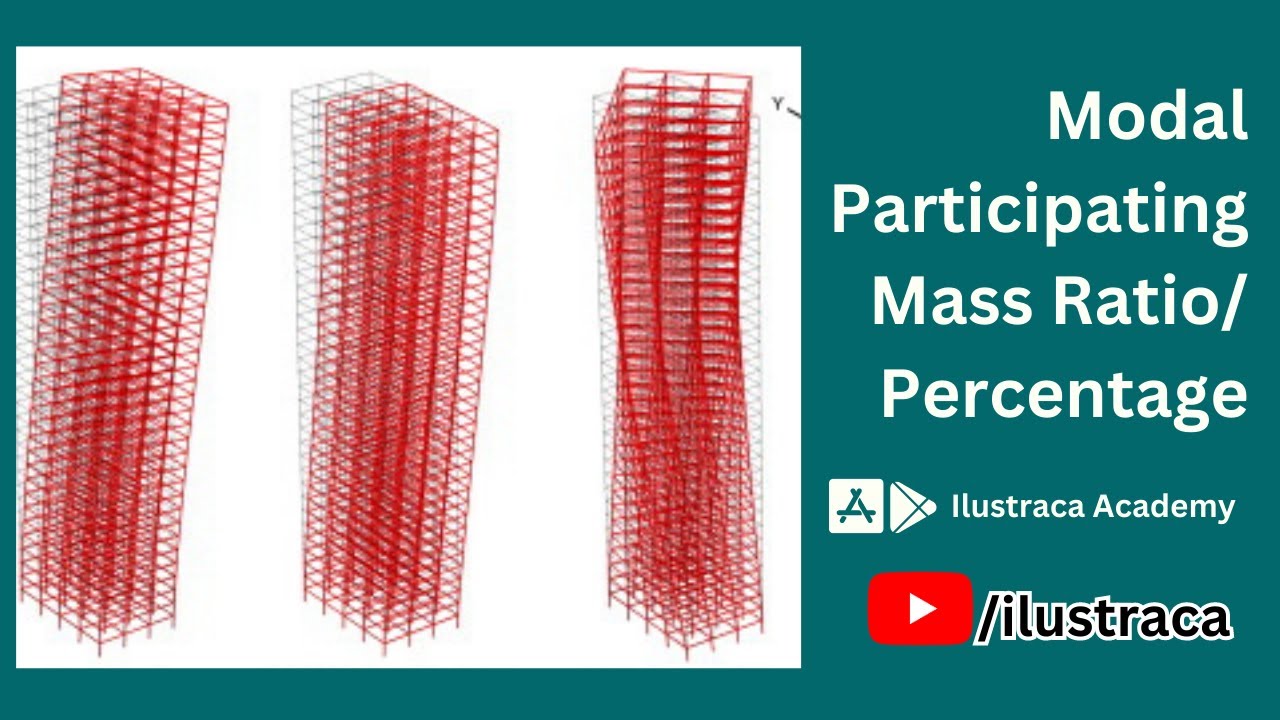

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Significance of Participation Factors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A higher participation factor means the mode significantly contributes to the seismic response.
Detailed Explanation
The importance of understanding participation factors lies in the ability to identify which modes are crucial for the structural integrity of buildings during seismic activity. When an earthquake occurs, different modes will respond to the ground motion to varying degrees based on their participation factors. If a mode has a high participation factor, it means that neglecting this mode in analysis could lead to inaccurate predictions of how the building will behave during an earthquake, potentially compromising safety. It’s beneficial for engineers to focus their analysis on only the most contributive modes, typically those with the highest participation factors.
Examples & Analogies
Think of a sports team preparing for a game. Some players may have a bigger impact on the game’s outcome than others based on their skills and positions. If a key player, such as the team's captain or star striker, is sidelined or not considered in practice, the team could perform poorly. In structural engineering, recognizing which modes have higher participation factors is like ensuring that key players are trained and prepared, which enhances the overall performance of the structure during an earthquake.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Modal Participation Factor: It quantifies the contribution of each vibrational mode to a structure's overall response.
-
Higher MPF Indication: A higher MPF indicates that the respective mode significantly influences the seismic response.
-
Cumulative Participation Threshold: Engineering practice aims for at least 90-95% cumulative modal mass participation.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a typical high-rise building, the first three to five modes might explain over 90% of the building's response, simplifying analysis and ensuring safety.
-
For an irregularly shaped building, higher modes might contribute more significantly; thus, it would be prudent to include up to 20 modes.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For each mode, take a peek, how much it helps, that’s what we seek!
📖 Fascinating Stories
-
Imagine a heavy bridge trembling during an earthquake. Each part vibrates differently; the MPF helps us find which parts sway the most and play the biggest role in safety.
🧠 Other Memory Gems
-
M for Modal, P for Participation, F for Factor. Remember: My People Fear shaking during earthquakes.
🎯 Super Acronyms
MPF
- Modal Participation Factor—Measures participation
- Finds importance.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Modal Participation Factor (MPF)
Definition:
A quantitative measure of how much each mode of vibration contributes to the overall dynamic response of a structure.
-
Term: Mode Shape Vector
Definition:
A vector representing the pattern of deformation associated with a particular mode of vibration.
-
Term: Mass Matrix (M)
Definition:
A matrix that describes the distribution of mass within a structural system.
