39.5. Guidelines from IS 4326:1993 (Earthquake Resistant Design and Construction of Buildings)

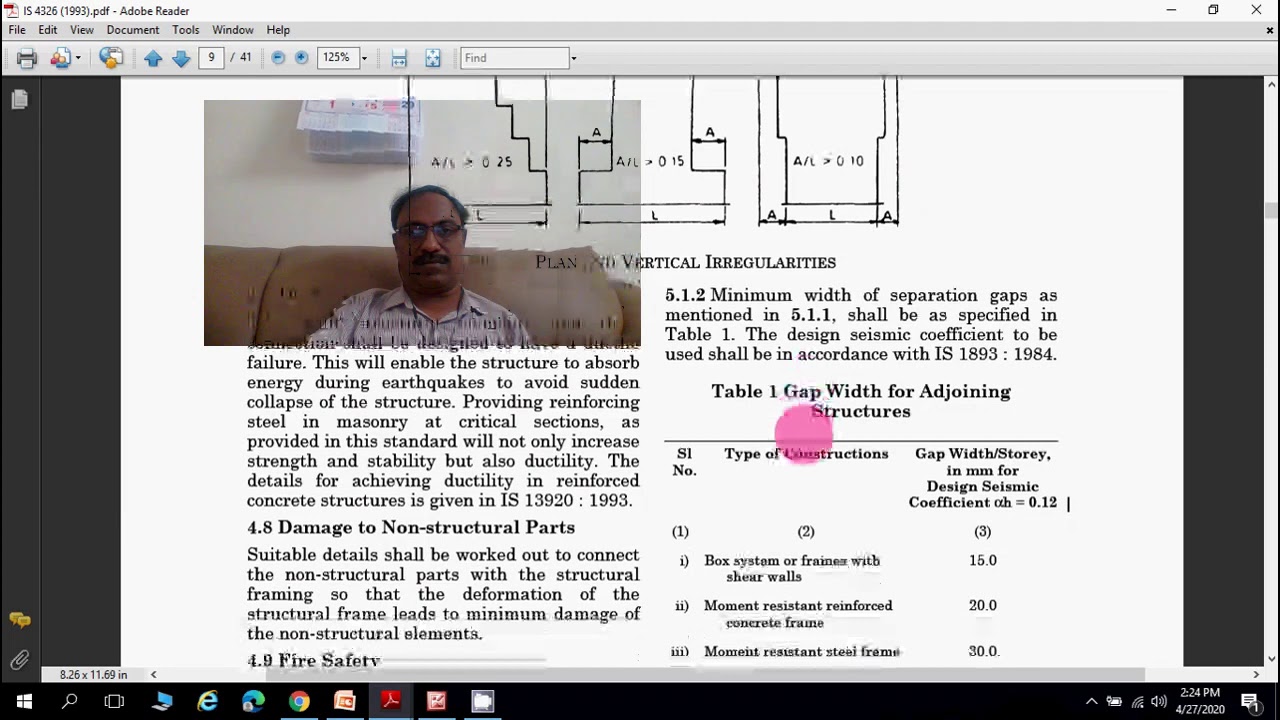

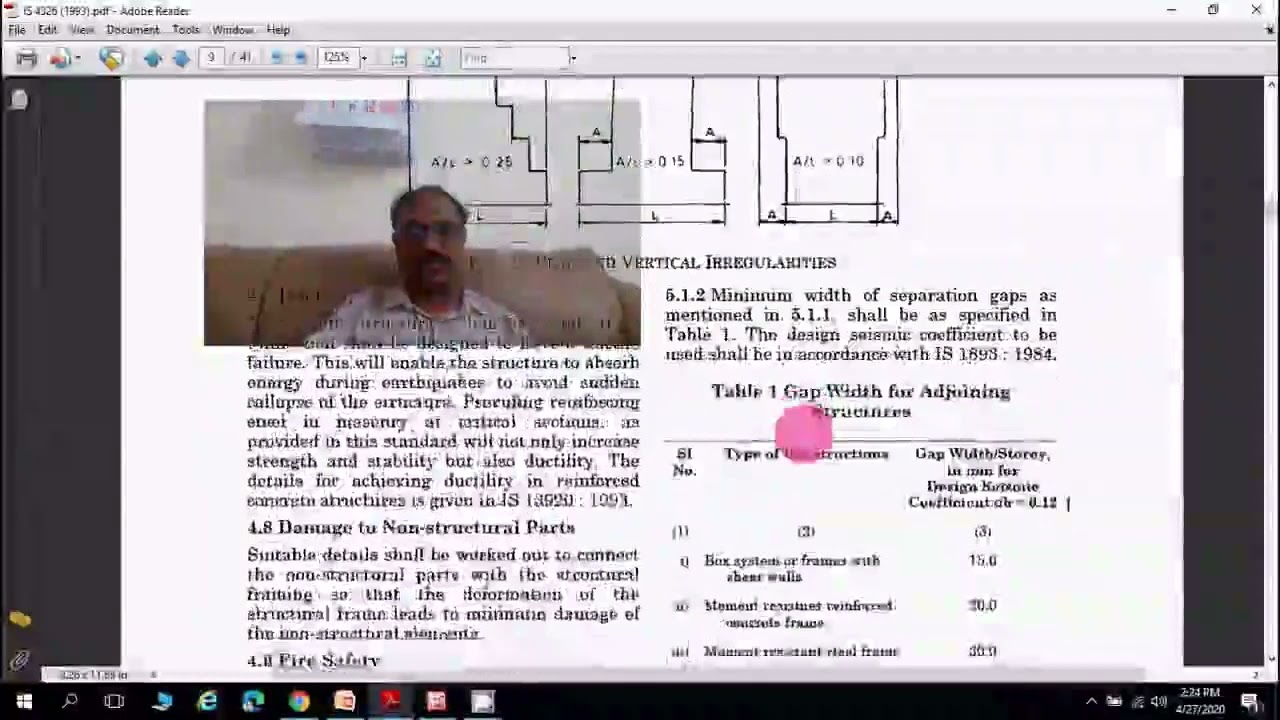

Control joints to prevent pounding.

In earthquake-prone areas, buildings can sway and move significantly. To avoid damage from buildings colliding or pounding against one another, control joints are introduced. These are intentional gaps designed to allow neighboring structures to move independently without impacting each other. By using these control joints, we help to minimize the chance of structural failure and maintain the integrity of each unit during seismic events.

Imagine two dancers performing next to each other. If one suddenly changes direction or speed, the other must have enough space to adjust without colliding. Similarly, control joints provide enough space for buildings to sway during an earthquake without crashing into one another.

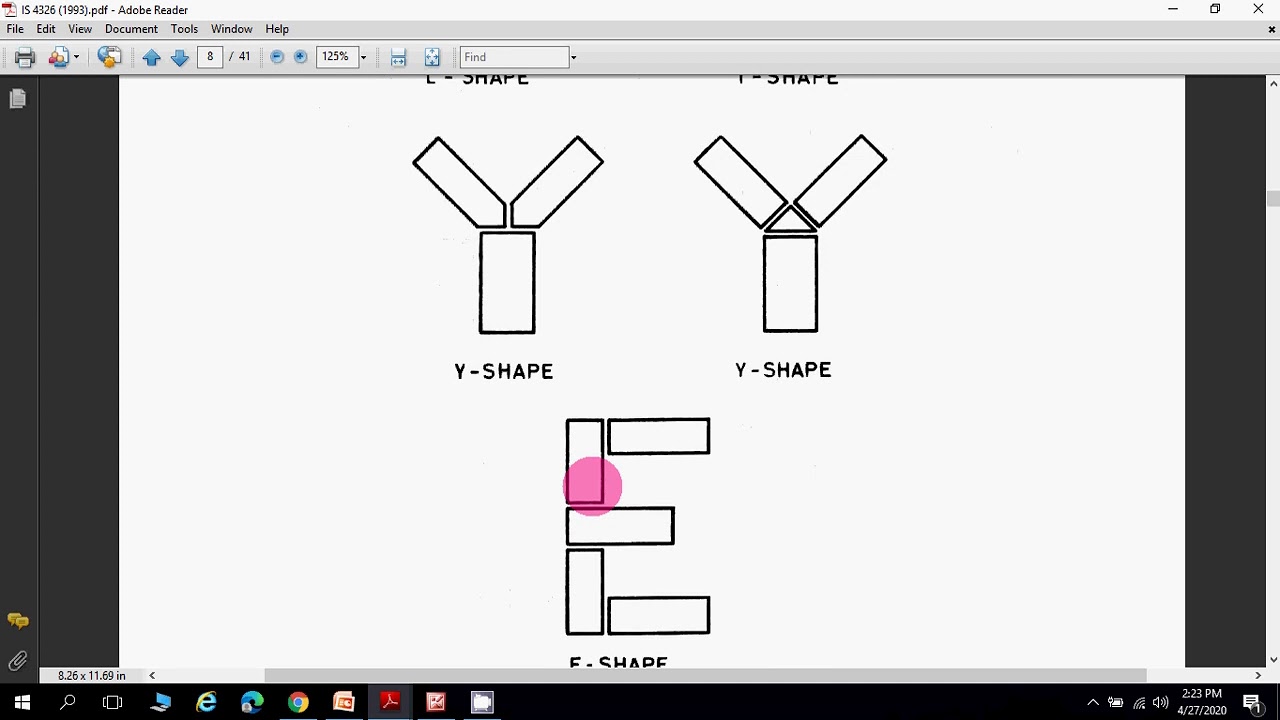

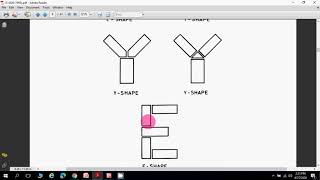

Symmetry in Plan and Elevation: Avoid torsion.

Symmetry in building design helps distribute forces evenly during seismic activity. An asymmetrical building can twist or rotate unpredictably during an earthquake, leading to torsional forces that can cause major damage or collapse. Therefore, IS 4326 emphasizes maintaining symmetry in both the layout (plan) and height (elevation) of the building to ensure it responds uniformly to seismic forces.

Think of riding a seesaw; if you sit perfectly centered, it balances well, but if one side is heavier or positioned differently, it becomes unsteady and could flip. Similarly, symmetrical building designs maintain balance and stability during earthquakes.

Avoidance of Weak Storey and Soft Storey.

A weak storey refers to a floor that has less strength compared to the floors above or below it, while a soft storey typically has large openings or a reduced amount of structural support. Both conditions can lead to catastrophic structural failures during an earthquake because these floors may not withstand lateral forces. The guidelines recommend that buildings should be designed to ensure that each storey has adequate strength and stiffness to resist seismic loads.

Imagine a stack of blocks where the bottom block is much smaller than the others. If you try to push down on it, it might collapse easily. This illustrates how weak or soft storeys can lead to the collapse of an entire building during an earthquake.

Proper Reinforcement Detailing: To avoid anchorage failure.

Proper reinforcement detailing ensures that the steel bars used in concrete structures are adequately anchored and connected to prevent failure during seismic events. Anchorage failure can lead to parts of a structure losing connection and ultimately collapsing. The guidelines stress the importance of using appropriate lengths and locations for reinforcing bars, particularly in critical sections like beam-column joints.

Think of a chain holding up a heavy weight; if any link is weak or not properly secured, the entire chain can fail under stress. This analogy reflects how critical it is to ensure that reinforcement in buildings is detailed correctly to keep the structure safe during an earthquake.

Use of Lightweight Materials: To reduce seismic mass.

Using lightweight materials in construction lowers the overall mass of the building. This is important because during an earthquake, heavier structures experience larger forces. By using lighter materials, the building can effectively limit the forces it encounters during seismic events, thereby enhancing its earthquake resilience.

Consider carrying a heavy backpack versus a light one while jogging. You'll find that the lighter pack allows for faster movement and less strain on your body. Similarly, lightweight construction materials help buildings move more flexibly and reduce stress during earthquakes.

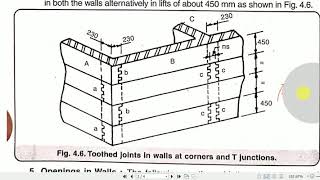

Plinth Bands, Lintel Bands, Roof Bands (for masonry but similar principles used in RC).

Plinth bands, lintel bands, and roof bands are horizontal reinforcements that help stabilize the structure at various heights. They distribute loads and enhance the building's ability to withstand lateral forces during seismic activity. IS 4326 advises that these bands be used in all types of buildings to ensure better structural integrity.

Think of a bridge supported by beams. If those beams are spaced too far apart, the bridge can sag or collapse. However, if you have cross-bracing (like plinth, lintel, and roof bands), it creates a stronger, more stable structure. This is how these bands function in buildings during an earthquake.

Staircase Isolation: Prevents torsional forces transmission.

Staircase isolation is a construction technique where the staircase is designed to be disconnected from the main structure, allowing it to move independently during seismic events. This prevents the transmission of twisting forces that can compromise the building's stability. IS 4326 recommends this measure to reduce the risk of failure in the stair structure during an earthquake.

Imagine two dancers again: one is fixed in place while the other is free to move around it. If the fixed dancer suddenly tilts, they may pull the other dancer down. However, if the second dancer is free to move, they can adjust without affecting the fixed partner. This explains how staircase isolation functions during earthquakes.

Foundation Ties: For uniform movement during shaking.

Foundation ties connect various structural components of the building to ensure they move uniformly when subjected to seismic forces. This uniformity prevents the parts of the building from separating or collapsing during an earthquake. IS 4326 underscores this aspect to enhance overall structural performance under seismic loads.

Consider a team of people pulling on a rope. If one person pulls harder than others, they could break away and fall. Yet, if all are tied together firmly, they can move together as one unit, reducing the risk of separation. This is analogous to how foundation ties aid in the stability of a structure during an earthquake.

--
