Fundamentals of Moment Resistance
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we are discussing the Strong Column – Weak Beam concept. This concept is vital for ensuring that our structures can withstand seismic activities. Can anyone tell me why moment resistance is crucial in this context?
I think moment resistance helps keep the structure stable during earthquakes?
Exactly! The moment resistance of columns should be greater than that of beams to ensure that beams yield and that we avoid a brittle failure. This is essential during seismic events. Can you relate moment resistance to any practical examples?
Yes! In a well-designed RC frame, if a beam yields first, it helps absorb the energy from the seismic forces.
That's right! If the beams perform ductile deformations, it allows the columns to remain elastic and support the structure. This leads us to the next part, the code requirements.
Code Requirements and Applications
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
According to IS 13920:2016, there’s a critical equation we should remember: \( \sum M_c \geq 1.2 \times \sum M_b \). Can anyone explain what this means?
It shows the relationship between the moments in columns and beams! It ensures that columns always have a higher moment capacity.
Exactly! By adhering to this requirement, engineers can ensure structures are designed to endure seismic forces. How do you think this impacts the design process?
It likely influences how much reinforcement is needed in both beams and columns.
Absolutely! The design strategy focuses on reinforcing columns adequately so they won't experience yielded failure before beams do. This planning is essential for safety in structural engineering.
Practical Implications of Ductility
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s look at practical implications of this concept. Why do you think it's termed 'weak beam' instead of just focusing on 'strong column'?
I think it emphasizes that the beams are designed to fail in a controlled way which is preferable in quakes.
Right! This promotes a ductile failure mechanism over a sudden collapse. Repairing or reinforcing a failed beam is often easier than a column. Can you think of an instance where this principle would be crucial?
In high-rise buildings! If a lower beam fails, the upper structure can still be supported by columns without immediate collapse.
Exactly! This principle makes a compelling case for strong column design and weak beam strategies in earthquake-prone areas, improving overall safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This concept emphasizes that in a seismic event, columns should possess greater moment resistance than beams, thereby ensuring that beams yield and form plastic hinges before columns do. This design principle aids in preventing soft-storey failures and maintains overall structural integrity under stress.
Detailed
Strong Column – Weak Beam Concept
The Strong Column – Weak Beam concept is a foundational principle in the seismic design of buildings, particularly those constructed with Reinforced Concrete (RC). This concept ensures that during seismic loading, the structural behavior is ductile rather than brittle, which is crucial for minimizing the risk of sudden collapse.
Key Principles:
- Moment Distribution: Columns must resist greater moments than the beams that frame into them. This priority protects the structural integrity during moments of high stress, particularly during earthquakes.
- Failure Mode Control: By ensuring that plastic hinges develop in beams rather than columns, we achieve a controlled failure mechanism. This prevents potential story mechanism failure and limits the occurrence of a soft-storey collapse, where the ground floor or lower floors collapse before upper levels due to insufficient strength.
Code Requirements:
According to IS 13920:2016 Clause 7.1.1, this relationship can be quantified by the equation:
\[ \sum M_c \geq 1.2 \times \sum M_b \]
Where \(M_c\) is the moment resistance in columns, and \(M_b\) is the moment resistance in beams. This requirement clearly defines the necessary ratio of resistive moments, thereby guiding engineers in their design decisions to enhance seismic resilience.

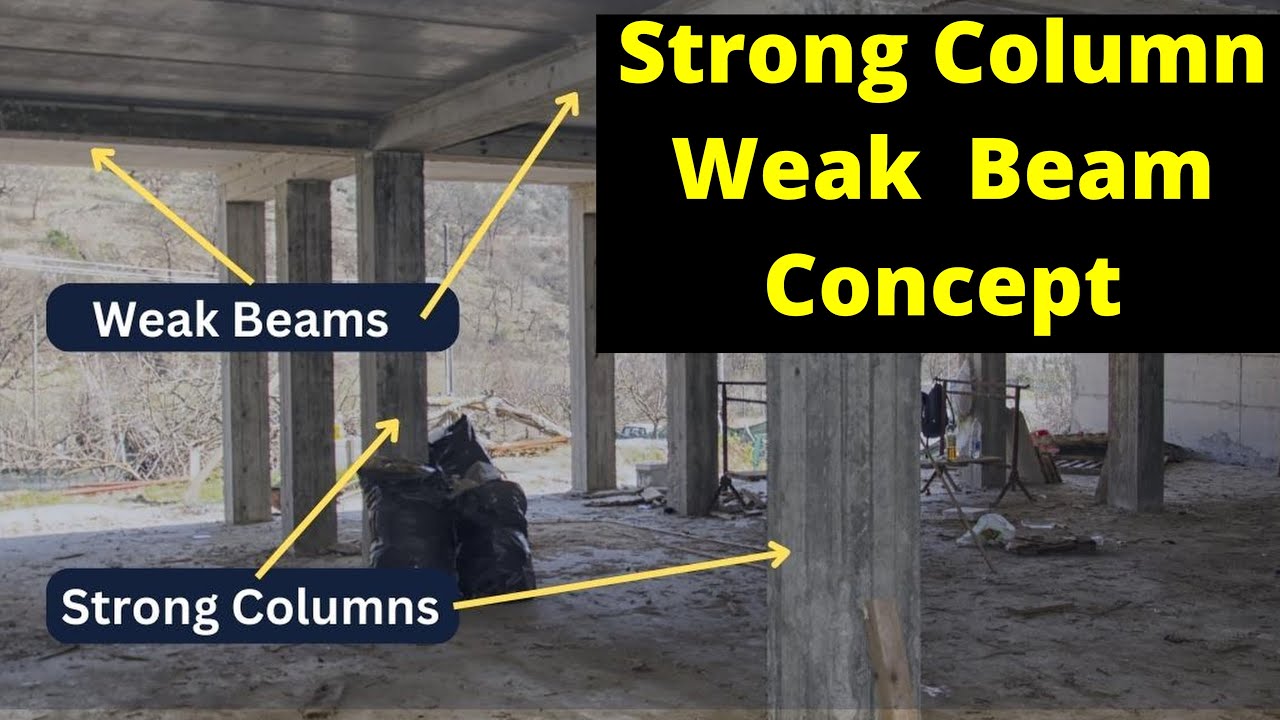

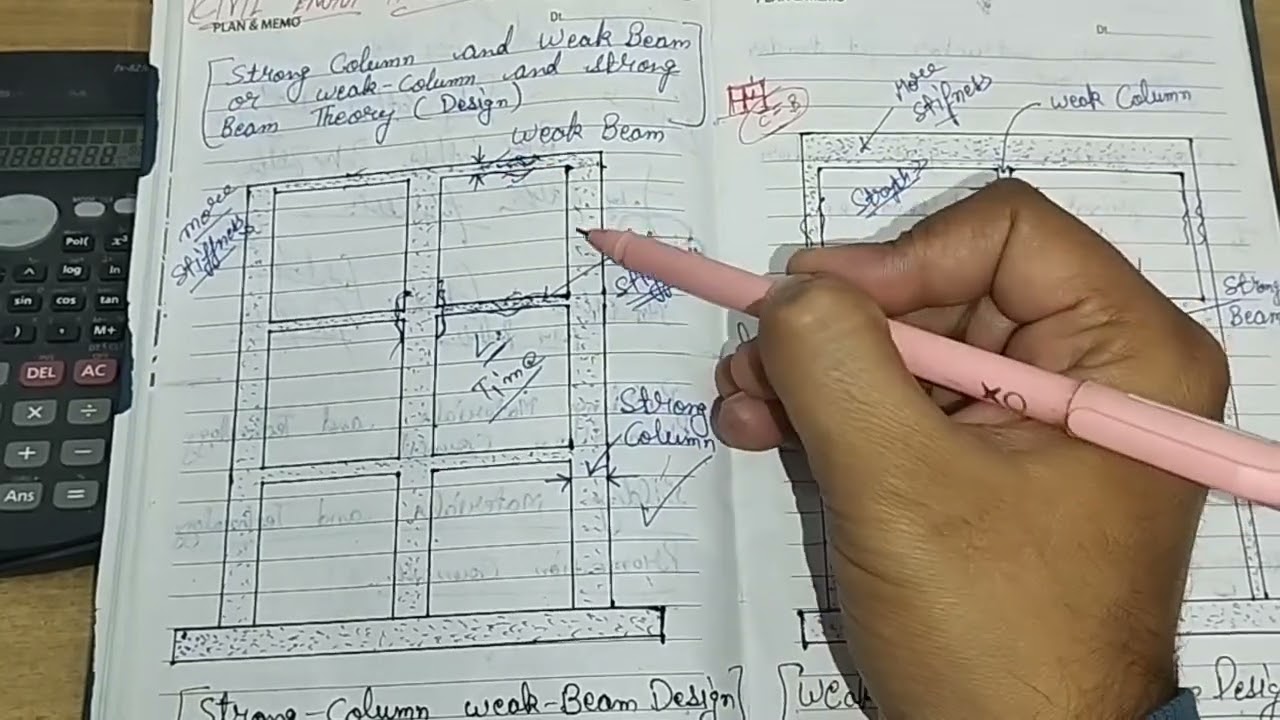

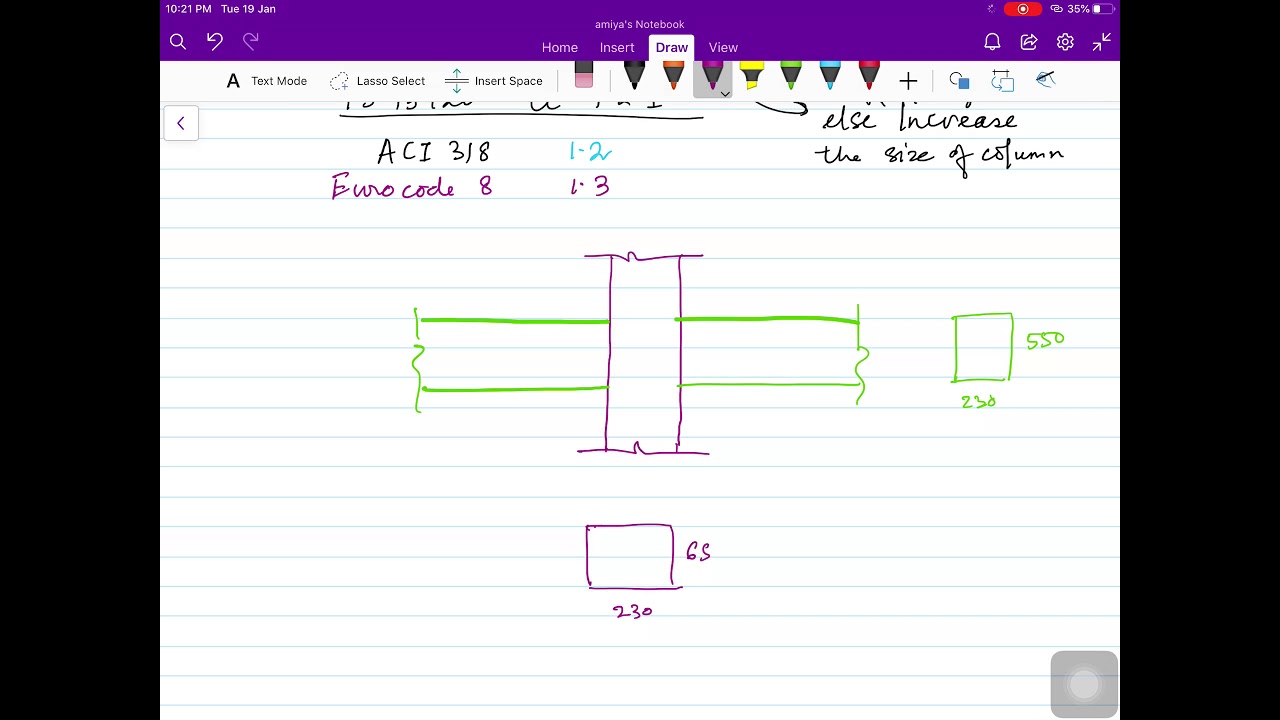

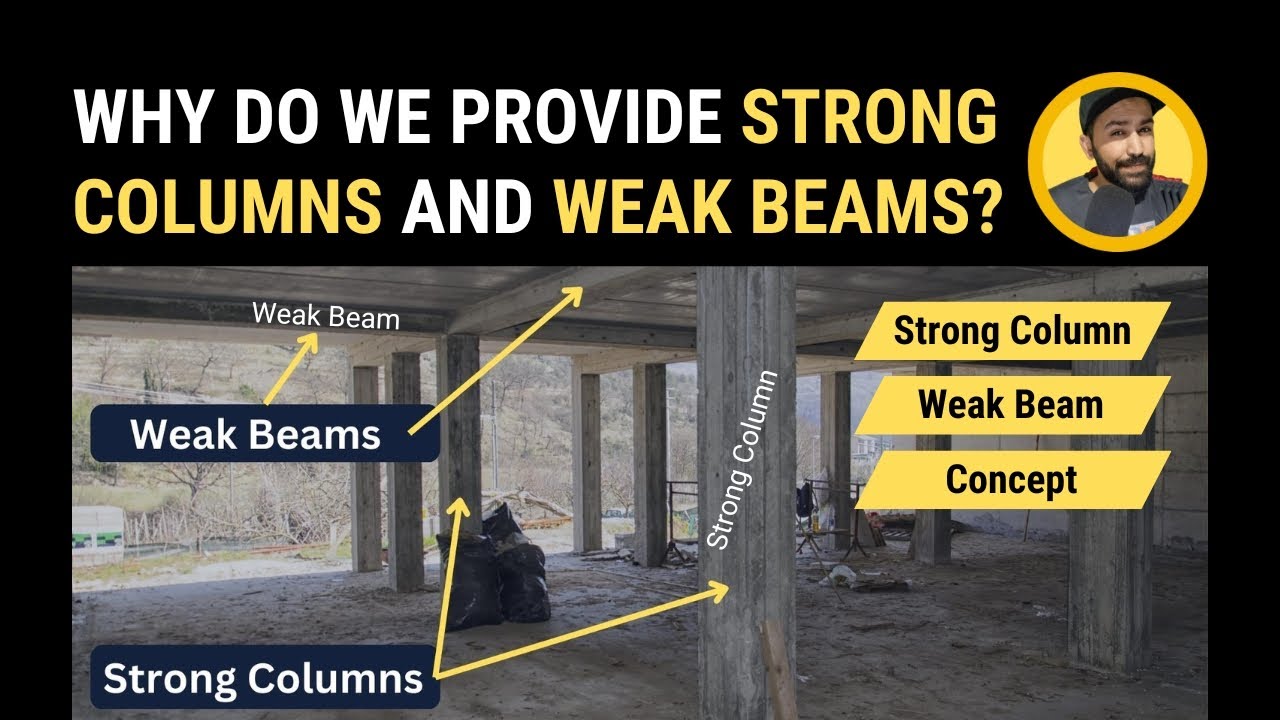

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Core Principles of the Concept
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- This is a fundamental concept in seismic design aimed at ensuring ductile behavior in a building frame.
- Columns should resist more moment than the beams framing into them.
- Prevents story mechanism and soft-storey collapse.
- Ensures plastic hinges form in beams (preferred failure mode).
Detailed Explanation
The 'Strong Column – Weak Beam' concept is essential in seismic design for buildings. It emphasizes that columns, which are vertical supports, should be designed to withstand higher bending moments compared to the beams that connect to them. This design strategy helps prevent the formation of a 'story mechanism,' which could lead to a soft-storey collapse, a failure mode where the building's upper floors might collapse on weaker lower floors. The intent here is to ensure that during an earthquake, the beams yield and deform instead of the columns, effectively managing how and where the building fails.
Examples & Analogies
Imagine a tree during a storm. If the trunk (analogous to the columns) is strong while the branches (the beams) are relatively weaker, the branches will bend or break under stress while the trunk remains intact, preventing the whole tree from falling over. This analogy illustrates how the design aims to control where the failure occurs, ensuring it happens in a more manageable part of the structure.
Code Requirements for Design
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Code Requirements (IS 13920:2016 Clause 7.1.1):
∑ Mc ≥ 1.2 × ∑ Mb
Where, - Mc = Moment of resistance of columns at a joint
- Mb = Moment of resistance of beams at the same joint
Detailed Explanation
According to IS 13920:2016, the design of reinforced concrete structures should follow specific requirements to implement the strong column-weak beam concept. The equation given, ∑ Mc ≥ 1.2 × ∑ Mb, states that the total moment resistance offered by the columns at a joint (Mc) should be at least 1.2 times that offered by the beams (Mb). This requirement is essential to ensure that in the event of seismic action, the columns can effectively support and resist the forces better than the beams, fostering a ductile failure mechanism.
Examples & Analogies
Think of a seesaw where one side (the column side) needs to be heavier or stronger than the other side (the beam side) to keep it balanced when kids (forces) jump on either end. If the stronger side can support more weight than the weaker side can withstand, it prevents a sudden collapse of the seesaw. This analogy helps visualize how designing structures with stronger columns prevents catastrophic failures during earthquakes.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Strong Column - Weak Beam: A design philosophy focusing on ensuring columns resist greater moments than beams during seismic events.
-
Plastic Hinge Formation: Beams should be designed to form plastic hinges under stress for energy absorption.
-
Moment Equilibrium: The relationship defined by \( \sum M_c \geq 1.2 \times \sum M_b \) to guide moment resistance in design.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a high-rise building, if the beams are designed to yield and form plastic hinges during an earthquake, the columns remain intact, maintaining overall stability.
-
During the Bhuj Earthquake, structures adhering to the Strong Column - Weak Beam concept demonstrated significantly higher survivability.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Columns strong, beams must bend, in quakes, our lives depend.
📖 Fascinating Stories
-
Picture a large building swaying in an earthquake. The columns proudly hold strong, while the beams flex and yield, ensuring safety for all inside.
🧠 Other Memory Gems
-
Remember the order: Column-Come before Beam-Bend to keep the structure's end secure!
🎯 Super Acronyms
CWB = Column Weak Beam; a fun way to remember the right design order.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Moment Resistance
Definition:
The capacity of a structural element to resist bending moments without failing.
-
Term: Ductility
Definition:
The capacity of a material or structure to deform plastically before breaking.
-
Term: Plastic Hinge
Definition:
A theoretical point in a structure where rotation occurs without an increase in moment due to plastic deformations.
-
Term: SoftStorey Collapse
Definition:
A failure mode where lower floors of a structure fail disproportionately compared to higher floors, often leading to total collapse.
-
Term: IS 13920:2016
Definition:
An Indian Standard code that provides guidelines for ductile detailing of RC structures subjected to seismic forces.
