20.3. Momentum Flux Correction Factors

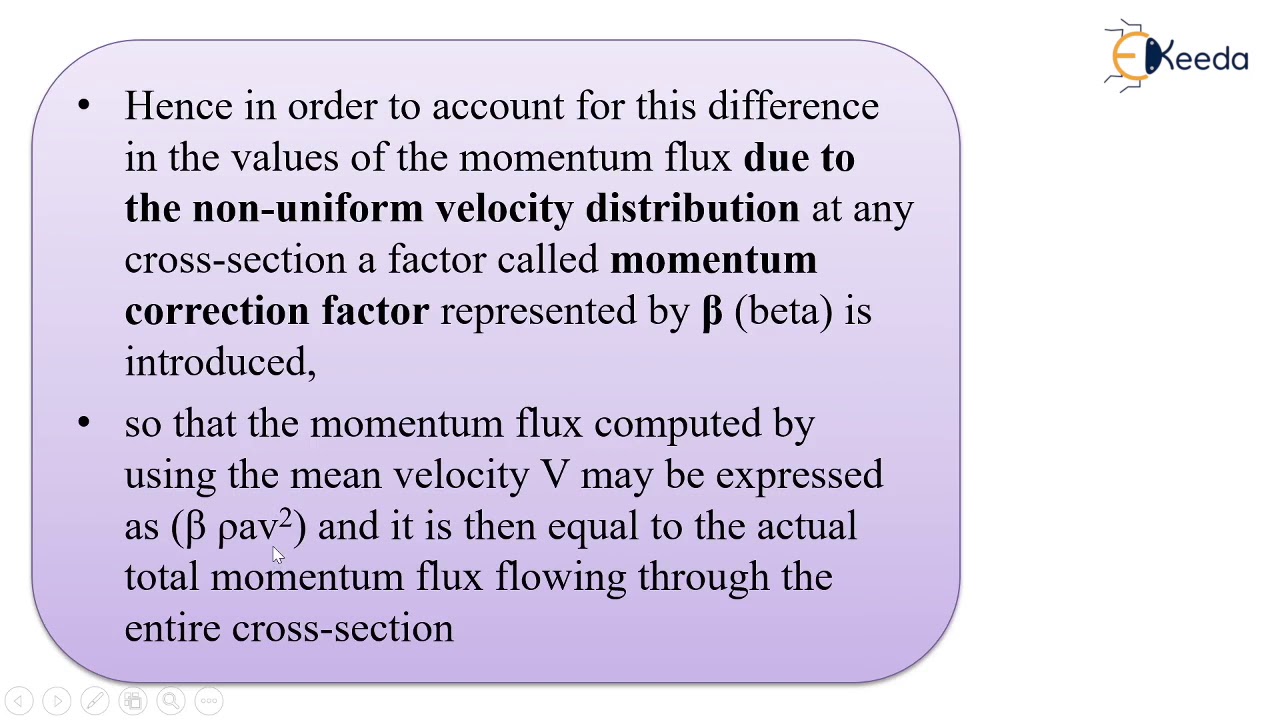

The momentum flux correction factors are a simplified concept used to determine the momentum flux passing through non-uniform cross-sections. When velocity distributions are non-uniform, the momentum flux correction factors become crucial.

Momentum flux correction factors help make adjustments to the momentum flux calculations when dealing with non-uniform velocity distributions in fluid flows. Essentially, when fluid flows through a cross-section, the average velocity can differ significantly from the velocities at different points throughout that cross-section. Understanding and applying momentum flux correction factors ensures that we accurately account for these variations in velocity, leading to more precise calculations of forces and other parameters in fluid mechanics.

Imagine a garden hose spraying water. If the flow is steady and uniform, the pressure at the end of the hose is consistent. However, if you partially cover the hose with your thumb, you create a non-uniform flow. The water pressure and velocity will drastically change at the opening where the flow is constricted compared to regions elsewhere along the hose. Similarly, in fluid mechanics, when we have non-uniform velocity distributions, we must use correction factors to get the true momentum flux.

When applying the linear momentum equations, one should consider momentum flux correction factors due to the variation in velocity distribution. If the velocity distribution is uniform, the correction factor is 1. However, if it’s non-uniform, the correction factors will differ.

In engineering applications, it is common to derive momentum-related calculations from the mass flow and velocity. When the flow is uniform, the momentum flux correction factor is straightforward and equals one. But in real-world scenarios, flows are usually non-uniform due to various factors like surface textures and obstacles in the flow path. Therefore, we need to calculate different correction factors for various areas or sections of a fluid flow to accurately evaluate the momentum flux and related forces acting on the control surfaces if they differ.

Consider a busy highway with different lanes. If all cars travel at the same speed, each lane is like a fixed cross-section with uniform velocity, leading to no need for corrections. But if one lane is congested while another is wide open, the speeds are different across lanes, necessitating adjustments in calculations for accurate traffic flow analysis. Similarly, fluid flows can have varying velocities in different sections, and the momentum flux correction factors help account for that variability.

In cases with a simple system having one inlet and one outlet, the mass influx must equal the mass outflux. You can compute the momentum flux at the inlet and outlet considering the momentum flux correction factors for uniform versus non-uniform velocity distributions.

When dealing with systems where fluid enters through a single point and exits through another, maintaining the balance between incoming and outgoing mass is key. This conservation principle helps formulate equations that allow computation of forces at play due to momentum changes. By observing the velocities and applying the corresponding correction factors, we ensure that the calculations are precise, enabling engineers to predict the behavior of fluid systems reliably.

Think of flushing a toilet. Water enters through the inlet, rinses through the bowl, and exits through the outlet. The inflow and outflow rates need to match for the flush to work effectively—a perfect balance! If too much water flows in or out, it could either overflow or waste water. Just like in that example, fluid systems must adhere to mass conservation principles, improving calculations with momentum flux correction factors when needed.

When applying the linear momentum equations, remember to visualize the fluid flow's vector nature. It’s crucial to account for the directions and magnitudes of forces acting in the control volumes. This ensures that each component is accurately represented when summing forces and determining the momentum flux.

Fluid dynamics relies heavily on correctly assessing the direction of flow and corresponding forces. The momentum equation is vector-based, meaning that flow in various directions may require separate analyses for the X, Y, and Z components. By breaking down these components, we can simplify our calculations and address each aspect of the flow more precisely. Failing to incorporate these factors or ignoring the vector nature may lead to miscalculations of forces acting in the system.

Picture a soccer player kicking a ball. The ball travels in a specific direction with momentum that can be broken down into horizontal (X) and vertical (Y) components. Understanding how each component behaves helps players determine how hard to kick and in which direction to aim for the best shot. Similarly, properly applying vector components in fluid dynamics helps predict fluid behavior more effectively, leading to successful outcomes in engineering and design tasks.

--
