Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Linear Momentum Equations
Unlock Audio Lesson
Today, we will discuss the linear momentum equations. Does anyone know why we consider them as vector equations?
Because they have multiple components, right?
Exactly! They have components in the X, Y, and Z directions. Knowing this helps us in solving fluid dynamics problems effectively. Remember, we can visualize fluid flow in three dimensions.
What happens if we only focus on one direction?
That's a great question! While we can simplify things by focusing on one direction, we must keep in mind the interactions of other directions. It's essential to solve problems systematically.
Can you give us an example of simplifying in one direction?
Sure! If we know there are no external forces in the Y and Z directions, we can directly apply the momentum equation in the X direction. Let's remember: 'Focus first, then simplify!'
To summarize, always consider the vector nature of momentum equations and focus on all relevant components during analysis.
Momentum Flux Calculations
Unlock Audio Lesson
Next, we need to understand momentum flux, particularly incoming and outgoing terms. What is momentum flux, and how do we calculate it?
Isn't it the product of mass flow rate and velocity?
Exactly right! It's the product of the mass flux and velocity. And remember to consider the velocity direction when determining the sign—positive for outflow, negative for inflow. Can anyone tell me the significance of scalar products in this context?
It helps us determine if we should use positive or negative signs for momentum flux.
Correct! As a memory aid, think of 'Inflow is like a minus sign.' At this point, can anybody share a situation where understanding this could help?
I think during pipe flow analysis, it would help to visualize which direction the water is moving.
Well said! In summary, always compute momentum flux based on direction and ensure the correct sign convention to avoid mistakes.
Momentum Flux Correction Factors
Unlock Audio Lesson
Now, let's talk about momentum flux correction factors. Who can explain why they're necessary?
They account for non-uniform velocity distributions, right?
Exactly correct! In reality, fluid flow is rarely uniform. We need to apply a correction factor. Does anyone remember the symbol used for this factor?
Beta (β), right?
That's right! Beta indicates how much we need to correct our calculations based on velocity variations. If we assume uniform flow, beta equals 1. Now, remember this acronym for sorting your tasks: FOCUS - 'Find, Organize, Compute, Understand, Simplify.'
FOCUS makes it easy to remember the steps!
Absolutely! Summarizing: always consider correction factors in non-uniform flows. It’s key to accurate momentum flux calculations.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the application of linear momentum equations within fluid mechanics, detailing important considerations such as controlling external forces, analyzing vector components, and using momentum flux correction factors. The author emphasizes simplification tips that facilitate solving engineering problems related to flow dynamics.
Detailed
Tips for Applying Linear Momentum Equation
In fluid mechanics, properly applying linear momentum equations is crucial for analyzing systems involving fluid flow. The linear momentum equation is inherently a vector equation with three scalar components—X, Y, and Z—which must be appropriately addressed during analysis. This section outlines critical hints to ease the application of these equations in practical situations, particularly when dealing with control volumes subject to steady flow conditions.
Key Takeaways:
- Vector Nature: Understand that the momentum equation is a vector equation and must account for all spatial components during analysis.
- Momentum Flux Calculations: Carefully compute the incoming and outgoing momentum fluxes based on their velocity directions and apply the correct sign conventions (positive or negative).
- Momentum Flux Correction Factors: For non-uniform velocity distributions, utilize momentum flux correction factors to accurately compute the effect of velocity variations on momentum flux.
- Force Components: In the absence of external forces, recognize that the net force within the control volume can be considered as zero, simplifying the analysis.
- Simplification Scenarios: Engage with specific cases, such as one inlet and one outlet, where mass inflow equals mass outflow, allowing for elementary application of the conservation principles.
By adhering to these principles, students can simplify complex fluid dynamics problems, particularly those encountered in civil and mechanical engineering domains.

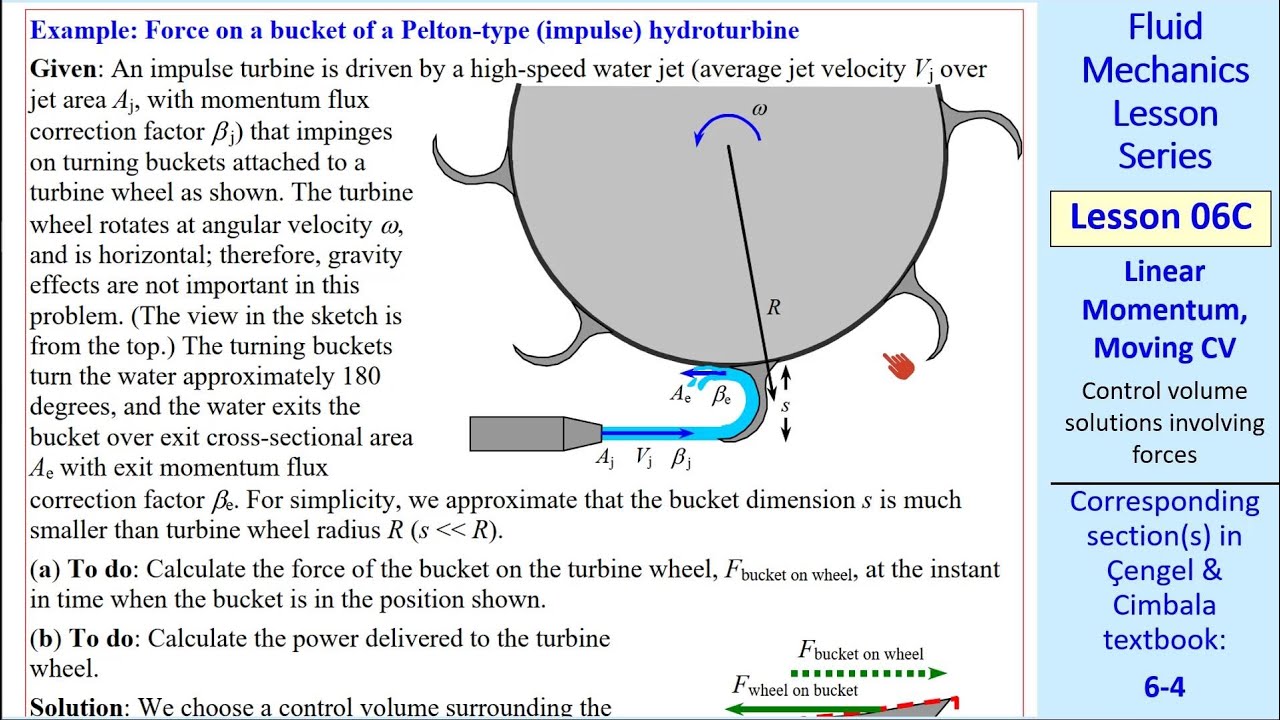

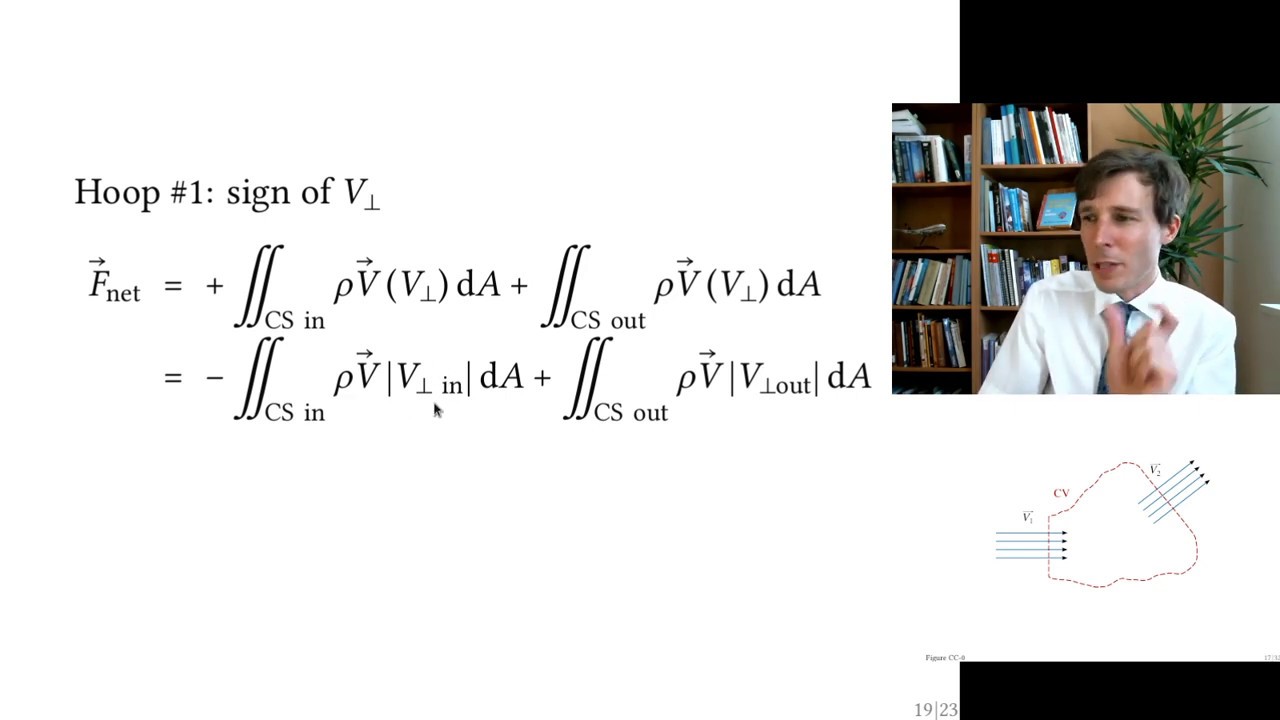

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Vector Equations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
First thing is that do remember is momentum equations is a vector equation, it has a three scalar components, it has the directions. You can write it in X direction equations, Y direction equation and the Z direction equation.
Detailed Explanation
The linear momentum equation is not just a single equation; it is actually a vector equation. This means it is comprised of three individual equations that correspond to motion in three different directions: X, Y, and Z. When solving problems, you can often focus on one of these directions, depending on the flow scenario. However, it is essential to remember that the momentum equations take into account all three components, especially in situations where fluid flow may not be uniform in all directions.
Examples & Analogies
Think of a car driving on a three-dimensional road. The direction in which the car is moving can be broken down into three components: how far it's going forward (X), how much it's changing lanes (Y), and how much it's climbing a hill (Z). Just like the car's movement can be described by considering how far it goes in each of these directions, the momentum of a fluid can also be understood by looking at its movement in all three dimensions. Ignoring any of these directions creates an incomplete picture.
Considering Momentum Flux Terms
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Second is that we always compute the momentum flux terms, in flux and out flux terms. You always look it, what is a velocity direction. Whether it is a inflow or the outflow.
Detailed Explanation
When applying the linear momentum equation, it is crucial to calculate the momentum flux for both incoming and outgoing flows. This involves identifying the velocity of the fluid at the control surface and determining whether it is entering (influx) or exiting (outflux) the control volume. The direction of this velocity helps define how the momentum balance is maintained within the control volume.
Examples & Analogies
Imagine a water tank with a pipe supplying water at the bottom and another pipe draining water out at the top. The amount of water flowing in and out can be seen as the momentum flux terms. If more water enters than exits, the pressure increases; if more water exits than enters, the tank can run dry. Just as the flow into and out of the tank must be accounted for to maintain balance, the inflow and outflow momentum must be considered when applying the linear momentum equation.
Using Momentum Flux Correction Factors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Whenever you take a problems, the velocity distributions is not uniform. Any real life problems, velocity distributions are not uniform, but we simplified it, make use of momentum flux correction factor.
Detailed Explanation
In many practical scenarios, the flow of fluid can be uneven due to various factors such as changes in cross-sectional area or obstructions in the flow path. This non-uniform flow distribution requires the use of momentum flux correction factors, which help quantify the actual momentum flux by adjusting for the variation in velocity across the flow area. Without these correction factors, calculations may lead to inaccurate results.
Examples & Analogies
Consider a garden hose with a nozzle at the end. When water flows through the hose, it travels faster at the narrow point of the nozzle than in the wider parts of the hose. If you want to measure how much water comes out, you can't just measure the flow at one point; you need to account for how the flow speeds up and slows down at different sections. Similarly, using momentum flux correction factors helps ensure that we accurately account for uneven fluid flow across a control surface.
Force Considerations in Control Volumes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This applied force acting all the material in the control volume, we do not bother about inside the control volume, how the control surface, the force acting part, that what self-canceling each other's.
Detailed Explanation
When considering forces in control volumes for momentum calculations, it is important to focus on the forces acting at the control surfaces rather than the internal forces. The internal forces within the control volume tend to cancel each other out due to Newton's third law (for every action, there is an equal and opposite reaction), simplifying our calculations. This approach allows us to concentrate solely on the interaction between fluid and the boundaries of the control volume.
Examples & Analogies
Imagine the air pushing against a balloon. Within the balloon, the air molecules push against each other in all directions, but this internal pressure does not affect the overall force exerted on the balloon's skin. Instead, what matters is how that air pressure reacts against the boundaries of the balloon. In fluid dynamics, we similarly focus on how the fluid interacts with the control volume's surface rather than the pressure forces acting inside.
Assumption of Atmospheric Pressure in Subsonic Flows
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In that case, if flow exits to atmospheric conditions, you can always consider the fluid pressure is atmospheric pressures.
Detailed Explanation
In subsonic flows, where the speed of the fluid is less than the speed of sound, it is a common assumption that the pressure at the exit of the flow is equal to atmospheric pressure. This simplifies calculations because it allows engineers and scientists to ignore variations in pressure that occur due to rapid flow changes or other factors, making it easier to analyze and predict fluid behavior.
Examples & Analogies
Think about how when you open a soda can, the pressure inside the can quickly equalizes with the atmospheric pressure, causing the soda to fizz and potentially overflow. In cases of subsonic fluid flows, we can make similar simplifications regarding pressure, allowing us to model how fluids exit a system without getting bogged down by complex pressure variations.
Choosing Control Surfaces Wisely
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
And the last point is that, we always choose the control surface such a way that it should have a normal vector and the velocity vector should be having an angle of 0 or 5 degrees.
Detailed Explanation
When defining control surfaces for fluid flow problems, it is essential to position the control surface such that it is normal (perpendicular) to the direction of the flow. This makes calculations simpler and helps accurately determine the momentum flux by ensuring that the velocity vectors and the normal vectors do not introduce complex angles that could skew the results.
Examples & Analogies
Imagine holding a flat piece of cardboard in front of a fan. If you tilt the cardboard, the airflow will hit it at an angle, making it harder to calculate how much wind pressure is pushing on the board. However, if you hold the cardboard straight up in line with the airflow, it becomes much easier to measure how the air impacts it. Similarly, by aligning control surfaces to be normal to fluid flow, we simplify our calculations and achieve more accurate results.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Momentum Equation: Important for analyzing fluid dynamics in multiple dimensions.
-
Momentum Flux Corrections: Necessary for accurately representing non-uniform flows.
-
Control Volumes: Allow for focused analysis of fluid flows in engineering applications.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When calculating the force acting on a control volume with a pipe inlet, one must consider both incoming and outgoing momentum fluxes.
-
In a practical engineering scenario, when analyzing a water jet impacting a surface, one would utilize momentum flux correction factors for accurate pressure distribution.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When flow's not the same, correct it by name, use beta to fix, so your math's not a mix!
📖 Fascinating Stories
-
Imagine a pipe where water flows, curvy and varied like a mountain's froze. Measuring it right? Use beta as a guide, it helps us see the flow, not just the ride.
🧠 Other Memory Gems
-
BETA - Balance, Evaluate, Time, Apply.
🎯 Super Acronyms
FLUID - 'Forces, Linear, Uniformity, Inflow, Distribution.'
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Linear Momentum Equation
Definition:
A vector equation that describes the motion of fluids by accounting for momentum changes.
-
Term: Momentum Flux
Definition:
The product of mass flow rate and velocity; can be incoming or outgoing.
-
Term: Momentum Flux Correction Factor (β)
Definition:
A factor used to adjust calculations for non-uniform velocity distributions.
-
Term: Control Volume
Definition:
A defined region in space through which fluid flows, used for analysis.
