Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Viscous Forces and Shear Stress
Unlock Audio Lesson
Let's start by discussing how shear stress behaves within a fluid element. Shear stress depends on the viscosity of the fluid and the velocity gradient.
How exactly is shear stress calculated in a fluid?
Good question! Shear stress (c3) can be expressed as the product of viscosity (bc) and the velocity gradient. So, it’s vital to know these parameters to perform calculations.
What does the velocity gradient mean in this context?
The velocity gradient refers to how quickly the fluid velocity changes with respect to distance. Imagine layers of fluid sliding over each other—this gradient is what causes the shear stress.
Can shear stress change during the flow?
Yes! Shear stress can vary due to changes in the velocity of the fluid or when the characteristics of the fluid change, like temperature.
To summarize, shear stress is crucial in understanding the behavior of fluids under various flow conditions.
Power Computation in Wind Tunnels
Unlock Audio Lesson
Next, let’s compute the power required to overcome drag when testing an automobile in a wind tunnel.
What parameters do we need to consider for these calculations?
We need the frontal area of the vehicle, drag coefficient, density of air, and test velocity! For instance, let's say we have a model width of 2.44 m and a frontal area of 7.8m². Do you follow?
And the drag force is calculated using this data?
Exactly! The drag force can be calculated using the formula: D = C_d * ρ * V² * A / 2, where C_d is the drag coefficient. Based on this, we can easily calculate the power needed to overcome this drag.
How do we derive the power from the drag force?
That's simple! Power is derived from the force times velocity. So if we know the drag force, we can easily multiply it by the velocity to get the power: P = D * V.
To recap, the key factors involved in calculating power are: drag force calculation, understanding the variables affecting drag, and the relationship between force and power.

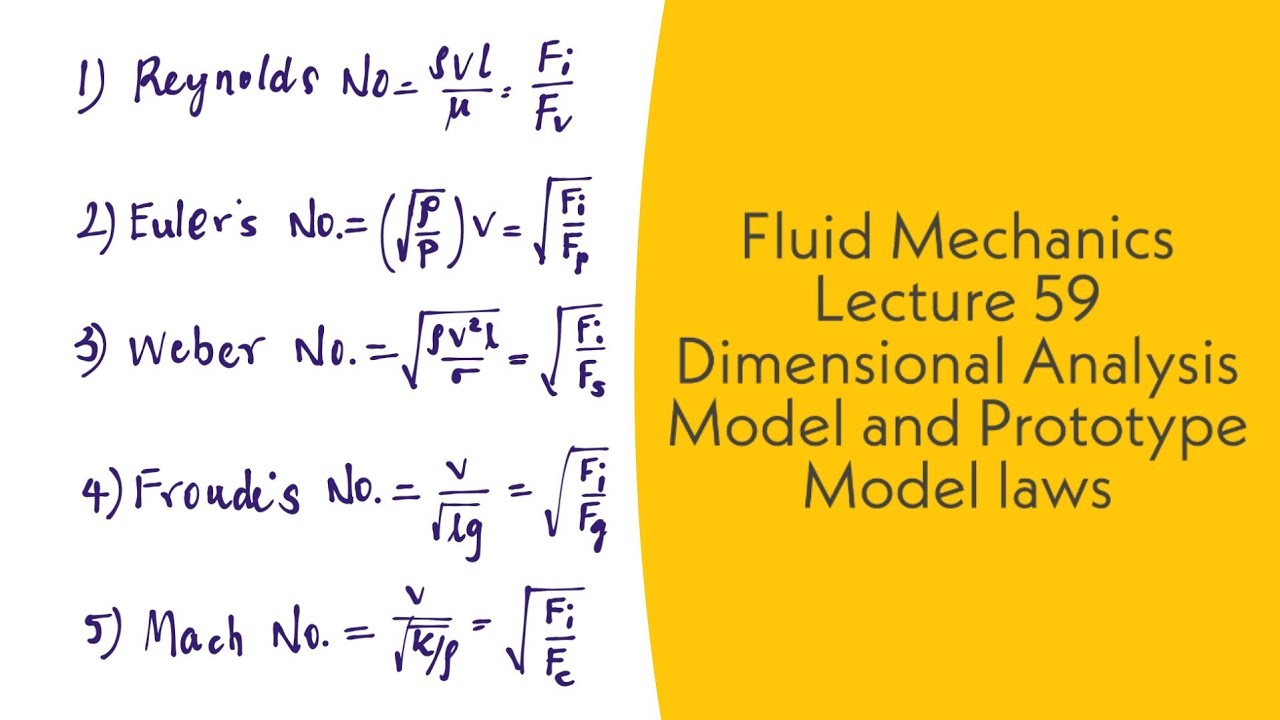

Reynolds and Euler Numbers
Unlock Audio Lesson
Now, who can tell me what Reynolds number signifies in fluid mechanics?
I believe it indicates the ratio of inertial forces to viscous forces.
Correct! The Reynolds number is crucial for determining whether the flow is laminar or turbulent.
What about the Euler number? How does that relate?
Great question! The Euler number expresses the relationship between pressure forces and inertial forces. It's another dimensionless number that helps us compare different flow regimes.
Can both numbers help in our prototype calculations?
Absolutely! By ensuring dynamic similarity between models and prototypes through these numbers, we can predict performance across different scales.
To summarize, both the Reynolds and Euler numbers are pivotal in analyzing fluid flow and ensuring accurate modeling in simulations.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the concepts of shear stress and pressure calculation in fluid dynamics to determine the power needed for overcoming aerodynamic drag in prototypes. Additionally, the section includes practical examples and problem-solving scenarios related to Reynolds and Euler numbers.
Detailed
Detailed Summary
The section begins by explaining the principles of fluid dynamics associated with power computation for prototypes. It introduces key concepts such as shear stress, net pressure force, and how these relate to viscosity and inertia forces in a steady flow condition. The derivation of important relationships like the Reynolds number and the Euler number is discussed, underpinning their significance in understanding fluid behavior at different scales.
Practical examples illustrate these concepts, particularly in the context of automotive aerodynamics—calculating the drag force and power needed to maintain steady flow conditions in a model tested in a wind tunnel. The methodology outlines how to apply given parameters such as model dimensions, velocity, density of air, and drag coefficient to compute relevant forces and power efficiently. The section also covers computations for flow over simple geometries like spheres under laminar conditions, linking theoretical principles with real-world applications.
Illustrative examples, such as the dynamic similarity conditions and application in economic modeling using fluid mechanics principles, showcase the versatility of these concepts.

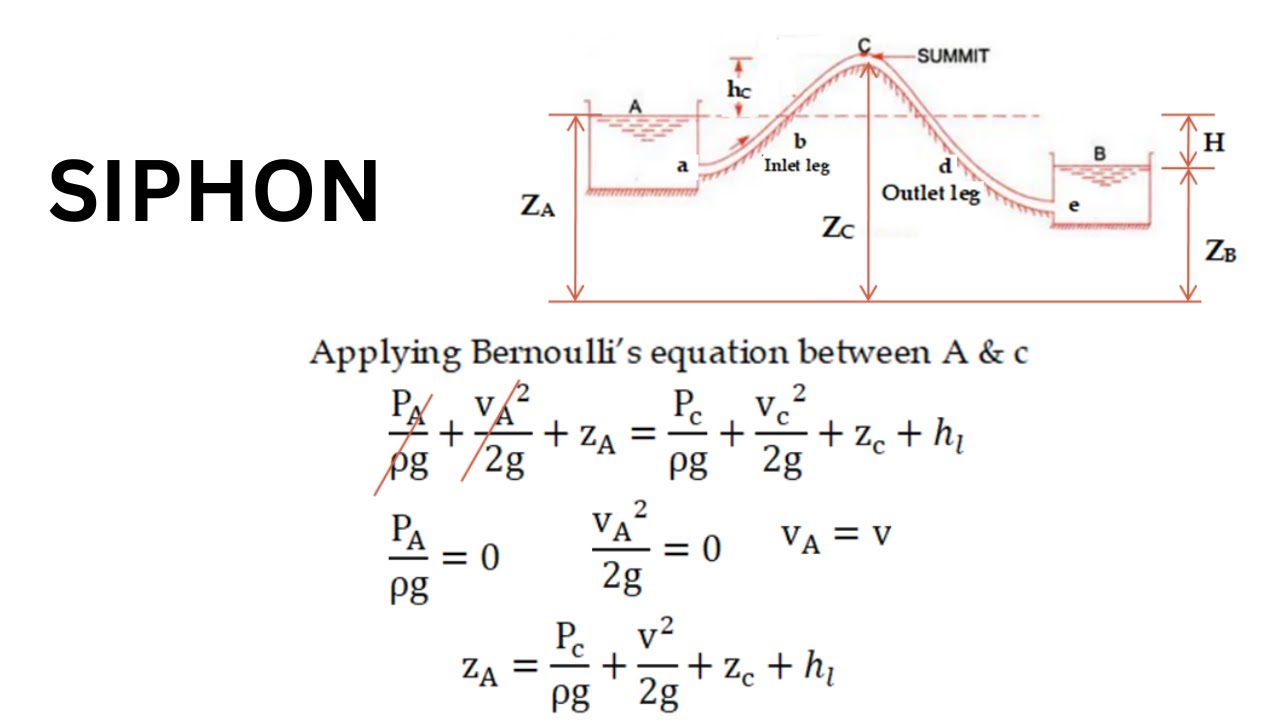

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding the Problem Context
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us come back to examples like this, let us have a testing of automobiles in a wind tunnel to find the aerodynamic drags, the power required to overcome this drag part. The data is what is given is model width frontal area, testing velocity, the scale, drag coefficient. It is given these data, we need to compute the power required for the prototype level.
Detailed Explanation
This section sets the stage for understanding how to calculate the power required for a prototype, specifically focusing on testing automobiles in a wind tunnel. By providing the necessary data such as model width, frontal area, testing velocity, scale, and drag coefficient, it highlights the importance of these parameters in determining aerodynamic drag and the associated power requirements. This context is crucial as it underlies the application of fluid mechanics principles in real-world scenarios.
Examples & Analogies
Think of this like testing the efficiency of a new car design by simulating its performance in a controlled environment (wind tunnel) before it hits the road. Just like athletes use practice tracks to refine their abilities and performance metrics, engineers collect this data to tweak designs for better energy efficiency.
Given Data
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Given Data
Model Width : 2.44 m
Frontal Area : 7.8 m²
Testing Velocity : 100 km/h
Scale : 16:1
Drag Coefficient : 0.46
Detailed Explanation
This chunk provides the specific parameters necessary for calculations. The model width and frontal area determine the size and shape of the vehicle being tested, while the testing velocity signifies how fast it is moving through the wind. The scale indicates how the model compares to the real automobile, and the drag coefficient is crucial for understanding how streamlined the design is. Each of these factors plays a role in the amount of aerodynamic drag the model experiences during testing.
Examples & Analogies
Imagine you’re building a scale model of an airplane for a science project. The size of your model, how fast you can move it in a wind tunnel, and how aerodynamic your design is (the drag coefficient) will all influence how well it performs compared to a full-size airplane.
Computing Power Requirements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The drag for the prototype:
D = CD * ρ * V² * A
Power to overcome this Drag = D * V
= 1697 N * 444.4 m/s = 47139 W
≈ 47.139 kW
Detailed Explanation
Here, we move into the calculations of the drag force and the power required to overcome it. The drag force (D) is calculated using the formula that includes the drag coefficient (CD), air density (ρ), the square of the velocity (V²), and the frontal area (A). Once we find the drag force, we compute the power required to overcome this drag force by multiplying the drag force by the velocity. This step is critical, as it quantifies the real-world energy needed to move the prototype against aerodynamic resistance.
Examples & Analogies
Think of driving a car: when you're on the highway, the faster you go, the harder the engine has to work to overcome air resistance. Your speed affects how much fuel you're using – similar to how the power to overcome drag increases with speed.
Using Drag and Power in Engineering Applications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
You can find out what will be the dynamic viscosity of air which the functions of the temperature, you can compute it this way.
Detailed Explanation
In this chunk, we discuss the dynamic viscosity of air, which is essential for calculating drag forces accurately. The viscosity is dependent on temperature and affects how air flows over the surface of the vehicle. Understanding this property helps engineers design vehicles that are more efficient with lower drag forces.
Examples & Analogies
Imagine trying to move your hand through thick syrup versus water. The syrup (more viscous) creates more resistance. Understanding this helps engineers optimize vehicle design to minimize drag and maximize fuel efficiency.

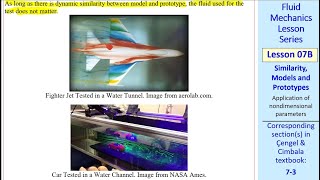

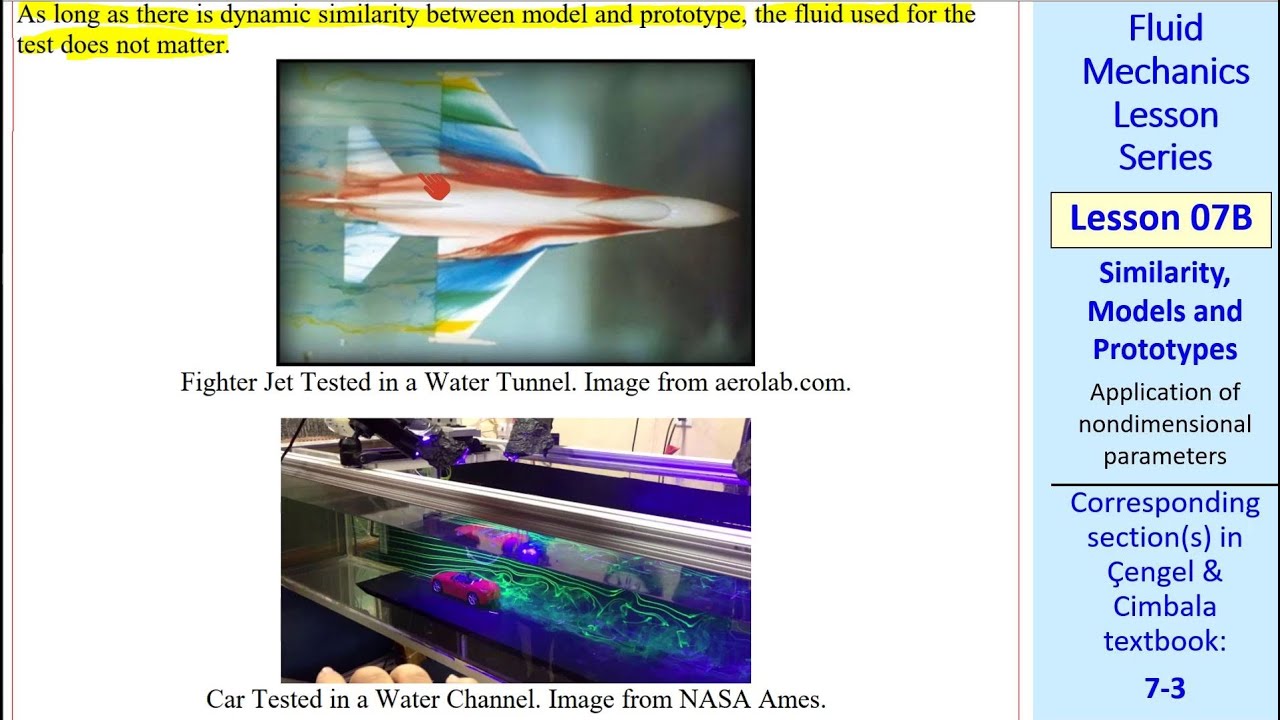

Dynamic Similarity Concept
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We use the dynamic similarities means the Reynolds numbers of the models should equal to the Reynolds numbers of the prototypes since the density and the μ.
Detailed Explanation
This chunk introduces the concept of dynamic similarity, which is crucial for ensuring that the testing results of the model accurately represent the behavior of the full-size prototype. The Reynolds number (Re) is a dimensionless quantity that helps compare the relative effects of inertial forces to viscous forces in fluid flows. For model testing to be effective, this number must be the same for both the model and the prototype.
Examples & Analogies
It’s like comparing how your small toy car behaves on a track as opposed to a real car on a highway. The forces acting on both need to be similar for the test results to be relevant.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Shear Stress: The force exerted by fluid acting parallel to a surface, affected by viscosity.
-
Power Computation: The method used to calculate the power necessary to overcome drag in prototypes.
-
Reynolds Number: An essential dimensionless number that helps to predict flow types in fluid mechanics.
-
Euler Number: A dimensionless number comparing inertial and pressure forces, significant in fluid dynamics.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of computing drag force using a given drag coefficient and velocity.
-
Example demonstrating how to utilize Reynolds number for scaling effects in fluid prototypes.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Shear stress flows, like ballet, / Gliding fluids dance away.
📖 Fascinating Stories
-
Imagine a car moving through air. The power it generates to overcome the air's resistance is calculated with drag; it’s the hero fighting fluid forces.
🧠 Other Memory Gems
-
REY (Reynolds, Euler, Yield) to remember the key dimensionless numbers in fluid mechanics.
🎯 Super Acronyms
P.D.F. stands for Power = Drag Force times Velocity.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Shear Stress
Definition:
The force per unit area exerted by a fluid's viscosity acting parallel to a surface.
-
Term: Viscosity
Definition:
A measure of a fluid's resistance to flow and deformation; it describes how 'thick' the fluid is.
-
Term: Reynolds Number
Definition:
A dimensionless number used to predict flow patterns in different fluid flow situations.
-
Term: Euler Number
Definition:
A dimensionless number that compares the pressure forces to inertial forces in fluid flow.
-
Term: Drag Force
Definition:
The resistance experienced by an object moving through a fluid, influenced by shape, velocity, and fluid characteristics.
