Introduction to Reynolds Number
Unlock Audio Lesson
Today, we will begin by discussing the Reynolds number. Can anyone tell me what it represents?
Isn't it the ratio of inertial forces to viscous forces?
Correct! The Reynolds number helps us understand whether the flow is laminar or turbulent. Remember, 'Low Re means Laminar, and High Re means Turbulent.' Can anyone give me the formula for calculating the Reynolds number?
Is it Re = ρVD/μ?
Yes, great job! Where ρ is the fluid density, V is the flow velocity, D is the characteristic length, and μ is the viscosity. Let's think of practical examples of where we might use Reynolds numbers.
In testing the design of cars in wind tunnels?
Exactly! Wind tunnels use Reynolds numbers to predict the performance of cars under various speeds. This connection between theory and application is vital in fluid mechanics.
To summarize, the Reynolds number is crucial for defining flow regimes. Understanding it helps us predict the behavior of fluid flows.
Understanding Euler Number
Unlock Audio Lesson
Now that we understand Reynolds numbers, let’s move to the Euler number. What do you think it signifies?
Is it related to pressure forces?
Correct! The Euler number reflects the ratio of pressure forces to inertial forces in a flowing fluid. The formula is Eu = (Δp)/(ρV²).
So does it show how pressure affects fluid flow?
Exactly! It's especially useful in compressible flows where pressure changes can greatly influence performance. Both numbers help create similarities when analyzing models versus prototypes.
Can you illustrate an example?
Certainly! In aerodynamic testing, we can apply both Reynolds and Euler numbers to ensure the model behaves the same way as the prototype, helping in accurate predictions.
In summary, the Euler number helps us understand the impact of pressure forces, complementing the insights we gain from the Reynolds number.
Applications and Examples
Unlock Audio Lesson
Let’s explore some real-world applications of Reynolds and Euler numbers. Can someone mention a scenario?
Like using them in automotive design?
Exactly! Testing cars in a wind tunnel provides valuable data on aerodynamic drag, which involves calculating both Reynolds and Euler numbers to ensure accuracy. Why do you think it’s important to apply scaling between model and prototype?
So we can predict real-world performance based on tests?
Exactly! By ensuring the Reynolds numbers match, we can trust the results from scaled models to inform design decisions.
To sum it up, comparing Reynolds and Euler numbers while adjusting for scale helps engineers replicate successful designs across different contexts.
Calculating Power Requirements in Fluid Systems
Unlock Audio Lesson
Let’s now focus on how we can apply what we learned about Reynolds and Euler numbers in calculating power requirements, for example in wind tunnel tests for cars.
What parameters do we need?
We require parameters like model width, frontal area, testing velocities, and drag coefficients. Can anyone recall the formula for calculating drag force?
It’s D = CρV²A, where D is drag and C is the drag coefficient.
Great! And to find power, we multiply drag by velocity. For example, if we know the drag force for a prototype is 1697 N and velocity is 15 m/s, what is the power required?
Power would be D * V, so that’s 1697 * 15…
Exact! You’d need 25,455 W, approximately 25.5 kW. This demonstrates how theoretical concepts translate to real-world calculations.
In summary, understanding how to calculate power based on Reynolds and Euler numbers is essential for practical fluid mechanics applications.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Reynolds and Euler numbers are essential dimensionless quantities in fluid mechanics, representing the ratio of inertial forces to viscous forces. This section discusses their derivation, significance, and applications, particularly in understanding dynamic similarities in fluid flows, such as those found in wind tunnel tests and laminar flow conditions.
Detailed
In fluid mechanics, the Reynolds number (Re) and Euler number (Eu) play crucial roles in characterizing fluid behaviors. The Reynolds number is defined as the ratio of inertial forces to viscous forces, serving as a criterion for determining the flow regime (laminar or turbulent). It can be expressed mathematically as Re = (ρVD)/μ, where ρ is the fluid density, V is the characteristic velocity, D is a characteristic length (like diameter), and μ is the dynamic viscosity. On the other hand, the Euler number represents the relationship between pressure forces and inertial forces, expressed as Eu = (Δp)/(ρV²). These dimensionless numbers are key to understanding the dynamics of fluid elements along streamlines, identifying the regimes of flow, and applying theoretical concepts to practical scenarios such as automotive aerodynamics and flow over spheres. By equating Reynolds numbers for models and prototypes, engineers can predict real-world performance based on scaled experiments. The chapter also includes examples illustrating practical applications and computations involving these numbers.

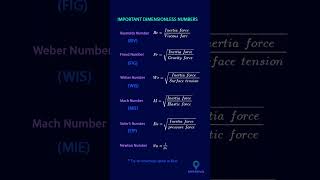

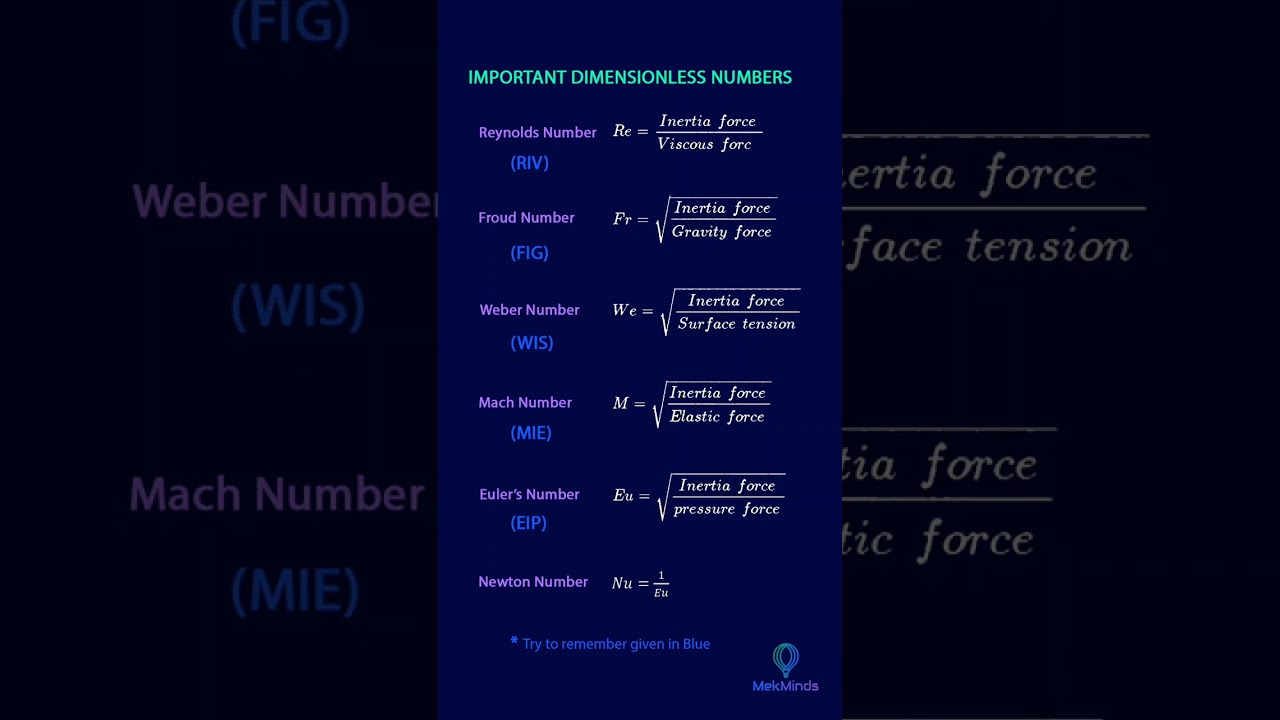

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Shear Stress in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now just to look it, I am not going detail derivations of this part if you take a fluid element along a stimuli like this is the fluid element okay, this is the stream line which is having dx and dn dimensions, you have the shear stress which is changing at this along the n’th directions and you get it what could be the shear stress. Similar way you can find out the pressure values and all.
Detailed Explanation
In fluid dynamics, it's crucial to understand how shear stress changes within a fluid element. Imagine a small cube (or fluid element) in a flowing liquid. This cube has dimensions dx and dn, representing small distances along which fluid properties change. The shear stress affects the fluid's movement; thus, if you move along the streamlines of the flow, you can analyze how this stress varies and compute related pressure values. This understanding forms the basis for applying Newton's laws of viscosity, which describe how fluids behave under different forces.
Examples & Analogies
Think of a person trying to walk on a slippery floor. The way they push against the ground to maintain balance can be related to shear stress in fluids. The more they push, the less they slip, much like how fluid elements move and behave in response to forces acting upon them.
Computing Forces in Fluid Dynamics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Force due to the viscosity (friction) is ... The shear force can be expressed as ... Then you can compute the force due to the viscosity that will be the change of shear stress into the volumetric part. That is what if you portrait you get it this part.
Detailed Explanation
Forces in fluid dynamics can be calculated based on viscosity, which is a measure of a fluid's resistance to deformation. The given expression for shear force relates to how forces act within the fluid due to viscosity. When shear stress changes in a fluid, it influences the overall force acting on a fluid element. By knowing these parameters, you can compute how much force is generated by friction in the fluid, helping predict behavior in various scenarios.
Examples & Analogies
Consider stirring a thick mixture like honey or syrup. The resistance you feel represents viscosity and friction. The more forcefully you stir (increasing the shear stress), the more the fluid flows, illustrating how viscosity influences movement.
Understanding Reynolds and Euler Numbers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you equate it and substitute this values in case of loss of dynamic similarities the ratio between these part, you can see that these equations comes out to be the Reynolds and this equations comes out to be the Euler strength.
Detailed Explanation
Reynolds number (Re) and Euler number (Eu) are crucial dimensionless quantities used to predict flow patterns in fluid dynamics. The Reynolds number indicates the ratio of inertial forces to viscous forces in a fluid flow. In simple terms, a low Reynolds number signifies laminar flow (smooth and orderly), while a high number indicates turbulent flow (chaotic and mixed). The Euler number, on the other hand, relates pressure forces to inertial forces. By analyzing these ratios, you can better understand how different forces interact in a flowing fluid.
Examples & Analogies
Think of a crowded highway. If cars (representing fluid particles) move smoothly with few vehicles, it reflects a low Reynolds number (laminar flow). However, when cars weave chaotically, it signifies a high Reynolds number (turbulent flow). Treat the Euler number like measuring how road conditions (pressure changes) affect traffic behavior.
Application of Reynolds and Euler Principles
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let us come back to examples like this, let us have a testing of automobiles in a wind tunnel to find the aerodynamic drags...
Detailed Explanation
In practical applications, such as testing automobiles in a wind tunnel, Reynolds and Euler numbers play pivotal roles in assessing aerodynamic drag and power requirements. By gathering data on the model dimensions, flow velocity, drag coefficient, and other relevant factors, engineers can determine the forces acting against the vehicle's motion. This information is vital to improve design and efficiency, ensuring vehicles perform well under realistic conditions.
Examples & Analogies
Consider how car manufacturers use wind tunnels to test new designs. The way air flows around a car affects fuel efficiency and performance, much like a swimmer adjusting their stroke to reduce drag in water. The principles of Reynolds and Euler numbers help in quantifying these interactions and guiding design improvements.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Reynolds Number: Indicates flow regime based on the ratio of inertial to viscous forces.
-
Euler Number: Reflects the relationship between pressure and inertial forces.
-
Dynamic Similarity: Ensures that model tests can accurately predict prototype performance by matching Reynolds numbers.
-
Applications: Critical in wind tunnels, hydraulic systems, and aerodynamics.
-
Calculating Power: Utilizing drag calculations to determine power requirements in fluid systems.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Testing cars in wind tunnels to assess aerodynamic drag using Reynolds and Euler numbers.
-
Calculating drag force on a sphere submerged in a fluid using laminar flow conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Reynolds helps define the flow, Laminar is slow, Turbulent will grow!
📖 Fascinating Stories
-
Imagine driving a car in a wind tunnel. As you accelerate, different forces interact. The Reynolds number tells you if you'll glide smoothly or swirl around with turbulence.
🧠 Other Memory Gems
-
RE for Reynolds: Rigid Energy (inertia) versus Elastic (viscosity). E for Euler: Exchange of pressure energy with inertia!
🎯 Super Acronyms
Remember ‘R&E’ for ‘Reynolds & Euler’, where R means ratio of forces, and E means equilibrium of pressure and force.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Reynolds Number
Definition:
A dimensionless quantity that measures the ratio of inertial forces to viscous forces in fluid flow.
-
Term: Euler Number
Definition:
A dimensionless number representing the ratio of pressure forces to inertial forces in fluid mechanics.
-
Term: Inertial Forces
Definition:
Forces acting on a fluid particle due to its mass and velocity.
-
Term: Viscous Forces
Definition:
Forces arising from the fluid's viscosity, affecting its flow behavior.
-
Term: Dynamic Viscosity
Definition:
A measure of a fluid's resistance to deformation or shear.
