Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Mass Conservation and Control Volumes
Unlock Audio Lesson
Today, we will discuss mass conservation in fluids and how we can use Taylor series for deriving differential equations. Who can tell me what mass conservation means?
It means the mass cannot be created or destroyed within a closed system.
Exactly! In fluid mechanics, we analyze small control volumes, often approaching zero dimensions. This helps us create differential equations for mass conservation. Can anyone provide an example of a control volume?
A cube or a rectangular box where we analyze inlet and outlet flows?
That's correct! We will apply Taylor series to examine how density and velocity behave in these control volumes.
Utilization of Taylor Series in Fluid Mechanics
Unlock Audio Lesson
Let’s talk about how we apply Taylor series. If we consider the velocity at the centroid of our control volume, can someone tell me how we can approximate the values at the faces of the control volume?
We can use the Taylor series expansion to find these values based on the gradients of the fields!
Perfect! The first term gives us the function's value at the point we are interested in. Subsequent terms give us corrections based on the derivatives. Why do we often neglect higher-order terms?
Because they become significantly small, especially in very small control volumes!
Exactly! We often discard these higher-order terms to simplify our calculations in fluid mechanics.
Deriving the Mass Conservation Equation
Unlock Audio Lesson
Now that we have our approximations, can someone explain how we derive the mass conservation equation from these expressions?
We calculate the change in mass within the control volume and equate it to the net mass flux through its surface!
Fantastic! We've got the mass flux entering and leaving our control volume. The equation confirms that the rate of change of mass must equal the net flux. Can someone share the simplified form of this equation?
It's typically expressed as ∂ρ/∂t + ∇·(ρv) = 0, where ρ is density and v is the velocity field.
Correct! This shows the relationship between density changes and flow, illustrating the principle of continuity.
Applications and Types of Fluid Flow
Unlock Audio Lesson
Let’s apply our knowledge. How does the mass conservation equation enhance our understanding of different flow types?
Incompressible flows maintain constant density, while compressible flows show variations.
Indeed! For incompressible flow, we simplify the continuity equation significantly. Understanding these differences helps in various engineering applications.
Can you give us an example of how this impacts engineering design, perhaps in fluid transport systems?
Great question! Designing pipes for incompressible liquids uses different calculations compared to gas flows. The difference in density behavior critically affects our design parameters.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section highlights how Taylor series can be utilized to develop differential equations for mass conservation in fluid mechanics, with a focus on analyzing control volumes while considering density and velocity fields. It also addresses simplifying the equations through assumptions regarding fluid properties.
Detailed
In fluid mechanics, the Taylor series plays a crucial role in deriving mass conservation equations, particularly in the analysis of infinitely small control volumes. As the section explains, mass conservation is characterized by changes in density and velocity fields expressed as functions of space and time. Through Taylor series expansions, we approximate the values of density and velocity at different faces of these control volumes. The net mass flux entering and exiting a control volume is expressed mathematically. Ultimately, the derivatives of these components lead to the core mass conservation equation. By assuming certain conditions, such as incompressibility and variations in density, we can simplify the equations and gain insights into fluid behavior.

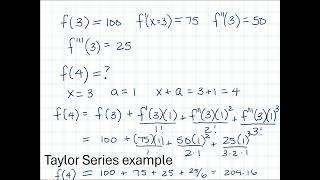

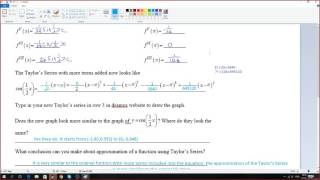

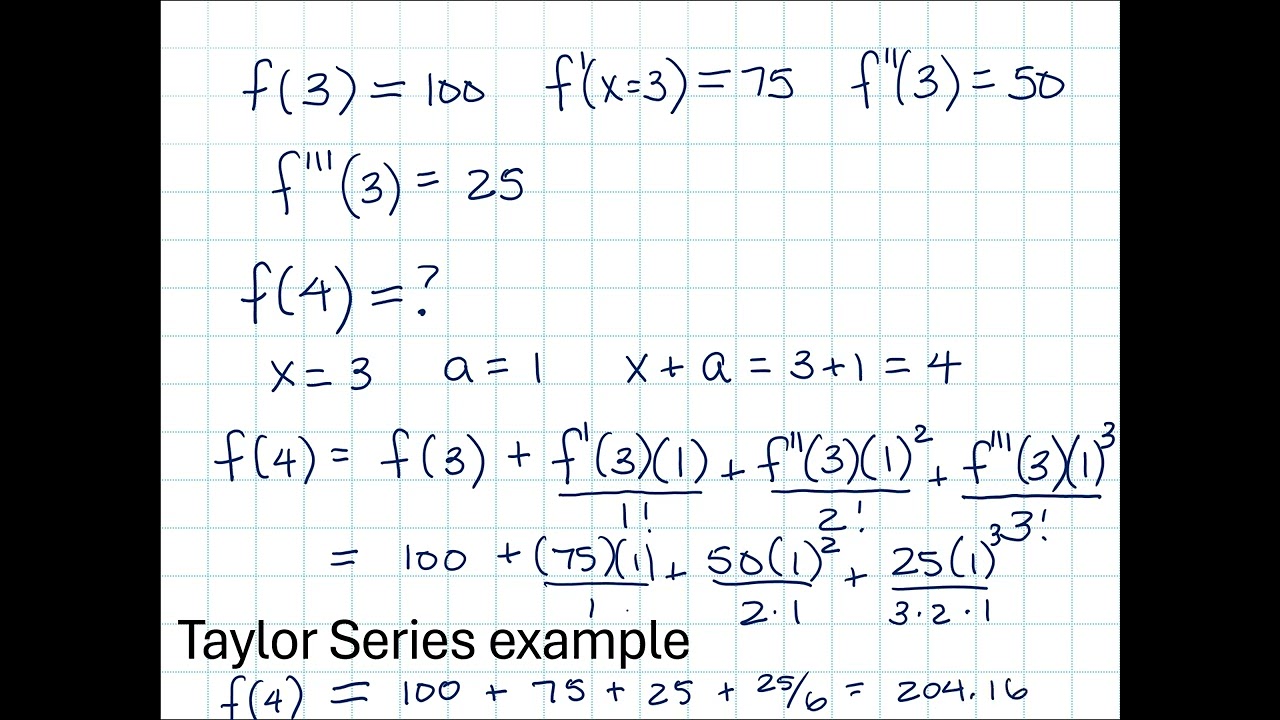

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Taylor Series in Fluid Mechanics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Here the very basic things is that I can apply the Taylor series which it is a very basic concept that any functions if it is a continuous variable then we can approximate using Taylor series expansions.
Detailed Explanation
In fluid mechanics, Taylor series can be used to express the value of a function (like velocity or density) at one point in terms of its values at nearby points. This is particularly useful when we're dealing with small control volumes, where we can assume that the function changes smoothly. Essentially, if we know the value of a function at a certain point, we can estimate its value at very close neighboring points using derivatives of that function.
Examples & Analogies
Imagine you're standing on a flat road and you want to tell your friend about the slope ahead. If you take a few steps forward and feel the incline, you can predict how steep that incline will be and adjust your warning to your friend accordingly. This is similar to how we use Taylor series to predict changes in functions based on their immediate surroundings.
Application of Taylor Series to Control Volumes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Using the Taylor series expansions we can approximate it. So basically as I consider at the centroid of this box the velocity is equal to u v and w what will be the velocity at the different faces that is what we are going to look it there is a front face, the rear face, top, bottom, left side and the right sides.
Detailed Explanation
When analyzing a small control volume in fluid mechanics, we first identify its centroid (the center point) where we have the average values of velocity (u, v, w). We then use the Taylor series to find out the velocity at each face of the control volume by evaluating how the values change in the x, y, and z directions. This helps in understanding how fluid flows across the control volume's boundaries.
Examples & Analogies
Consider a small box where you've placed a tiny fan. The fan generates air flow in specific directions. By measuring the wind speed in the middle of the box, you can estimate how fast the air is moving at the edges of the box using the slope of the airflow. That’s like using Taylor series—estimating based on a known middle value to predict edge behaviors.
Mass Flux Calculation Using Taylor Series
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you look it, if I put a Taylor series expansions okay. I am looking the mass flux as you know it the mass is rho u into area rho into q that is what is a mass flux that is what if I looking in the x directions then rho u will come it.
Detailed Explanation
To find the mass flux through any surface, we multiply the density (ρ) of the fluid by its velocity (u) and the area (A) the fluid is passing through. By applying Taylor series, we can determine the variations of mass flux across different surfaces of the control volume by considering the gradients in velocity and density. This allows us to create equations that describe how mass is conserved as it flows through these surfaces.
Examples & Analogies
Think of water flowing through a pipe. When you measure how much water is flowing out of the pipe at one point, you can multiply the density of water by the speed of flow and the size of the pipe's opening. Using Taylor series is like taking those measurements at multiple points along the pipe to see how the flow changes, ensuring you have a full picture of the entire flow process.
Neglecting Higher Order Terms
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, we use in the Taylor series expansion for these derivations only these two components all other components we neglected.
Detailed Explanation
When using Taylor series for fluid mechanics at a very small control volume, the terms beyond the first derivative can often be insignificant due to the small size of the control volume. This means that we can simplify our calculations by only considering the first few terms, which makes our equations easier to solve while still being accurate enough for practical applications.
Examples & Analogies
Imagine you’re trying to estimate how fast a car is speeding up at a stoplight. Instead of calculating every tiny change in speed over time (which would be complex), you can just measure the initial acceleration and assume it stays relatively constant for that short moment. This simplification makes predictions quicker and easier.
Net Mass Flow Rate Calculations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you look it what I am looking for these control volumes is the mass conservations. First I am to look at that the rate of change of the mass conservations within the control volume.
Detailed Explanation
In fluid mechanics, conservation of mass states that the mass entering a control volume must equal the mass leaving it, plus any mass that is stored within that volume. By applying the net mass flow rate equations, we can quantify this conservation and set up equations to solve for unknowns in various fluid scenarios, such as pumps or turbines.
Examples & Analogies
Imagine a bathtub with the faucet running. The water entering the tub represents the mass coming in, while the water draining out is the mass leaving. To keep the bathtub at the same water level (or to conserve mass), the rate at which water flows in must equal the rate at which it flows out. This principle is fundamental to understanding how fluids behave in various systems.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Mass Conservation: Principle stating that mass in a closed system remains constant.
-
Control Volume: Volume through which mass is analyzed for flow.
-
Taylor Series: Method to approximate fluid parameters at small intervals.
-
Divergence: A measure of the change in velocity field related to mass flux.
-
Incompressible vs. Compressible Flow: Differentiates behavior under various density conditions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using Taylor series to approximate the velocity at various control faces in a fluid analysis.
-
Calculating mass flux for a control volume in a pipe system.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In fluid flow, mass you’ll see, Cannot be lost, it’s meant to be.
📖 Fascinating Stories
-
Imagine a river where the flow is constant; even when rocks are placed, the water finds a way around, showing mass conservation.
🧠 Other Memory Gems
-
C.M.T D. for Mass Conservation: Control Volume, Taylor Series, and Divergence.
🎯 Super Acronyms
M.C.E - Mass Conservation Equation.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Control Volume
Definition:
A defined volume in space through which fluid can flow and is used for analyzing mass and energy balances.
-
Term: Mass Flux
Definition:
The mass flow rate per unit area, representing how much mass is moving through a unit area.
-
Term: Taylor Series
Definition:
A mathematical series used to approximate functions and express them in terms of their derivatives at a single point.
-
Term: Divergence
Definition:
A mathematical operation that measures the rate of change of a scalar field as it expands or contracts.
-
Term: Incompressible Flow
Definition:
A flow where the density remains constant regardless of changes in pressure or temperature.
