Introduction to Soil Classification
Unlock Audio Lesson
Today, we will discuss soil classification! It's crucial to distinguish between soil description and classification. Who can tell me the difference?
Soil description is about observing what the soil looks like, right?
Exactly! It's about the physical nature of the soil. And classification? Why do we classify soils?
To group them based on their characteristics, like how they behave under different conditions?
Spot on! Classification helps engineers understand what to expect from the soil.
Grain-Size Distribution and Analysis Methods
Unlock Audio Lesson
Let's dive into grain-size distribution methods! What are some methods we use?
I know about wet sieving and dry sieve analysis.
Great! Wet sieving is for fine grains, while dry sieving handles coarser grains. And what do we get from these analyses?
A grain-size distribution curve!
Correct! And from that, we can derive important characteristics like the curvature coefficient.
Understanding the Curvature Coefficient
Unlock Audio Lesson
Now, let’s focus on the curvature coefficient. Can someone explain what it is?
Isn’t it calculated using the D10, D30, and D60 sizes?
Exactly! How do we calculate it?
C_c = (D30^2) / (D10 * D60)?
Very good! And why is it important?
It helps classify soils into well-graded and poorly graded categories!
Right! Understanding these categories helps predict soil behavior in engineering projects.
Interpreting Grading Characteristics
Unlock Audio Lesson
Let’s talk about grading characteristics today. What do we seek from a grading curve?
We look for uniformity and the range of particle sizes.
Exactly! And how do we use the curvature coefficient in this context?
To determine if the soil is uniform or well-graded!
Perfect! Good grading indicates better performance in engineering applications.
Practical Applications of Curvature Coefficient
Unlock Audio Lesson
Let’s connect this to real-world applications. Why is understanding the curvature coefficient essential for engineers?
To select suitable materials for construction?
Exactly! It affects decisions on foundation design and soil management as well.
So, the performance of a building can be related to the soil properties measured, right?
Precisely! The curvature coefficient tells us about the stability and support the soil can provide.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The curvature coefficient is defined through the 10, 30, and 60 percentile particle sizes of soil, indicating the soil's grading characteristics. Understanding this coefficient is crucial for distinguishing between well-graded and poorly graded soils, impacting their engineering properties.
Detailed
Curvature Coefficient
The curvature coefficient, denoted as C_c, is an essential part of soil classification, particularly in engineering contexts where understanding mechanical properties like permeability and strength is critical. The curvature coefficient is calculated using the parameters extracted from a grain-size distribution curve, which plots particle size against the percentage passing through various sieve sizes.
To determine the curvature coefficient, three reference sizes are identified:
- D10: Particle size at 10% passing through by weight.
- D30: Particle size at 30% passing through by weight.
- D60: Particle size at 60% passing through by weight.
The curvature coefficient is then calculated based on the formula:
C_c = (D30^2) / (D10 * D60)
This coefficient provides insights into soil grading:
- A value C_c = 1 suggests a uniform soil with a narrow particle size range.
- A value C_c > 1 indicates a well-graded soil with a broad range of particle sizes.
- A value C_c < 1 suggests a poorly graded soil.
Understanding the curvature coefficient allows engineers to predict soil behavior under different conditions, assisting in selecting suitable construction materials and methods.

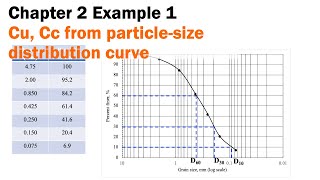

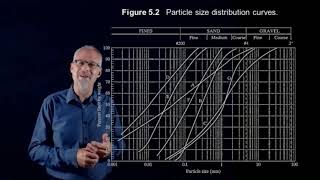

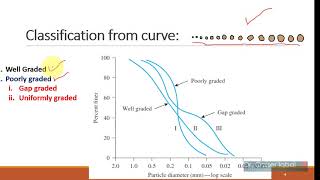

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Grading Characteristics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The grading characteristics are then determined as follows:
1. Effective size = D10
2. Uniformity coefficient,
3. Curvature coefficient,
Both Cu and Cc will be 1 for a single-sized soil.
Detailed Explanation
In soil classification, grading characteristics are key indicators. They are calculated to understand the distribution of soil particles. The three main characteristics include the effective size, which indicates the particle size at which 10% of the sample's weight is finer, the uniformity coefficient that helps determine the range of particle sizes, and the curvature coefficient which further describes how well the particles fit together.
For well-graded soils, the uniformity coefficient (Cu) and curvature coefficient (Cc) will help identify how varied the particle sizes are. If both coefficients equal 1, it suggests a uniform soil where all particles are of a similar size.
Examples & Analogies
Imagine sorting a pile of different sized marbles. If you had only marbles that are exactly the same size, it would be similar to a Cu and Cc of 1, indicating uniformity. However, if you had a mix of marbles from tiny to large, your Cu would likely be greater than 1, showing a variety of sizes that allows for better packing, similar to a well-graded soil.
Interpreting the Curvature Coefficient
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
C > 5 indicates a well-graded soil, i.e. a soil which has a distribution of particles over a wide size range. Cu between 1 and 3 also indicates a well-graded soil. C < 3 indicates a uniform soil, i.e. a soil which has a very narrow particle size range.
Detailed Explanation
The curvature coefficient (Cc) provides insights into how well the particle sizes are distributed within the soil. A Cc greater than 5 signifies that the soil is well-graded, meaning it has a broad variety of particle sizes, enabling better interlocking and stability. If the Cc is between 1 and 3, the soil is still considered well-graded but slightly less optimal. Conversely, a Cc less than 3 indicates a uniform soil, which may not perform as well in applications requiring strength and stability because all the particles are very similar in size.
Examples & Analogies
Think of a backpack filled with books. A well-graded backpack would have books of various sizes (like having both thick novels and thin paperbacks) that can fill the gaps between each other, making it compact and balanced. On the other hand, if all the books are the same size, it would be harder to utilize all the space efficiently, similar to how uniform soil doesn’t fill gaps as well in construction.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Curvature Coefficient: A grading characteristic that indicates the distribution of particle sizes in soil.
-
D10, D30, D60: Specific particle sizes used in calculating the curvature coefficient.
-
Grading Curve: A graphical representation of the variety of soil particle sizes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
For a soil sample with particle sizes, if D10 = 0.1 mm, D30 = 0.3 mm, and D60 = 0.6 mm, the curvature coefficient can be calculated to determine the grading characteristics.
-
In construction, a soil with a high curvature coefficient indicates it has a good mix of sizes, which is preferable for foundation stability.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To classify soil is the goal, grain sizes play their role.
📖 Fascinating Stories
-
Imagine a gardener using different sizes of pebbles in a flowerbed, discovering that varied sizes allow for better drainage and soil strength.
🧠 Other Memory Gems
-
Use D10, D30, D60 to remember particle sizes – 1, 3, 6 are the grades wise!
🎯 Super Acronyms
C_c = Curvature Coefficient for classification of soil types.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Curvature Coefficient
Definition:
A grading characteristic calculated from particle size distribution curves, indicating the uniformity of soil grading.
-
Term: D10
Definition:
Size of particles at 10% passing through by weight used in calculating soil grading characteristics.
-
Term: D30
Definition:
Size of particles at 30% passing through by weight used in calculating soil grading characteristics.
-
Term: D60
Definition:
Size of particles at 60% passing through by weight used in calculating soil grading characteristics.
-
Term: Grading Curve
Definition:
A graphical representation of the grain-size distribution of soils plotted against the percentage passing through various sieve sizes.
-
Term: WellGraded Soil
Definition:
Soil having a wide range of particle sizes, indicated by a high uniformity coefficient.
