Introduction to Soil Classification
Unlock Audio Lesson
Today, we'll learn about soil classification, which is vital for understanding material behavior in engineering projects. Can anyone tell me what soil classification helps us achieve?
It helps us categorize soils based on their properties and decide how to use them!
Exactly! It aids in comparing different soils based on their mechanical properties. Now, why do we need to distinguish between description and classification?
Description is just what we see, while classification groups soils by their properties.
Correct! Remember, effective size and uniformity coefficient are part of this classification process.
Particle Size Distribution Methods
Unlock Audio Lesson
Let's delve into measuring particle sizes, which is essential for effective soil classification. Who can explain one testing method?
There's wet sieving for fine grains.
Good! Wet sieving is used to separate fine particles. What about for coarser soils?
We use dry sieve analysis! We shake the earth through different sieve sizes.
Exactly right! And we end up with a cumulative percentage of sizes, forming our grading curve.
Understanding Grading Characteristics
Unlock Audio Lesson
Now, let's discuss grading characteristics. Who remembers what D10 represents in our distribution curve?
It's the effective size!
And it shows the size at which 10% of soil is smaller.
Perfect! And how does the uniformity coefficient help us?
It tells us how well the soil is graded.
Exactly! A higher Cu means a well-graded soil, which is usually better for construction.
Relevance in Engineering
Unlock Audio Lesson
How do these characteristics affect our construction projects?
They help determine soil stability and strength!
Right! Understanding particle size distribution is crucial for predicting how soils will behave under load.
What happens if we have a uniform soil?
Great question, Student_1! Uniform soils often have less stability, which can pose risks in engineering. Always remember the importance of grading!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section details the importance of effective size and uniformity coefficient in soil classification, explaining the significance of grading characteristics derived from grain-size distribution curves. It includes methodologies for measuring particle sizes in soil and their implications in engineering contexts.
Detailed
Effective Size and Uniformity Coefficient
In soil classification, understanding the particle size distribution is essential for predicting soil behavior. The effective size (D10), defined as the particle size at which 10% of the soil sample is finer, along with the uniformity coefficient (Cu), are critical grading characteristics derived from grain-size distribution curves. These coefficients help distinguish between well-graded and uniform soils. A well-graded soil, characterized by a Cu greater than 5, contains a wide range of particle sizes, promoting better stability and strength for engineering applications. In contrast, a uniform soil, with a Cu less than 3, possesses a narrow size distribution, which can affect load-bearing capacities and drainage properties.
The grain-size distribution curves, derived from techniques such as wet and dry sieving, and sedimentation analysis, are used to visualize the size ranges and their corresponding percentages in the soil. By providing insights into the soil's structure and properties, these metrics aid engineers and geologists in making informed decisions in construction and land use.
Youtube Videos
![Basic Geotechnical Engineering [ 15cv45]](https://img.youtube.com/vi/JcLtXblqqGg/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Grading Characteristics Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A grading curve is a useful aid to soil description. The geometric properties of a grading curve are called grading characteristics.
Detailed Explanation
A grading curve visually represents the distribution of different particle sizes in a soil sample. By analyzing this curve, engineers can understand key properties of the soil, which are referred to as the grading characteristics. These characteristics help in determining the quality and suitability of soil for construction purposes.
Examples & Analogies
Imagine sorting a mix of candies where some are large chocolate bars and others are small jelly beans. Just as you would create a chart to see which candies you have in larger quantities, the grading curve helps engineers see the sizes of soil particles they have in a sample.
Key Points on Grading Curve
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

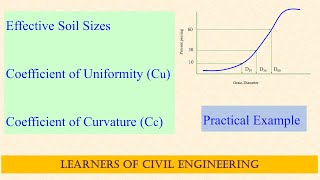

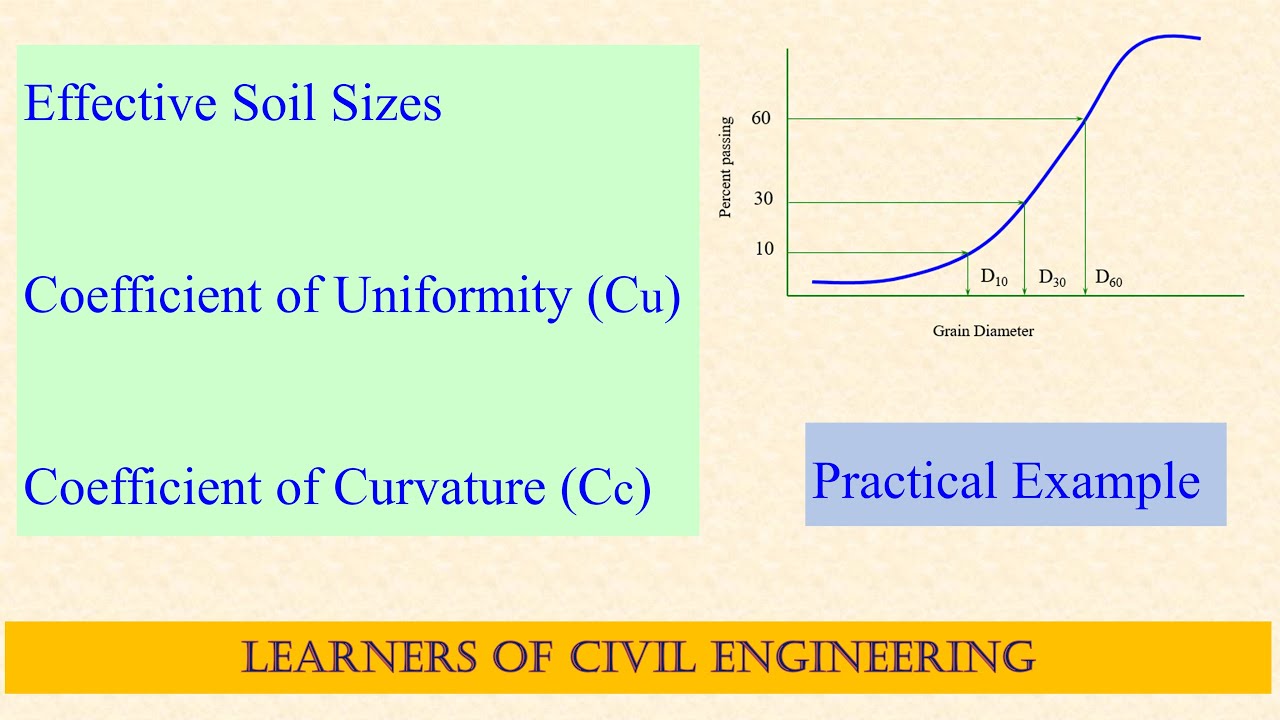

To obtain the grading characteristics, three points are located first on the grading curve.
1. D60 = size at 60% finer by weight
2. D30 = size at 30% finer by weight
3. D10 = size at 10% finer by weight
Detailed Explanation
To define the grading characteristics accurately, engineers find three critical sizes of the soil particles - D60, D30, and D10. D60 is the particle size at which 60% of the sample’s weight consists of smaller particles. D30 and D10 are similar but refer to 30% and 10% of smaller particles respectively. These points help establish how well-graded or poorly-graded a soil is.
Examples & Analogies
Think of a library where books are organized by size. If you know the sizes of books that make up 60%, 30%, and 10% of the total collection, you can describe the overall collection better. Similarly, knowing D60, D30, and D10 gives a clear picture of the soil particle sizes.
Effective Size and Uniformity Coefficient Definitions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The grading characteristics are then determined as follows:
1. Effective size = D10
2. Uniformity coefficient, Cu = D60/D10
3. Curvature coefficient, Cc = (D30)^2 / (D10 * D60)
Detailed Explanation
The effective size is directly determined by D10, which signifies the particle size at which 10% of the soil is smaller. The uniformity coefficient (Cu) indicates how well-graded the soil is through the ratio of D60 to D10. A higher uniformity coefficient suggests a wide distribution of sizes. The curvature coefficient (Cc) evaluates the shape of the grading curve, giving insights into the soil's overall gradation.
Examples & Analogies
Imagine baking cookies. If you measure the size of the smallest cookie (D10), and compare the largest (D60) with the smallest, you can see how varied your cookie sizes are. Just like in cookie sizes, the grading characteristics help determine if the soil has a good mix of particle sizes for building.
Interpreting Grading Coefficients
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Both Cu and Cc will be 1 for a single-sized soil. Cu > 5 indicates a well-graded soil, i.e., a soil which has a distribution of particles over a wide size range. Cu between 1 and 3 also indicates a well-graded soil. Cu < 3 indicates a uniform soil, i.e., a soil which has a very narrow particle size range.
Detailed Explanation
The results from Cu and Cc provide crucial insights into the grading of soil. If Cu is greater than 5, it suggests that the soil has a wide range of particle sizes, which is favorable for many engineering applications. Conversely, a low uniformity coefficient (less than 3) indicates a very uniform soil, which can be problematic in some contexts since it lacks diversity in particle size.
Examples & Analogies
Consider a sports team. A team with players of different skills (well-graded) is generally more successful than a team where all players are of the same skill level (uniform soil). Just like in the team example, soils should have a mix for better performance in construction.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Effective Size: The particle size at which a specified percentage of the sample is smaller.
-
Uniformity Coefficient: A measure that helps differentiate well-graded from poorly graded soils.
-
Grading Curve: A graphical representation that allows engineers to visualize soil particle distribution.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A well-graded soil will have a uniformity coefficient (Cu) greater than 5, such as a mix of sand and gravel used for construction, providing better stability.
-
In contrast, a uniform soil like pure silt will have a uniformity coefficient (Cu) less than 3, leading to challenges in drainage and stability.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soil and sand, the sizes we seek, D10 and Cu, make properties unique.
📖 Fascinating Stories
-
Imagine a construction site where workers gather various soil samples. They sort them by size, using the methods: wet and dry, always checking D10 and Cu to ensure the soil is stable for the building—a story of strong foundations!
🧠 Other Memory Gems
-
D for Diameter in D10, C for Coefficient in Cu – these help us determine how soils do!
🎯 Super Acronyms
D.U.C. - Diameter, Uniformity, Classification - key terms in soil analysis!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Effective Size (D10)
Definition:
The particle size at which 10% of the soil sample is finer by weight.
-
Term: Uniformity Coefficient (Cu)
Definition:
A measure of the range of particle sizes in a soil sample, indicating its grading quality.
-
Term: Grading Curve
Definition:
A graphical representation showing the particle size distribution of a soil sample.
-
Term: Wet Sieving
Definition:
A method for separating fine particles from coarse ones using water and a sieve.
-
Term: Dry Sieve Analysis
Definition:
A technique to classify soil particles coarser than 75 microns by sifting them through a series of sieves.
