5.2. Measurement of Particle Size Distribution

For measuring the distribution of particle sizes in a soil sample, it is necessary to conduct different particle-size tests.

Particle Size Distribution (PSD) refers to the proportions of different sizes of particles within a soil sample. Accurate measurement of PSD is vital because soil properties like permeability, strength, and compaction depend significantly on this distribution. To measure the PSD of soil, different tests are used to separate particles based on size.

Think of sorting a bag of mixed nuts. To understand the variety and proportions of peanut, cashew, and almond, you might shake them through a series of screens that allow smaller nuts to fall through. Similarly, in soil analysis, we use different tests to sort particles by size.

Wet sieving is carried out for separating fine grains from coarse grains by washing the soil specimen on a 75 micron sieve mesh.

The wet sieving method involves washing a soil sample through a fine mesh (75 microns) to separate fine grains from coarse grains. The principle here is that water helps to suspend finer particles while allowing larger particles to remain on the sieve. This method is particularly useful for soils with significant amounts of clay or silt, which can easily clog the sieve if dry sieving is used.

Imagine washing rice before cooking. Water helps to wash away the dust or dirt while keeping the grains of rice intact. In wet sieving, soil is the rice, and the sieve is like the pot that keeps the rice and lets the water carry away any unwanted fine particles.

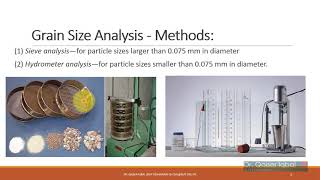

Dry sieve analysis is carried out on particles coarser than 75 micron. Samples (with fines removed) are dried and shaken through a set of sieves of descending size. The weight retained in each sieve is measured.

For dry sieve analysis, only coarser particles are analyzed. After removing the finer fractions, the soil sample is dried and shaken through a set of sieves arranged in decreasing size. This method allows us to measure how much of each size remains in the sieve. By calculating the cumulative percentage of particles passing through each sieve, we can build a profile of the particle size distribution.

Think of a classroom activity where you sort students by height using different-sized hoops. Only students above certain heights can pass through each hoop. At the end, you can tell how many students are below each height category, similar to how dry sieving tells us how many soil grains are smaller than a specific size.

Sedimentation analysis is used only for the soil fraction finer than 75 microns. Soil particles are allowed to settle from a suspension.

Sedimentation analysis measures the size of particles finer than 75 microns by allowing them to settle in a fluid. The process relies on the concept of terminal velocity, which states that the speed at which a particle settles is determined by its size and the fluid's properties. As the particles settle, their concentration can be measured at different levels using a hydrometer, giving valuable data about the sizes of the particles in suspension over time.

Consider pouring a mix of sand and flour into water. The heavier sand settles to the bottom quicker than the lighter flour. By taking samples of water at different depths, you can estimate how much sand versus flour is present. This is similar to what we do in sedimentation analysis to separate smaller soil particles.

The size distribution curves, as obtained from coarse and fine grained portions, can be combined to form one complete grain-size distribution curve (also known as grading curve).

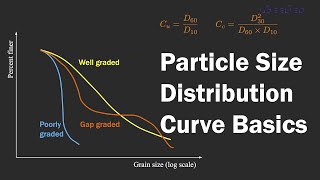

The grain-size distribution curve provides a visual representation of the varying sizes of soil particles in a sample. By combining data from both wet and dry sieve analyses, we create a complete curve that illustrates how much of the soil falls into different size categories. The x-axis typically represents the particle size (on a logarithmic scale), while the y-axis shows the percentage of soil particles that are smaller than a certain size, indicating the distribution of sizes within the sample.

Imagine creating a report card for students where each grade represents a different size range of students’ performances. Just like you can see overall performance trends in different subjects, the grain-size distribution curve lets you visualize how the different soil sizes contribute to the overall soil behavior.

From the complete grain-size distribution curve, useful information can be obtained such as grading characteristics, which indicate the uniformity and range in grain-size distribution.

Grading characteristics derived from the grain-size distribution curve are critical for understanding soil behavior. These include effective size and uniformity coefficient, which help classify the soil as well-graded or poorly graded. Well-graded soils have a wide variety of sizes, leading to better compaction and strength, while poorly graded soils have a narrow size range, affecting their stability and performance in engineering applications.

Think of a bag of assorted candies. If you have a wide mix (well-graded), the bag can withstand being shaken without breaking. However, if all candies are the same size (poorly graded), just one type might get squished easily. Soil behaves similarly; a good mix leads to stronger foundations.

--
