1.3. Degree of Saturation (S)
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today we're diving into volume relations in soils. Can anyone tell me what the void ratio (e) represents?
Isn't it the volume of voids compared to the volume of soil solids?
Exactly, Student_1! We express that as a decimal. So if we have 30 m³ of voids and 70 m³ of solids, e would be 0.43. And can anyone remind me what porosity (n) is?
It's the volume of voids compared to the total volume of the soil!
Great! And how do we express that?
As a percentage!
Correct! Now remember, both void ratio and porosity are connected. That's why understanding these terms helps in calculating the degree of saturation (S).
Why is S so important?
Good question! It tells us the moisture content in soil and is vital for predicting how soil will behave in different conditions.
So to summarize, void ratio measures voids to solids, porosity quantifies voids to total volume, and S gives us hints about the water content. Remember 'S on the Scale of Soil' for Degree of Saturation.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
We've covered volume, now let’s explore weight relations. What’s the water content (w) in soils explained?
It's the ratio of mass of water to the mass of solid particles!
Right! And what does it imply if w exceeds 100%?
It means there’s more water than soil solids!
Exactly! Now let’s talk about specific gravity (G_s). Why is it significant?
It indicates the density of soil particles versus water's density!
Great! Remember, G_s typically ranges from 2.60 to 2.80 for inorganic soils. And in what scenario would buoyant unit weight matter?
When the soil is submerged?
Yes! Remember, weights give us clarity on how soil responds to external loads when wet versus dry. So to remember, think 'W for Water and Weight'.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now let’s tie it all together - how do volume and weight relations impact each other?
If we know the volume of voids, we can calculate the weight of water present, influencing saturation!
That's correct, Student_3! And how does knowing the void ratio help when we look at water content?
It tells us how much water can potentially fill those voids!
Exactly! So we see interrelations like how increasing water increases saturation. Always keep that in mind. Let's conclude with, 'Volume and Weight are the Heart of Soil!'
Overview
Short Summary
The section explains the degree of saturation in soils, alongside related volume and weight relations that define soil properties.
Medium Summary
This section discusses the degree of saturation as a vital property of soil, defining it in relation to volume relations such as void ratio and porosity, and weight relations such as water content and soil density. It establishes a foundational understanding of how these properties interact in soil mechanics.
Detailed Summary
Degree of Saturation (S)
In geotechnical engineering, understanding the degree of saturation (S) is crucial for assessing soil behavior under various conditions. This section covers key volume and weight relations in soils, which serve as the basis for understanding the degree of saturation along with other properties.
Volume Relations
The section begins by differentiating between volume relations, where:
- Void Ratio (e): This is the ratio of the volume of voids to the volume of soil solids, expressed as a decimal.
- Porosity (n): This is defined as the ratio of the volume of voids to the total volume of soil, expressed as a percentage.
- Degree of Saturation (S): The volume of water in soil (ranging from 0% in dry soil to 100% in fully saturated soil) is expressed as a percentage. This highlights why understanding S is significant: it affects physical interactions in soils.
- Air Content (a) and Percentage Air Voids (n_a): These are defined to complete the picture of voids in soil.
Weight Relations
The second half of the section introduces weight relations, emphasizing density and how it serves as a key property for soil classification and behavior:
- Water Content (w): This ratio defines the masses of water and solids within soil, showing how moisture impacts soil characteristics.
- Specific Gravity (G_s): Representing the mass of soil particles, it helps in determining soil's characteristic properties.
- Other important weights include dry unit weight, bulk unit weight, and buoyant weight.
These interrelations among different soil properties illustrate the complexity and importance of understanding saturated and unsaturated conditions in soils for engineering applications.

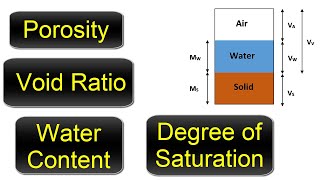

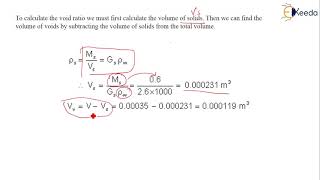

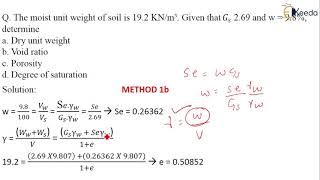

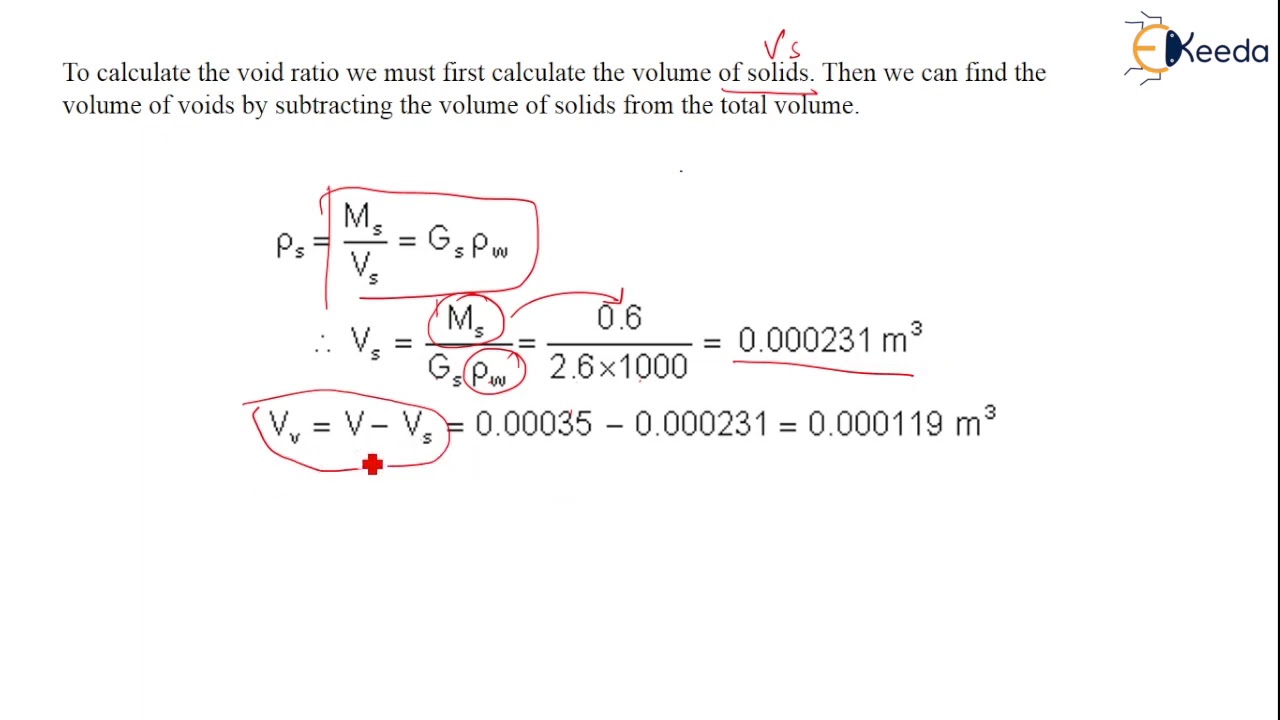

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe volume of water (V_w) in a soil can vary between zero (i.e. a dry soil) and the volume of voids. This can be expressed as the degree of saturation (S) in percentage.
Detailed Explanation
The degree of saturation (S) is a measure of how much of the void space in soil is filled with water. It is expressed as a percentage, where S = 0% means the soil is completely dry (having no water in the voids), and S = 100% indicates that the soil is fully saturated, meaning all voids are filled with water. In practical terms, if you take a handful of soil, the degree of saturation helps determine how much water is present in the spaces between the soil particles.
Examples & Analogies
Think of a sponge. When the sponge is dry (like soil with 0% saturation), it has no water in it. As you submerge it in water, the sponge starts to absorb it, and we could say the degree of saturation increases. When the sponge cannot hold any more water and is fully saturated (100% saturation), it can't absorb any extra water, just like soil does when all its voids are filled.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountFor a dry soil, S = 0%, and for a fully saturated soil, S = 100%.
Detailed Explanation
These percentages represent the extremes of the degree of saturation in soil. When we say that a soil is at 0% saturation, it means there is no water present at all, which can severely affect the soil's strength and stability. On the other hand, a soil that is at 100% saturation has the maximum amount of water that the voids can hold, meaning it is at its most 'wet' state. Understanding this helps in soil engineering, construction, and agriculture, as different degrees of saturation can significantly impact the properties of the soil.
Examples & Analogies
Consider a salad bowl filled with different ingredients. If you pour some ranch dressing over it, the vegetables soak up the dressing until they can't hold any more — this is similar to soil reaching its saturation point. If there's no dressing, everything is dry. This visual can help you see how soil behaves in terms of empty (dry) or full (saturated) spaces.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Void Ratio:
The ratio of void volume to solid volume, important for understanding how much water can be held in soil.
- Porosity:
This percentage of void space influences how saturated the soil can become.
- Degree of Saturation:
Indicates how saturated the soil is and impacts its mechanical properties.
- Water Content:
Reflects the relationship between water and solid particles crucial for soil behavior.
- Specific Gravity:
Helps classify soil types based on particle density.
- Bulky and Dry Unit Weights:
They show how mass and volume interact in saturated and unsaturated soil.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
A soil has a volume of solids of 60 m³ and voids of 40 m³. The void ratio will be e = 40/60 = 0.67.
If the same soil has a total volume of 100 m³ and we encounter 20 m³ of water, porosity n = (40 m³/100 m³) * 100% = 40%.
Memory aids
Imagine a sponge. When it's dry, it has many voids. As water fills it, it becomes saturated, showcasing S from 0% to 100%!
Flash Cards
Glossary
Void Ratio (e)
The ratio of the volume of voids to the volume of soil solids.
Porosity (n)
The ratio of the volume of voids to the total volume of soil expressed as a percentage.
Degree of Saturation (S)
The percentage representing the volume of water in soil relative to the volume of voids.
Water Content (w)
The ratio of the mass of water present to the mass of solid particles.
Specific Gravity (G_s)
The ratio of the mass of solid particles to the mass of an equal volume of water.
Unit Weight
The weight of a unit volume of material.
Bulk Unit Weight
The weight of a unit volume of soil, including solids and water.
Dry Unit Weight
The weight of a unit volume of soil solids only.
Buoyant Unit Weight
The weight of soil when submerged beneath water.

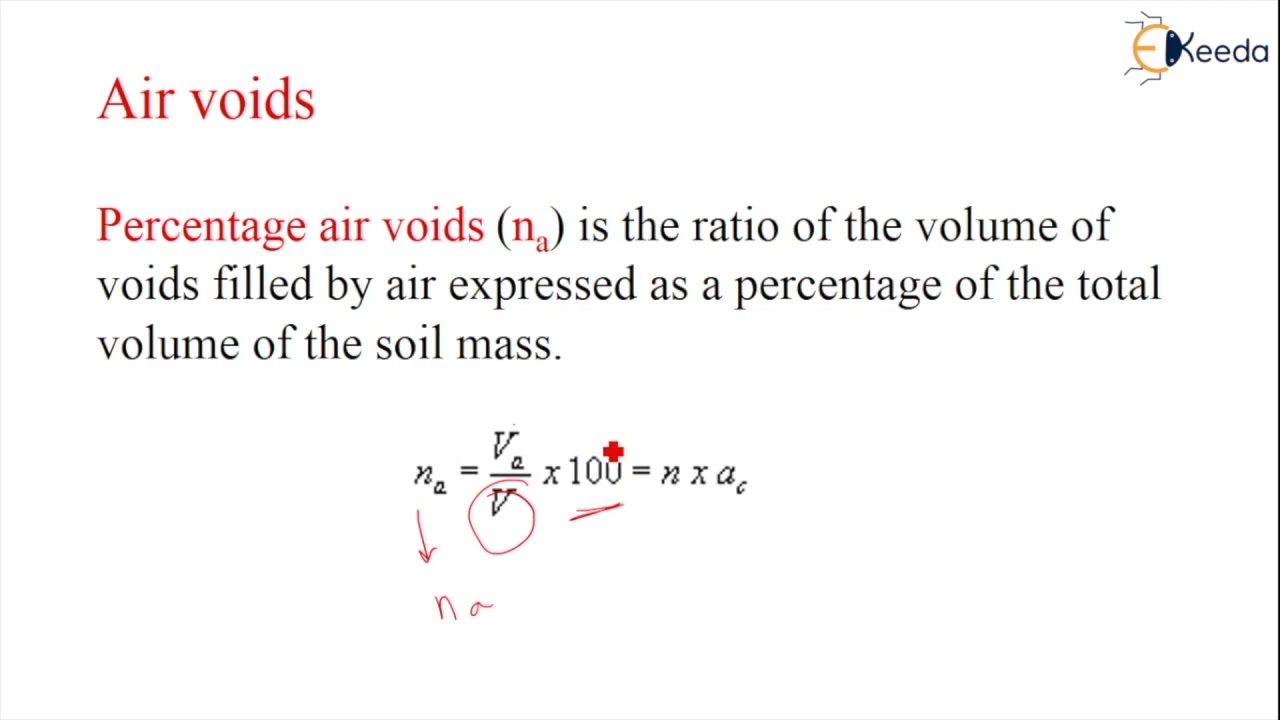

Percentage Air Voids (n_a)
The ratio of the volume of air in the voids to the total volume of soil expressed as a percentage.
