Volume Relations: Void Ratio and Porosity
Unlock Audio Lesson
Today, we will explore the concepts of void ratio and porosity. Can anyone tell me what void ratio means?
Is it the ratio of the volume of voids to the volume of the soil solids?
Exactly! Great job! The void ratio, denoted as 'e', helps us understand how much space in the soil is taken up by voids. Now, who can define porosity for me?
I think porosity is the ratio of the volume of voids to the total volume of soil, right?
Correct! We express porosity as a percentage, which indicates how much of the soil's volume is made up of voids. Remember this acronym - 'VP!' - Volume of Voids to Total Volume! Now, what do you think is the relationship between void ratio and porosity?
Is it like that if we know one, we can calculate the other?
"Yes, exactly! Keep this in mind:
Degree of Saturation and Air Content
Unlock Audio Lesson
Next, let’s discuss the degree of saturation. Who can explain what saturation means in the context of soil?
Is it how much groundwater is present in the soil?
That's one way to frame it! The degree of saturation, 'S', is the volume of water in the voids, represented as a percentage of the total void volume. S can range from 0% for dry soil to 100% for fully saturated soil. Can anyone tell me about air content?
Oh! I think air content corresponds to the volume of air compared to the volume of voids.
Right! We call that ratio 'a_c'. It’s crucial because it affects how the soil behaves under different moisture conditions. Can someone tell me why knowing the air content is important?
It helps in understanding soil aeration and drainage!
Exactly! Let’s keep these concepts clear: degree of saturation provides insights into water content, while air content informs us about the air spaces in the soil. This is crucial in agricultural and geotechnical applications.
Weight Relations: Density and Specific Gravity
Unlock Audio Lesson
Let’s shift gears and talk about weight relations. What is density in our context?
It’s the mass of a unit volume of material, like soil!
Correct! Density helps us understand how compact and heavy the soil is. Now, does anyone know the difference between unit weight and density?
Isn't unit weight just the weight of a unit volume?
Exactly! They are often used interchangeably. Now, let’s talk about specific gravity. Who can explain what specific gravity (G_s) is?
It’s the ratio of the density of the soil particles to the density of water!
Correct again! Generally, for most inorganic soils, G_s falls between 2.60 and 2.80. Remember: a high G_s means denser soil particles! Why might this value change?
If there's higher organic matter, it lowers G_s!
Great insight! This means the composition of soil directly affects its physical properties.
Unit Weights: Dry, Bulk, and Saturated
Unlock Audio Lesson
Now we’ll discuss different unit weights: dry, bulk, and saturated. Can anyone define dry unit weight?
It’s the weight of solid particles per unit volume!
Exactly! Moving on to bulk unit weight. What do you think this includes?
Doesn't it include both solids and water?
That's right! Bulk unit weight is critical for understanding how much weight the soil will exert when it's moist. What about saturated unit weight?
That’s when all the voids are filled with water!
Yes! It indicates the soil's weight when completely saturated. Lastly, what happens with buoyant unit weight?
It represents soil under water, right?
Correct! This concept is essential for our understanding of soil behavior in submerged conditions. Let’s summarize all unit weight types and their importance.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section details the relationships among volume and weight of soil, introducing concepts such as void ratio, porosity, degree of saturation, and specific gravity. It also highlights how these measurements impact soil properties and behaviors in relation to water and air.
Detailed
Detailed Summary
This section delves into key weight and volume relations crucial for understanding soil mechanics. It begins with volume relations, defining void ratio (e), which is the ratio of voids to soil solids, and porosity (n), defined as the volume of voids relative to total soil volume. These relationships are interconnected, enabling a comprehensive understanding of soil structure.
The section continues by explaining the degree of saturation (S), which indicates the volume of water within a soil, ranging from 0% for dry soil to 100% for saturated soil, and the relationships involving air content and percentage of air voids.
Moving to weight relations, we explore density, which indicates the mass present in a unit volume of material, and unit weight, which reflects the weight per unit volume. Specific gravity (G_s) is defined as the ratio of the density of soil solids to the density of water. Organic material affects G_s, as its presence typically lowers this value. The concepts of dry unit weight, bulk unit weight, and saturated unit weight are also discussed, highlighting their significance in practical soil analysis and geotechnical engineering. Buoyant unit weight is introduced as the effective mass per unit volume in submerged conditions.

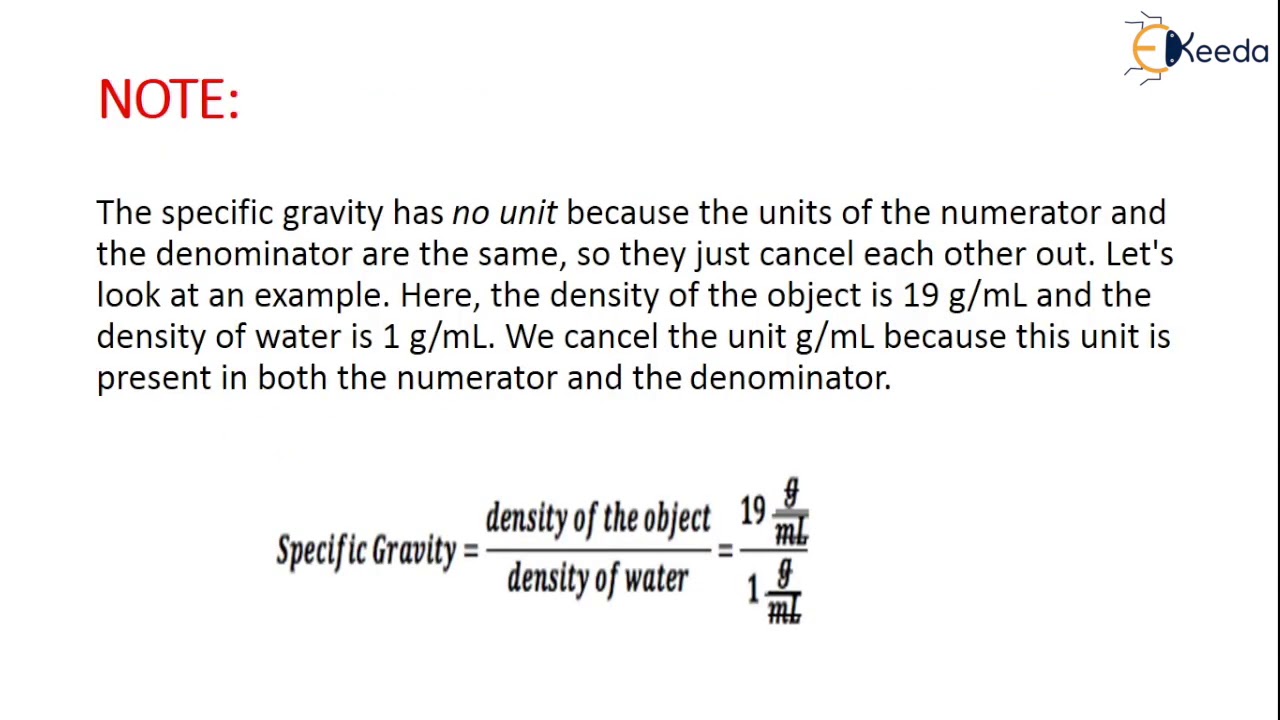

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Specific Gravity (G)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The mass of solid particles is usually expressed in terms of their particle unit weight or specific gravity (G ) of the soil grain solids.
Detailed Explanation
Specific gravity (G) is a dimensionless quantity that indicates how heavy a material is relative to the weight of water. It is determined as the ratio of the mass of soil solids to the mass of an equal volume of water. Specific gravity indicates the density of soil particles compared to water, which is essential in understanding soil behavior.
Examples & Analogies
Think of specific gravity like comparing the weight of different fruits in a basket filled with water. If you put an apple and an orange in the same volume of water, the heavier fruit (higher specific gravity) will cause the water level to rise more than a lighter fruit. Similarly, specific gravity helps us understand how heavy the soil particles are in relation to water.
Typical Values of Specific Gravity (G)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For most inorganic soils, the value of G lies between 2.60 and 2.80. The presence of organic material reduces the value of G.
Detailed Explanation
The specific gravity value typically ranges from 2.60 to 2.80 for inorganic soils, meaning that these soil particles are 2.6 to 2.8 times heavier than an equal volume of water. Organic materials, on the other hand, usually have lower specific gravities due to their lighter, less dense nature, which can affect the properties and behavior of the soil.
Examples & Analogies
Imagine comparing a rock and a sponge. The rock (inorganic material) is much heavier for the same size—this represents higher specific gravity. The sponge (organic material) is lighter; hence it has a lower specific gravity. Just like how soil behaves, if there's more organic material mixed with the 'rocks,' it becomes lighter and less dense.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Void Ratio: Ratio of voids to solids that indicates how much of a soil's structure is empty space.
-
Porosity: The percentage of voids within the total soil volume, crucial for calculating water storage.
-
Degree of Saturation: The level to which soil voids are filled with water, affecting soil behavior and stability.
-
Specific Gravity: A key property that defines the density of soil particles relative to water, impacting structural integrity.
-
Unit Weights: Different metrics (dry, bulk, saturated) that inform us of soil weight and behavior in various moisture conditions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a soil sample has a void volume of 30 m³ and a solid volume of 70 m³, the void ratio (e) is 0.43.
-
A soil with 40% porosity (n) means that out of every 100 m³, 40 m³ is empty space.
-
For a saturated soil with water content of 20%, S would be represented as 100% for full saturation.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To find the voids in soil, just take a look, it’s the space that’s empty - that's the hook!
📖 Fascinating Stories
-
Imagine a sponge filled with water and air, the sponge is the soil, and it tells us how rare, the voids and water flow are in the end, this is how soils want to bend.
🧠 Other Memory Gems
-
For S and n, remember 'Saturation's Numerics - both deal with voids, oh the gimmicks!'
🎯 Super Acronyms
P.E.V. for Porosity = Volume of Empty voids over total Volume!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Void Ratio (e)
Definition:
The ratio of the volume of voids to the volume of soil solids.
-
Term: Porosity (n)
Definition:
The ratio of the volume of voids to the total volume of soil, expressed as a percentage.
-
Term: Degree of Saturation (S)
Definition:
The ratio of the volume of water to the total volume of voids, expressed as a percentage.
-
Term: Air Content (a_c)
Definition:
The ratio of the volume of air to the volume of voids in the soil.
-
Term: Specific Gravity (G_s)
Definition:
The ratio of the density of soil solids to the density of water.
-
Term: Dry Unit Weight
Definition:
The weight of solid soil particles per unit volume.
-
Term: Bulk Unit Weight
Definition:
The total weight of solid particles and water per unit volume.
-
Term: Saturated Unit Weight
Definition:
The weight of soil when all voids are filled with water.
-
Term: Buoyant Unit Weight
Definition:
The weight of soil when submerged in water.
