2.5 - Saturated Unit Weight
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Void Ratio and Porosity
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we'll explore the concepts of void ratio and porosity. Can anyone tell me what void ratio means?
Is it the space between particles in the soil?
Close! Void ratio is actually the ratio of the volume of voids to the volume of soil solids. The formula is e = V_v / V_s. Now, who can explain porosity?
Porosity is the volume of voids compared to the total volume of soil, right?
Exactly! It's expressed as a percentage. Remember, both concepts help us understand how much void space is in our soil.
What happens if we have a fully saturated soil?
Good question! In that case, the degree of saturation, S, would be 100%. This means all voids are filled with water. Let's summarize: Void ratio is a decimal value, while porosity is a percentage, both crucial for analyzing soil properties.
Weight Relations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's switch gears to weight relations in soils. Can anyone define water content for us?
Isn't it the mass of water divided by the mass of solid particles?
Correct! It's often represented as 'w' and can exceed 100%. What about specific gravity?
Specific gravity is the ratio of the mass of solid particles to the weight of an equal volume of water.
Precisely! Remember, for most inorganic soils, the range is between 2.60 and 2.80. Now, let's talk about dry and bulk unit weight.
Dry unit weight measures solid particles per unit volume, right?
You got it! The bulk unit weight includes both solids and water. For saturated soils, they are critical to understand as they reflect the fully saturated condition.
What is buoyant unit weight then?
Great question! It reflects the effective mass per unit volume when submerged in water. Remember this distinction as we apply these concepts in real-world scenarios.
Saturation and its Importance
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's discuss the importance of saturation in soils. Why do you think it's critical for engineers?
It affects how well the soil can support structures, right?
Absolutely! The degree of saturation affects the soil's strength. What happens when soil is only partially saturated?
It could lead to issues like settling or instability?
Exactly! A saturated soil will perform differently under load than a dry or partially saturated soil. Always remember the implications of these measurements in your future projects.
So, understanding every aspect of these concepts helps us to predict soil behavior accurately?
Yes, and that's the key takeaway today! Let's summarize what we learned about void ratio, porosity, water content, and specific gravity.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Saturated unit weight is a critical concept in soil mechanics representing the weight of a soil volume completely filled with water. The section provides essential definitions of volume relations like void ratio and porosity, as well as weight relations such as water content and bulk unit weight, which are necessary for understanding soil behavior in engineering applications.
Detailed
Saturated Unit Weight
The concept of saturated unit weight is pivotal in soil mechanics. It refers to the weight of the soil when all void spaces are filled with water. In this section, we explore several volume and weight relations relevant to saturated soils.
Volume Relations
- Void Ratio (e): This is the ratio of the volume of voids to the volume of soil solids, expressed as a decimal.
- Porosity (n): It measures the ratio of the volume of voids to the total volume of soil, usually represented as a percentage. The relationship between void ratio and porosity is crucial for understanding soil characteristics.
- Degree of Saturation (S): This percentage indicates how much of the void volume is filled with water, varying from 0% in dry soil to 100% in fully saturated soil.
- Air Content (a): This ratio reflects the volume of air in the voids compared to the volume of voids,
- Percentage Air Voids (n_a): This term indicates the ratio of the volume of air in the voids to the total volume of soil.
Weight Relations
- Water Content (w): Represents the mass of water relative to the mass of solids and can exceed 100%.
- Specific Gravity (G_s): This defines the mass of soil solids relative to the volume of water.
- Dry Unit Weight: Measures the mass of soil solids per unit volume.
- Bulk Unit Weight: Considers both solids and water.
- Saturated Unit Weight: Equivalent to the bulk density when voids are fully occupied by water.
- Buoyant Unit Weight: Refers to the effective mass per unit volume when the soil is submerged.
Understanding these concepts assists engineers in evaluating soil behavior and improving construction practices.

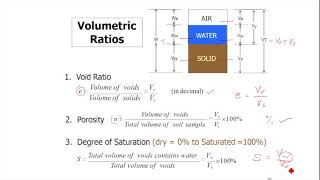

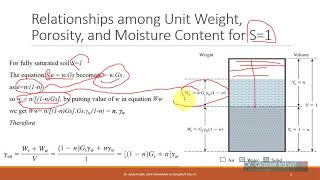

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Saturated Unit Weight
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Saturated unit weight is equal to the bulk density when the total voids is filled up with water.
Detailed Explanation
Saturated unit weight refers to the weight of a unit volume of soil when all the voids or spaces that exist within the soil are filled with water. This means that in a saturated soil condition, the only material present in the sample is soil particles and water. At this point, the bulk density, which includes the weight of both the solids and the water, equals the saturated unit weight.
Examples & Analogies
Imagine a sponge that has absorbed all the water it can hold. When you weigh this sponge, you're measuring its saturated weight. Similarly, in soil, when all the airspaces are filled with water, its weight per volume is the saturated unit weight.
Importance of Saturated Unit Weight
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Saturated unit weight is important for understanding soil behavior in saturated conditions, which is crucial for engineering applications.
Detailed Explanation
Knowing the saturated unit weight of soil is essential for various engineering projects, including the design of foundations, slopes, and retaining structures. It helps engineers determine how much weight a particular soil can support when it is fully saturated, which is especially important in situations like heavy rain or flooding where the soil may become saturated. Understanding this property allows for better predictions of soil stability and behavior under load.
Examples & Analogies
Consider a dam built on saturated soil. Engineers must know the saturated unit weight to ensure the dam can safely hold back water without failing. If they ignore this property, they risk the structural integrity of the dam, leading to potential disasters.
Key Concepts
-
Void Ratio (e): A measurement of the voids in soil, crucial for determining its properties.
-
Porosity (n): The percentage of voids necessary for understanding water retention capacity.
-
Degree of Saturation (S): Key for predicting soil behavior under load.
-
Water Content (w): Indicates the moisture condition of soil, which is crucial for engineering applications.
-
Specific Gravity (G_s): Important for differentiating soil types and their densities.
-
Dry Unit Weight: Reflects soil's dry condition, significant for calculating loads.
-
Bulk Unit Weight: Includes the weight of water, essential for saturated conditions.
-
Saturated Unit Weight: Helps determine the weight of soil in water-filled conditions.
-
Buoyant Unit Weight: Needed for calculations involving submerged structures.
Examples & Applications
If a soil has a void ratio of 0.5, this means that for every unit volume of solids, there is 0.5 unit volume of voids.
In a fully saturated soil, if the volume of voids is 30% of the total volume, the degree of saturation (S) is 100%.
A sandy soil with a specific gravity (G_s) of 2.65 will behave differently than a clayey soil with G_s of 2.75 under applied loads.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For voids and holes, e is the key, Understanding these helps you see, That soils behave differently!
Stories
Imagine a sponge filled with water; the voids are spaces where water sits. This sponge represents soil, where the dynamic between solids and water can support buildings!
Memory Tools
To remember the weight relations: W for Water content, D for Dry unit weight, B for Bulk unit weight, and S for Saturated unit weight.
Acronyms
VPS — Void Ratio, Porosity, Saturation — are three pillars of soil mechanics.
Flash Cards
Glossary
- Void Ratio (e)
The ratio of the volume of voids to the volume of soil solids.
- Porosity (n)
The ratio of the volume of voids to the total volume of soil, expressed as a percentage.
- Degree of Saturation (S)
The percentage of void volume that is filled with water.
- Air Content (a)
The ratio of the volume of air to the volume of voids in the soil.
- Water Content (w)
The ratio of the mass of water to the mass of solid particles.
- Specific Gravity (G_s)
The ratio of the mass of solid particles to the mass of an equal volume of water.
- Dry Unit Weight
A measure of the weight of solid particles in a unit volume of soil.
- Bulk Unit Weight
A measure of the total weight of soil, including solids and water, in a unit volume.
- Saturated Unit Weight
The weight of a saturated soil volume, equivalent to the bulk density when voids are completely filled with water.
- Buoyant Unit Weight
The effective weight of soil when submerged in fluid.
