Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Void Ratio
Unlock Audio Lesson
Today, we will explore the concept of void ratio, denoted as 'e.' It is defined as the ratio of the volume of voids to the volume of soil solids. Why do you think this is important in understanding soil?
It shows how much empty space is in the soil. More voids usually mean less strength, right?
Exactly, great observation! More voids can lead to instability. Can anyone tell me how to calculate the void ratio?
Is it just the volume of voids divided by the volume of solids?
Yes! So if V_v is 30 m³ and V_s is 60 m³, then e = 30/60 = 0.5. Can anyone relate void ratio to porosity?
I think porosity is the percentage of voids to total volume?
Right again! Porosity is expressed as a percentage and links to void ratio through the total volume of soil.
So, if void ratio is high, porosity must also be high?
Yes, they are related! Let's summarize: the void ratio shows internal structure, crucial for understanding soil behavior.
Interrelationships: Void Ratio and Porosity
Unlock Audio Lesson
Now let's delve into how void ratio and porosity are interrelated. Who can explain porosity using void ratio?
I think porosity is derived from the void ratio but expressed in a different way?
Exactly! Porosity (n) is calculated as n = e / (1 + e). This formula relates the two concepts directly. Can anyone put that into a practical example?
If e is 0.5, then n = 0.5 / (1 + 0.5) = 0.333 or 33.3%?
Well done! Understanding this relationship is essential in fields such as geotechnical engineering. How does this understanding affect soil saturation?
The higher the void ratio, probably means more space for water?
Exactly! Higher void ratios imply greater potential for water storage, fundamental to how we manage and utilize soil.
So, managing saturation is critical to prevent failures in structures?
Very good point! Always remember the connections between these properties.
Degree of Saturation and its Implications
Unlock Audio Lesson
Let’s now discuss the degree of saturation, denoted as S. How does this relate to void ratio?
Isn't it the percentage of the voids filled with water?
Correct! Depending on the amount of water, we could have different saturation levels. What happens at S = 0% versus S = 100%?
At 0%, it’s completely dry, and at 100%, everything is filled with water.
Great! How do you think this impacts the physical characteristics of soil?
Saturated soils carry more weight and could lead to risks of failure like liquefaction?
Exactly! It's vital to monitor saturation in construction to mitigate risks. Let’s summarize today’s key point about saturation and voids.
Air Content in Soil
Unlock Audio Lesson
Now let’s explore air content, denoted as a_c. How do we express air content in relation to the void ratio?
It's the volume of air compared to the volume of voids?
Precisely! And how does knowing the air content benefit us in geo-technical applications?
It can help assess the drainage properties of soil?
Absolutely! This knowledge helps design effective drainage systems. Anyone know why understanding air content is critical?
Too much air can mean weak structures and drainage issues?
Correct! An optimal balance between air and water in the soil leads to more stable conditions. Let’s wrap up today with key concepts learned.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In soil mechanics, the void ratio (e) is defined as the ratio of the volume of voids to the volume of solids in soil. Understanding the relationships between void ratio, porosity, degree of saturation, and air content is crucial for evaluating soil behavior under different conditions. This section shows how void ratio fits into broader volume and weight relationships in soils.
Detailed
In-Depth Summary of Void Ratio (e)
The void ratio (e) is a key parameter in soil mechanics that helps to understand the internal structure of soils. It is defined as the ratio of the volume of voids (V_v) to the volume of soil solids (V_s). The void ratio is expressed as a decimal:
Key Volume Relationships:
- Void Ratio (e):
- Equation: e = V_v / V_s
- The significance of 'e' becomes apparent when comparing it with other parameters like porosity (n).
- Porosity (n):
- It represents the ratio of the volume of voids to the total volume of soil (V_t), given by the equation: n = V_v / V_t * 100%
- Porosity is expressed in percentage, demonstrating how void ratio and porosity are interrelated.
- Degree of Saturation (S):
- It varies with water content in soil, with S = 0% indicating dry soil and S = 100% indicating fully saturated soil.
- Degree of saturation can be related back to void ratio to understand moisture content.
- Air Content (a_c):
- Defined as the ratio of the volume of air present (V_a) to the volume of voids (V_v).
- Percentage Air Voids (n_a):
- This is the ratio of air volume over total volume, giving more insight into void characteristics.
Understanding these relationships is pivotal for engineering applications such as construction, agriculture, and environmental management.

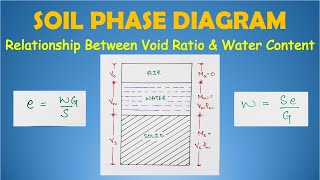

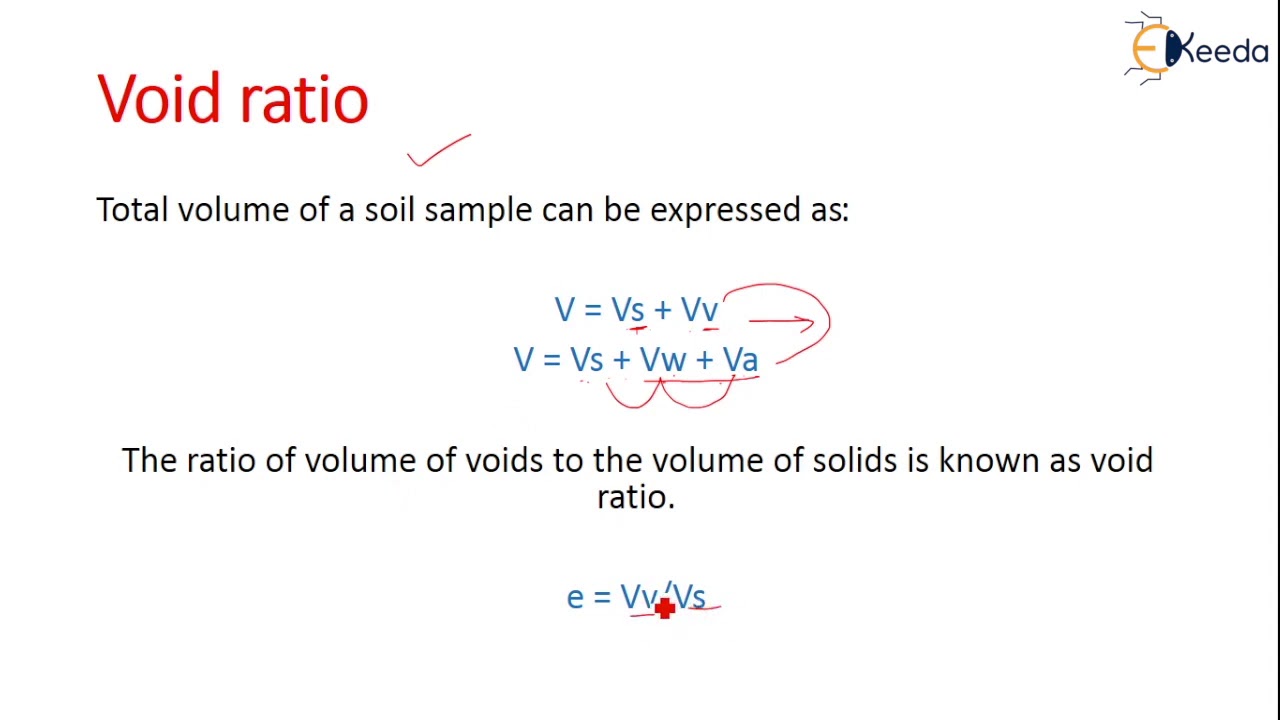

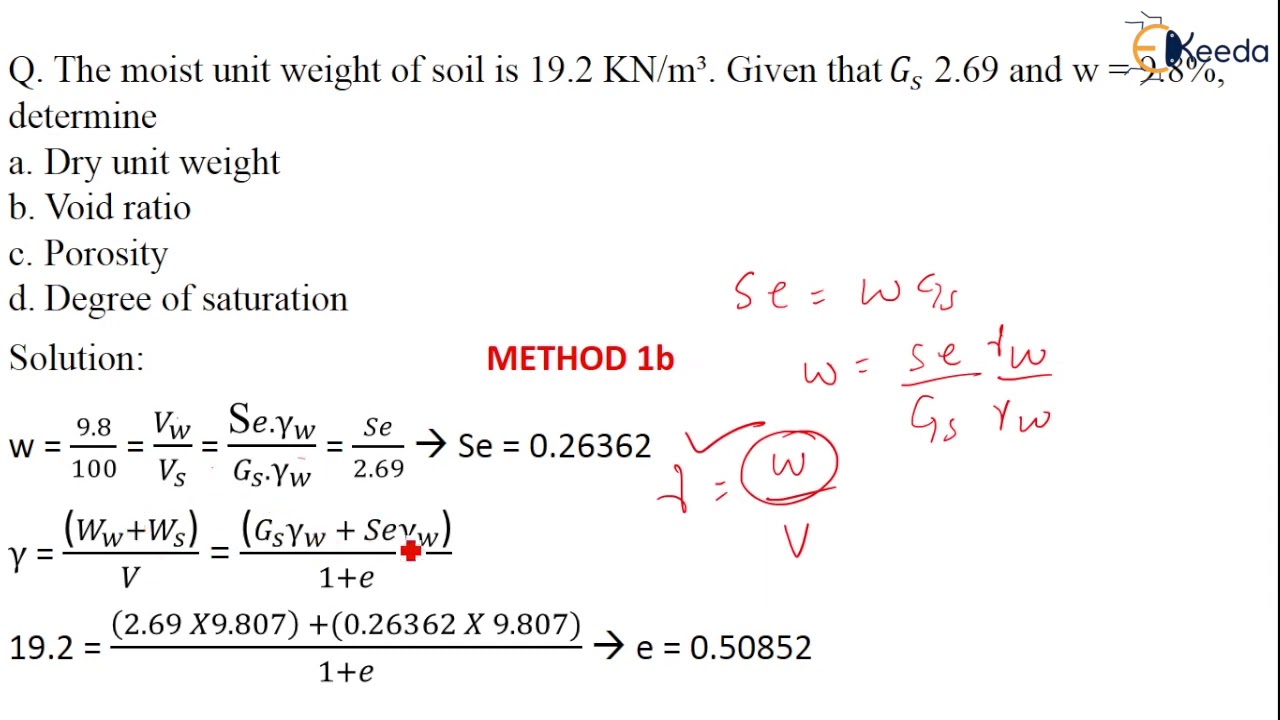

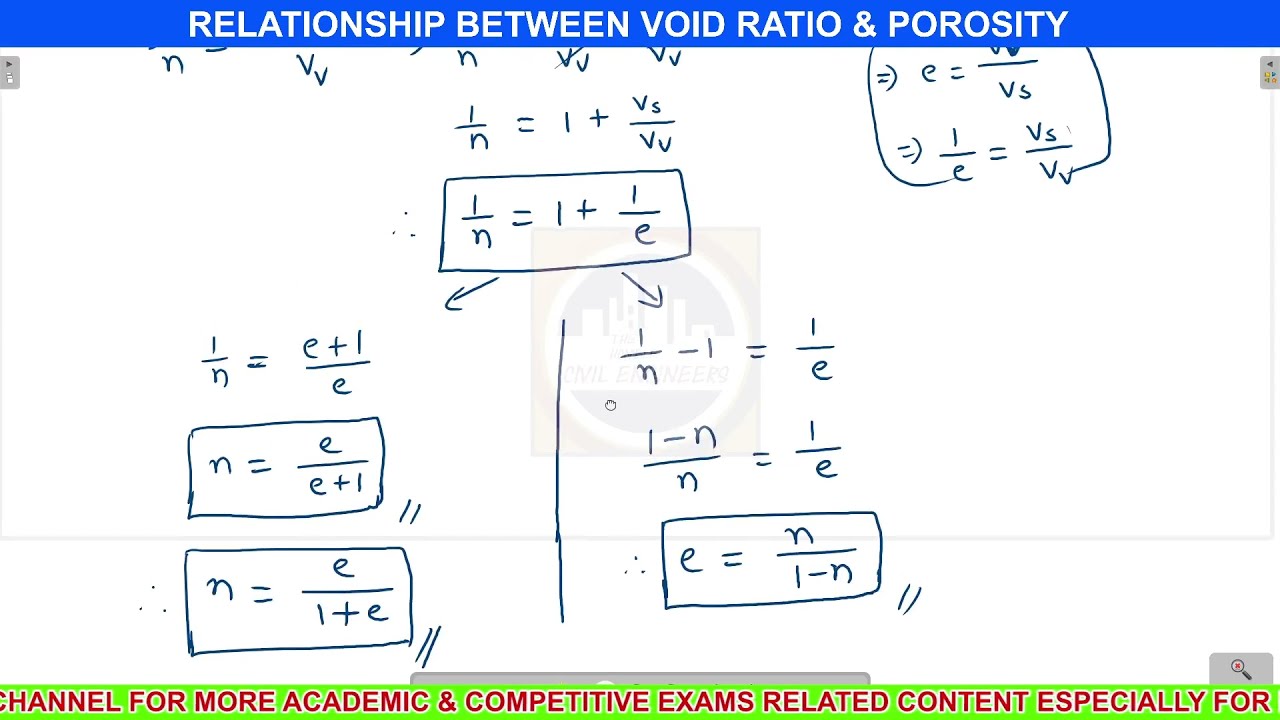

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Void Ratio
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Void ratio (e) is the ratio of the volume of voids (Vv) to the volume of soil solids (Vs), and is expressed as a decimal.
Detailed Explanation
The void ratio (e) is a key concept in soil mechanics. It compares the volume of empty spaces, or voids, within a soil sample to the volume of solid particles. This relationship helps us understand how much void space is available relative to the solid content. The formula can be expressed as: e = Vv / Vs. A higher void ratio indicates more empty space within the soil, which can significantly affect its strength and stability.
Examples & Analogies
Imagine a box of marbles where the marbles represent soil solids and the empty spaces between them represent voids. If you have a box filled with tightly packed marbles, the void ratio is low because there are few empty spaces. If you shake the box and the marbles settle down with more spaces in between, the void ratio increases.
Interrelationship with Other Parameters
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Void ratio and porosity are inter-related to each other as follows:
Detailed Explanation
Void ratio (e) and porosity (n) are two important parameters in understanding soil structure. While void ratio measures the volume of voids relative to solids, porosity measures the volume of voids relative to the total volume of the soil. The relationship can be expressed mathematically: n = e / (1 + e). In this formula, porosity is calculated from the void ratio, demonstrating that they are inherently connected but represent different aspects of soil.
Examples & Analogies
Think about a sponge (which can be thought of as the soil) that holds water in its cavities (voids). The sponge's ability to hold water in those voids relates to both how much space is between the sponge's material (void ratio) and how much space there is in total in the sponge (porosity). As you fill a sponge, you can appreciate its porosity and void ratio simultaneously.
Understanding Void Spaces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- The volume of water (Vw) in a soil can vary between zero (i.e. a dry soil) and the volume of voids. This can be expressed as the degree of saturation (S) in percentage.
Detailed Explanation
The degree of saturation (S) indicates how much of the void space within the soil is filled with water. If S is 0%, it means the soil is completely dry, and if it is 100%, the soil is fully saturated. This concept is crucial in understanding soil behavior because the water present can significantly influence the soil's physical properties, such as its strength and compressibility.
Examples & Analogies
Consider a sponge again. If you just take it out of a bucket of water, it is fully saturated (100% degree of saturation). If you let it sit on a counter, it will start to dry out (decreasing S). Eventually, it could become completely dry (0% degree of saturation) when all the water has evaporated. The varying saturation levels affect how the sponge behaves when you try to compress or pull it apart.
Air Content and Its Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Air content (ac) is the ratio of the volume of air (Va) to the volume of voids.
Detailed Explanation
Air content (ac) is a measure of the amount of air present in the voids of the soil compared to the total empty space. This can be expressed with the formula: ac = Va / Vv. It helps in understanding the extent to which the voids in the soil are occupied by air versus water, which can affect factors such as drainage and compaction.
Examples & Analogies
Think of a balloon. When a balloon is partially inflated, the air inside represents the air content, and the space within the balloon represents the voids. As you blow air into the balloon, the volume of air increases while the void remains the same. Similarly, in soil, understanding the balance of air and water in the voids can help predict how the soil will react in different scenarios.
Understanding Percentage Air Voids
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Percentage air voids (na) is the ratio of the volume of air to the total volume.
Detailed Explanation
Percentage air voids (na) provide insight into the extent of voids that are filled with air compared to the total volume of the soil. It can be expressed as a percentage. The formula is: na = (Va / Vt) × 100, where Vt is the total volume of the soil. This percentage is important in assessing soil aeration and overall health, especially in agricultural contexts.
Examples & Analogies
Think of a jar filled with a mixture of sand, water, and air. The air pockets between the grains of sand represent air voids. The more sand and water you add without increasing the total jar volume, the higher the percentage of air voids decreases. This principle is akin to how farmers must consider soil composition for optimal crop growth.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Void Ratio (e): Represents the ratio of the volume of voids to the volume of soil solids.
-
Porosity (n): The percentage of void volume in relation to the total volume of soil.
-
Degree of Saturation (S): Indicates how much of the void space is filled with water.
-
Air Content (a_c): The volume of air present in relation to the volume of voids.
-
Percentage Air Voids (n_a): Relates the air volume to the total volume of soil.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a soil sample has a volume of voids of 40 m³ and volume of solids 80 m³, then the void ratio e = 40/80 = 0.5.
-
For a soil with a void ratio of 0.75, the porosity can be calculated as n = (e/(1+e)) = 0.75/(1+0.75) = 0.428 or 42.8%.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soil, the voids do play, e is their ratio every day.
📖 Fascinating Stories
-
Once in a vast field, a soil engineer found a patch with 40 m³ of voids and 60 m³ of solids, leading him to discover the void ratio that helped him decide how well to plant trees.
🧠 Other Memory Gems
-
V-PD: Void ratio tells you the Porosity Degree.
🎯 Super Acronyms
E-SAP
- 'E' for void Ratio
- 'S' for Saturation
- 'A' for Air content
- 'P' for Porosity.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Void Ratio (e)
Definition:
The ratio of the volume of voids (pores) to the volume of soil solids.
-
Term: Porosity (n)
Definition:
The ratio of the volume of voids to the total volume of soil expressed as a percentage.
-
Term: Degree of Saturation (S)
Definition:
The ratio of the volume of water to the volume of voids, expressed as a percentage.
-
Term: Air Content (a_c)
Definition:
The ratio of the volume of air to the volume of voids in soil.
-
Term: Percentage Air Voids (n_a)
Definition:
The ratio of the volume of air to the total volume of soil.
