Graphical Interpretation of Solutions
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Real and Distinct Roots
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we'll discuss how the roots of our auxiliary equation influence the graphical behavior of our solutions. First, let's consider real and distinct roots. Can anyone tell me what form the general solution takes in this case?
Isn't it something like y equals C1 e to the power m1 x plus C2 e to the power m2 x?
Exactly! Great job! When we have two distinct real roots, our solution represents exponential growth or decay. This means the graph might rise or fall steeply, depending on the sign of our roots. Who can give me an example of where this is relevant in engineering?
Maybe in analyzing the vibrations of a bridge?
That's right! Understanding these graphs provides valuable insights into the behavior of structures under dynamic loading. Let's say we summarize... The key takeaway is that real distinct roots lead to non-oscillatory behavior, helping us predict how structures will respond to forces.
Understanding Real and Repeated Roots
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s explore what happens when we have real and repeated roots. Can anyone state the form of the general solution?
I think it’s y equals C1 plus C2 times x, all multiplied by e to the power mx.
Correct! This format indicates that we get an exponential decay layered with linear growth. It's a more gradual approach to convergence. In what type of engineering problems might this arise, do you think?
Maybe when a beam is under consistent load, and we're looking at its deflection?
Definitely! That’s an excellent application. The significant point to remember here is that the presence of repeated roots suggests a critical point that might lead to stability issues in structures. Let’s note that down!
Understanding Complex Roots
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, we need to cover complex roots. What's the general form when we have complex conjugate roots?
It's y equals e to the power alpha x multiplied by C1 cos beta x plus C2 sin beta x?
Exactly! This solution represents an oscillatory behavior, which is vital in models of systems subjected to periodic forces. What kind of examples can anyone think of where this would be useful?
In mechanical systems, like damped vibrations or even in electrical circuits?
Absolutely right! The oscillatory nature means such solutions help us understand damping in real-world applications. As a quick recap, complex roots lead to sinusoidal graphs, pivotal for analyzing dynamic stability within structures.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we explore how to graphically interpret solutions of second-order linear homogeneous differential equations. The nature of the roots—whether real, repeated, or complex—determines the graphical behavior of solution curves, which aids in comprehending structural behaviors in engineering applications.
Detailed
Graphical Interpretation of Solutions
Understanding the shape and behavior of the solution curves is essential for engineering intuition. In the analysis of second-order linear homogeneous differential equations, the type of roots significantly influences the graphical representation of solutions. The following are the key forms and their respective graphical behaviors:
-
Real and Distinct Roots: When the auxiliary equation has two distinct real roots, the general solution takes the form:
$$ y(x) = C_1 e^{m_1 x} + C_2 e^{m_2 x} $$
This results in graph shapes that exhibit exponential growth or decay without oscillation. -
Real and Repeated Roots: If the roots are real and equal, the general solution is:
$$ y(x) = (C_1 + C_2 x)e^{m x} $$
This form combines exponential decay with a linear modification, leading to a more tempered response in the graph. -
Complex Roots: When the roots are complex conjugates, the general solution can be expressed as:
$$ y(x) = e^{eta x} (C_1 ext{cos}(eta x) + C_2 ext{sin}(eta x)) $$
This results in oscillatory behavior like a sine wave, potentially damped, making it relevant for models of damped vibrations and resonance phenomena.
Graphical analysis of these solutions allows engineers to visualize and comprehend dynamic behaviors such as stability, damping, and oscillation, which are crucial for designing and analyzing structural applications.
Youtube Videos

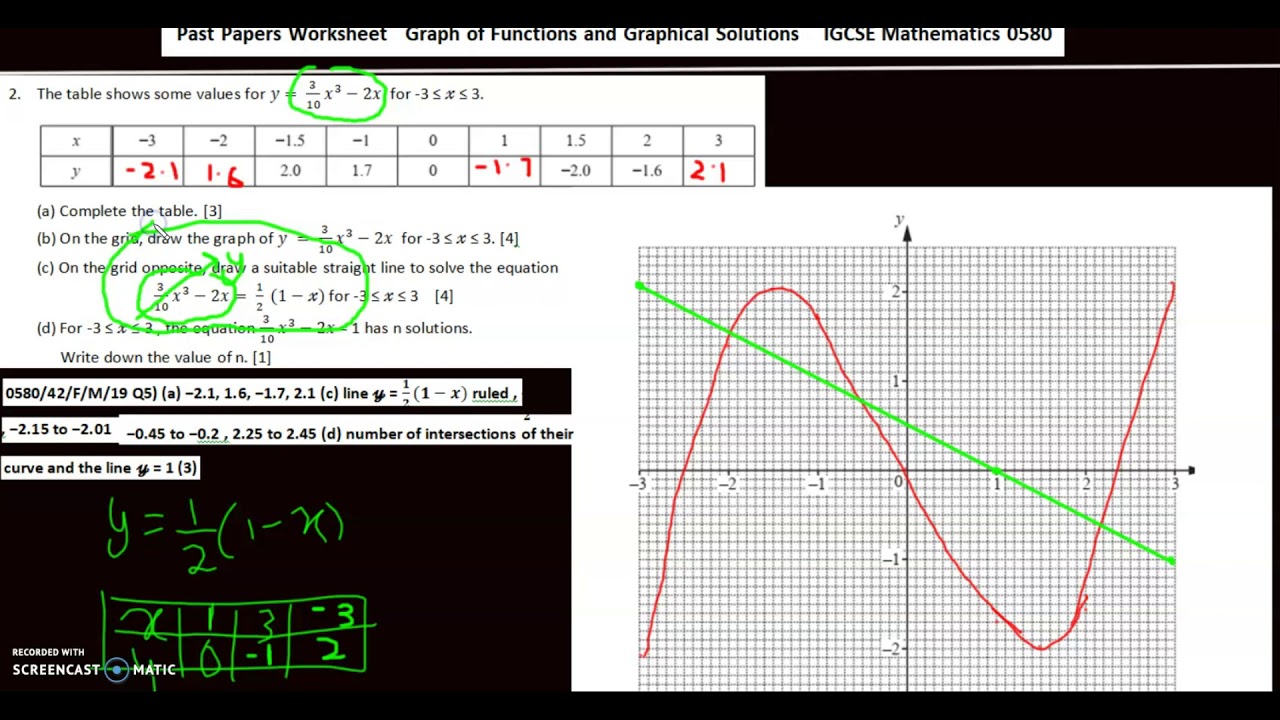

![IGCSE Math 0580 Topic 42(a)/50 : Graphical Solutions [Worksheet in description]](https://img.youtube.com/vi/3wgkBsrkZZY/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Types of Roots and Their Solution Forms
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Type of Roots Solution Form Graphical Behavior
Real and Distinct y=C e^{m_1 x} +C e^{m_2 x} Exponential growth/decay (non-oscillatory)
Real and Repeated y=(C +C x)e^{m x} Exponential decay with linear modification
Complex Roots y=e^{eta x} (C ext{cos}(eta x)+C ext{sin}(eta x)) Oscillatory (sine-wave like), possibly damped
Detailed Explanation
This chunk discusses different types of roots in second-order differential equations and their respective solution forms and behaviors.
-
Real and Distinct Roots: When the auxiliary equation has two different real roots, the solution is an exponential function, either increasing or decreasing. For example, if you have roots like
m_1 = 2andm_2 = -3, the solution reflects a combination of growth due to the positive root and decay due to the negative root. -
Real and Repeated Roots: If both roots are the same, the solution includes an extra
xfactor to account for this multiplicity. This indicates more nuanced behavior than simple exponential decay, resembling a quadratic function. - Complex Roots: When the roots are complex conjugates, the solution takes the form of exponential decay combined with oscillation, resembling a sine wave. This type of solution is often seen in systems experiencing oscillatory motion, like a mass-spring system that has damping due to air resistance.
Examples & Analogies
Think of a swing. When you push a swing up high (real and distinct roots), it moves up and then down smoothly. If you hold the swing at a certain height and it slowly drifts down (real and repeated roots), it comes down at a steady rate. Now, if you were to push a swing lightly, it would go back and forth in a wavy pattern (complex roots), but eventually come to a stop due to friction. This relatability helps conceptualize how different types of mathematical solutions behave over time.
Importance of Graphs in Engineering Interpretation
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
👉 Engineers use these plots to interpret phenomena like damped oscillations, stability, and resonance in systems.
Detailed Explanation
This chunk emphasizes the practical application of the graphical interpretation of solutions in engineering. It highlights how engineers rely on these plots to understand the behavior of structures and materials under various conditions. For instance, understanding how vibrations dampen over time can inform the design of buildings in earthquake-prone areas.
- Damped Oscillations: Engineers can visualize how a system returns to stability after disturbances. For example, in a bridge, knowing how vibrations decay helps prevent resonance that could lead to collapse.
- Stability Analysis: Visualization of solutions assists in determining whether a system will hold its form or fail when subjected to forces.
- Resonance: Understanding where the peak response occurs can be crucial for ensuring that forces experienced don’t align with the system's natural frequencies, preventing catastrophic failures.
Examples & Analogies
Consider a tuning fork. When struck, it produces a pure tone — its natural frequency. If you were to strike it near another object that resonates at the same frequency, it might produce a louder sound. However, if a structure like a bridge resonates during strong winds, engineers must ensure it doesn't match the natural frequency of vibrating elements. This analogy shows how the graphical interpretation helps engineers maintain safety and performance in design.
Key Concepts
-
Real and Distinct Roots: Solutions lead to exponential growth or decay without oscillations.
-
Real and Repeated Roots: Solutions result in exponential behavior combined with a linear term.
-
Complex Roots: Solutions result in oscillatory motion represented with sine and cosine functions.
Examples & Applications
Example: Solving for the response of a simply supported beam under dynamic loading results in distinct real roots leading to exponential behavior in the response graph.
Example: Repeated roots in a static loading scenario showcase the gradual decay of displacement in beams.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Distinct roots grow high, in the sky so spry; Repeated roots decay but hold their sway!
Stories
Picture a bridge vibrating gently like a sine wave, strong and resonant, yet stable, from complex roots working together to balance the forces.
Memory Tools
DR-DO, repeat to know: Distinct real roots, Oscillatory complex roots – these signals show!
Acronyms
ROSE
Roots Of Solutions Explain - the types reveal the graph's tale!
Flash Cards
Glossary
- Auxiliary Equation
A characteristic equation derived from a differential equation whose roots determine the behavior of the general solution.
- Real Roots
Roots of an auxiliary equation that are real numbers, leading to exponential growth or decay in solutions.
- Complex Roots
Roots that include imaginary numbers, resulting in oscillatory solutions combining cosine and sine functions.
- Exponential Decay
A decrease in the value of a function where it decreases proportionally to its current value over time.
- Oscillation
The repetitive variation, typically in time, of some measure about a central value or between two or more different values.
