9.13 - Force and Compliance in Manipulation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Force Control vs. Position Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are going to talk about force and position control in robots. Can anyone explain what position control is?
Position control is when the robot moves to a specific point or follows a predefined path, right?
Exactly! It focuses on achieving specific configurations. Now, what about force control?
Force control is about applying a specific force while interacting with an object?
Correct! It's crucial in tasks like drilling or grinding, where maintaining the right contact force is vital. Remember this distinction: Position Control aims at accuracy in location, while Force Control is about managing interactions!
Can you give us an example of when we'd use force control?
Sure! When a robot is polishing a surface, it needs to exert just the right amount of pressure to avoid damaging the material. That’s where force control comes into play.
So, let's recap! Position control is about reaching a position, and force control is about maintaining contact forces. Got that?
Yes!
Hybrid Position/Force Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s dive into hybrid position/force control. Why do you think we might need to combine these two control types?
So that the robot can push against a surface and still move? That sounds like it would be useful!
Exactly! In tasks where a robot needs to push against an object and move, a hybrid approach ensures both position accuracy and force control are maintained. Can anyone think of practical applications for this?
Maybe for installation tasks, like putting panels in place?
Spot on! This is especially important when installing materials that must be positioned precisely, like prefabricated tiles. The robot must maintain force against the surface while moving into the right alignment.
Remember to think of **Hybrid Control** as a bridge between controlling where and how hard the robot interacts with objects!
Compliance
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s discuss compliance! What does it mean in the context of robotic manipulation?
I think it’s about how well a robot can adapt when it comes into contact with something?
Absolutely! Compliance allows robots to yield under pressure, which is especially valuable when handling fragile materials. Can you explain the difference between passive and active compliance?
Passive compliance uses things like springs, right? They absorb shock automatically.
And active compliance means the robot can sense and react in real-time using controls.
Exactly! Passive compliance is effective for simple interactions, while active compliance allows for nuanced control in variable conditions—like during precision assembly tasks.
Thus, compliance plays a crucial role in ensuring safe and effective interactions with various materials. Let's remember that!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, the focus is placed on the differences between force control and position control in robotic manipulation. The concept of compliance, both passive and active, is also addressed, demonstrating its significance in applications that involve delicate materials or precision tasks. The section provides foundational knowledge beneficial for designing robots that can effectively interact with their environment while ensuring safety and accuracy.
Detailed
Force and Compliance in Manipulation
In robotic manipulation, understanding how to manage the forces exerted by and upon robots is crucial for effective interaction with the environment. This section distinguishes between Force Control and Position Control.
9.13.1 Force Control vs. Position Control
- Position Control strives to achieve a specified trajectory or final configuration of a robot's end-effector, utilizing feedback mechanisms to adjust its position accurately. It is especially useful in tasks like painting or pick-and-place, where precise placement is crucial.
- Force Control, on the other hand, focuses on applying a specific force or torque, ensuring that the robot can adapt to the environment it interacts with. This method is critical for operations such as grinding, polishing, and drilling, where contact forces can significantly affect the outcome.
9.13.2 Hybrid Position/Force Control
Hybrid control techniques combine the principles of both force and position control. This method is advantageous when robots must interact with surfaces while performing motion along specific axes, such as pushing against a wall while simultaneously moving along it. This synergy facilitates precision operations in complex environments.
9.13.3 Compliance
Compliance is the ability of a robot to yield slightly under contact forces, protecting both the robot and its workpieces from damage. It can be categorized into two types:
- Passive Compliance is achieved through mechanical elements like springs, allowing the robot to absorb shocks without requiring complex controls. This configuration is often seen in robotic arms designed to handle fragile objects.

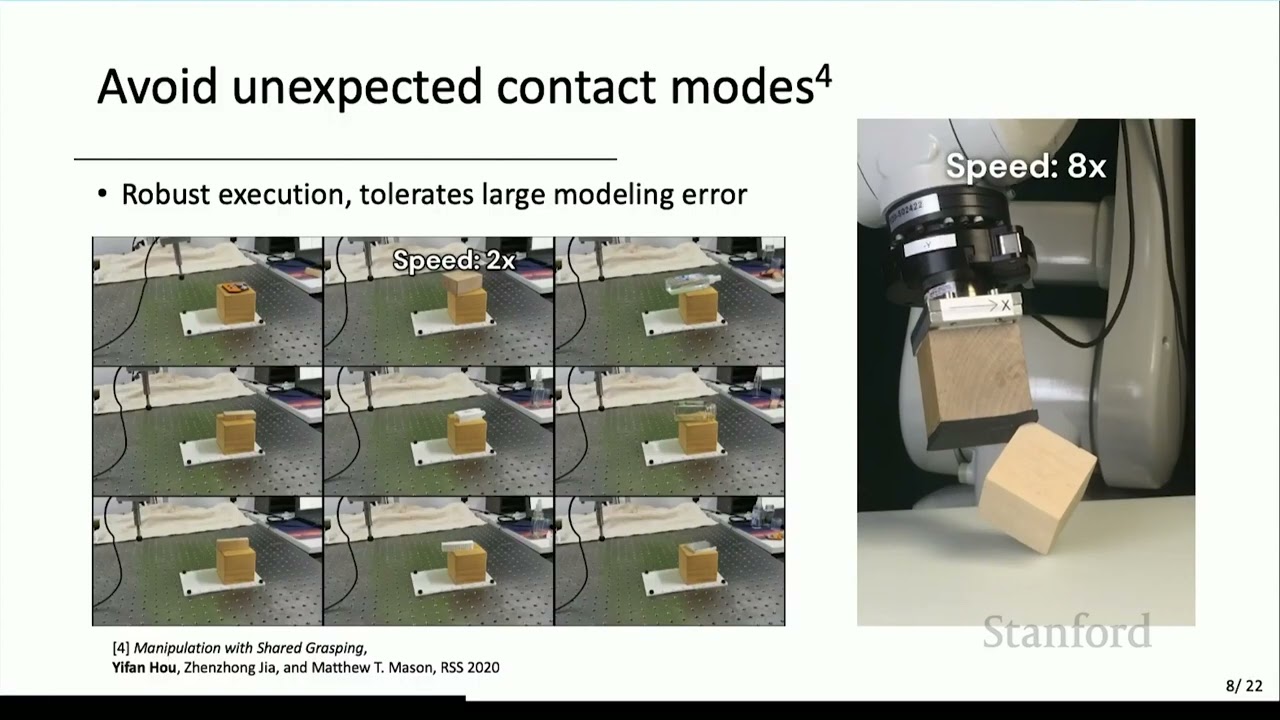

- Active Compliance involves sophisticated control systems that utilize real-time feedback from force sensors to adjust the robot’s interaction dynamically. It is particularly beneficial in applications requiring high precision, such as installing prefabricated panels or carefully manipulating delicate materials.
Overall, the concepts covered in this section are essential for designing robotic systems that not only require precision but also adaptability in dynamic environments, making them relevant for various applications in fields like civil engineering.
Youtube Videos
![Robotics Engineering – [Hindi] – Quick Support](https://img.youtube.com/vi/oV4v1DnT4cA/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Force Control vs. Position Control
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Force Control vs. Position Control
- Position Control: Focuses on achieving a specific configuration or trajectory.
- Effective for tasks like painting or pick-and-place.
- Force Control: Prioritizes applying or maintaining a specific force or torque.
- Useful in tasks involving contact with the environment—grinding, polishing, drilling.
Detailed Explanation
This chunk explains the difference between two key control strategies used in robotic manipulation: Position Control and Force Control.
- Position Control is primarily concerned with getting the robot to a specific point in space or following a certain path. For instance, if a robot arm is tasked with placing a component in a precise location, it employs position control to ensure accuracy.
- On the other hand, Force Control is essential in scenarios where exerting a specific amount of force is critical, like polishing the surface of a material. Here, the focus is on the force applied rather than the exact position, which can vary due to surface irregularities.
Examples & Analogies
Imagine you have a remote-controlled car. If you want to park it in a tight spot, you use position control to guide it precisely into place. Now, think of washing a car; you need to apply the right pressure to avoid scratches. That’s similar to force control, where the goal is to exert just enough force without pressing too hard.
Hybrid Position/Force Control
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Hybrid Position/Force Control
- Combines force and position control.
- Used when interaction with surfaces is required along specific axes (e.g., pushing against a wall while moving along it).
Detailed Explanation
Hybrid Position/Force Control refers to a method where both position and force controls are utilized simultaneously. This approach is particularly useful in scenarios where a robot needs to move while maintaining a constant contact force against a surface. For example, if a robot is pushing an object along a surface, it must travel in a direction (position control) while ensuring that it maintains enough force not to lose contact (force control).
Examples & Analogies
Think of a person pushing a shopping cart down a grocery aisle. The person must steer the cart in the right direction (position control) but also apply sufficient force to keep the cart from sliding away or tipping over (force control). If they push too hard, the cart may flip, but too soft might lead to losing control.
Compliance
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Compliance
- Passive Compliance: Achieved using mechanical elements like springs.
- Active Compliance: Achieved through feedback control and real-time force sensing.
- Essential in applications like:
- Handling fragile construction materials (tiles, glass panes)
- Installing prefabricated panels with precision.
Detailed Explanation
Compliance in robotics refers to how easily a robot can adapt to changes in its environment. There are two types: passive and active compliance.
- Passive Compliance uses simple mechanical solutions like springs to absorb shocks, allowing the robot to adjust slightly when interacting with objects.
- Active Compliance involves sophisticated systems that use sensors to constantly measure forces and adapt movements in real-time to keep a consistent interaction, essential for tasks like installing delicate materials without causing damage.
Examples & Analogies
Imagine a human hand when holding a fragile glass. If you grip tightly (low compliance), the glass may break. If you grip gently and allow your hand to adjust to the glass's shape (high compliance), you can hold it securely without cracking it. Similarly, robots use compliance to handle sensitive materials safely.
Key Concepts
-
Position Control: The method of controlling a robot's motion to achieve a specific location.
-
Force Control: The technique of regulating the force exerted by the robot while executing tasks.
-
Hybrid Control: The combination of position and force controls to achieve optimal interaction.
-
Compliance: The capacity of the robot to adjust to forces during contact with objects.
-
Passive Compliance: Utilizing mechanical components to allow yielding under applied forces.
-
Active Compliance: Incorporating real-time feedback to control interaction dynamics.
Examples & Applications
Using position control for automated packaging where items must be precisely placed in boxes.
Employing force control when a robot is sanding wood, maintaining the right pressure to both smooth the surface and avoid damage.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For perfect placement in control, use position to guide, but force will make tasks glide!
Stories
Imagine a robot gently placing a glass vase while pushing it into place. It must not only know where to position but how gently to press, reflecting the need for both position and force control.
Memory Tools
PFA: Position for Aim, Force for Action - Remember that Position focuses on where and Force focuses on how strongly!
Acronyms
HPA
Hybrid Position/Force Application - To recall that we utilize both methods for remarkable robot adaptability!
Flash Cards
Glossary
- Position Control
A method focused on achieving a specific position of a robot's end-effector.
- Force Control
A strategy emphasizing the application and maintenance of specific force or torque during operations.
- Hybrid Control
An integration of both position and force control mechanisms to enhance robotic functionality.
- Compliance
The ability of a robot to yield or adapt when in contact with objects, protecting them and facilitating safe interaction.
- Passive Compliance
Compliance achieved through mechanical means, such as springs, to absorb shocks.
- Active Compliance
Compliance achieved through feedback control using sensors to adjust force dynamically.
