Understanding Photosystems
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we are discussing the roles of Photosystems II and I in the electron transport process during photosynthesis. Who can tell me where Photosystem II gets its name from?
Isn't it because it's the second one discovered?
Exactly! PS II absorbs light at 680 nm and begins the process by exciting electrons. Can anyone explain what happens to these electrons next?
They are transferred to an electron acceptor and then move through an electron transport chain.
Correct! This movement is crucial as it sets up the conditions for ATP and NADPH synthesis later. Remember, we can think of 'A' for ATP and 'N' for NADPH—let's call it the 'AN Process'.
Got it! 'AN Process'— ATP and NADPH!
Great! To summarize, PS II absorbs light, excites electrons, and transfers them through the chain, setting up energy for the next process. Let's move on to discuss what happens in Photosystem I.
The Splitting of Water
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's discuss the splitting of water and its significance in this process. Why do we need to split water during photosynthesis?
To provide electrons to replace those lost from PS II?
Exactly! This process also releases oxygen. The equation for this reaction is crucial to remember. Let's write it together on the board: 2H2O → 4H+ + O2 + 4e−.
So, water splitting is like a replenishment system for electrons!
Well put! It's a continuous cycle that allows for sustained energy production. Can anyone summarize the overall significance of this process in photosynthesis?
It allows plants to harness light energy and convert it into a usable form for growth!
The Chemiosmotic Hypothesis
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now onto a key process—ATP synthesis! Can anyone tell me about the chemiosmotic hypothesis?
It explains how the proton gradient leads to ATP production.
Exactly! The protons accumulate in the lumen and when they flow back into the stroma through ATP synthase, ATP is produced. Let’s remember this with the acronym 'PROTON': Protons Release Energy to form ATP Now!
I like that! 'PROTON'—it helps me remember how ATP is made!
Wonderful! To recap, the movement of protons creates a gradient that helps synthesize ATP, vital for the next steps of photosynthesis. Let's wrap this session up with questions about how this process supports plant life.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The electron transport in photosynthesis involves two photosystems (PS II and PS I) that excite electrons through light absorption. This process includes the splitting of water molecules to replenish lost electrons and the formation of a proton gradient leading to ATP synthesis through the ATP synthase enzyme, alongside the reduction of NADP+ to NADPH. These reactions are critical for the conversion of light energy into chemical energy.
Detailed
The Electron Transport
This section elaborates on the complex processes involved in the electron transport phase of photosynthesis, specifically focusing on how light energy is converted into chemical energy.
Overview of Photosystems
- Photosystem II (PS II): The process begins in PS II, where chlorophyll a absorbs light at 680 nm. This energy excites electrons, causing them to jump to a higher orbit. These electrons are then transferred to an electron acceptor and enter the electron transport system composed of cytochromes.
- Photosystem I (PS I): After passing through the electron transport chain, the electrons reach PS I, where they are re-excited by light at 700 nm before being transferred to another acceptor, NADP+, resulting in the formation of NADPH.
Splitting of Water
To sustain this flow of electrons, water molecules are split in a process associated with PS II, releasing O2, protons (H+), and replenishing electrons. The overall reaction can be summarized as:
2H2O → 4H+ + O2 + 4e−
Photophosphorylation
There are two types of photo-phosphorylation: non-cyclic and cyclic. In non-cyclic phosphorylation, both ATP and NADPH are produced when both PS II and PS I are operational. Conversely, cyclic photophosphorylation involves only PS I, where the electron returns to the same chlorophyll molecule, primarily producing ATP without NADPH.
Chemiosmotic Hypothesis
The ATP is synthesized based on the proton gradient created across the thylakoid membrane, resulting from the movement of electrons. The protons accumulate in the lumen of the thylakoids, and as they flow back into the stroma through ATP synthase, ATP is generated, supporting the biosynthetic processes in the stroma that require energy.
Conclusion
This electron transport process is vital for photosynthesis, as it converts light energy into chemical energy, specifically ATP and NADPH, which are essential for the subsequent reactions of the Calvin cycle where carbon fixation occurs.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Electron Transport
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In photosystem II, the reaction centre chlorophyll a absorbs 680 nm wavelength of red light causing electrons to become excited and jump into an orbit farther from the atomic nucleus. These electrons are picked up by an electron acceptor which passes them to an electrons transport system consisting of cytochromes.
Detailed Explanation
In the first part of the electron transport process (photosystem II), chlorophyll absorbs light at a wavelength of 680 nm. This light energy excites electrons, allowing them to escape their normal position. The excited electrons are then captured by electron acceptors and transported through a series of proteins known as cytochromes. This transport system creates a flow of electrons, which is essential for the next steps of photosynthesis.
Examples & Analogies
Imagine a merry-go-round where you push one child (the electron) to get them going. Once they start moving, they pass their energy to the next child in line, keeping the momentum going. Similarly, in the electron transport system, the excited electrons pass their energy down a line of proteins.
Electrons Movement in Photosystem I
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Simultaneously, electrons in the reaction centre of PS I are also excited when they receive red light of wavelength 700 nm and are transferred to another accepter molecule that has a greater redox potential. These electrons then are moved downhill again, this time to a molecule of energy-rich NADP+.
Detailed Explanation
At the same time, in photosystem I, electrons are energized by red light at 700 nm. These electrons are then passed on to another acceptor molecule, which has a higher tendency to gain electrons (greater redox potential). This process transfers electrons down the chain once again, finally allowing them to reduce NADP+ to NADPH, a key energy carrier in the photosynthesis process.
Examples & Analogies
Think about rolling a ball down a hill. As the ball rolls, it picks up speed (energy) until it reaches the bottom where it can do something useful, like start a machine. Here, the electron rolls downhill in energy terms, ultimately reducing NADP+ at the bottom of the process.

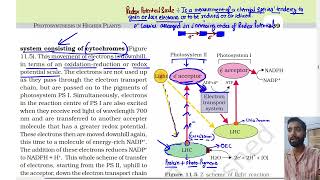

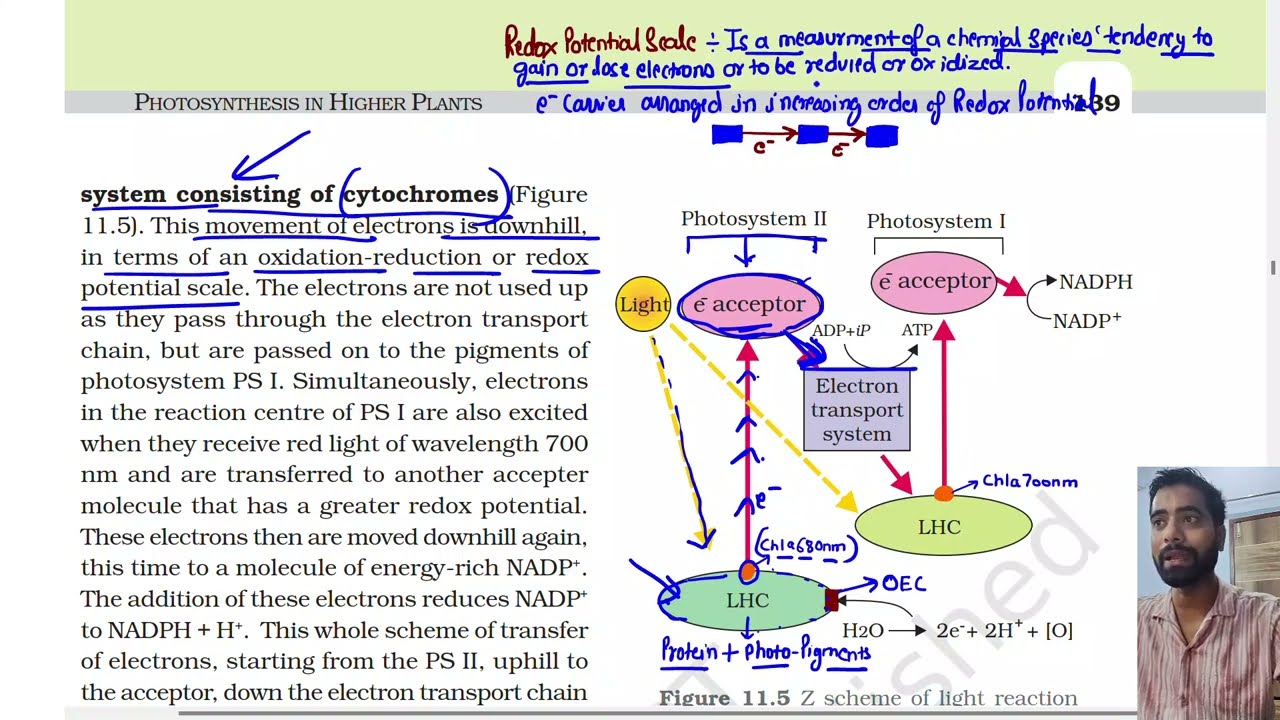

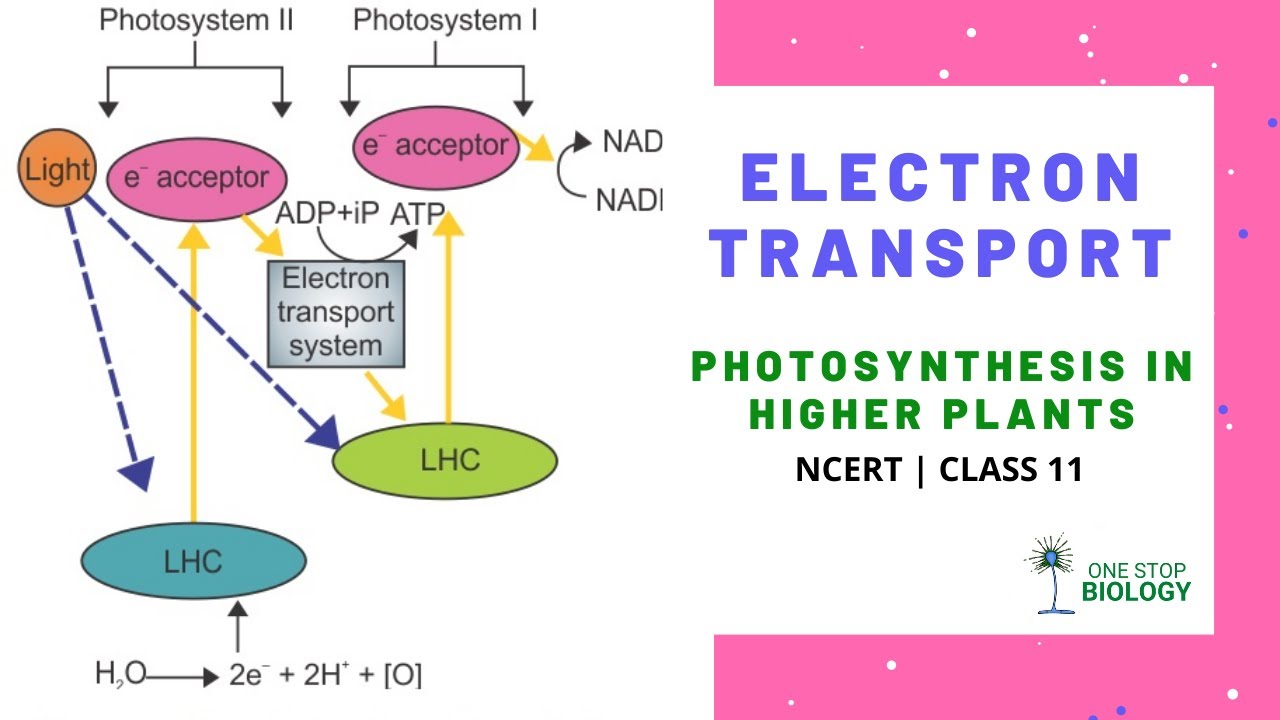

The Z Scheme
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
This whole scheme of transfer of electrons, starting from the PS II, uphill to the acceptor, down the electron transport chain to PS I, excitation of electrons, transfer to another acceptor, and finally downhill to NADP+ reducing it to NADPH + H+ is called the Z scheme, due to its characteristic shape.
Detailed Explanation
The series of electron transfers from photosystem II to photosystem I forms a pathway that resembles the letter 'Z'. This route is significant because it describes how electrons move through the photosystems and the electron transport chain, capturing light energy and converting it into chemical energy in the form of NADPH. The arrangement provides a clear visual representation of the energetic exchanges taking place in this part of photosynthesis.
Examples & Analogies
Imagine navigating a mountain trail with different peaks (photosystems) and valleys (electron transport). As you hike, you climb up to the peaks where you gather energy (light) and then slide down into the valleys to collect benefits (reduce NADP+). The 'Z' shape reflects your ups and downs along the route.
Water Splitting
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
You would then ask, How does PS II supply electrons continuously? The electrons that were moved from photosystem II must be replaced. This is achieved by electrons available due to splitting of water.
Detailed Explanation
Photosystem II must always replace the electrons it sends out. It does this through the splitting of water molecules, which produces new electrons, protons, and oxygen. The reaction can be illustrated as H2O being split into 2H+, O2, and electrons, ensuring that there are always fresh electrons available to continue the process of photosynthesis.
Examples & Analogies
Think of a water fountain. As water flows out (like electrons), it needs a constant source to keep running. If you disconnect the source (the splitting of water), the fountain runs dry (the electron transport halts). Water acts as the source keeping the process alive.
Cyclic and Non-cyclic Photophosphorylation
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When the two photosystems work in a series, first PS II and then the PS I, a process called non-cyclic photo-phosphorylation occurs. The two photosystems are connected through an electron transport chain. Chlorophyll allows ATP to be synthesized from ADP + inorganic phosphate.
Detailed Explanation
In non-cyclic photophosphorylation, both PS II and PS I are involved in generating ATP and NADPH. After electrons travel through the transport chain, they energize processes that convert ADP and inorganic phosphate into ATP. However, when only PS I is functioning, a different process called cyclic photophosphorylation occurs, which only produces ATP, as electrons cycle back within the photosystem without reducing NADP+.
Examples & Analogies
Imagine using two bicycle gears for faster speeds (non-cyclic) or relying solely on one gear to maintain momentum (cyclic). The first gears allow you to go faster, while the second keeps you going at a steady pace without speeding up.
Chemiosmotic Hypothesis
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Let us now try and understand how actually ATP is synthesised in the chloroplast. The chemiosmotic hypothesis has been put forward to explain the mechanism.
Detailed Explanation
The chemiosmotic hypothesis explains ATP synthesis in chloroplasts by a proton gradient forming across the thylakoid membrane. As electrons flow through the electron transport chain, protons (H+) are pumped into the thylakoid lumen, creating a concentration gradient. When protons flow back to the stroma through ATP synthase, the energy released drives the conversion of ADP and inorganic phosphate into ATP.
Examples & Analogies
Think of a water dam. When water (protons) builds up behind the dam (inside the thylakoid lumen), it's held back by pressure. When you open the dam, that stored energy powers a turbine (ATP synthase), generating electricity (ATP) as the water rushes out.
Key Concepts
-
Photosystems: Two types of photosystems, PS II and PS I, are crucial for the electron transport chain.
-
Electron Transport: The sequencing of electron transfer is vital for ATP and NADPH synthesis.
-
Chemiosmosis: This is a critical process by which the proton gradient is utilized for ATP synthesis.
-
Water Splitting: The breakdown of water molecules provides electrons and produces oxygen.
Examples & Applications
In Photosystem II, when light hits the chlorophyll, it excites electrons that then move to an electron carrier.
The ATP Synthase uses the created proton gradient to synthesize ATP, which is crucial for the Calvin Cycle.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Photosystems absorb light with all their might, PS II and PS I, reach a new height.
Stories
Once in the thylakoid membrane, light danced upon the chlorophyll, exciting electrons to travel through two sisters, Photosystem II and I, producing energy every mile.
Memory Tools
Use 'NA-PLAN' to remember the key products: NADPH, ATP, Protons, Light, Ascent of electrons, Necessary for Calvin cycle.
Acronyms
Remember 'E-LESS' for Electron transport
Electrons
Light
Excitation
Splitting of water
Synthesis of ATP.
Flash Cards
Glossary
- Photosystem II (PS II)
The first photosystem in photosynthesis that absorbs light at 680 nm to excite electrons.
- Photosystem I (PS I)
The second photosystem that absorbs light at 700 nm, re-exciting electrons and transferring them to NADP+.
- Electron Transport Chain
A series of protein complexes that facilitate the transfer of electrons from PS II to PS I.
- Photophosphorylation
The process of ATP synthesis using light energy.
- Chemiosmotic Hypothesis
Theory explaining ATP synthesis linked to a proton gradient across a membrane.
- Water Splitting
The process of breaking down water molecules to replenish electrons and produce oxygen.
- NADP+
A coenzyme that acts as an electron acceptor in photosynthesis, becoming reduced to NADPH.
