9.4.2 - Dynamic Lift

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Dynamic Lift

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will explore dynamic lift, which is an essential force acting on objects moving through fluids, like airplane wings. Can anyone tell me why understanding lift is critical in aviation?

Student 1
Student 1

To help planes fly?

Teacher
Teacher

Exactly! Lift allows aircraft to rise against gravity. Dynamic lift occurs specifically because of a pressure difference created by the fluid motion. Can anyone remember the principle that explains this effect?

Student 2
Student 2

Bernoulli's principle?

Teacher
Teacher

Great! Bernoulli's principle states that as the speed of a fluid increases, its pressure decreases. Let's break this down further.

Non-Spinning vs. Spinning Balls

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Consider a non-spinning ball first. When it moves through fluid, the airflow above and below the ball is symmetrical but produces no lift. Does anyone know why?

Student 3
Student 3

Because the pressure remains the same above and below?

Teacher
Teacher

Correct! Now, what happens when the ball spins?

Student 4
Student 4

It drags the air and creates different velocities?

Teacher
Teacher

Exactly! The spinning motion increases the velocity of air above the ball, creating low pressure and resulting in lift.

Aerofoils and Lift Generation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Next, let’s focus on aerofoils like those on airplane wings. When air flows over the wings, what do you think happens to the pressure?

Student 1
Student 1

It lowers above the wing and is higher below.

Teacher
Teacher

Exactly! The faster airflow above the wing creates lower pressure compared to the slower airflow beneath, generating lift. This principle is crucial for flight. Can anyone relate this to any examples in sports or everyday life?

Student 2
Student 2

Like how spinning a cricket ball changes its path!

Teacher
Teacher

Exactly, it's the same effect! Understanding dynamic lift can enhance performance in various sports.

Dynamic Lift in Practical Applications

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand dynamic lift's concepts, let’s discuss its implications in the real world. How does it help in sports or engineering?

Student 3
Student 3

In sports like tennis or baseball, players can hit spinning balls to change their path!

Teacher
Teacher

That’s right! The Magnus effect explains these phenomena in sports. Dynamic lift also plays a crucial role in designing vehicles. Why is that significant?

Student 4
Student 4

Because it helps in making them efficient and safe.

Teacher
Teacher

Exactly! Efficient lift mechanisms ensure better performance and safety in aviation and other vehicles.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Dynamic lift refers to the upward force experienced by objects such as airplane wings or spinning balls as they move through a fluid, explained through Bernoulli's principle.

Standard

Dynamic lift is the force acting on bodies like airplane wings and spinning balls due to their motion through fluids. It occurs because the relative motion of the fluid creates pressure differences, particularly explained through Bernoulli's principle, which is demonstrated in scenarios with spinning balls and aerofoil shapes.

Detailed

Detailed Summary of Dynamic Lift

Dynamic lift is a crucial force that affects objects moving through fluid mediums, such as airplane wings, hydrofoils, and spinning balls. This section delves into how this force operates based on the principles of fluid dynamics, particularly Bernoulli's principle.

  1. Two Types of Motion: The section begins by discussing two scenarios involving a ball moving through air: one without spin and the other with spin.
  2. Non-spinning Ball: Here, the fluid streamlines remain symmetrical above and below the ball, resulting in equal velocity and pressure, and hence, no lift is generated.
  3. Spinning Ball: When the ball spins, it drags the air around it, creating differential velocities above and below the ball. This difference results in a pressure differential, with lower pressure above the ball, leading to an upward force known as dynamic lift or the Magnus effect.
  4. Aerofoil Shapes: The section highlights how an aerofoil shape (like that of an airplane wing) yields an upward lifting force. As air flows faster over the top of the wing than underneath, it induces a pressure differential that produces lift, allowing the aircraft to fly.

Understanding dynamic lift is not just important in aerodynamics but also has practical applications in sports and fluid dynamics.

Youtube Videos

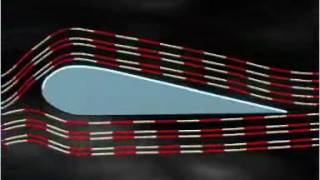

Dynamic Lift final - Physics (Grade 12)
Dynamic Lift final - Physics (Grade 12)
Physics Mechanical properties of Fluids mechanics part 23 (Dynamic Lift) CBSE class 11
Physics Mechanical properties of Fluids mechanics part 23 (Dynamic Lift) CBSE class 11
Class 11 ch- 10 dynamic lift
Class 11 ch- 10 dynamic lift
Class 11th Physics | Applications of Bernoulli's Principle | Example 10.8 | Chapter 10 | NCERT
Class 11th Physics | Applications of Bernoulli's Principle | Example 10.8 | Chapter 10 | NCERT
🔴 MAGNUS EFFECT and DYNAMIC LIFT || for Class 11 in HINDI
🔴 MAGNUS EFFECT and DYNAMIC LIFT || for Class 11 in HINDI

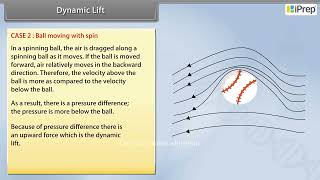

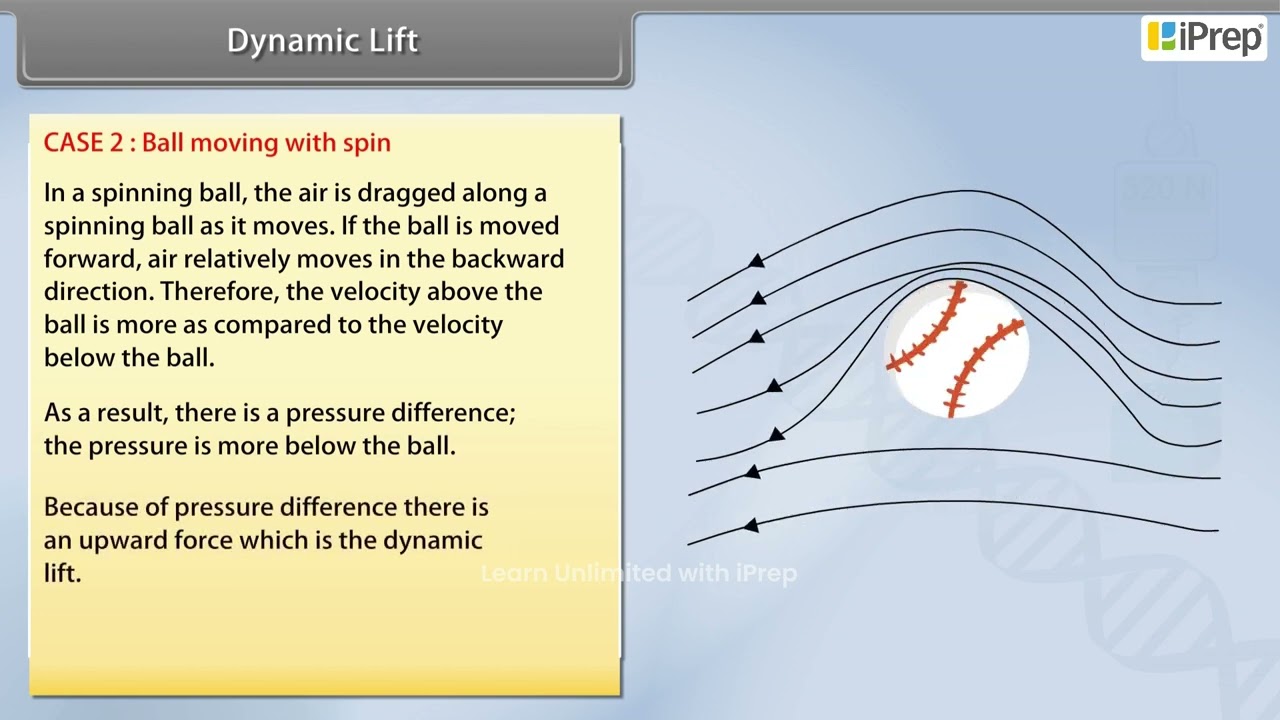

Dynamic Lift | Mechanical Properties of Fluids | Physics | Class 11th | iPrep
Dynamic Lift | Mechanical Properties of Fluids | Physics | Class 11th | iPrep
Dynamic Lift Class 11 Physics | Chapter 9 Physics Class 11 | Most Important Topics Physics Class 11
Dynamic Lift Class 11 Physics | Chapter 9 Physics Class 11 | Most Important Topics Physics Class 11

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Dynamic Lift

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Dynamic lift is the force that acts on a body, such as airplane wing, a hydrofoil or a spinning ball, by virtue of its motion through a fluid.

Detailed Explanation

Dynamic lift refers to the upward force experienced by an object when it moves through a fluid. This force is crucial in many scenarios, especially in aviation and sports. For example, an airplane wing generates lift as it moves through the air, allowing the plane to rise. Similarly, a spinning ball can change direction due to the lift generated by its motion through the air.

Examples & Analogies

Think of a paper plane you throw. When you throw it with a certain angle, the paper plane's wings push down against the air, which pushes back up against the wings, helping the plane stay aloft. The same principles apply to real airplanes but with many more forces at play.

Lift with a Non-Spinning Ball

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Ball moving without spin: Fig. 9.11(a) shows the streamlines around a non-spinning ball moving relative to a fluid. From the symmetry of streamlines it is clear that the velocity of fluid (air) above and below the ball at corresponding points is the same resulting in zero pressure difference. The air therefore, exerts no upward or downward force on the ball.

Detailed Explanation

When a ball moves through the air without spinning, it experiences symmetrical airflow around it. This means that the speed of the air is the same above and below the ball. Since air pressure is directly related to speed (according to Bernoulli’s principle), the pressures exerted on the top and bottom surfaces of the ball are equal, resulting in no net lift force. Hence, the ball will follow a straightforward path without any upward or downward deflection.

Examples & Analogies

Imagine a smooth river stone being pushed downstream; the water flows evenly over the stone, creating balanced forces on both sides, leading to a straight and predictable path without being lifted or dropped.

Lift with a Spinning Ball

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Ball moving with spin: A ball which is spinning drags air along with it. If the surface is rough more air will be dragged. Fig 9.11(b) shows the streamlines of air for a ball which is moving and spinning at the same time. The ball is moving forward and relative to it the air is moving backwards. Therefore, the velocity of air above the ball relative to the ball is larger and below it is smaller. The stream lines, thus, get crowded above and rarified below. This difference in the velocities of air results in the pressure difference between the lower and upper faces and there is a net upward force on the ball. This dynamic lift due to spinning is called Magnus effect.

Detailed Explanation

When a ball spins as it moves, it pulls the surrounding air along with it. The spin increases the speed of air over the top of the ball while slowing it down underneath. This creates a pressure difference, as Bernoulli’s principle tells us that faster-moving air exerts lower pressure. The higher speed of air on top results in lower pressure above the ball and higher pressure below it, resulting in an upward lift force known as the Magnus effect.

Examples & Analogies

Consider a soccer player curving a free kick. The spin on the ball causes it to dip and curve unexpectedly in the air, allowing it to evade defenders. The player effectively uses the Magnus effect to control the ball’s trajectory.

Aerofoil and Lift on Aircraft Wing

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Aerofoil or lift on aircraft wing: Fig. 9.11 (c) shows an aerofoil, which is a solid piece shaped to provide an upward dynamic lift when it moves horizontally through air. The cross-section of the wings of an aeroplane looks somewhat like the aerofoil shown in Fig. 9.11 (c) with streamlines around it. When the aerofoil moves against the wind, the orientation of the wing relative to flow direction causes the streamlines to crowd together above the wing more than those below it. The flow speed on top is higher than that below it. There is an upward force resulting in a dynamic lift of the wings and this balances the weight of the plane.

Detailed Explanation

The design of an aircraft wing, or aerofoil, is specifically shaped to optimize airflow. As the wing moves through the air, the shape causes air to travel faster over the top surface than the bottom. According to Bernoulli's principle, this results in a lower pressure above the wing compared to below it, generating lift. This lift counteracts the weight of the airplane, allowing it to ascend and maintain flight.

Examples & Analogies

Think of how a frisbee works when thrown. Its curved shape makes air travel faster over the top than the bottom, enabling it to glide easily through the air, similar to how an airplane wing functions.

Example: Dynamic Lift Calculation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Example 9.7: A fully loaded Boeing aircraft has a mass of 3.3 × 10^5 kg. Its total wing area is 500 m^2. It is in level flight with a speed of 960 km/h. (a) Estimate the pressure difference between the lower and upper surfaces of the wings (b) Estimate the fractional increase in the speed of the air on the upper surface of the wing relative to the lower surface. [The density of air is ρ = 1.2 kg m−3]

Detailed Explanation

To calculate the pressure difference due to dynamic lift, we first determine the weight of the aircraft by multiplying its mass by gravitational acceleration (9.8 m/s²). This weight acts against the upward lift due to pressure difference across the wings. We account for the airplane's wing area to find how pressure difference translates into the upward force. Through Bernoulli’s principle, we can relate this pressure difference to the increase in speed of air above the wing, providing insights into airspeed changes necessary for maintaining flight balance.

Examples & Analogies

Imagine a balloon: when you blow air into it, the air pressure builds up inside. In flight, the wing works like this by creating different pressures above and below—when the pressure under the wing is higher than above, the plane lifts, just like the air inside the balloon making it expand.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Dynamic Lift: The upward force acting on a body moving through a fluid.

  • Pressure Differential: A difference in pressure caused by varying fluid velocities, crucial for lifting forces.

  • Bernoulli’s Principle: An explanation for the relationship between fluid speed and pressure.

  • Magnus Effect: How spinning affects an object's path due to lift.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • In cricket, a spinning ball deviates from a straight path due to dynamic lift, demonstrating the Magnus effect.

  • An airplane wing (aerofoil) generates lift as it moves through air, relying on differences in airspeed and pressure.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Lift in the air, so sweet and fair, when speeds arise, pressure flies!

📖 Fascinating Stories

  • Imagine a ball spinning in the air; it dances and twirls, drawing the winds to create a magical lift, helping it soar through the skies.

🧠 Other Memory Gems

  • LIFT: Lift Is Fluid's Thrust—remembering how fluid dynamics helps in creating lift.

🎯 Super Acronyms

SPIN

  • Spinning Produces Increased Lift—highlighting how spin affects lift on balls.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Dynamic Lift

    Definition:

    The force that acts on a body as it moves through a fluid, resulting in an upward force.

  • Term: Bernoulli’s Principle

    Definition:

    A principle stating that an increase in the speed of a fluid occurs simultaneously with a decrease in pressure.

  • Term: Aerofoil

    Definition:

    A shape designed to produce lift when moved through air or fluid.

  • Term: Magnus Effect

    Definition:

    The phenomenon where a spinning object deviates from its expected trajectory due to pressure differences created by its spin.
