9.2.4 - Hydraulic Machines

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Pascal's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to learn about Pascal's Law and how it applies to hydraulic machines. Can anyone tell me what they think Pascal's Law states?

Student 1
Student 1

Is it about how pressure in fluids works?

Teacher
Teacher

Exactly! Pascal's Law tells us that a change in pressure applied to an enclosed fluid is transmitted undiminished in all directions. This means that when we push on one part of a fluid, that pressure is felt throughout the entire fluid.

Student 2
Student 2

So, if I push down on a piston, it pushes up the fluid in all directions?

Teacher
Teacher

Correct, that's a perfect example! This principle is what allows hydraulic lifts to amplify forces. Can anyone think of any instances in real life where we see this in action?

Student 3
Student 3

Maybe like a hydraulic car lift?

Teacher
Teacher

Exactly! By applying a small force to a small piston, we can lift much heavier objects with a larger piston. This is the core concept of mechanical advantage in hydraulic systems.

Student 4
Student 4

Can you explain what mechanical advantage actually means?

Teacher
Teacher

Sure! Mechanical advantage is the ratio of the output force produced by a machine to the input force applied. In hydraulic machines, it's the ratio of the area of the larger piston to the area of the smaller piston. So, if A2 is four times larger than A1, the force on A2 can be four times greater than the force applied at A1.

Applications of Hydraulic Machines

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we've understood the basic principles, let’s discuss some applications of hydraulic machines in daily life. Can anyone give me an example?

Student 2
Student 2

How about hydraulic brakes in cars?

Teacher
Teacher

Great example! Hydraulic brakes use the same principles we discussed. When you press the brake pedal, a small piston pushes hydraulic fluid, which then increases the pressure throughout the system, pushing larger pistons that clamp the brakes onto the wheels.

Student 3
Student 3

Do hydraulic systems work the same way in all vehicles?

Teacher
Teacher

While the basic principles are the same, different vehicles might have variations in design. For example, a hydraulic system in an airplane controls the wing flaps and landing gears, maintaining safety and efficiency during flight.

Student 1
Student 1

What about hydraulic lifts? How do they differ from brakes?

Teacher
Teacher

Hydraulic lifts primarily focus on lifting heavy objects. They use larger surface areas to amplify forces, allowing for substantial weight to be lifted with minimal effort. This is crucial in repair shops and warehouses where heavy vehicles or pallets need to be moved.

Student 4
Student 4

This is fascinating! So, the applications of hydraulics are everywhere.

Teacher
Teacher

Absolutely! Hydraulic systems play a significant role in various sectors, including construction, manufacturing, and automotive industries.

Mechanical Advantage

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's delve deeper into mechanical advantage. Why do you think understanding this concept is important when dealing with hydraulic machines?

Student 2
Student 2

It probably helps to know how much force I can move, right?

Teacher
Teacher

Exactly! When designing or using hydraulic systems, knowing the mechanical advantage helps determine what loads the system can handle safely. The equation for mechanical advantage is quite simple: it’s the ratio of the area of the output piston to the input piston.

Student 3
Student 3

Can you give an example with numbers?

Teacher
Teacher

Sure! If the area of the small piston A1 is 10 cm² and the area of the larger piston A2 is 100 cm², then the mechanical advantage is 100/10, which is 10. This means the output force can be ten times greater than the input force.

Student 1
Student 1

So if I apply 50 N of force at A1, I could lift 500 N with A2?

Teacher
Teacher

Precisely! And keep in mind this is under ideal conditions without considering factors like friction or fluid loss, which we’ll discuss later.

Student 4
Student 4

What about real-world inefficiencies?

Teacher
Teacher

Great question! Real-world systems always have some inefficiencies like leakage or friction, which means the actual output force is often less than the calculated ideal force.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the principles behind hydraulic machines, emphasizing Pascal's law and the mechanical advantage they provide.

Standard

In this section, we explore hydraulic machines, which utilize fluid pressure to perform work. By applying Pascal's principle, a small force can be amplified through a system of pistons, resulting in a significant force on the larger piston, demonstrating the concept of mechanical advantage in hydraulic systems.

Detailed

Hydraulic Machines

Hydraulic machines are devices that use the properties of fluids to transmit force and perform work effectively. According to Pascal's Law, any change in pressure applied to an enclosed fluid is transmitted undiminished throughout the fluid. This principle underpins many common hydraulic devices, allowing a smaller force applied on a smaller piston to produce a larger, amplified force on a larger piston. This amplification creates a significant mechanical advantage, making it possible to lift heavy loads like vehicles and machinery with minimal effort.

In practical applications, hydraulic lifts and hydraulic brakes illustrate this principle. For example, in a hydraulic lift, when a smaller piston with a cross-sectional area A1 receives a force F1, it generates a pressure P1 that is equal to P2 on a larger piston with area A2. The relationship allows an easily manageable force at A1 to translate into a much larger force at A2, facilitating processes such as lifting cars for repair. Understanding hydraulic machines and their applications is crucial within the larger context of fluid mechanics.

Youtube Videos

Hydraulic Lift Class 11 Physics Term 2 || Mechanical Properties of Fluids Imp Topics
Hydraulic Lift Class 11 Physics Term 2 || Mechanical Properties of Fluids Imp Topics
Class 11th Physics | Hydraulic Machines | Hydraulic Brakes | Example 10.5 & 10.6 | Chapter 10
Class 11th Physics | Hydraulic Machines | Hydraulic Brakes | Example 10.5 & 10.6 | Chapter 10

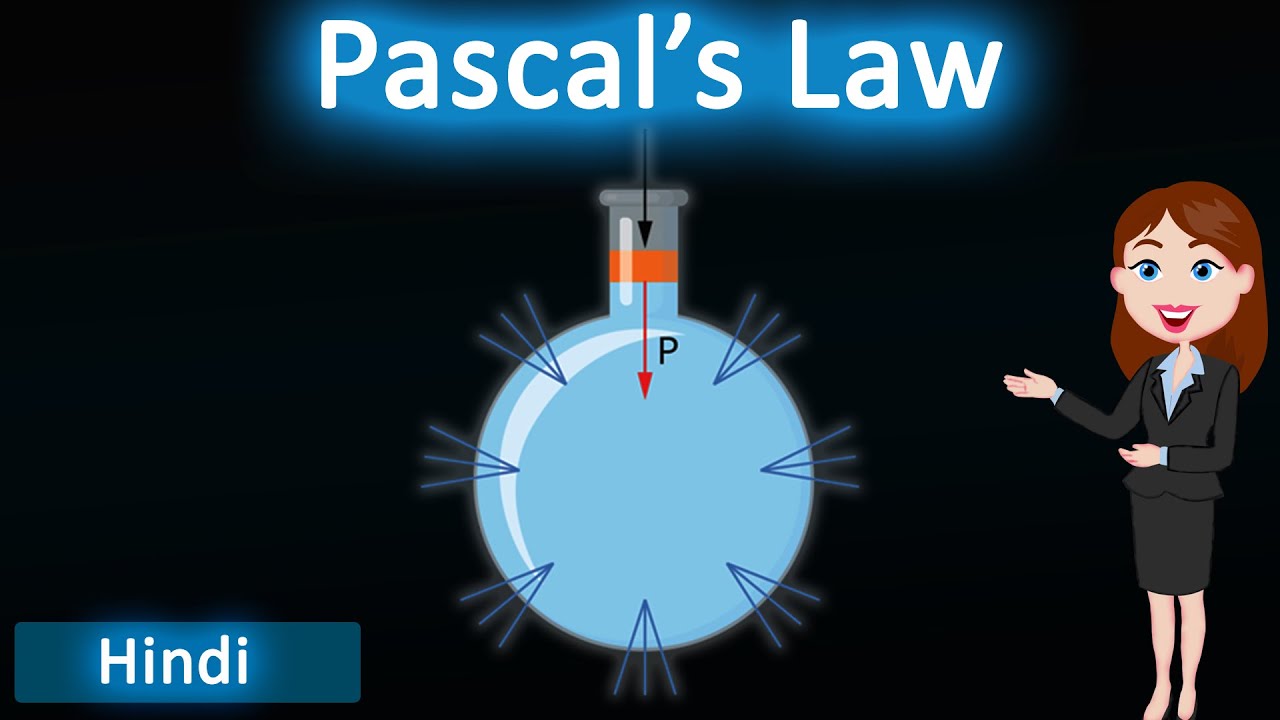

Pascal's Law || 3D Animated Explanation || Class 11th Physics || Mechanicals properties of fluids
Pascal's Law || 3D Animated Explanation || Class 11th Physics || Mechanicals properties of fluids
Hydraulic Machines : Mechanical Properties of Fluids | Physics | Class 11 | CBSE
Hydraulic Machines : Mechanical Properties of Fluids | Physics | Class 11 | CBSE
Class 11th – Hydraulic Machines | Properties of Fluids | Tutorials Point
Class 11th – Hydraulic Machines | Properties of Fluids | Tutorials Point
Hydraulics | Forces & Motion | Physics | FuseSchool
Hydraulics | Forces & Motion | Physics | FuseSchool
Mechanical Properties of Fluid One Shot with Live Experiment | Class 11 Physics NCERT Ashu Sir
Mechanical Properties of Fluid One Shot with Live Experiment | Class 11 Physics NCERT Ashu Sir

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Understanding Pressure in Fluids

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Let us now consider what happens when we change the pressure on a fluid contained in a vessel. Consider a horizontal cylinder with a piston and three vertical tubes at different points. The pressure in the horizontal cylinder is indicated by the height of liquid column in the vertical tubes. It is necessarily the same in all. If we push the piston, the fluid level rises in all the tubes, again reaching the same level in each one of them.

Detailed Explanation

This chunk introduces how pressure works in fluids, particularly when contained in a vessel. When pressure is applied to a fluid (like the one in a horizontal cylinder), it affects every part of that fluid evenly. For example, if a piston in that cylinder is pushed down, the pressure within the fluid increases and causes the fluid to rise in all connected tubes accurately. This means that the height of the liquid column in each tube becomes the same, demonstrating that pressure is transmitted uniformly through the fluid at rest, a concept central to hydraulic machines.

Examples & Analogies

Imagine a squeeze bottle filled with juice. When you squeeze the bottle, the juice comes out of the opening; the pressure you apply is transmitted throughout the juice in all directions, causing the juice to rise uniformly through a straw if it's inserted inside, similar to how the liquid level rises in the tubes when pressure is applied through the piston.

Principle of Hydraulic Machines

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In these devices, fluids are used for transmitting pressure. In a hydraulic lift, as shown in Fig. 9.6 (b), two pistons are separated by the space filled with a liquid. A piston of small cross-section A1 is used to exert a force F1 directly on the liquid. The pressure P = 1F/A is transmitted throughout the liquid to the larger cylinder attached to a larger piston of area A2, which results in an upward force of P × A2.

Detailed Explanation

Hydraulic machines, such as lifts, rely on liquids (often oils) to transmit pressure from one point to another. When a small piston with area A1 is pressed down with a force F1, it generates pressure, which is calculated using the formula P = F1/A1. This pressure is transmitted undiminished throughout the fluid and acts on a larger piston with an area A2. Consequently, the force acted upon this larger piston equals P × A2, allowing the hydraulic lift to support much heavier loads, significantly amplifying the force applied initially.

Examples & Analogies

Think of it like using a bicycle pump. When you push down on the small piston of the pump (which compresses air), that action builds pressure, pushing air into the larger tire of your bike. Even though your effort is small, you're able to inflate the tire because the pressure created gets transmitted through the air in a way that multiplies your force at the tire, just like how a small force can lift a large weight in hydraulic systems.

Mechanical Advantage of Hydraulic Systems

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Therefore, the piston is capable of supporting a large force (large weight of, say a car, or a truck, placed on the platform) F2 = PA2 = 1F2A/A. By changing the force at A1, the platform can be moved up or down. Thus, the applied force has been increased by a factor of A2/A1, and this factor is the mechanical advantage of the device.

Detailed Explanation

The hydraulic lift demonstrates a principle known as mechanical advantage. By utilizing different sizes of pistons, the device allows a smaller input force to lift significantly heavier weights. Given A1 as the area of the smaller piston and A2 as the area of the larger piston, the ratio A2/A1 increases how much force the larger piston can exert. This mechanical advantage means that using the hydraulic lift, one can lift heavy vehicles with relatively little effort and is a crucial concept in engineering applications where lifting heavy objects is necessary.

Examples & Analogies

Consider a seesaw in a playground. If one child sits near the end of the seesaw and another directly in the middle, the child at the end can easily lift the child in the middle because the distance from the pivot provides a mechanical advantage. Similarly, hydraulic systems utilize the size difference of pistons to achieve the same outcome, making it easier to lift heavier objects.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Pascal's Law: The principle governing the behavior of fluids at rest and how pressure is transmitted.

  • Mechanical Advantage: Enhances force to lift heavier loads using hydraulic systems.

  • Hydraulic Machines: Devices utilizing fluid pressure to perform work, allowing for the amplification of forces.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Using a hydraulic lift to raise a vehicle, where a small force applied at a small piston is transmitted to lift the heavy vehicle.

  • Hydraulic brakes in cars, where pressure from the brake pedal is transmitted through fluid to apply the brakes effectively on the wheels.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • With Pascal's Law in mind, pressure flows, in all directions, it surely goes.

📖 Fascinating Stories

  • Imagine a small child pushing a toy car. With a tiny push on a small piston's toy, it can lift an immense truck – a true joy of hydraulics!

🧠 Other Memory Gems

  • P for Pressure, A for Applied, S for Steady, C for Change - remember Pascal!

🎯 Super Acronyms

H.A.R.D - Hydraulic Advantage, Resulting in a Difference in force.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Pascal's Law

    Definition:

    A principle stating that a change in pressure applied to an enclosed fluid is transmitted undiminished in all directions.

  • Term: Mechanical Advantage

    Definition:

    The ratio of the output force produced by a machine to the input force applied.

  • Term: Hydraulic Lift

    Definition:

    A device that uses hydraulic fluid to create a force that can lift heavy loads.

  • Term: Hydraulic Brake

    Definition:

    A braking system that uses hydraulic fluid to transmit force from the brake pedal to the brake pads.
