Understanding Capacitors in Series
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we will learn about how capacitors can be combined in series. Can anyone tell me what happens when we connect capacitors this way?
I think the charge remains the same on each capacitor.
Exactly! And the total voltage across the series connection sums up. If we have capacitors with capacitances C1 and C2, how do we calculate the total capacitance?
Is it 1/C = 1/C1 + 1/C2?
Correct! This means the effective capacitance is less than the smallest capacitor, and we can remember it with the mnemonic 'S-C-R' for 'Series Capacitor Reduction.' Letβs see an example.
What if we have three capacitors, will it still be the same?
Yes, the same formula applies! Let's summarize: In series, capacitance decreases.
Capacitors in Parallel
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's discuss capacitors in parallel. How do their voltages and charges behave?
They all have the same voltage across them, right?
Exactly! The trick here is to add the capacitances directly. What formula do we use for this?
C = C1 + C2 + ...?
Correct! In parallel, capacitance increases, making it great for storing more charge. Remember this with the acronym 'P-A-C' for 'Parallel Addition Capacitors.'
Will the total charge be the sum of the charges on each capacitor?
Yes, it will! To recap: in parallel, the total capacitance adds up.
Real-World Applications of Capacitor Combinations
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Okay, let's explore real-world applications. Where have you seen these combinations in action?
In audio equipment, I think they use larger capacitors to filter out noise.
Great observation! Capacitors in parallel help smooth out signals while those in series can protect circuits.
Can we design a simple circuit using both configurations?
Absolutely! Let's work on a project where we create a power supply using both series and parallel configurations, sharing our findings.
That'll be fun to see how it works in practice!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The combination of capacitors plays a crucial role in circuit design. This section explains how to calculate the effective capacitance for capacitors arranged in series and in parallel, highlighting the mathematical relationships that govern their behaviors in different configurations.
Detailed
In the study of electrostatics, the combination of capacitors is fundamental in determining how they can store electrical energy effectively. Two primary configurations are discussed:
1. Capacitors in Series: When capacitors are connected end-to-end, the same charge is maintained across each, leading to a potential difference that sums up across the entire series. The effective capacitance, C, of capacitors in series can be derived from:
\[ \frac{1}{C} = \frac{1}{C_1} + \frac{1}{C_2} + ... + \frac{1}{C_n} \]
This indicates that the overall capacitance is always less than the smallest individual capacitor in the series, illustrating how series capacitors lead to a reduced storage capacity.
2. Capacitors in Parallel: In contrast, when capacitors are connected parallelly, they share the same potential difference across their terminals. The charge on each capacitor can differ, and the total effective capacitance is given by:
\[ C = C_1 + C_2 + ... + C_n \]
This combined configuration increases the total capacitance as it effectively adds up the storage capacities of each capacitor. Understanding these principles allows for the optimization of capacitor configurations to either store more charge or manage potential differences appropriately in circuits.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Capacitors in Series
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We can combine several capacitors of capacitance Cβ, Cβ,β¦, Cβ to obtain a system with some effective capacitance C. The effective capacitance depends on the way the individual capacitors are combined. Two simple possibilities are discussed below.
Detailed Explanation
When combining capacitors, the total or effective capacitance of the entire system can change depending on how the capacitors are connected. This can be done in two main ways: series or parallel. This chunk introduces the idea of combining capacitors and explains that the resulting effective capacitance (C) can be determined by the configuration of the connected capacitors.
Examples & Analogies
Think of capacitors like different water tanks. If you connect them in series, it's like stacking water tanks one above another where the water must flow from the top tank to the bottom. The height of water across all tanks might be different, akin to the different potential drops across the capacitors. In parallel, itβs like connecting tanks side by side: each tank can have its own height, contributing to the total volume collected more effectively.
Capacitors in Series
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

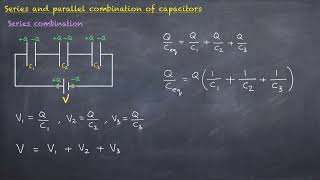

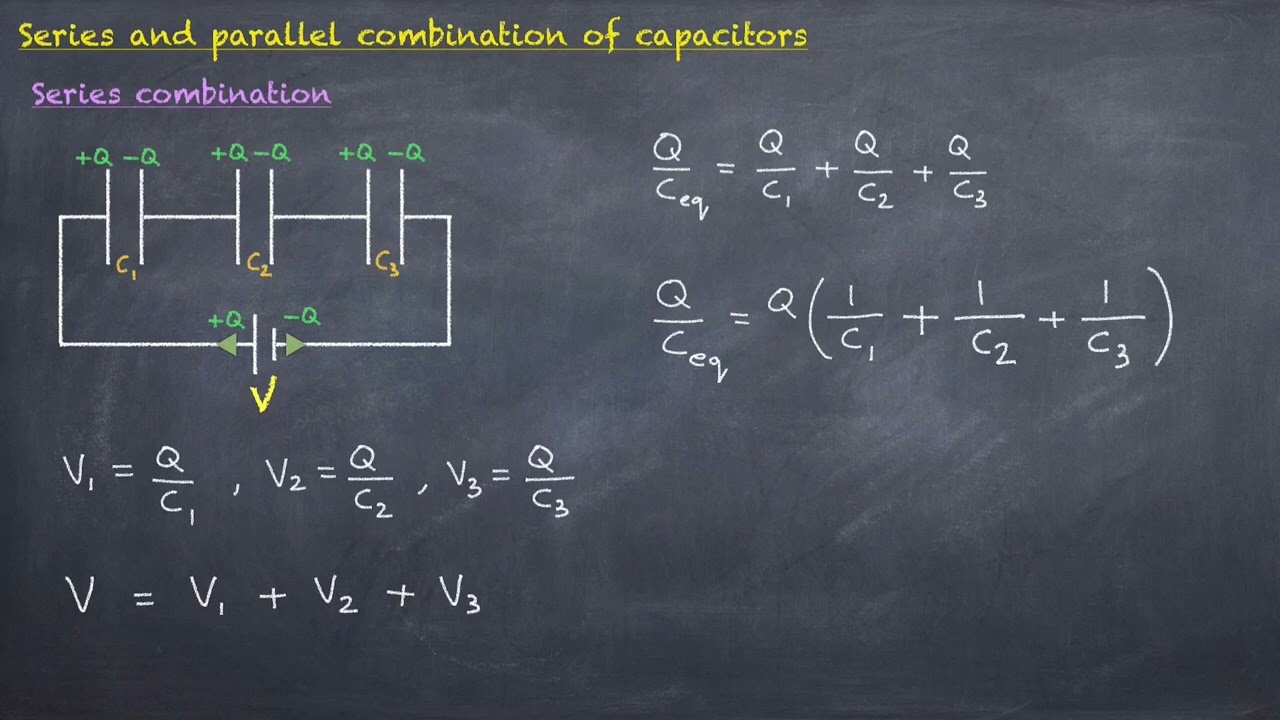

Figure 2.26 shows capacitors Cβ and Cβ combined in series. The left plate of Cβ and the right plate of Cβ are connected to two terminals of a battery and have charges Q and -Q respectively. It then follows that the right plate of Cβ has charge -Q and the left plate of Cβ has charge Q. If this was not so, the net charge on each capacitor would not be zero. This would result in an electric field in the conductor connecting Cβ and Cβ. Charge would flow until the net charge on both Cβ and Cβ is zero and there is no electric field in the conductor connecting Cβ and Cβ. Thus, in the series combination, charges on the two plates (Β±Q) are the same on each capacitor. The total potential drop V across the combination is the sum of the potential drops Vβ and Vβ across Cβ and Cβ, respectively. Q/Q = Vβ + Vβ = (Cβ + Cβ).
Detailed Explanation
In a series configuration, the same amount of charge (Q) flows through each capacitor, meaning each capacitor has the same charge on its plates. The total voltage (V) across capacitors connected in series is the sum of the individual potential differences across each capacitor. Mathematically, this can be expressed with the formula for total voltage: V = Vβ + Vβ, where each V is calculated based on the individual capacitances with the relationship between potential, charge, and capacitance. This creates an inverse relationship for the effective capacitance given by 1/C = 1/Cβ + 1/Cβ + ... + 1/Cβ.
Examples & Analogies
Imagine you have two batteries in series powering a lightbulb. Even though each battery has its own voltage, the lightbulb's brightness depends on the combined voltage from both batteries. If you use two 1.5V batteries, together they'll provide 3V. This is similar to how voltage adds up across capacitors in series. If one battery runs low, the whole system is affected, just like how the charge in any capacitor in the series must match to ensure a complete electrical circuit.
Capacitors in Parallel
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Figure 2.28 (a) shows two capacitors arranged in parallel. In this case, the same potential difference is applied across both the capacitors. But the plate charges (Β±Qβ) on capacitor 1 and the plate charges (Β±Qβ) on capacitor 2 are not necessarily the same: Qβ = Cβ V, Qβ = Cβ V. The equivalent capacitor is one with charge Q = Qβ + Qβ and potential difference V. Q = CV = Cβ V + Cβ V. The effective capacitance C is, from Q = Qβ + Qβ, C = Cβ + Cβ.
Detailed Explanation
In a parallel arrangement, each capacitor experiences the same potential difference (V), leading to different charges based on their individual capacitances. The total or effective capacitance in this setup is simply the sum of the capacitances of each capacitor. This method can handle more than two capacitors, and is indicated by the formula: C = Cβ + Cβ + ... + Cβ for n capacitors connected in parallel. This means more overall capacity to store charge based on adding their effective abilities.
Examples & Analogies
Think about charging multiple phones at once through a power strip. Each phone might have a different capacity for how much charge it can take in, but all are plugged into the same outlet (which provides the same voltage). If all phones contribute their capacity to the total output, the more phones you have plugged in, the more total capacity you draw from the outlet, creating a scenario similar to parallel capacitors functioning together.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Series capacitors result in decreased effective capacitance due to shared charge.
-
Parallel capacitors lead to increased effective capacitance as they sum their individual capacitances.
-
Capacitance is the ability of a capacitor to store charge at a given voltage.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If two capacitors of 4 ΞΌF and 6 ΞΌF are connected in series, the effective capacitance is given by 1/(1/4 + 1/6) = 2.4 ΞΌF.
-
For two capacitances of 8 ΞΌF and 4 ΞΌF connected in parallel, the effective capacitance is 8 + 4 = 12 ΞΌF.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
In series, charge stays the same, with total voltage being the game.
π Fascinating Stories
-
Imagine two friends passing a ball in a line. Each friend, a capacitor, hands off their charge in sequence, but can't hold onto the ball while passing it. They all must work smoothly together, but their total catch is less than each alone. However, in a parallel group, all friends hold their charge and can team up to save more!
π§ Other Memory Gems
-
For series: 'Samantha's Charge Recovers' means start with smaller effective capacitance. For parallel: 'Party All Together' signifies everyone's capacitance increases.
π― Super Acronyms
CAP - Capacitors Add in Parallel; SCR - Series Capacitors Reduce.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Capacitance
Definition:
A measure of a capacitor's ability to store charge, defined as the ratio of charge (Q) stored to the voltage (V) across it.
-
Term: Effective Capacitance
Definition:
The total capacitance of a combination of capacitors, dependent on the configuration (series or parallel).
-
Term: Series Configuration
Definition:
A setup where capacitors are connected end-to-end, resulting in the same charge across each capacitor.
-
Term: Parallel Configuration
Definition:
A setup where capacitors are connected across the same voltage source, leading to a summed capacitance.
