2.14 - ENERGY STORED IN A CAPACITOR

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Work Done in Charging a Capacitor

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to learn about the energy stored in a capacitor. First, can anyone explain what we mean by charging a capacitor?

Student 1
Student 1

Isn't that when we connect it to a power source?

Student 2
Student 2

Yeah, and it accumulates charge on its plates!

Teacher
Teacher

Exactly! Every time we transfer charge, work must be done against the electrostatic forces. The work done defines how much energy is stored. If we denote the charge transferred as dQ, we can express the work done as dW = V dQ, where V is the potential difference.

Student 3
Student 3

So if we integrate that over the total charge Q, we saw that we can calculate total energy stored?

Teacher
Teacher

Correct! That leads us to the formula W = 1/2 QV. Remember, this means that energy stored is dependent on both charge and voltage.

Student 4
Student 4

Can we also express this in terms of capacitance?

Teacher
Teacher

Absolutely! We can express it as W = 1/2 CV² where C is the capacitance of the device. This equation encapsulates how the energy is stored in relation to the physical properties of the capacitor.

Teacher
Teacher

In summary, when we charge a capacitor, the work done translates directly into electrical energy stored, using these relationships between charge, potential difference, and capacitance.

Calculating Stored Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's dig deeper into calculating the energy. If we have a capacitor with a capacitance of 10μF and a voltage of 100V, how can we calculate the energy stored?

Student 1
Student 1

We can use the formula W = 1/2 CV², right?

Teacher
Teacher

That's correct! So plugging in the values, what do we get?

Student 2
Student 2

It's W = 1/2 * 10 × 10^-6 F * (100 V)^2 = 0.05 J.

Teacher
Teacher

Excellent! You found out that the stored energy is 0.05 Joules. Keep in mind, however, that the energy can also be represented in terms of charge if needed.

Student 3
Student 3

And the energy density can be calculated too, right?

Teacher
Teacher

Great thinking! The energy density formula u = 1/2 ε₀ E² is also critical, particularly when discussing the physical space within capacitors. Always keep these different forms in mind!

Teacher
Teacher

As a recap, we calculated the stored energy using both capacitance and voltage with the relevant formulas.

Practical Applications of Capacitors

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand how to calculate energy stored in capacitors, what are some real-world applications where this stored energy is crucial?

Student 4
Student 4

In power supplies, capacitors help smooth out fluctuations in energy.

Student 3
Student 3

They also store energy in flash photography!

Teacher
Teacher

Exactly! They are also widely used in electronic circuits for filtering and timing applications. These devices rely on capacitors to regulate power delivery.

Student 2
Student 2

So, they are important in energy management in technology?

Teacher
Teacher

Yes, and understanding the energy storage in capacitors is essential for designing efficient electronic systems. Every time you turn on a device, capacitors are likely playing a key role!

Teacher
Teacher

In closing this session, remember the significance of capacitors in technology and the role energy storage plays in everyday applications.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the energy stored in capacitors, explaining how charge transfer leads to energy storage and the relationship between capacitance, voltage, and stored energy.

Standard

In this section, we delve into the concept of stored energy in capacitors. It outlines the process of transferring charge between two conductors and the work done during this process, leading to the energy stored in the capacitor. We also explore relevant formulas and principles of how capacitance relates to energy storage.

Detailed

Energy Stored in a Capacitor

In electrostatics, capacitors are essential components used to store electric energy. The energy stored in a capacitor is a result of the work done to move charge between its conductive plates. This section focuses on the detailed mechanisms behind this energy storage.

  1. Concept of Work Done in Charging: The primary idea is that when charge is transferred from one conductor to another, work is done against the electric field created by the charges already present on the capacitors. As charge is moved, the potential difference across the capacitor changes, impacting the amount of work done.
  2. Mathematical Formulation: The work done to increase the charge (Q) on a capacitor can be expressed as:

W = ∫V dQ = 1/2 (Q * V)

This indicates how energy (W) is stored in terms of the charge (Q) and the voltage (V).

  1. Relationship with Capacitance: The energy stored can also be expressed via capacitance (C):

W = 1/2 * C * V^2 = 1/2 * (Q^2 / C)

This relationship highlights that energy is dependent on the capacitance and the voltage, reinforcing the idea that capacitors can store significant energy based on their configuration.

  1. Energy Density: Furthermore, in a parallel plate capacitor, the energy density (energy per unit volume) can be calculated using the expression:

u = 1/2 * ε₀ * E^2

where ε₀ is the permittivity of free space and E is the electric field between the plates.

Understanding the energy stored in capacitors is crucial in applications like power supplies, electronic circuits, and energy storage systems, where managing stored energy efficiently is vital.

Youtube Videos

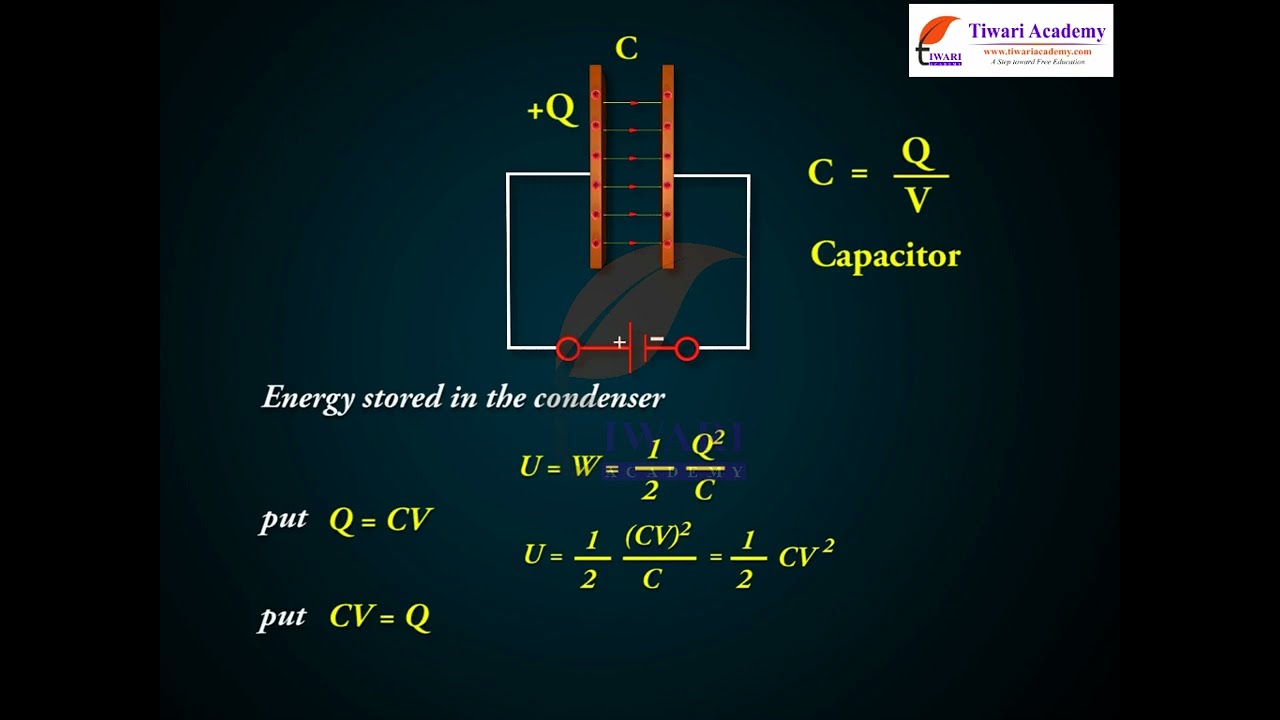

Class 12 Physics Chapter 2 Electrostatic Potential and Capacitance - Energy Stored in a Capacitor
Class 12 Physics Chapter 2 Electrostatic Potential and Capacitance - Energy Stored in a Capacitor
15. Energy Stored by Capacitor | Electric Potential & Capacitance | 12th Physics #cbse #umeshrajoria
15. Energy Stored by Capacitor | Electric Potential & Capacitance | 12th Physics #cbse #umeshrajoria
Energy Stored in Capacitor & Energy Density Class 12 Physics Chapter 2 Potential & Capacitance 2023
Energy Stored in Capacitor & Energy Density Class 12 Physics Chapter 2 Potential & Capacitance 2023
Energy Stored in Capacitor - Electrostatic Potential and Capacitance | Class 12 Physics Ch 2
Energy Stored in Capacitor - Electrostatic Potential and Capacitance | Class 12 Physics Ch 2
18. Energy stored in a capacitor | Class 12th | Physics handwritten notes #cbse
18. Energy stored in a capacitor | Class 12th | Physics handwritten notes #cbse
Class 12Physics Electric Potential Chapter-2 Electrostatic Potential & Capacitance UP Board in Hindi
Class 12Physics Electric Potential Chapter-2 Electrostatic Potential & Capacitance UP Board in Hindi
Electrostatic Potential and Capacitance Class 12 Physics - Energy Stored in Capacitor
Electrostatic Potential and Capacitance Class 12 Physics - Energy Stored in Capacitor
Energy stored in a Capacitor | chapter 2 Electrostatic Potential and capacitance Class 12 Physics
Energy stored in a Capacitor | chapter 2 Electrostatic Potential and capacitance Class 12 Physics
Capacitance of parallel plate capacitor//Class 12th Physics//
Capacitance of parallel plate capacitor//Class 12th Physics//
How a capacitor works
How a capacitor works

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Work Done to Charge a Capacitor

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

A capacitor, as we have seen above, is a system of two conductors with charge Q and –Q. To determine the energy stored in this configuration, consider initially two uncharged conductors 1 and 2. Imagine next a process of transferring charge from conductor 2 to conductor 1 bit by bit, so that at the end, conductor 1 gets charge Q. By charge conservation, conductor 2 has charge –Q at the end. In transferring positive charge from conductor 2 to conductor 1, work will be done externally, since at any stage conductor 1 is at a higher potential than conductor 2.

Detailed Explanation

To understand how a capacitor stores energy, imagine starting with two uncharged plates. As you begin to add positive charge to one plate (conductor 1) from the other uncharged plate (conductor 2), you must do work against the electric field created by the charge on conductor 1. The more positive charge you move onto conductor 1, the higher the potential of that conductor becomes. This process of moving charge requires energy, which is then stored in the capacitor. When all the charge is transferred, conductor 1 has charge Q, and conductor 2 has charge -Q.

Examples & Analogies

Think of this process like pumping air into a balloon. As you blow air into the balloon (charging the conductor), you have to work against the balloon’s elasticity (the electric field) to inflate it. The energy you use while pumping the air is stored in the stretched rubber of the balloon. Similarly, the energy used to transfer charge into the capacitor is stored as electric potential energy.

Calculation of Work Done

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

To calculate the total work done, we first calculate the work done in a small step involving transfer of an infinitesimal (i.e., vanishingly small) amount of charge. Consider the intermediate situation when the conductors 1 and 2 have charges Q′ and –Q′ respectively. At this stage, the potential difference V′ between conductors 1 to 2 is Q′/C, where C is the capacitance of the system. Next imagine that a small charge dQ′ is transferred from conductor 2 to 1. Work done in this step (dW), resulting in charge Q′ on conductor 1 increasing to Q′ + dQ′, is given by dW = V′ dQ′ = (Q′/C) dQ′.

Detailed Explanation

In this phase, while moving a tiny charge dQ from conductor 2 to conductor 1, the amount of work done is directly related to the potential difference V' between the two conductors. Since V' = Q' / C, substituting gives you dW = (Q' / C) * dQ. This formula allows you to accumulate the total work done by integrating this expression as charge is gradually transferred. Consider all possible values of Q' from 0 to Q, and you will arrive at the total work done (energy) stored in the capacitor.

Examples & Analogies

Imagine filling a bucket with water from another larger bucket. The small amount of work you do to lift a little water against gravity is similar here to moving a small charge. The more water (charge) you transfer, the more effort (work) you need to exert against the force (potential) trying to keep it in place.

Energy in the Capacitor

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Integrating eq. (2.68) W = Q (cid:242) Q′ δQ′ = 1 Q′ 2 Q = Q2/(2C). We can write the final result, in different ways Q2/ (2C) = (1/2)CV2 = (1/2)QV.

Detailed Explanation

After performing the integral, we find the total work done in charging the capacitor given by W = Q²/(2C). This formula reveals the relationship between charge (Q), capacitance (C), and the energy stored in the capacitor. Additionally, it's interesting to note that this energy can also be expressed in terms of the capacitance and the voltage across the capacitor, showing that U = (1/2)CV², which tells you how the energy is affected by the parameters of the capacitor.

Examples & Analogies

This analogy can be likened to a spring. When a spring is compressed or stretched, it stores energy. Similarly, when a capacitor is charged, it 'stretches' its electric field, storing energy that you can release when needed, such as lighting a bulb.

Energy Density in Capacitor

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The energy stored in the capacitor as seen earlier can also be viewed as being stored in the electric field between the plates. For a parallel plate capacitor [of area A (of each plate) and separation d between the plates]. Energy stored in the capacitor = 1/2 (ε₀)(E²)·A·d.

Detailed Explanation

Breaking down the energy storage, we can look at it as a function of the electric field (E) created between two plates of the capacitor. This expression captures how energy density relates to the strength of the electric field and the configuration of the capacitor. The energy density formula shows how much energy is stored per unit volume in the electric field between the plates, which is a critical aspect to understand how capacitors function in circuits.

Examples & Analogies

Imagine the electric field between the capacitor's plates is like the pressure of water building up in a hose. The tighter you hold the hose, the more pressure builds up. Similarly, the stronger the electric field between the plates, the more energy is stored. When you release the end of the hose, that energy rushes out just like the potential energy in a charged capacitor when it's connected to a circuit.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Energy Storage: Capacitors store energy as a result of charged separation and voltage.

  • Formulas: W = 1/2 QV, W = 1/2 CV² demonstrate how energy, charge, and voltage relate.

  • Energy Density: Indicates how much energy is stored per unit volume within the capacitor's electric field.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of charging a 10μF capacitor at 100V showing stored energy using W = 1/2 CV².

  • Illustration of energy density through the relationship u = 1/2 ε₀ E² and its applications in parallel plate capacitors.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When you store some charge away, half a CV² is what you'll say.

📖 Fascinating Stories

  • Imagine a squirrel storing nuts in a box; the more nuts, the heavier the box – much like how charge adds energy in capacitors.

🧠 Other Memory Gems

  • C^2V = Capacitors Charge Voltage relation for energy.

🎯 Super Acronyms

C.E.V

  • Capacitance
  • Energy
  • Voltage - key concepts in energy storage.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Capacitance

    Definition:

    The ability of a system to store charge per unit potential difference, measured in farads (F).

  • Term: Stored Energy

    Definition:

    The energy held by a capacitor, dependent on the amount of stored charge and voltage.

  • Term: Voltage

    Definition:

    The electrical potential difference between two points, influencing the energy transfer when charge moves through it.

  • Term: Energy Density

    Definition:

    The amount of energy stored per unit volume within the electric field, expressed as u = 1/2 ε₀ E².

  • Term: Electric Field (E)

    Definition:

    A region around a charged object where other charged objects experience a force; critical in determining potential difference.
