2.2 - ELECTROSTATIC POTENTIAL DUE TO A POINT CHARGE

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Electrostatic Potential

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Good morning class! Today, we will focus on understanding electrostatic potential. Can anyone tell me what you think potential energy represents in a physical context?

Student 1
Student 1

I think it's the energy an object has due to its position or arrangement.

Teacher
Teacher

Exactly! When we talk about electrostatic potential, this takes us deeper into the concept of how charges interact. Potential energy is stored when work is done to separate charges within an electric field. Let's consider how it is defined mathematically.

Student 2
Student 2

Is the potential the same everywhere in the field?

Teacher
Teacher

Great question! Electrostatic potential varies with distance from the charge. Specifically, the potential due to a point charge is defined as the work done bringing a unit positive charge from infinity to a point in the field.

Student 3
Student 3

So, how do we express this mathematically?

Teacher
Teacher

"The formula you need to remember is:

Electrostatic Potential Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we've established what electrostatic potential is, let's tie it into potential energy. Can anyone explain how they are related?

Student 1
Student 1

I think potential energy is what you get when you have potential acting on a charge.

Teacher
Teacher

"Exactly! When you move a charge \( q \) in an electric field, the work done to move that charge contributes to its potential energy. We can express the potential energy difference between two points as:

Examples and Applications

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's connect our learning with real-life applications. Can anyone think of where we might encounter electrostatic potential in daily life?

Student 4
Student 4

I know it's used in capacitors and batteries!

Teacher
Teacher

That's right! Capacitors store electrical energy and use the principle of potential. The potential difference across the capacitor plates can define its behavior in electronic circuits.

Student 1
Student 1

What happens when they discharge?

Teacher
Teacher

When discharging, the stored potential energy is converted back into electrical energy that can do work, lighting up a bulb or powering a device. This is why they are critical in circuits!

Student 2
Student 2

That's cool! Can we do an example problem?

Teacher
Teacher

Absolutely! Let's say we have a point charge of \( 4 \times 10^{-7} C \) located \( 9 cm \) away. What is the potential? Remember, V = Q/(4πε₀r).

Key Concepts Recap

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

We have gone through quite a bit! Who can summarize the key points about electrostatic potential and its energy?

Student 3
Student 3

We learned that potential is the work done per charge moving from infinity, and potential energy is tied directly to the behavior of that charge in the field.

Teacher
Teacher

Exactly! And let's not forget the formulas. Can someone remind us why potential is more significant than potential energy alone?

Student 1
Student 1

Because potential gives us a clearer picture of the energies at various points in an electric field!

Teacher
Teacher

Well done! Always remember the practical implications of potential versus potential energy in understanding electric circuits and capacitors. Great job today, everyone!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section details the concept of electrostatic potential, particularly focusing on its calculation for a point charge and its relation to electric potential energy.

Standard

Electrostatic potential is defined as the work done by an external force in moving a unit charge from infinity to a point in an electric field without acceleration. For a point charge, the potential is inversely proportional to the distance from the charge, leading to the understanding of potential energy differences between two points in an electrostatic field.

Detailed

Detailed Summary

In this section, we delve into electrostatic potential, specifically its definition derived from the work done in moving a charge within an electric field. The concept relates closely to electric potential energy, with the key distinction that potential energy is dependent on the amount of charge moved. When a charge is moved in an electrostatic field generated by another point charge, the work required to do so defines the electrostatic potential (V) at that point, expressed as:

\[ V = \frac{Q}{4\pi \epsilon_0 r} \]

where \( Q \) is the point charge, \( r \) is the distance from the charge, and \( \epsilon_0 \) is the permittivity of free space. It is highlighted that the potential is valid for any sign of charge, illustrating how it will differ in magnitude at a fixed distance depending on the nature of the charge (positive or negative).

Furthermore, the section discusses the relationship between electric potential and electrostatic potential energy. As potential is a scalar quantity that does not depend on the path taken between two points but rather only on the endpoints themselves, this underlines the conservative nature of electrostatic forces. The relevance of this concept is seen in practical applications of electrostatics and capacitors, informing the fundamental theories of electrostatic fields and their impacts in varying contexts.

Youtube Videos

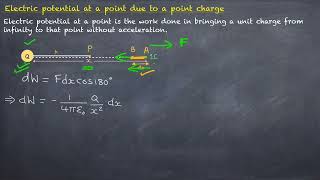

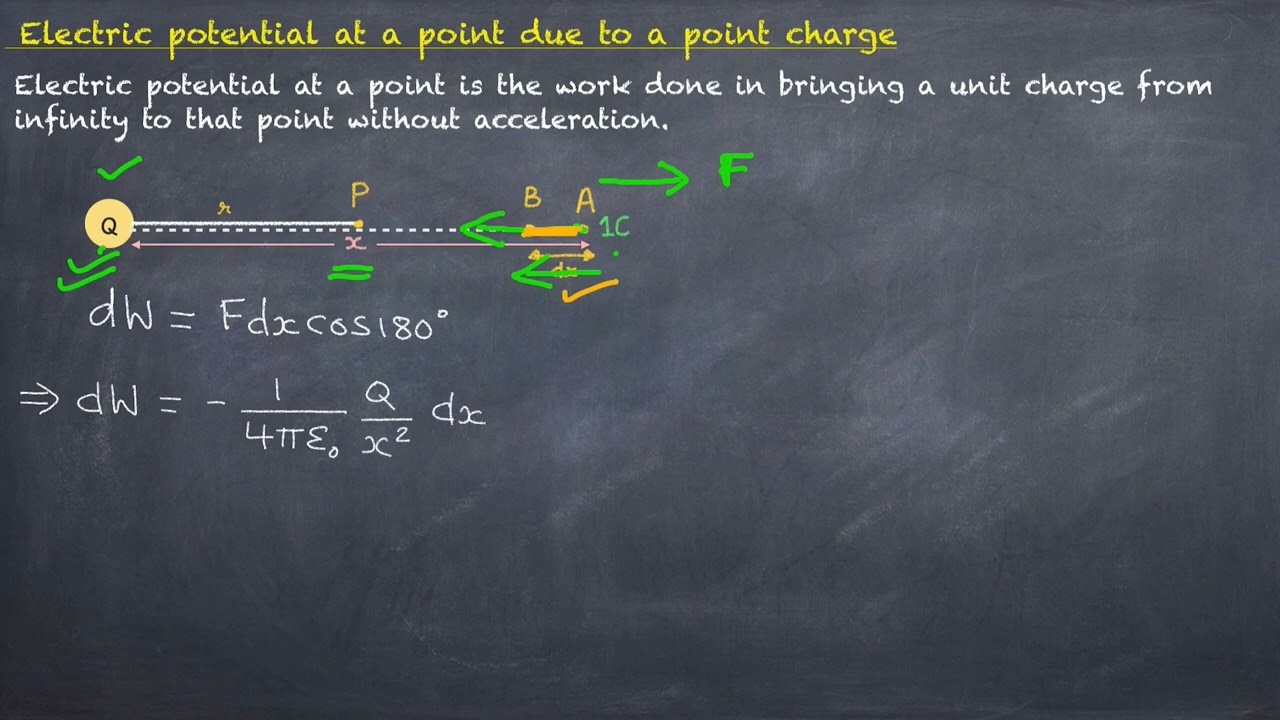

Potential Due to a Point Charge Class 12 Physics Chapter 2 | CBSE Board Exam
Potential Due to a Point Charge Class 12 Physics Chapter 2 | CBSE Board Exam
Electrostatic Potential due to a Point Charge, Chapter 2, Electrostatic Potential, Class 12 Physics
Electrostatic Potential due to a Point Charge, Chapter 2, Electrostatic Potential, Class 12 Physics
Potential Due to a Point Charge | Class 12 Physics Chapter 2 | CBSE 2024-25
Potential Due to a Point Charge | Class 12 Physics Chapter 2 | CBSE 2024-25

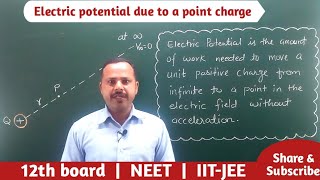

2. Electric potential due to a point charge | 12th | Physics Handwritten Notes
2. Electric potential due to a point charge | 12th | Physics Handwritten Notes
Electric Field vs Electric Field Intensity Explained | Class 12 Physics
Electric Field vs Electric Field Intensity Explained | Class 12 Physics
Example 1.4 Chapter 1 Electric fields and charges CBSE NCERT Physics class 12
Example 1.4 Chapter 1 Electric fields and charges CBSE NCERT Physics class 12
Electrostatic Potential Due To Point Charge and Group of Charges | Class 12 Physics Chapter 2
Electrostatic Potential Due To Point Charge and Group of Charges | Class 12 Physics Chapter 2

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Definition of Electrostatic Potential

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider any general static charge configuration. We define potential energy of a test charge q in terms of the work done on the charge q. This work is obviously proportional to q, since the force at any point is qE, where E is the electric field at that point due to the given charge configuration. It is, therefore, convenient to divide the work by the amount of charge q, so that the resulting quantity is independent of q.

Detailed Explanation

Electrostatic potential V is defined based on the work done to move a test charge q in an electric field. Since the force acting on the charge is proportional to the charge itself (F = qE), we can standardize our measurement of work by dividing it by the charge q. This way, the potential we calculate is independent of the specific charge used.

Examples & Analogies

Think of it like measuring the cost of a toll road per car. If the tolls vary with the number of passengers in the car, it becomes complicated. Instead, we can set a flat rate per car regardless of the number of passengers, simplifying the payment process. Electrostatic potential works similarly by normalizing the work done based on charge.

Work Done in Moving a Charge

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Work done by external force in bringing a unit positive charge from point R to P = V – V = P R.

Detailed Explanation

When we bring a unit positive charge from a point at infinity to a specific point in an electric field, we do work against the electric forces acting on the charge. The work done is expressed as the difference in the electrostatic potential between the two points (P and R). Therefore, the potential difference V represents the work needed per unit positive charge that enables us to calculate the electrostatic potential at any point in an electric field.

Examples & Analogies

Imagine climbing a hill. The work you exert to reach the top (potential energy) is dependent only on the height difference between the starting point and the top. Similarly, the electrostatic potential is about the difference in potential energy per unit charge as you move through the electric field.

Defining Electrostatic Potential at Infinity

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If the potential at infinity is chosen to be zero, potential at a point with position vector r due to a point charge Q placed at the origin is given by V(r) = 1/(4πε₀) * (Q/r).

Detailed Explanation

By convention, we define the electric potential at infinity to be zero as a reference point. This allows us to express the potential at any point in space in a more manageable way. When we have a point charge Q, we can calculate the potential V at a distance r from this charge using the formula V(r) = (1/(4πε₀))(Q/r). This relation tells us how strong the electric potential is as we move closer or farther away from the charge.

Examples & Analogies

Consider the sea level as a reference for altitude. Just as we measure how high a mountain is based on its distance above sea level (with sea level being zero), we measure the potential of a charge based on a reference point (infinity) where the potential is zero.

Electric Potential of a Point Charge

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

For a point charge Q at the origin, V(r) = 1/(4πε₀) * (Q/r) indicates that as you move away from the charge, the potential decreases with distance.

Detailed Explanation

The formula V(r) = (1/(4πε₀))(Q/r) shows that the electric potential due to a point charge decreases as you move further away from the charge. This inverse relationship indicates that the influence of the charge diminishes with distance, reflecting our intuitive understanding of how gravity works—heavier objects have a larger field of influence which weakens as you step back farther from them.

Examples & Analogies

Think of a light bulb: the brightness of the light diminishes as you move further away from it. A light bulb close to you seems very bright, while at a distance, the brightness lowers. Similarly, the potential from a point charge is strongest at close range and decreases with distance.

Potential Variation and Charge Significance

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Equation (2.8) is true for any sign of the charge Q, though we considered Q > 0 in its derivation. For Q < 0, V < 0, i.e., work done (by the external force) per unit positive test charge in bringing it from infinity to the point is negative.

Detailed Explanation

The potential calculated using V(r) = (1/(4πε₀))(Q/r) applies to both positive and negative charges. For negative charges, the potential becomes negative, indicating that work done by the external force is less than zero, meaning the electric field is acting in the direction of the positive test charge. This highlights an important concept in electric fields: the distinction in the behavior of fields produced by positive versus negative charges.

Examples & Analogies

Consider a gravity hill—the direction of help decreases when moving uphill (adding work), while moving downhill requires less effort. Here, a positive charge moving toward a negative one is similar to a person rolling down a hill, which occurs without effort (negative work).

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Electrostatic Forces: Forces that act between charged objects, following Coulomb's Law.

  • Potential Difference: The difference in electrostatic potential between two points in an electric field.

  • Energy Storage: Capacitors use the concept of electrostatic potential to store electrical energy.

  • Conservative Forces: Forces where the work done is path independent, leading to the definition of potential energy.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example 1: Calculate the electrostatic potential at a point 9 cm from a charge of 4 × 10–7 C.

  • Example 2: Discuss how potential energy changes when a positive charge moves closer to another positive charge.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In fields where charges dwell, to move with care, work brings forth potential, it's a product we all should share!

📖 Fascinating Stories

  • Imagine a brave charge venturing from the infinite void to reach its potential lover—learning along the way that not all fields are equal and some journeys require more work than others.

🧠 Other Memory Gems

  • Remember the formula for potential: QPR! (Q for charge, P for potential, R for radius).

🎯 Super Acronyms

PUP

  • Potential (P)
  • Unit charge (U)
  • Point (P)
  • a: way to remember potential concepts.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Electrostatic Potential

    Definition:

    The work done in bringing a unit positive charge from infinity to a specified point in an electric field without acceleration.

  • Term: Potential Energy

    Definition:

    Energy stored in a system due to its position in an electric field; interrelated with potential.

  • Term: Point Charge

    Definition:

    An idealized charge that is concentrated at a single point in space, used for calculating electric fields and potential.

  • Term: Distance

    Definition:

    The space between two points; in electrostatics, represented as the radius from the point charge.

  • Term: Coulomb's Law

    Definition:

    A physical law describing the electrostatic interaction between charged objects, guiding the force and potential calculations.
