2.12 - EFFECT OF DIELECTRIC ON CAPACITANCE

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Capacitance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we’ll start by revisiting the concept of capacitance. Who can tell me what capacitance is?

Student 1
Student 1

Capacitance is the ability of a capacitor to store charge.

Teacher
Teacher

Correct! And it's defined by the formula C = Q/V, right? Where C is capacitance, Q is the charge, and V is the potential difference.

Student 2
Student 2

But how does this change when we add something between the plates?

Teacher
Teacher

Excellent question! We’ll get to that. Before we dive into dielectrics, let’s just recap—the vacuum allows for certain capacitance values. Does anyone remember the formula for a capacitor in vacuum?

Student 3
Student 3

Yes! C = (ε₀ * A) / d.

Teacher
Teacher

Good job! Now, let's explore how adding a dielectric changes this.

Effects of Dielectrics

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

When a dielectric material is inserted, what happens to the capacitance?

Student 4
Student 4

I think it increases, right?

Teacher
Teacher

Exactly! The new capacitance can be described as C = K * (ε₀ * A) / d. The K here is known as the dielectric constant.

Student 1
Student 1

What does the dielectric constant do?

Teacher
Teacher

Great question! K measures the capability of a dielectric to increase capacitance compared to a vacuum. What do you think happens to the electric field?

Student 2
Student 2

I guess it decreases because the dielectric is polarized.

Teacher
Teacher

Correct! The polarization of the dielectric creates an opposing electric field, reducing the overall field between the capacitor plates.

Practical Implications of Dielectrics

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s talk about the practical aspects. Why do we use dielectrics in capacitors?

Student 3
Student 3

To store more charge without increasing voltage!

Teacher
Teacher

Right! This allows for smaller, more efficient capacitors in electronics. How do you think this impacts technology?

Student 4
Student 4

It makes devices smaller and more powerful since we can store more energy in a smaller space.

Teacher
Teacher

Absolutely! The advancement of capacitors directly influences modern electronics. Any final thoughts before we summarize?

Student 1
Student 1

I think it’s interesting how materials can reshape electrical functions!

Teacher
Teacher

Well said! So, to summarize: Dielectrics increase capacitance by reducing the electric field and voltage, which enables better energy storage options in technology.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the influence of dielectric materials on the capacitance of capacitors.

Standard

Dielectric materials, when inserted between the plates of capacitors, increase the capacitance by reducing the electric field and subsequently the potential difference across the plates. The significance of the dielectric constant and the relationship between capacitance and dielectric materials are detailed.

Detailed

Effect of Dielectric on Capacitance

In this section, we explore how dielectrics alter the behavior of capacitors.

Key Points Covered:
1. Capacitance with Vacuum: Initially, capacitance is defined for a parallel plate capacitor with a vacuum between the plates, represented by the formula:

C = (ε₀ * A) / d

where C is capacitance, A is area of the plates, ε₀ is the permittivity of free space, and d is their separation.

  1. Effect of Dielectric: When a dielectric material is introduced, it becomes polarized, generating an opposing electric field. This effectively reduces the overall electric field between the plates and results in a reduced potential difference. The modified capacitance with a dielectric present is:

C = K * (ε₀ * A) / d

where K is the dielectric constant, which is greater than 1. This indicates that capacitance increases when a dielectric is present.

  1. Dielectric Constant (K): The dielectric constant quantifies how much a dielectric material increases capacitance compared to a vacuum.
  2. Practical Implications: The section concludes with how dielectric materials enable capacitors to hold more charge without increasing the voltage across them, thus finding applications in various electronic devices.

Understanding dielectric effects is critical for advancing electrical engineering and related fields.

Youtube Videos

13. Effect of dielectric on capacitance | Electric Potential & Capacitance | 12th Physics #cbse
13. Effect of dielectric on capacitance | Electric Potential & Capacitance | 12th Physics #cbse
Electrostatic Potential n Capacitance 13 : Effect of Dielectric in Capacitors JEE MAINS/NEET
Electrostatic Potential n Capacitance 13 : Effect of Dielectric in Capacitors JEE MAINS/NEET
Effect Of Dielectrics|Capacitance|NCERT|CBSE|Physics 12|Tamil|Muruga MP#murugamp#ncert#physics12
Effect Of Dielectrics|Capacitance|NCERT|CBSE|Physics 12|Tamil|Muruga MP#murugamp#ncert#physics12

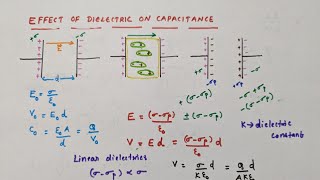

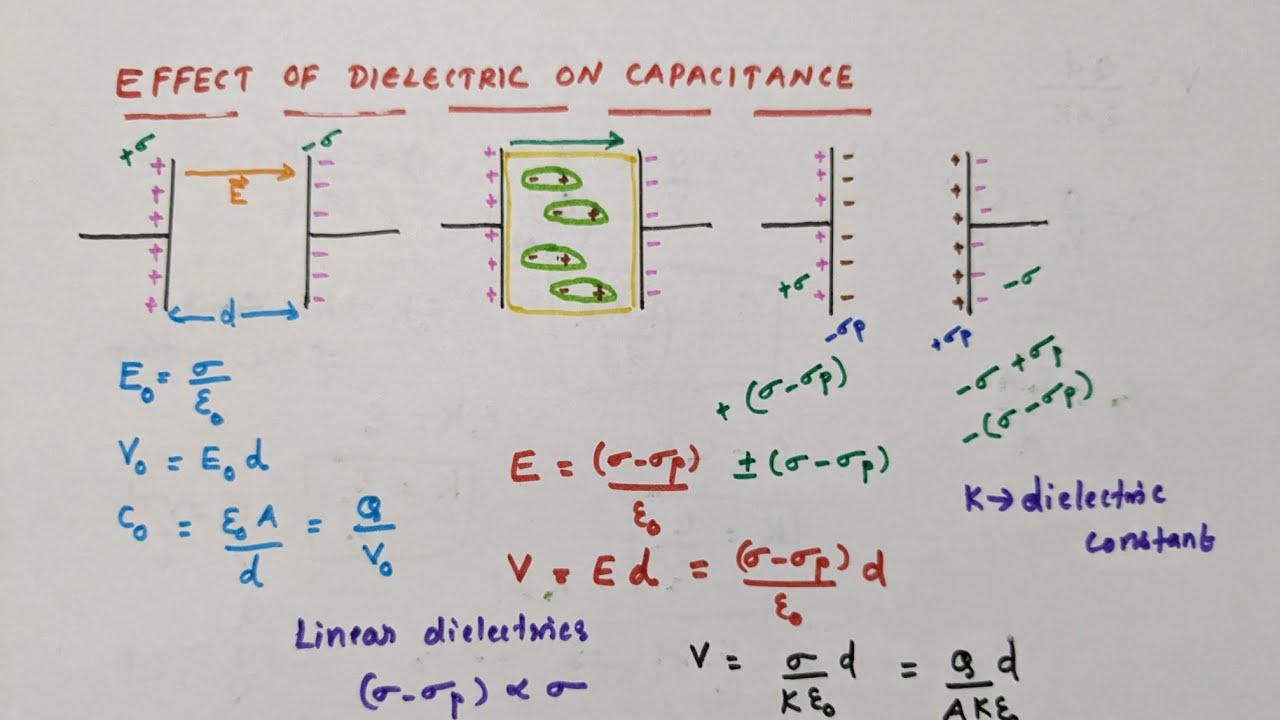

The effect of dielectric on capacitance// Class 12 Physics//Electrostatic potential and capacitance
The effect of dielectric on capacitance// Class 12 Physics//Electrostatic potential and capacitance
Class 12Physics Electric Potential Chapter-2 Electrostatic Potential & Capacitance UP Board in Hindi
Class 12Physics Electric Potential Chapter-2 Electrostatic Potential & Capacitance UP Board in Hindi
Effect of Dielectric on Capacitance - Electrostatic Potential & Capacitance | Class 12 Physics Ch 2
Effect of Dielectric on Capacitance - Electrostatic Potential & Capacitance | Class 12 Physics Ch 2
क्या होता है Capacitor के अंदर 😲 You will be amazed to see 🤯#shorts #physics #experiment
क्या होता है Capacitor के अंदर 😲 You will be amazed to see 🤯#shorts #physics #experiment

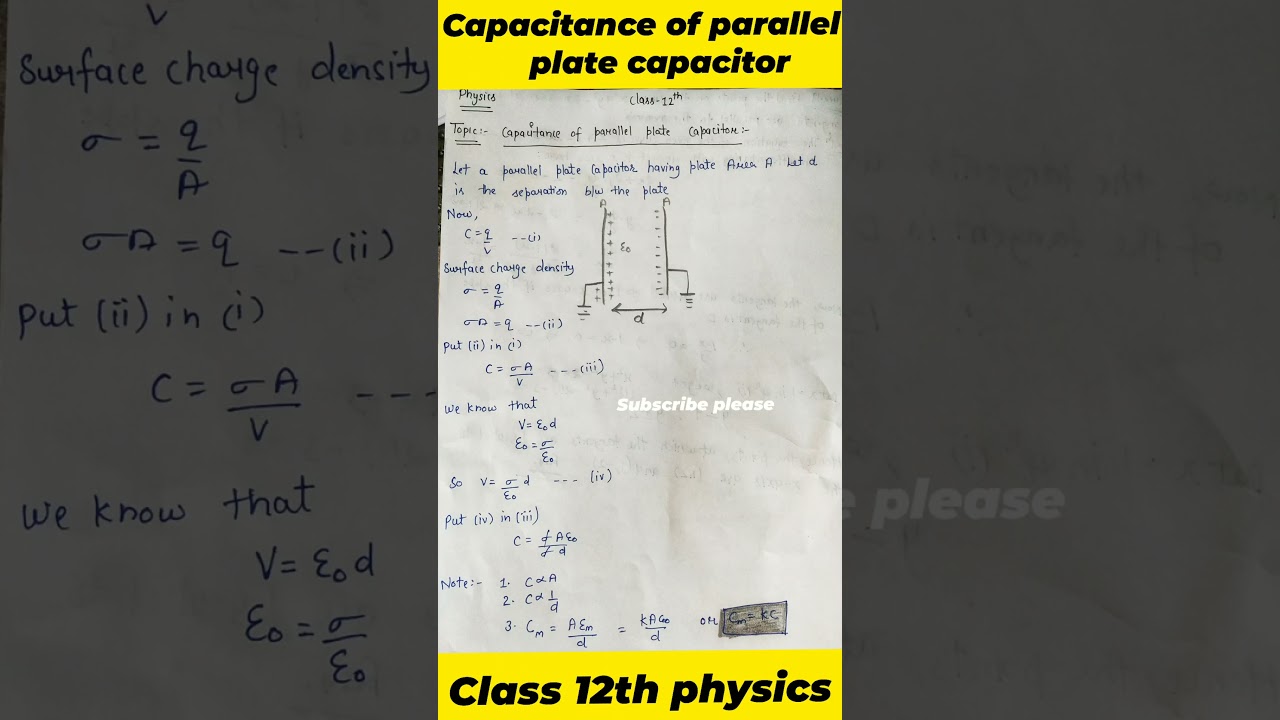

Capacitance of parallel plate capacitor//Class 12th Physics//
Capacitance of parallel plate capacitor//Class 12th Physics//
How a capacitor works
How a capacitor works
Electric Potential l Electrostatics l Ashu Sir #science #physics #electrostatics
Electric Potential l Electrostatics l Ashu Sir #science #physics #electrostatics

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Capacitance with Dielectrics

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

With the understanding of the behaviour of dielectrics in an external field developed in Section 2.10, let us see how the capacitance of a parallel plate capacitor is modified when a dielectric is present. As before, we have two large plates, each of area A, separated by a distance d. The charge on the plates is ±Q, corresponding to the charge density ±s (with s = Q/A). When there is vacuum between the plates, E = ε₀

Detailed Explanation

This chunk introduces the concept of how a dielectric material affects the capacitance of a parallel plate capacitor. A capacitor consists of two conductive plates separated by an insulating material (dielectric). When there is a vacuum between the plates, the electric field (E) is determined by the charge (±Q) on the plates and the geometry of the capacitor. The charge density (s) relates to how much charge is present per unit area on the plates.

Examples & Analogies

Think of a sponge filled with water. Just as the sponge can absorb water and increase its volume without changing the amount of water outside, the capacitor can store more electrical energy when a dielectric material is inserted between its plates. The dielectric allows the capacitor to hold more charge at the same voltage.

Capacitance Expression Without Dielectric

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

the potential difference V is V = E d₀, where d₀ is the distance between the plates. The capacitance C in this case is C₀ = Q/V = ε₀ A/d₀.

Detailed Explanation

This chunk details the relationship between capacitance, electric field, and potential difference when there is no dielectric. The equation C₀ = Q/V shows that capacitance depends on the area (A) of the plates and the distance (d₀) between them. The potential difference (V) is the product of the electric field and the distance, effectively expressing how much voltage is required to maintain that electric field across the distance.

Examples & Analogies

Imagine a water tank with a small spout (the plates of the capacitor). The amount of water you can hold increases with the size of the tank (area) and decreases as the spout height increases (distance). A wider tank can hold more water without needing to increase the height much, similar to how a larger plate area increases capacitance.

Introduction of Dielectric Material

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider next a dielectric inserted between the plates fully occupying the intervening region. The dielectric is polarized by the field and produces an opposing electric field due to the induced charges at its surfaces.

Detailed Explanation

Inserting a dielectric material into the capacitor modifies the electric field within it. The dielectric becomes polarized when exposed to the electric field, creating induced charges on its surfaces. This polarization results in an electric field that opposes the original field between the capacitor plates, effectively reducing the net electric field inside the capacitor.

Examples & Analogies

Think about a thick blanket on a cold day. Just as the blanket can reduce the temperature sensation by retaining heat (like the dielectric reducing the electric field), the dielectric material reduces the effective electric field within the capacitor, allowing it to store more charge.

Capacitance Expression With Dielectric

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Thus, the capacitance C, with dielectric between the plates, is then C = K * C₀, where K is the dielectric constant.

Detailed Explanation

This equation summarizes the effect of the dielectric on capacitance. The capacitance with the dielectric (C) is equal to the capacitance without it (C₀) multiplied by the dielectric constant (K). The dielectric constant quantifies how much the capacitor's ability to store charge increases when a dielectric is present compared to when there is a vacuum.

Examples & Analogies

Consider a sponge again. If you increase the sponge's absorbency (dielectric constant) by adding a more porous material, it can hold even more water (charge) than before. Thus, different materials will affect how much charge a capacitor can hold, similar to how varying sponges might absorb different amounts of water.

Calculation of Effective Electric Field

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

For linear dielectrics, we expect E = E₀/K, where E₀ is the electric field without dielectric present.

Detailed Explanation

This relationship shows how the presence of a dielectric reduces the electric field within the capacitor. As the electric field inside a dielectric is inversely proportional to the dielectric constant, higher K values lead to lower electric fields, meaning the capacitor can store more energy without increasing the voltage.

Examples & Analogies

Imagine walking through water; the denser the water (like a high K dielectric), the harder it is to move. Similarly, the dielectric restricts the field’s strength, allowing the capacitor to hold more charge without a significant increase in potential.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Capacitance: Ability of a capacitor to store charge.

  • Dielectric: An insulating substance that alters electric fields.

  • Dielectric Constant: A ratio that shows how much a dielectric increases capacitance.

  • Electric Field: A field around charged particles affecting the potential and movement of charges.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example: Inserting a dielectric material between capacitor plates increases capacitance.

  • Example: Different dielectrics have different dielectric constants, affecting their ability to increase capacitance.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Dielectrics in capacitors, oh what a sight, / They store more charge, making efficiency right!

📖 Fascinating Stories

  • Imagine a tiny capacitor trying to hold as many charge marbles as possible; when we add a dielectric, it's like giving that capacitor a bigger bag, allowing it to carry more marbles comfortably.

🧠 Other Memory Gems

  • KAP-D: K for Kapacitance, A for Area, P for Potential difference, and D for Dielectric constant.

🎯 Super Acronyms

DICE

  • Dielectric Increases Capacitor's Efficiency.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Capacitance

    Definition:

    A measure of a capacitor's ability to store charge, defined as C = Q/V.

  • Term: Dielectric

    Definition:

    An insulating material that becomes polarized in an electric field, affecting capacitance.

  • Term: Dielectric Constant (K)

    Definition:

    A measure of how much a dielectric increases capacitance compared to a vacuum.

  • Term: Electric Field (E)

    Definition:

    A vector field around charged objects representing the force per unit charge.

  • Term: Potential Difference (V)

    Definition:

    The work done per unit charge to move a charge between two points in an electric field.
