3.1 - Introduction to Pipelining
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
What is Pipelining?
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re discussing pipelining. Can anyone tell me what pipelining means in the context of computer processors?
Isn’t it about processing multiple instructions at the same time?
Exactly! Pipelining is the process of dividing the execution of instructions into multiple stages that can be performed concurrently. This helps in improving instruction throughput.
So, it’s like an assembly line, right?
Great analogy! Just like an assembly line where different workers perform different tasks simultaneously, pipelining allows multiple instructions to occupy different stages of execution at the same time.
What other benefits does pipelining offer?
Primarily, it enhances the overall performance of processors by increasing throughput, which is the number of instructions processed in a given time period.
How does it compare to non-pipelined processors?
In a non-pipelined processor, each instruction must be completed before the next one begins, leading to inefficiencies and longer execution times. In contrast, with pipelining, we see significant improvements.
The Need for Pipelining
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand what pipelining is, let’s explore why it’s necessary. Can someone explain the motivation behind pipelining?
I think it's to make processors faster, right?
Yes, absolutely! Pipelining is implemented largely to improve the performance of a processor by increasing instruction throughput. Would anyone like to expand on how this impacts performance?
It improves how quickly instructions can be processed since multiple instructions can be executed simultaneously.
Exactly! This overlapping of instruction phases means less idle time and a smoother overall flow of processing.
Are there any drawbacks to pipelining?
That's a great point! While pipelining improves performance, it also introduces complexities, such as the need to manage hazards, which we will discuss in later sections.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section delves into pipelining, describing it as a method for improving processor performance by overlapping the execution of instructions through multiple stages, allowing various instructions to be processed concurrently.
Detailed
Introduction to Pipelining
Pipelining is a fundamental concept in modern computing that increases instruction throughput—essentially improving performance—by executing multiple instructions simultaneously across various phases of execution. Instead of waiting for one instruction to be completed before starting the next, pipelining breaks down the execution process into distinct stages that can be tackled in parallel. This section covers the definition and necessity of pipelining, emphasizing how it divides the execution of instructions to allow multiple instructions to be processed at different stages concurrently, ultimately leading to faster processing and enhanced efficiency in processors.

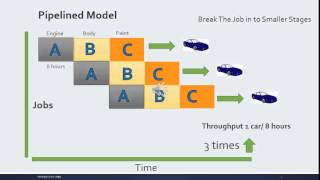

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Pipelining
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The process of dividing the execution of instructions into multiple stages that can be performed in parallel.
Detailed Explanation
Pipelining is a method used in modern processors where the execution of instructions is split into different stages. Each stage focuses on a specific part of the instruction's execution, similar to an assembly line in a factory. This allows multiple instructions to be processed at the same time by different stages of the pipeline, rather than one instruction at a time.
Examples & Analogies
Think of a car manufacturing plant. Instead of one worker building one car from start to finish, one worker is responsible for installing the engine, while another installs doors, and yet another applies the paint. This way, multiple cars can be worked on simultaneously, speeding up the overall production process.
Need for Pipelining
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The motivation behind pipelining, which is to improve the performance of a processor by increasing instruction throughput.
Detailed Explanation
The main reason for implementing pipelining in processors is to boost performance. By allowing multiple instructions to be executed at once, pipelining increases instruction throughput, meaning that more instructions can be completed in a given time. In simpler terms, pipelining helps processors do more work in less time, which leads to faster computing.
Examples & Analogies
Imagine a restaurant with several chefs. If each chef solely prepares one dish, the restaurant serves customers slowly. But if each chef specializes in different parts of a dish, like chopping vegetables, cooking, and plating, they can serve dishes much faster and take more orders simultaneously!
Basic Concept of Pipelining
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Each stage of the pipeline processes a different part of an instruction, and multiple instructions can be processed simultaneously in different pipeline stages.
Detailed Explanation
The basic idea of pipelining is that while one instruction is being processed in one stage of the pipeline, other instructions can be processed in the other stages. Each stage of the pipeline is designed to handle a specific task. For instance, one stage may fetch the instruction, another decodes it, while a third executes it. This overlapping of tasks makes the execution flow more efficient.
Examples & Analogies
Consider an assembly line in a bakery where one person rolls dough, another adds fillings, and a third bakes them. As one person finishes their task with one batch, the next task starts on another batch. This means several batches of pastries can be made at once, significantly speeding up production.
Key Concepts
-
Definition of Pipelining: The process of dividing instruction execution into several overlapping stages.
-
Instruction Throughput: An increase in the rate at which instructions are processed due to parallel execution.
-
Stages of Execution: Different phases such as instruction fetch, decode, execute, memory access, and write back.
Examples & Applications
In a 5-stage pipeline, while one instruction is being executed, another can be decoded, and a third can be fetched, allowing the processor to operate more efficiently.
If an instruction takes 5 clock cycles to execute in a non-pipelined processor, a pipelined processor can potentially complete one instruction per clock cycle once the pipeline is full.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In pipelining, tasks in line, work hard and fast, efficiency is fine.
Stories
Imagine a car factory: while one car is being painted, another is getting assembled, and the third is on the way to get inspected. This is like how instructions move through the pipeline.
Memory Tools
I Execute My Work (Instruction Fetch, Instruction Decode, Execute, Memory Access, Write Back).
Acronyms
PIPES - Process with Instructions Performed in Every Stage.
Flash Cards
Glossary
- Pipelining
The process of dividing the execution of instructions into multiple stages that can be performed in parallel.
- Throughput
The number of instructions that can be processed per unit of time.
- Latency
The time it takes for a single instruction to pass through the entire pipeline.
