Introduction to Mode Truncation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we are discussing mode truncation. Can anyone tell me what mode truncation means?
Is it about ignoring some modes of vibration?
Exactly! Mode truncation is when we simplify a dynamic system by focusing only on the most significant modes. Why do you think we might want to do this?
To make our calculations easier and faster?
Yes, efficiency is key in structural analysis! We usually disregard higher modes that have little impact on the system's overall response. Can anyone think of how we evaluate the error made by truncation?
Is it through modal mass participation?
Correct! We assess how much each mode participates in the overall response. Let's remember: we want to keep at least 90-95% of the mass participation. This helps ensure our analysis remains accurate. Any questions before we move on?
Understanding Modal Superposition
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s explore modal superposition. Who can tell me what it means?
Is it about adding up the effects of different modes together?
Exactly! Modal superposition combines the individual responses of the modes to find the total system response. Does anyone remember how this looks mathematically?
I think it's \{X(t)\} ≈ \{ϕ\} q(t)?
That's correct! The 'r' in that expression is the number of modes we consider, which is typically much less than 'N', the total amount of modes available. This method helps us achieve an accurate response without excessive computation. Why is that important in our field?
Because it saves time and resources!
Exactly! Efficiency is crucial in structural engineering. Any final questions on modal superposition?
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the concepts of mode truncation and modal superposition are explored, emphasizing how structural responses can be approximated by considering only a few dominant modes. The criteria for acceptable truncation and the methods for combining modal responses are discussed, making these techniques essential for efficient structural analysis.
Detailed
Mode Truncation and Modal Superposition
In structural dynamics, particularly in the analysis of multi-degree-of-freedom (MDOF) systems, two important concepts are mode truncation and modal superposition. These techniques facilitate the understanding and prediction of how structures respond to vibrations, especially when subjected to dynamic loading conditions such as earthquakes.
Mode Truncation
Mode truncation involves simplifying a complex dynamic system by retaining only the most significant modes of vibration. In practice, not all modes contribute equally to a structure's overall response. Therefore, higher modes, which typically have negligible participation in the response, can be disregarded without significantly affecting the accuracy of the analysis. The error introduced by truncation can be assessed through modal mass participation or energy contribution metrics.
Criteria for Acceptable Truncation
To ensure that the truncation remains effective, it is generally required that at least 90–95% of the system's total mass participation is captured. Additionally, it is vital to prioritize the dominant modes aligned with the direction of external excitation.
Modal Superposition
Modal superposition is a method for determining the total system response by summing the individual contributions from selected modal responses. This is articulated mathematically as:
$$
\{X(t)\} ≈ \{ϕ\} q(t)
$$
where 'r', the number of modes included in the superposition, is usually much less than 'N', the total number of modes. Through this technique, an accurate representation of the dynamic response can be achieved while minimizing computational complexity.
In summary, mode truncation and modal superposition are powerful tools in the field of earthquake engineering and structural dynamics. They enable engineers to efficiently analyze structures while ensuring that critical vibrational patterns are adequately represented.

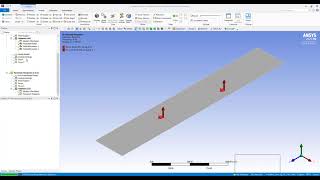

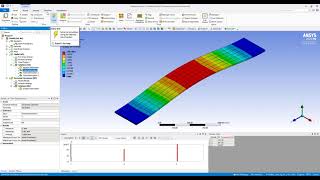

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Mode Truncation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In practice, only a few dominant modes are sufficient to approximate structural response.
Higher modes are neglected if their participation is negligible.
Error introduced by truncation is evaluated using modal mass participation or energy contribution.
Detailed Explanation
Mode truncation is a technique used in structural analysis where only the most significant modes—those that contribute most to the overall response—are considered in calculations. This means ignoring higher modes if they don't significantly affect the structure's response to dynamic loads. To determine which modes are dominant, engineers look at factors such as modal mass participation, which indicates how much each mode contributes to the mass of the structure, and energy contribution, which measures how much energy each mode absorbs during vibration.
Examples & Analogies
Imagine a musician playing several instruments in an orchestra. If a few instruments, like the violin and piano, dominate the sound while others, like a triangle or tambourine, barely contribute, the conductor might decide to focus only on the dominant instruments for a clearer performance. Similarly, in structural analysis, focusing on majorly contributing modes helps simplify calculations without losing much accuracy.
Modal Superposition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Total system response obtained by summing individual modal responses.
{X(t)}≈ {ϕ }q (t) where r ≪N.
Detailed Explanation
Modal superposition is a method where the total response of a structure is calculated by adding together the responses of each modal shape. In this equation, {X(t)} represents the overall response, {ϕ} stands for the mode shapes, and q(t) refers to the respective modal coordinates. The notation 'r ≪ N' indicates that only a small number of modes (r) are summed compared to the total number of modes (N) calculated for the system. Hence, this approach greatly simplifies the analysis while still providing accurate results.
Examples & Analogies
Think of baking a cake where each ingredient contributes to the final flavor. If the cake needs many ingredients (like flour, sugar, eggs, and vanilla), but you realize just the flour and sugar provide most of the sweetness and texture, you can simplify the recipe by focusing mainly on these two. Similarly, modal superposition allows structural engineers to pinpoint which vibrational modes are most impactful for understanding how a structure will react during an event like an earthquake.
Criteria for Acceptable Truncation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At least 90–95% of total mass participation should be captured.
Dominant modes in the direction of excitation are prioritized.
Detailed Explanation
When applying mode truncation, engineers need to ensure that their approach is still accurate enough for practical use. A general rule of thumb is that at least 90–95% of the total mass participation must be accounted for in the selected modes. This ensures that the most crucial aspects of the structure's behavior are not overlooked. Additionally, the modes that are most significant in the direction of the load or excitation (like seismic forces) are prioritized in analysis.
Examples & Analogies
Picture a sports coach deciding which players to focus on based on their performance during a game. If the aim is to win, the coach will select the top performers who contribute the most to scoring—like the main players in basketball. By excluding less impactful players (comparable to the higher modes in truncation), the coach ensures the team has the best chance of winning. Similarly, prioritizing dominant modes in structural analysis helps engineers design structures that can withstand dynamic loads effectively.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Mode Truncation: The process of simplifying analyses by focusing on dominant modes.
-
Modal Superposition: Combining contributions from each mode to form a complete response.
-
Modal Mass Participation: The critical measurement indicating which modes significantly affect system response.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When analyzing a multi-storey building, engineers may find that the first three modes account for 95% of the response, allowing them to truncate higher modes.
-
In a seismic analysis, engineers use modal superposition to calculate how each mode contributes to the overall sway of a building during an earthquake.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When truncating modes, keep the best, 90% is the key, forget the rest!
📖 Fascinating Stories
-
Imagine an orchestra performance where only the lead musicians are allowed to play. They represent the significant modes, while others, though present, do not contribute to the melody. By focusing on the lead, the music becomes clearer and stronger.
🧠 Other Memory Gems
-
MOTOSC: Modes, Objectives, Truncation, Overall, Superposition, Contribution – to remember the essentials of modal analysis.
🎯 Super Acronyms
MST
- Modal Superposition Technique.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Mode Truncation
Definition:
The process of simplifying a dynamic system by retaining only the dominant modes of vibration while neglecting higher modes with insignificant participation.
-
Term: Modal Superposition
Definition:
A technique for calculating the total system response by summing individual contributions from selected modes of vibration.
-
Term: Modal Mass Participation
Definition:
The measurement of how much each mode of vibration contributes to the overall dynamic response of a structure.
-
Term: Energy Contribution
Definition:
The quantification of the energy associated with each mode's contribution to the total vibrational energy in the system.
