Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Orthogonality Property
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's start with the orthogonality property of normal modes. What do you think happens when we say two modes are orthogonal?
Does it mean they don't affect each other?
Exactly! Mathematically, when we say {ϕ_i}T[M]{ϕ_j} = 0 for i ≠ j, it implies that the modes are independent. This helps simplify our analysis.
Can this property apply to other areas too?
Good question! Orthogonality is a common concept in several fields, such as electrical engineering and quantum mechanics. It's fundamental to separate components.
In structural dynamics, orthogonality allows us to analyze each mode without interference from others.
So it helps in simplifying problems?
Absolutely! That's the essence of modal analysis. Let's recap this before moving on.
Normalization of Modes
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's discuss normalization. Why do you think we want to normalize mode shapes?
To make them uniform? Like giving them the same scale?
Close! By normalizing, we ensure that each mode shape satisfies {ϕ_n}T[M]{ϕ_n} = 1, simplifying equations and computations. It keeps our analysis neat.
Does that mean each mode is equally important?
Not necessarily. Normalization is a mathematical tool. Some modes contribute more significantly to structural response, which leads us to modal participation factors!
Let’s summarize: normalization helps in making calculations straightforward.
Modal Participation Factors and Completeness
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's talk about modal participation factors. What do you know about their role in our analysis?
They measure how much each mode contributes to the response?
Right! Higher factors mean more influence on the system. It's essential for understanding which modes we should focus on.
What about completeness? Why's that important?
Great question! Completeness means we can express any dynamic response of a linear system as a sum of its normal modes. It simplifies our analysis greatly.
In summary, understanding participation and completeness allows us to analyze complex systems efficiently. Together, they form a foundation for modern structural dynamics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section focuses on the properties of normal modes in structural dynamics, highlighting their orthogonality, normalization to unit modal mass, modal participation factors, and the concept of completeness, which allows any dynamic response to be expressed in terms of a linear combination of normal modes.
Detailed
Properties of Normal Modes
In the study of normal modes of vibration, several critical properties are identified that facilitate an understanding of how structures respond to dynamic loads. These properties include:
- Orthogonality Property: The mode shapes are orthogonal with respect to both the mass and stiffness matrices. This is expressed mathematically as:
- egin{align*}
{ϕ_i}^T[M]{ϕ_j} &= 0, ext{ for } i
eq j \
{ϕ_i}^T[K]{ϕ_j} &= 0, ext{ for } i
eq j \
ext{where } [M] ext{ is the mass matrix and } [K] ext{ is the stiffness matrix.}
ext{This orthogonality implies that different modes do not influence one another.}
ewline
2. Normalization: To facilitate analysis, mode shapes can be scaled to satisfy unit modal mass:
-
egin{align*}
{ϕ_n}^T[M]{ϕ_n} = 1.
ext{This property ensures that each mode can be analyzed independently.}
ewline
3. Modal Participation Factors: These factors quantify the contribution of each mode to the total response of the system under dynamic loading. A higher participation factor indicates a greater influence of that mode on the structural response.
- Completeness: Finally, completeness signifies that any dynamic response of a linear system can be expressed as a linear combination of its normal modes. This foundational concept allows engineers to simplify complex dynamic problems by breaking them down into their normal modes, enabling more straightforward analysis and design of structures under vibration.

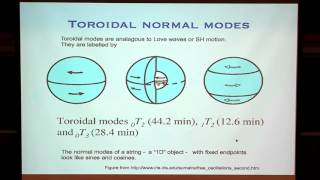

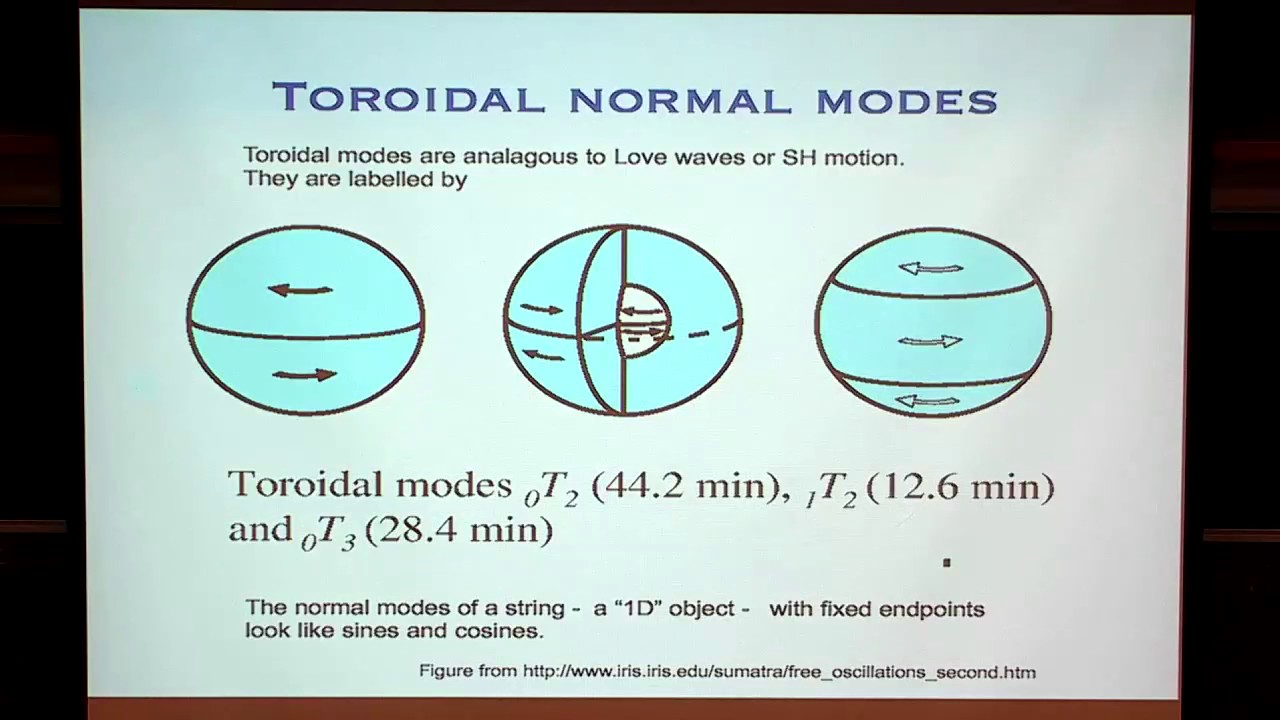

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Orthogonality Property
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Mode shapes are orthogonal with respect to both [M] and [K]:
{ϕ_i}^T[M]{ϕ_j} = 0, for i ≠ j
{ϕ_i}^T[K]{ϕ_j} = 0, for i ≠ j
Detailed Explanation
The orthogonality property states that mode shapes are independent of each other. This independence means that the interaction between different modes does not affect their individual behaviors. For two different mode shapes, when you take their product with the mass matrix or stiffness matrix, the result is zero. This indicates that the modes do not influence each other in the context of system dynamics.
Examples & Analogies
Think of mode shapes like different notes played on a piano. Each note is unique and can be played independently without affecting the pitch of the other notes. Just as when you play one note, it does not interfere with the sound of another note, the normal modes of a structure act independently, enabling engineers to analyze them separately.
Normalization of Mode Shapes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Mode shapes can be scaled to satisfy unit modal mass:
{ϕ_n}^T[M]{ϕ_n} = 1
Detailed Explanation
Normalization is the process of scaling mode shapes so that when you take the dot product of a mode shape with the mass matrix and itself, you get one. This means that the total 'weight' of a mode shape, when considered with respect to the mass of the system, is standardized. This allows engineers to easily compare the contributions of different modes without variability due to their magnitudes.
Examples & Analogies
Imagine you are a coach and you want to evaluate players' performances based on their height and weight. If one player is much heavier than the others, it could skew your evaluation. Normalizing their scores would be like converting their performances to a common scale, allowing you to compare them fairly regardless of their size. In structural dynamics, normalization ensures that each mode can be compared on an equal footing.
Modal Participation Factors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Modal participation factors indicate how much a mode contributes to the total response.
Detailed Explanation
Modal participation factors quantify the influence of each mode on the overall behavior of the system when it is subjected to dynamic loading. Essentially, they provide a way to measure how significant each mode is to the total response of the structure. Higher participation factors mean that specific modes play a larger role in how the structure vibrates during disturbances, like an earthquake.
Examples & Analogies
You can think of modal participation factors like different ingredients in a recipe. If you make a cake and add a lot of sugar, the sweetness will be more pronounced compared to if you only add a little. Similarly, some modes will contribute more to the system's reaction than others, just like some ingredients are more critical to the final flavor of the cake.
Completeness of Modal Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Any dynamic response of a linear system can be expressed as a linear combination of its normal modes.
Detailed Explanation
Completeness in modal analysis means that you can represent the entire vibrational response of a system by combining its normal modes. This principle is fundamental to understanding and predicting how structures will behave under dynamic loads. Since every motion can be decomposed into these 'basic' motions, it simplifies the analysis significantly. Using just a few dominant modes can allow engineers to capture nearly all important aspects of the system's response.
Examples & Analogies
Consider a symphony orchestra, where many different instruments play together to create a beautiful piece of music. Each instrument can be thought of as a normal mode, and when combined in various ways, they produce a rich and complex sound. Similarly, in structural analysis, combining the effects of different normal modes allows us to understand and predict the complex behavior of a structure under dynamic conditions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Orthogonality: Mode shapes do not affect each other, simplifying analysis.
-
Normalization: Scaling mode shapes for consistent analysis, ensuring clarity in equations.
-
Modal Participation Factors: Metrics that indicate the impact of modes on total response.
-
Completeness: The capacity to express any dynamic response with a combination of normal modes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a two-degree-of-freedom system, normal modes may show that certain shapes, like twisting or vertical oscillation, do not affect each other due to orthogonality.
-
In analysis of a simple beam structure, the first mode's shape might indicate predominant displacement while higher modes contribute less significantly.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Orthogonal modes don’t play, they dance apart, every day.
📖 Fascinating Stories
-
Once, two shapes named Mode_1 and Mode_2 decided to dance at the same time. They realized if they stepped on each other's toes, the coordination would fail. So, they danced apart, maintaining their own rhythm, representing the orthogonality principle.
🧠 Other Memory Gems
-
O-N-M-C stands for Orthogonality, Normalization, Modal Participation Factors, and Completeness—key concepts of normal modes.
🎯 Super Acronyms
ORMC - Orthogonality, Regularity (Normalization), Modal Contributions, Completeness.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Orthogonality
Definition:
The property of mode shapes where they do not influence one another, mathematically expressed through inner products with the mass and stiffness matrices.
-
Term: Normalization
Definition:
The process of scaling mode shapes to satisfy a specific condition, typically unit modal mass, to simplify analyses.
-
Term: Modal Participation Factors
Definition:
Numeric indicators of how much individual modes contribute to the overall dynamic response of a structure.
-
Term: Completeness
Definition:
The property that allows any dynamic response of a linear system to be expressed as a linear combination of its normal modes.
