Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Normal Modes
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Welcome class! Today, we will explore normal modes of vibration. Can anyone tell me what a normal mode is?
Is it how a structure vibrates when there's no external force?
Exactly! A normal mode is indeed the way a system naturally oscillates without external disturbances. These modes are crucial in understanding structural behavior.
So, does each mode have a specific frequency?
Yes, each normal mode has a specific natural frequency associated with it. Remember: Modes and frequencies go hand-in-hand!
Multi-Degree-of-Freedom Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Moving on, let's discuss multi-degree-of-freedom systems. Can anyone define what an MDOF system is?
It's a system with multiple ways to move, right? Like a building that can sway and twist?
Correct! MDOF systems can exhibit complex motion, which our equations of motion can describe in matrix form. Anyone recall the equation?
I think it's [M]{X¨} + [K]{X} = {F(t)}!
Great memory! Here, [M] is the mass matrix, and [K] is the stiffness matrix. This shows how all the forces and movements interconnect in a structure.
Eigenvalues and Eigenvectors
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's delve into the concept of mode shapes and natural frequencies again. Who can tell me how these relate?
Are mode shapes like the shapes a building takes when it vibrates?
Yes! And those mode shapes act as eigenvectors, while the natural frequencies are the eigenvalues. This relationship helps us analyze the vibrational characteristics of structures.
And we can also discuss their orthogonality, right?
Exactly! The orthogonality of mode shapes ensures that each mode is independent of the others, which simplifies our analysis significantly.
Applications in Earthquake Engineering
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Finally, let's connect normal modes with real-world applications. Can someone explain how these concepts apply to earthquake engineering?
I think normal modes help in designing buildings so they can withstand earthquakes better?
Exactly! Engineers use modal analysis to determine where reinforcements are needed, especially in high-risk seismic zones, ensuring structures can endure dynamic loads.
And the first few modes are usually what matters most in those situations?
Yes! In many cases, especially in low-rise buildings, the first few modes dominate the response, allowing us to simplify our analysis.
Recap and Summary
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
To wrap up, let's summarize. What are normal modes again?
They are the natural oscillations of a system.
Good! And why are they important?
They help us understand how structures react during events like earthquakes.
Absolutely! Well done, everyone! Understanding these concepts is critical in engineering.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Normal modes of vibration describe how structures naturally oscillate under vibrational forces. Each mode is linked to a specific natural frequency and shape of deformation, facilitating the analysis of complex motion in multi-degree-of-freedom systems crucial for earthquake engineering.
Detailed
Normal Modes of Vibration
In the context of earthquake engineering and structural dynamics, normal modes of vibration play a pivotal role in understanding how structures respond to vibrational forces. Normal modes are defined as the natural ways in which a system oscillates when not subjected to external forces or damping. Each mode of vibration corresponds to a particular natural frequency and deformation shape.
When structures like buildings and bridges are impacted by dynamic loads (e.g., seismic waves), their motion becomes intricate. However, this complex behavior can often be decomposed into simpler vibrational patterns known as normal modes. The detailed sections discuss the mathematical formulation and physical significance of these modes, especially for multi-degree-of-freedom (MDOF) systems widely prevalent in structural design. By understanding normal modes, engineers can better predict and enhance the performance of structures under various loads, specifically during earthquakes.

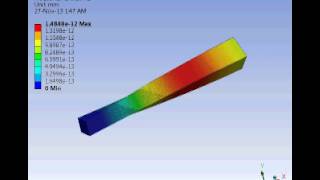

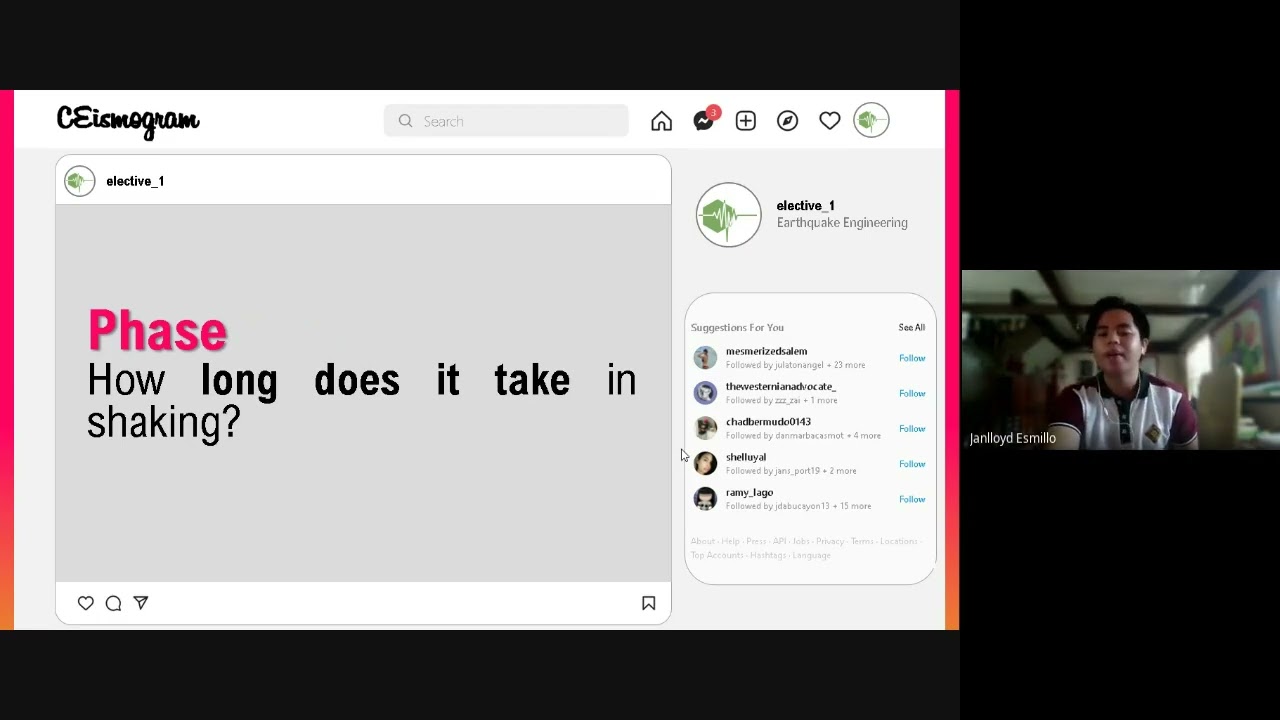

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Normal Modes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In earthquake engineering and structural dynamics, understanding how structures respond to vibrational forces is crucial. One of the most fundamental concepts in this area is normal modes of vibration. These are the natural ways in which a system tends to oscillate in the absence of external forces or damping. Each normal mode is associated with a specific frequency—called a natural frequency—and a unique deformation shape—called a mode shape.
Detailed Explanation
Normal modes are essentially the characteristic ways a structure vibrates when it is disturbed, without any outside influence. Each mode has its own frequency, known as the natural frequency, and its own shape of vibration called the mode shape. For example, think of a swing: when you push it, it oscillates back and forth at a natural frequency. If you push it at a different rhythm, it can behave erratically. Thus, understanding normal modes helps engineers predict how buildings and bridges will react during events like earthquakes.
Examples & Analogies
Imagine a guitar string. When plucked, it vibrates at a specific frequency, creating a musical note. Each specific vibration shape corresponds to a different note, similar to how each mode shape of a building corresponds to specific vibrational patterns during seismic events.
Multi-Degree-of-Freedom (MDOF) Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
MDOF systems refer to structures that have multiple independent modes of vibration and consist of various mass and stiffness distributions. Key to understanding these systems is the mathematical modeling of these structures, often expressed in matrix form as:
[M]{X¨}+[K]{X}={F(t)}
Detailed Explanation
MDOF systems are structures that can move in multiple ways due to varying factors like mass and flexibility. The given matrix equation represents how these structures respond to forces. Here, [M] represents the mass matrix, while [K] is the stiffness matrix. The vector {X} indicates displacements, and {F(t)} denotes external forces. Solving this equation helps engineers determine how a structure will respond during an earthquake.
Examples & Analogies
Think of a multi-story building as a set of connected springs. Each floor can move independently, just like each spring can stretch or compress. If one spring is pushed (like an earthquake hitting a building), the entire system responds in a complex way, where understanding the interaction of the springs (or floors) is crucial for safety.
Natural Frequencies and Mode Shapes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Natural frequency and mode shapes define how a structure vibrates. Normal modes are oscillation patterns that operate independently of each other, with mode shapes as eigenvectors and natural frequencies as eigenvalues.
Detailed Explanation
Natural frequencies are the specific frequencies at which a structure tends to vibrate naturally when disturbed. Mode shapes are the corresponding patterns of deformation. When a building or bridge vibrates, each mode shape represents a specific way the structure can deform. The orthogonality property ensures these mode shapes do not interfere with one another, which simplifies analysis.
Examples & Analogies
Imagine a classroom where students can dance in different styles. Each style (salsa, ballet, hip-hop) represents a mode shape with its unique rhythm (natural frequency). Although they are all part of the same class (the building), each dance does not affect the others, reflecting how modes operate independently.
Free Vibration Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Free vibration occurs without damping or external force. The analysis involves harmonic motion, expressed as:
{X(t)}={ϕ}sin(ωt)
Detailed Explanation
In free vibration analysis, we assume the structure moves freely without any energy loss or outside forces. The expression indicates that the displacement at any time t is a sinusoidal function, relating to a specific mode shape ϕ and natural frequency ω. Engineers often reformulate the equations to find the eigenvalues and eigenvectors that correspond to these vibrations.
Examples & Analogies
Consider a pendulum swinging in a quiet room, where it swings back and forth naturally without any external push. The way it oscillates is determined by its length (similar to the structure's characteristics), which directly relates to its natural frequency and swing pattern, resembling the concept of mode shapes.
Properties of Normal Modes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Normal modes have distinct properties: they are orthogonal concerning both the mass and stiffness matrices. Additionally, they can be normalized to satisfy unit modal mass concepts.
Detailed Explanation
The orthogonality property suggests that different modes do not interact. This independence is crucial for simplifying the analysis and calculations. Normalization allows engineers to standardize mode shapes so their contributions can be easily compared, making the analysis more straightforward.
Examples & Analogies
Think of musical notes played on different instruments. Each note (mode shape) does not alter the others because they are played separately (orthogonally). By assigning standard pitches (normalization), musicians can easily understand and work together in harmony, just like how engineers use normalized modes in design.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Normal Modes: Natural oscillations of a system.
-
Natural Frequency: Frequency at which a system prefers to oscillate.
-
Mode Shape: Unique spatial pattern of vibration.
-
Multi-Degree-of-Freedom Systems: Systems capable of complex movements.
-
Eigenvalues and Eigenvectors: Mathematical constructs that relate to modes and frequencies.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A multi-storey building experiencing seismic activity can be analyzed for its vibrational response by decomposing the complex motion into its normal modes.
-
In a two-degree-of-freedom system, normal modes can be calculated to predict how the system will react under various loading conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Modes that sway and twist, in structures they exist. Each has its frequency, that scientists must list.
📖 Fascinating Stories
-
Imagine a musician tuning their instrument. Each string vibrates differently, producing unique sounds, just like each mode of a building vibrates in a specific pattern.
🧠 Other Memory Gems
-
M.F.E. - Modes, Frequencies, Eigenvalues. Remember the core concepts when analyzing vibrations.
🎯 Super Acronyms
M = Modes, F = Frequencies, E = Eigenvectors - 'MFE' helps to recall normal modal analysis.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Normal Mode
Definition:
A distinct way in which a system oscillates naturally in the absence of external forces.
-
Term: Natural Frequency
Definition:
The specific frequency at which a system tends to oscillate when disturbed.
-
Term: Mode Shape
Definition:
The unique deformation pattern of a system at its natural frequency.
-
Term: MultiDegreeofFreedom (MDOF) System
Definition:
A system with multiple degrees of freedom that can exhibit complex motion.
-
Term: Eigenvalue
Definition:
A scalar that characterizes a transformation represented by a matrix, associated with natural frequencies in this context.
-
Term: Eigenvector
Definition:
A non-zero vector that only changes by a scalar factor during the transformation represented by a matrix, linked with mode shapes.
