32.14 - Retrofitting and Strengthening of Structures
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Need for Retrofitting
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing the need for retrofitting. Why do you think older structures need to be retrofitted for earthquakes?
Because they were built before we had good guidelines for earthquakes?
Exactly! Buildings constructed pre-code are particularly vulnerable to seismic forces. Furthermore, moderate damage from past earthquakes can also necessitate retrofitting to prevent future risks.
So, what are some signs a building needs retrofitting?
Good question! Signs include visible cracks, structural failure, or poor performance in recent seismic events.
Do we always retrofitting to be effective?
Not necessarily, but evaluating current conditions and making informed decisions on retrofitting strategies is crucial.
To summarize, retrofitting is vital for pre-code buildings and those that have suffered seismic damage.
Retrofitting Strategies
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's dive into retrofitting strategies. What types of methods do you all think exist for retrofitting?
I think there are local methods like adding shear walls?
Great point! Local methods include techniques like jacketing and steel bracing. What about global methods?
Those would be methods that affect the whole structure, right? Like base isolation?
Exactly! Base isolation allows a building to move somewhat independently of ground motion. Energy dissipation devices also absorb energy, minimizing seismic effects.
How do we decide which method to use?
Decisions are usually based on the building's evaluation and specific vulnerabilities, informed by guidelines like IS 13935.
In summary, we have local methods for targeted fixes and global methods that provide broad interventions.
Evaluation of Existing Structures
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss how we evaluate existing structures. So, what methods do you think are used in this evaluation?
Visually inspecting buildings?
Yes! Visual inspections are a common method to identify immediate signs of distress. Other methods include non-destructive testing to assess hidden damages.
What does non-destructive testing involve?
It refers to various techniques that do not damage the structure while obtaining data, such as ultrasonic testing or infrared thermography.
How important is this evaluation process?
It's quite critical! The evaluation determines the suitability and extent of retrofitting needed to comply with modern safety standards.
To recap, evaluations involve visual inspections and NDT, both pivotal for deciding the path of retrofitting.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section of the chapter highlights the importance of retrofitting existing structures that are vulnerable to seismic activity. It covers local and global retrofitting strategies, the evaluation of current structures, and IS 13935 guidelines for seismic strengthening.
Detailed
Retrofitting and Strengthening of Structures
In the realm of earthquake engineering, retrofitting and strengthening are critical to ensuring the safety and resilience of existing structures. This section delves into several vital aspects of this process, including:
32.14.1 Need for Retrofitting
- Pre-Code Buildings: Many structures were built before modern seismic codes were available, making them especially vulnerable to earthquakes.
- Post-Damage Evaluation: Retrofitting may also be necessary for buildings that have experienced moderate seismic damage, enhancing their capacity to withstand future events.
32.14.2 Retrofitting Strategies
- Local Methods: Involve targeted interventions such as jacketing (adding reinforced concrete), steel bracing (to enhance lateral strength), and shear wall insertion (to increase rigidity).
- Global Methods: These approaches include base isolation (which allows movement during an earthquake) and the incorporation of energy dissipation devices that can absorb and redistribute seismic forces.
32.14.3 Evaluation of Existing Structures
- Evaluation methods such as visual inspections, non-destructive testing (NDT), and performance evaluations are essential in determining a structure's readiness for retrofitting.
32.14.4 IS 13935 Guidelines for Seismic Strengthening
- This section emphasizes the importance of following established guidelines outlined in IS 13935, which provide valuable techniques and help in prioritizing interventions based on the risks associated with specific structures.

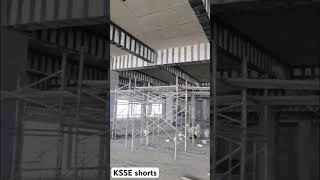

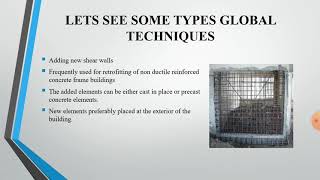

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Need for Retrofitting
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
For pre-code buildings or after moderate seismic damage.
Detailed Explanation
Retrofitting is essential for buildings that were constructed before current seismic codes were established or for those that have experienced damage from past earthquakes. These structures may not be designed to withstand modern seismic forces, making them vulnerable during subsequent seismic events. Improvements such as retrofitting can enhance their stability and safety, reducing the risk of failure.
Examples & Analogies
Consider a classic car that was built before modern safety standards were created. Just like how that car might need upgrades such as airbags or better brakes to ensure the safety of the passengers, older buildings require retrofitting to meet today's safety standards against earthquakes.
Retrofitting Strategies
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Local methods: Jacketing, steel bracing, shear wall insertion. Global methods: Base isolation, energy dissipation devices.
Detailed Explanation
Retrofitting methods can be categorized into local and global strategies. Local methods, such as jacketing (adding material to existing structural elements), steel bracing (adding diagonal members to resist lateral forces), and shear wall insertion (adding vertical walls to manage lateral loads), focus on specific areas of a structure to improve strength and stiffness. Global methods, on the other hand, enhance the overall performance by implementing base isolation techniques, which allow a building to move independently of ground motion, and energy dissipation devices, which absorb excessive energy and reduce the forces transmitted to the structure.
Examples & Analogies
Imagine a person wearing a heavy backpack while trying to run. Wearing a backpack is similar to an old building that's not reinforced; it can cause instability. Now, if the person adds a waist strap (jacketing), uses weights to support their legs (bracing), or chooses a lightweight material (base isolation), they can run more effectively without falling over during a bumpy ride (earthquake).
Evaluation of Existing Structures
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Visual inspection, non-destructive testing (NDT), and performance evaluation.
Detailed Explanation
Before retrofitting a structure, it is crucial to evaluate its current condition. This typically involves visual inspections, where engineers examine the exterior and interior of the building for signs of damage such as cracks, deformations, or wear. Non-destructive testing (NDT) methods, like ultrasonic or infrared tests, can assess the integrity of structural components without causing further damage. Performance evaluations determine how the structure has behaved under past loads and help predict how it will respond to future seismic events.
Examples & Analogies
Evaluating a building is similar to how doctors conduct health check-ups. Just as a doctor will visually assess a patient, take X-rays, and conduct tests to evaluate a patient's health, engineers assess a building’s condition through inspections and advanced testing techniques to ensure it can withstand earthquakes.
IS 13935 Guidelines for Seismic Strengthening
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Provides techniques and prioritization.
Detailed Explanation
The IS 13935 guidelines outline standardized techniques for seismic strengthening of structures, ensuring that retrofitting methods are effective and reliable. These guidelines help engineers prioritize strengthening tasks based on the specific vulnerabilities identified during evaluations, focusing first on critical weaknesses that must be addressed to enhance overall safety.
Examples & Analogies
Think of a first-time homebuyer who wants to renovate their home. They would typically prioritize which renovations are most urgent based on budget and condition—say, fixing a leaky roof before repainting the walls. Similarly, engineers use the IS 13935 guidelines to prioritize the retrofitting tasks based on the most vulnerable parts of the building that need immediate attention.
Key Concepts
-
Retrofitting: A method to strengthen existing structures.
-
Jacketing: Adding layers to enhance strength.
-
Base Isolation: A global technique to reduce seismic forces.
Examples & Applications
A 1960s high-rise building is retrofitted with steel bracing and shear walls to enhance its seismic resilience.
A historical structure in a seismic zone is retrofitted using base isolation techniques to protect it from ground motion.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Old buildings need a boost, not a flop; jacketing's the way to hop.
Stories
Imagine a historical castle that stood strong for centuries. One day, an earthquake shook its grounds. The officials decided to use base isolation to protect it, allowing it to sway like a tree in the wind - keeping it safe and standing tall.
Memory Tools
P.E.G. for Retrofitting: 'Protection, Evaluation, Guidelines.'
Acronyms
R.E.P. - Retrofitting, Evaluation, Protection.
Flash Cards
Glossary
- Retrofitting
The process of strengthening or modifying existing structures to better withstand seismic activity.
- Jacketing
A local retrofitting method that involves adding a layer of reinforced concrete around existing columns or shear walls.
- Base Isolation
A global retrofitting technique that allows the building to remain detached from ground motion.
- NonDestructive Testing (NDT)
Methods used to evaluate the condition of a structure without causing damage.
- IS 13935
Indian Standard Guidelines for Seismic Strengthening of Structures.
