32.13. Soil-Structure Interaction (SSI)

Mutual interaction between soil and structure alters dynamic behavior.

Soil-structure interaction refers to the way the soil and the structure interact with one another during an event like an earthquake. It's not just that the structure sits on the soil; rather, the soil influences how the structure behaves and, in return, the structure affects how the soil responds. This interaction is crucial as it alters the dynamic behavior of the whole system. For example, a building’s foundation may settle into the soil as it is loaded, which can change the performance of the building during seismic events.

Imagine a person standing on a trampoline. The person (representing the structure) affects how the trampoline (representing the soil) deforms when they stand on it. Similarly, just like how the trampoline may also push back against the person, the soil reacts to the building’s load and motion.

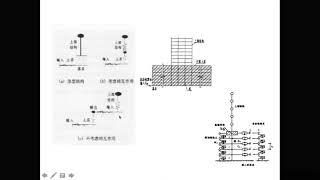

Fixed base ignores foundation flexibility. Flexible base includes foundation stiffness and damping.

In fixed base analysis, it is assumed that the structure is rigidly fixed to the ground, and the foundation does not deform during seismic activity. This model simplifies the calculations but may not accurately represent real conditions. On the other hand, flexible base analysis takes into account that the foundation can deform and that this deformation affects how the structure moves during an earthquake. This makes the model more realistic, particularly for tall buildings and structures on softer soils.

Think of a tall tree in a windy storm. If the tree roots (representing the foundation) are rigidly fixed in hard soil, it will sway with the wind but won't bend much. In contrast, if the roots are in loose, sandy soil, the tree will bend and sway more violently. The flexible base analysis is like measuring the tree's movement considering that its roots can move in the sand.

Isolated footings, mat foundations, pile foundations.

Different types of foundations behave differently during seismic events. Isolated footings, which support individual columns, can have varying responses based on soil conditions beneath them. Mat foundations spread the load over a wider area and tend to perform better in reducing stresses. Pile foundations, which extend deep into the ground, can provide additional stability but also require careful design to withstand lateral forces during an earthquake. Understanding these behaviors is essential for designing effective seismic-resilient structures.

Consider three different types of boats in a rough sea: a small canoe (isolated footing) that can capsize easily, a large yacht (mat foundation) that has a broader base and can better withstand waves, and a battleship (pile foundation) that is sturdy and can navigate heavy storms. Each performs differently depending on the conditions and needs to be designed accordingly.

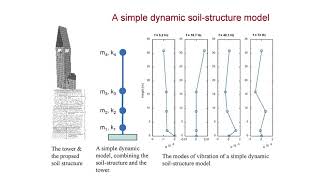

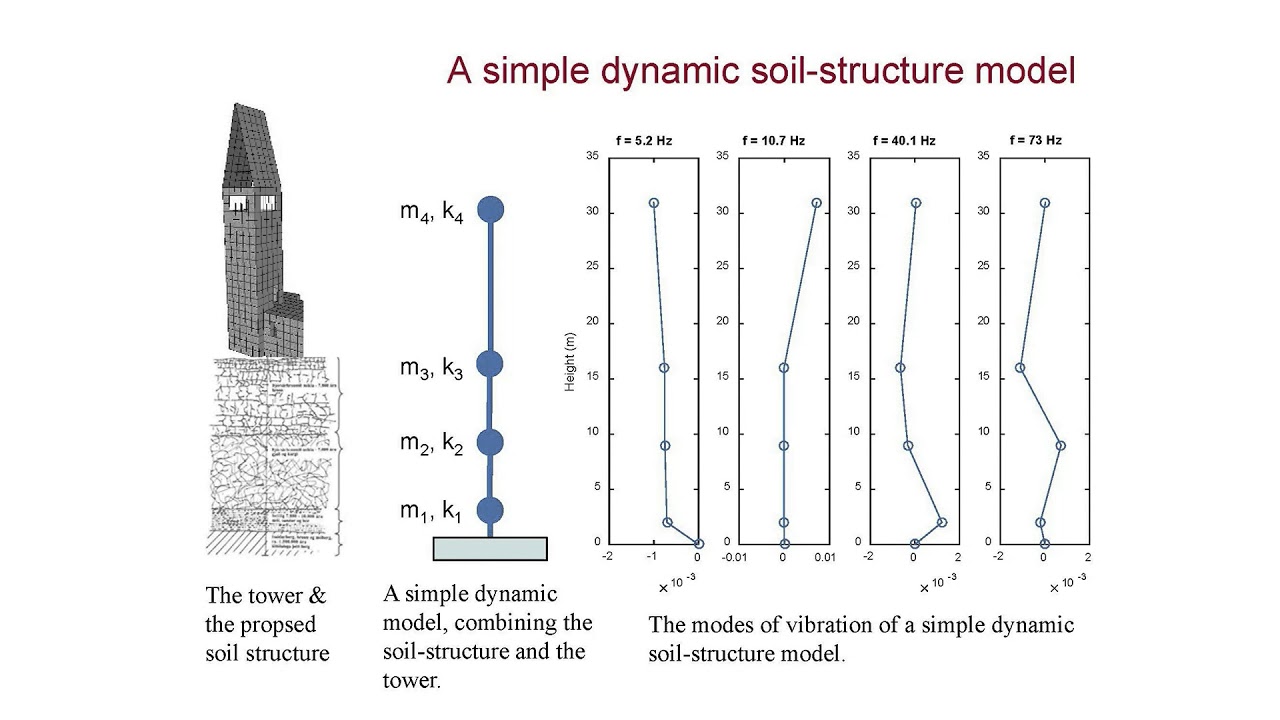

Winkler model (springs), finite element method.

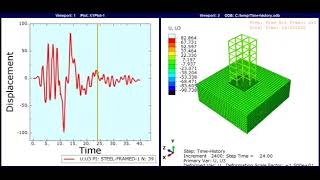

Modeling soil flexibility involves creating mathematical representations of how soil reacts under loads. The Winkler model is a simplified approach where the soil is represented as a series of springs, meaning the soil at each point can compress or deform. This is useful for basic calculations. More complex models, like the finite element method, provide detailed simulations by dividing the soil into small elements. This allows for capturing the complex interactions and deformations that occur in soil during seismic loading.

Think of the Winkler model like using a series of individual bouncy balls to represent a soft surface; each ball can compress slightly. The finite element method is more like using a large sponge made of many small sections, which compress and flex in different ways when pushed. This method provides a more comprehensive understanding of how forces are distributed throughout the soil.

Natural period elongation, increase in damping.

The interaction of the structure with the soil can lead to significant changes in response parameters. One major effect is the elongation of the natural period of the structure, which means it may oscillate more slowly than it would if it were on a rigid foundation. Additionally, the interaction often leads to an increase in damping, which can help reduce vibrations during an earthquake. This means that a flexible foundation can actually help the structure respond better to seismic forces.

Think of a swing set. When someone swings (like a structure) on a flexible mat (the soil), they rock back and forth more slowly and with less force than if they were on a rigid surface. The mat absorbs some of the energy, which is akin to increased damping.

--
