11.7.1 - Charged into the soil for withdrawal later (groundwater recharging)
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Groundwater Recharging
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are going to learn about groundwater recharging and why it’s crucial for sustainability. Can anyone tell me why we need to recharge aquifers?
To have more water available for future use?
Exactly! By recharging aquifers, we ensure that we can store rainwater and use it later when needed. Now, what are some methods we might use for recharging?
Bore wells?
Correct! Bore wells are one of the methods. They involve directing rainwater into deep wells to replenish groundwater. Other methods include recharge pits and soakaways, which we’ll explore further.
Let’s remember this with the acronym 'BRS' for Bore Wells, Recharge Pits, and Soakaways. Does everyone understand this so far?
Yes, but how do the recharge pits work?
Good question! Recharge pits are designed to allow water to percolate into the ground effectively. They can be filled with various filter media like sand and gravel.
In summary, we learned that recharging aquifers helps ensure water availability and can be done using several methods: Bore wells, Recharge Pits, and Soakaways.
Details about Recharge Pits and Soakaways
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s dig deeper into recharge pits. What do you think are the dimensions of an ideal recharge pit?
Maybe 1-2 meters wide?
Yes! They usually range from 1 to 2 meters wide and 2 to 3 meters deep. This can vary based on soil capacity. What about soakaways? How do they differ?
They go deeper, right? Like 10 to 15 meters?
Exactly! Soakaways are bored holes, often lined with pipes to facilitate flow. They are essential in areas where soil permeability is low.
To remember their functions, think of Pits being wide and shallow while Soakaways are deep and narrow. This visual can help you retain this information.
So are both methods used in urban planning?
Yes, they are crucial for urban planning to manage runoff and enhance groundwater recharge. In summary, recharge pits are shallow and wide, while soakaways are deep and narrow.
Methods for Recharge — Practical Applications
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss percolation tanks. Can anyone tell me what these are?
Are they like artificial ponds that help with groundwater?
Yes! They are designed to collect surface runoff and then allow it to percolate into the soil. This can augment groundwater levels effectively.
Can we use them in cities too?
Absolutely! Percolation tanks can be implemented in urban green spaces like parks. They not only recharge groundwater but also enhance aesthetics.
Remember the acronym 'PAP' for Percolation Tanks, Aquifers, and Pits for methods that help recharge groundwater. Who can summarize what we learned about all these methods?
We talked about various recharge methods including recharge pits, soakaways, and percolation tanks!
Great job! Each plays a crucial role in ensuring sustainable water management.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section details several methods to recharge groundwater aquifers, including the use of bore wells, recharge pits, soakaways, and percolation tanks. It explains the importance of these techniques in preventing water runoff and promoting water availability in the soil.
Detailed
Charged into the soil for withdrawal later (groundwater recharging)
In this section, we explore the methods of recharging groundwater aquifers that aim to facilitate the percolation of rainwater into the ground, thus enhancing availability for future use. Different methods are outlined, including:
1. Recharging of Bore Wells
Rainwater is collected from rooftops and diverted through filtration systems to bore wells. This technique ensures that deep aquifers are replenished while also preventing contaminants from entering the water system. The proper maintenance of filtration tanks is crucial to avoid clogging.
2. Recharge Pits
Recharge pits are small excavations filled with filter media to promote water percolation. They can vary in size and shape, making them adaptable to various environments, especially for small homes where shallow aquifers are targeted.
3. Soakaways or Recharge Shafts
These are deep bored holes lined with perforated pipes to capture rainwater more efficiently in areas with less permeable soil, maximizing groundwater recharge.
4. Recharging Dug Wells
Dug wells can also serve as recharge structures, allowing filtered rooftop rainwater to replenish the groundwater supply, although regular maintenance is essential.
5. Recharge Trenches
Excavated trenches are filled with porous materials, allowing surface runoff to seep into the soil and thus aiding in aquifer recharge. This method can be used effectively in parks and smaller residential areas.
6. Percolation Tanks
Such tanks are artificial bodies of water designed to collect and hold surface runoff, thereby encouraging groundwater recharge under suitable soil conditions. They can be beneficial in urban settings and larger land areas.
Understanding these methods is integral to effective water management and sustainability efforts in mitigating water shortages and enhancing groundwater levels.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Groundwater Recharge
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

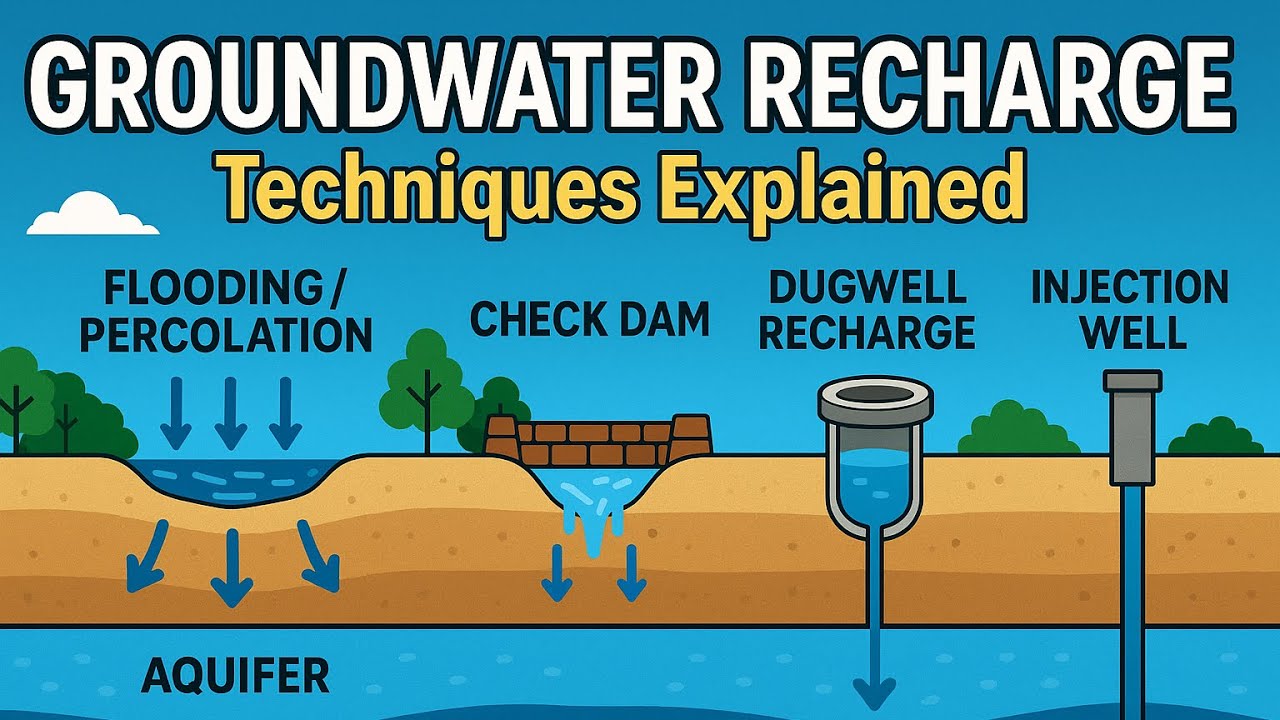

Ground water aquifers can be recharged by various kinds of structures to ensure percolation of rainwater in the ground instead of draining away from the surface. Commonly used recharging methods are:
a) Recharging of bore wells
b) Recharging of dug wells.
c) Recharge pits
d) Recharge Trenches
e) Soak ways or Recharge Shafts
f) Percolation Tanks
Detailed Explanation
Groundwater recharge refers to the process of replenishing underground aquifers (water-bearing layers of rock) with rainwater. This is important because it helps to ensure that there is enough groundwater for future use, especially in areas that rely on wells for drinking water and irrigation. Several methods can be employed to facilitate this recharge:
1. Recharging bore wells involves directing rainwater into deep boreholes that tap into aquifers.
2. Dug wells are shallow and can also be used for recharge by directing rainwater into them after filtering.
3. Recharge pits are small excavated areas filled with porous materials that allow rainwater to seep down into the groundwater.
4. Recharge trenches are similar but are longer and help collect surface runoff water.
5. Soak ways or recharge shafts allow rainwater to infiltrate through various types of soil.
6. Percolation tanks are larger constructed areas designed to hold water temporarily, allowing it to slowly seep into the ground.
Examples & Analogies
Imagine a sponge soaking up water. When you pour water on a sponge (the ground), it absorbs it, which represents how rainwater can recharge aquifers. Just like the sponge can become dry again and needs water periodically, aquifers also need to be replenished over time, especially during dry spells. Using methods like recharge pits and trenches acts like putting the sponge in a good spot to catch rainwater regularly.
Recharging Bore Wells and Dug Wells
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
a) Recharging of bore wells
Rainwater collected from rooftop of the building is diverted through drainpipes to settlement or filtration tank. After settlement filtered water is diverted to bore wells to recharge deep aquifers. Abandoned bore wells can also be used for recharge. Optimum capacity of settlement tank/filtration tank can be designed on the basis of area of catchments, intensity of rainfall and recharge rate as discussed in design parameters.
Detailed Explanation
To recharge bore wells, rainwater is first collected from roofs and funneled down through pipes into a settlement or filtration tank. This tank allows large particles and debris to settle, ensuring that only clean water enters the bore well. The careful design of these tanks takes into account factors such as the size of the area from which the rainwater is collected and the expected amount of rainfall, allowing for effective recharge without clogging. Additionally, old or unused bore wells can serve as sites for this recharge process.
Examples & Analogies
Think of rainwater collection like pouring juice through a strainer to avoid pulp. Just like you let the juice settle before drinking, rainwater is allowed to settle so that clean water continues down into the aquifer. Abandoned bore wells are like forgotten juice containers that can still be used to hold fresh juice if cleaned out and utilized properly.
Recharge Pits and Trenches
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
b) Recharge pits
Recharge pits are small pits of any shape rectangular, square or circular, contracted with brick or stone masonry wall with weep hole at regular intervals, top of the pit can be covered with perforated covers. Bottom of pit should be filled with filter media. The capacity of the pit can be designed on the basis of catchment area, rainfall intensity and recharge rate of soil. Usually the dimensions of the pit may be of 1 to 2 m width and 2 to 3 m deep depending on the depth of pervious strata. These pits are suitable for recharging of shallow aquifers, and small houses.
Detailed Explanation
Recharge pits serve as dedicated areas to collect rainwater, allowing it to filter down into the ground. They can be built in various shapes and need walls to contain the water. At the bottom, a layer of filter media (such as gravel) helps clean the water. These pits should be sized based on how much rain is expected and the characteristics of the local soil to ensure efficient recharge. Pits are especially useful for smaller homes or in areas where groundwater levels are not too deep.
Examples & Analogies
Imagine creating a small, carefully designed garden bed. Just like a garden bed needs the right amount of soil and drainage for plants to thrive, recharge pits require the right design to effectively gather and distribute rainwater into the ground. When it rains, the water collects in this pit rather than flowing away, similar to how water gathers in the garden bed for the plants to soak up.
Key Concepts
-
Groundwater Recharge: The method of directing rainwater into aquifers to enhance water table levels.
-
Recharge Pits: Small pits used to facilitate rainwater infiltration into the ground.
-
Soakaways: Deep structures designed to manage runoff effectively.
-
Percolation Tanks: Artificial reservoirs that help in recharging groundwater systems.
Examples & Applications
A recharge pit designed for a small home to allow runoff water from the roof.
A soakaway installed in a public park to capture excess rainwater efficiently.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Pit and soakaway, deep and wide, keep our water from running aside!
Stories
In a small village, rainwater from the roofs was collected in recharge pits, helping the villagers have water stored for dry months, while soakaways captured excess runoff ensuring no drop went wasted.
Memory Tools
Remember 'BRPS' for Bore wells, Recharge pits, Soakaways, and Percolation tanks for easy groundwater recharge methods.
Acronyms
WATER - Wells, Aquifers, Trenches, Effective Recharge.
Flash Cards
Glossary
- Aquifer
A geological formation that can store and transmit water.
- Recharge Pit
A small excavation filled with materials like gravel and sand to facilitate rainwater percolation into the ground.
- Soakaway
A deep hole designed to capture and dissipate surface water into the ground; often lined with pipes.
- Percolation Tank
An artificial surface body of water that allows rainwater to infiltrate the ground to recharge aquifers.
