11.6 - Filtration or Purification
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Filtration
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start with understanding why filtration is essential. Can anyone tell me why we need to filter rainwater?
To remove dirt and impurities, so it’s safe to use!
Exactly! Filtration helps us ensure that the water we collect from rooftops is free from pollutants. This leads us to our first key point: what materials can we use for filtration?
Maybe sand and gravel?
Spot on! Sand and gravel are indeed common filtering media. Remember, ‘GSG’ – Gravel, Sand, and Gravel are key for effectiveness!
What about charcoal?
Great point! Charcoal enhances filtration by absorbing additional impurities. Let's summarize: We filter rainwater using GSG with added charcoal for better quality.
First-Flush Devices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, onto another vital component: first-flush devices. Who can tell me what they do?
They remove the first rainwater that falls, which is usually the dirtiest!
Correct! We want to avoid having contaminated water enter our storage. Let’s remember ‘FFD’ for First Flush Device. When is it especially important to use them?
After a long dry spell, when dust and pollutants have settled on the roof!
Precisely! The first rain collects all that debris. For our next key point, let’s see how these devices integrate with our filtration system.
Constructing a Sand Filter
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s delve into constructing a sand filter. What layers do you think we need?
A layer of coarse sand on top, followed by gravel?
Great! A typical filter has layers: coarse sand on top, then gravel, and boulders beneath. Remember: ‘CSGB’ – Coarse Sand, Gravel, Boulders for effective filtration.
How do we know when it's time to clean the filter?
Good question! Observe when water flow slows down—it's often time for maintenance. We keep our filters clean to ensure high water quality. Let's summarize: Building filters needs proper layer order: CSGB.
Storage Solutions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we have our clean water, where do we store it?
In a storage tank that keeps it safe, right?
Exactly! Tanks can be cylindrical, rectangular, or square. What materials do you think are ideal for these tanks?
I remember reinforced cement concrete and plastic can be used.
That's right! Rigid tanks need to be maintained to ensure clean water. Summary: Store clean water in tanks made of RCC or plastic.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Filtration or purification entails the methods and materials used to clean rainwater collected from roofs. Key elements include first-flush devices, filtration units with various media, and storage solutions to ensure the quality and usefulness of harvested water.
Detailed
In this section, we discuss the critical role of filtration and purification in rainwater harvesting. The process begins with prevention measures, such as coarse mesh in roof structures, to keep debris out. Gutters and conduits help channel rainwater to storage tanks while ensuring efficient transport. A first-flush device eliminates initial contaminated runoff, ensuring clean water enters the filtration system. The filtration stage utilizes various filtering media, including charcoal, sand, and gravel, to remove impurities from rainwater before storage. Sand filters are especially easy to construct, utilizing multiple layers to achieve effective purification. Finally, the section emphasizes the importance of storing purified water in suitable tanks made of various materials, pointing out maintenance and cleaning procedures necessary for preserving water quality.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of Filtration
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The filter is used to remove suspended pollutants from rainwater collected over the roof. A filter unit is a chamber filled with filtering media such as fiber, coarse sand, and gravel layers to remove debris and dirt from water before it enters the storage tank or recharges structure. Charcoal can be added for additional filtration.
Detailed Explanation
The primary aim of filtration in rainwater harvesting is to clean the collected water by eliminating unwanted particles such as dirt, leaves, and pollutants that can affect the water's quality. A filter unit, which acts like a chamber, is filled with different materials that trap these impurities. The basic layers often include fibers and coarse sand at the top, followed by gravel at the bottom, to ensure that all kinds of debris are caught before the water flows into a storage tank.
Examples & Analogies
Think of a coffee filter. Just like how a coffee filter allows liquid to pass through while holding back the coffee grounds, a water filter does the same for rainwater, allowing clean water to flow into storage while trapping dirt and impurities.
Charcoal Water Filter
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
(i) Charcoal water filter: A simple charcoal filter can be made in a drum or an earthen pot. The filter is made of gravel, sand, and charcoal, all of which are easily available.
Detailed Explanation
A charcoal water filter is a simple, effective method for purifying rainwater. This filter consists of layers of gravel, sand, and charcoal placed in a container like a drum or pot. The charcoal, which has many tiny pores, attracts and traps chemical impurities and can eliminate odors, providing cleaner water. The easy availability of these materials makes this method both accessible and affordable for many households.
Examples & Analogies
Imagine you are making a natural air freshener using charcoal. Just as charcoal absorbs odors in your home, in the charcoal water filter, it absorbs impurities and unwanted chemicals from the rainwater, making the water cleaner and more pleasant to use.
Sand Filters
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
(ii) Sand filters: Sand filters have commonly available sand as filter media. Sand filters are easy and inexpensive to construct. These filters can be employed for treatment of water to effectively remove turbidity (suspended particles like silt and clay), colour, and microorganisms. In a simple sand filter that can be constructed domestically, the top layer comprises coarse sand followed by a 5-10 mm layer of gravel followed by another 5-25 cm layer of gravel and boulders.
Detailed Explanation
Sand filters are another straightforward option for purifying rainwater. They leverage layers of sand and gravel that filter out not only visible dirt but also harmful microorganisms. The top layer is usually coarse sand, which acts as the first line of filtration, followed by smaller gravel layers that help trap even finer particles. The design ensures that the water passing through is as clean as possible before it enters storage.
Examples & Analogies
Consider a multi-layer cake. Each layer represents a different aspect of filtration. When you pour a liquid over it, the top layers are like the coarse sand, filtering out larger particles, while the lower layers act as finer filters, similar to how the cake holds its shape and ensures a delightful flavor. Similarly, sand filters ensure that the layers work together to produce clear, clean water.
Key Concepts
-
First-Flush: Enhances water quality by delaying initial runoff.
-
Filtration Process: Involves multiple layers of media to clean water.
-
Gutters and Conduits: Essential for directing rainwater to storage.
-
Storage Tanks: Must be carefully constructed and maintained.
Examples & Applications
A home rainwater harvesting system can utilize PVC gutters which are easily shaped and installed.

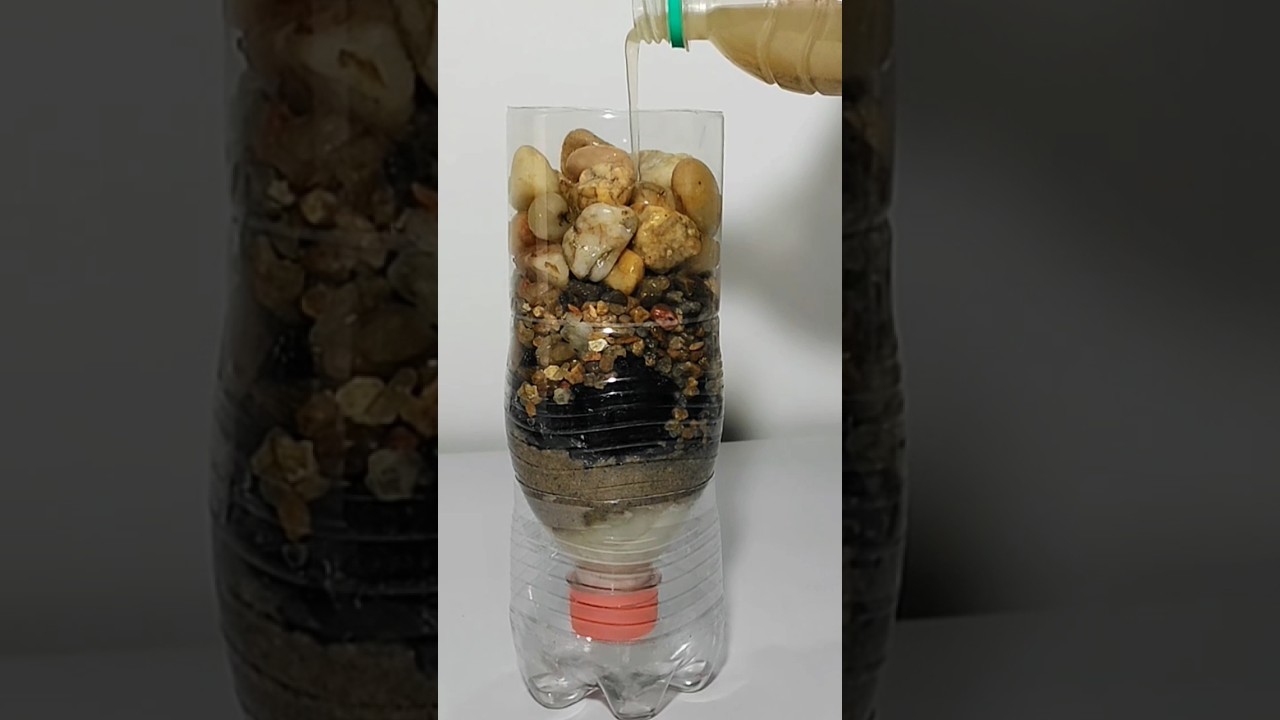

A homemade sand filter can be created using layers of gravel, sand, and charcoal to purify collected rainwater.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In rain we trust, let’s filter the dust, through layers of sand, our water is just.
Stories
Imagine a charming village where rooftops collect rainwater passing through magical filters, transforming murky water into clear, drinkable nectar!
Memory Tools
Remember GSG (Gravel, Sand, Gravel) for filtering rainwater effectively!
Acronyms
FFD stands for First Flush Device, essential for clean water collection!
Flash Cards
Glossary
- FirstFlush
A device that diverts the initial runoff during rainfall to prevent polluted water from entering storage.
- Gutters
Channels around sloping roofs that collect and transport rainwater.
- Conduits
Pipelines that carry harvested rainwater from the catchment to the storage system.
- Filtration Unit
A chamber filled with filtering media (sand, gravel, charcoal) to clean collected rainwater.
- Sand Filter
A simple filter system using sand layers to remove sediments and microbes from water.
