Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Point Cloud Characteristics
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll kick off by discussing point cloud characteristics. Can anyone tell me what defines a point cloud?
Isn't it a collection of points in space?
Correct! Each point has XYZ coordinates, giving its position in 3D space. What other attributes do you think point clouds might have?
Intensity values, maybe? They can show how reflective the surface is, right?
Exactly! Intensity values indeed represent the reflectivity of surfaces. Some scanners also capture RGB colors. Let's summarize: Point clouds are defined by their XYZ coordinates, intensity values, and potentially color attributes. Remember, we can think of the acronym 'PIC' for Point, Intensity, Color.
Preprocessing Steps
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s shift our focus to preprocessing steps. Why do you think preprocessing is essential before analyzing point clouds?
Maybe to ensure the data is clean and usable?
Absolutely! Preprocessing involves several steps. What do you think those steps include?
Noise removal and outlier filtering. Those would help clean the dataset.
Very good! Noise removal and outlier filtering are vital. We also perform data thinning or decimation and registration of scans. Think of the mnemonic 'NORM' to remember: Noise, Outlier, Remove, Merge during preprocessing.
Point Cloud Classification
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Moving forward, let's discuss point cloud classification. What does this process entail?
I think it’s about separating different features in the point cloud, like ground from buildings?
Correct, Student_1! Classification is key for identifying features such as ground, vegetation, and buildings. How do you think we might automate this classification?
By using machine learning algorithms?
Exactly! We can employ machine learning and rule-based algorithms for more efficient classification. Let's remember 'CLAS' for Classification using Learning And Segmentation!
Generation of Outputs
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Finally, let's look at what outputs we can generate from point clouds. What types can you think of?
Digital Elevation Models and maybe 3D city models?
Spot on! We can generate Digital Elevation Models, 3D city models, cross-sections, and even mesh models. Why do you think these outputs are important?
They help with urban planning and understanding terrain, right?
Precisely! Each output supports various applications. We can use the acronym 'MEC' to remember: Models, Elevation, and Cross-sections.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Key aspects of data processing in point clouds include understanding the characteristics of point clouds, applying preprocessing techniques such as noise removal, performing classification of features, and generating various outputs like Digital Elevation Models. The section emphasizes the significance of each process and describes how these processes contribute to effective spatial data analysis.
Detailed
Detailed Summary of Data Processing and Point Cloud Analysis
In this section, we explore the crucial elements of data processing and point cloud analysis within laser scanning methodologies. We begin by understanding the characteristics of point clouds, which are typically defined by their XYZ coordinates, intensity values, and potentially color attributes when integrated cameras are used. The preprocessing phase is vital, incorporating essential steps such as noise removal, outlier filtering, data thinning, and the registration of scans to ensure high data quality for downstream analysis.
Next, we delve into point cloud classification, crucial for segregating various features such as ground, vegetation, buildings, etc. This classification process is often enhanced through machine learning and rule-based algorithms, allowing for automation and increased accuracy.
Finally, we cover the generation of outputs from point clouds, which includes creating Digital Elevation Models (DEMs), 3D city models, cross-sections, and mesh models, all of which have significant applications in urban planning, topography, and more. Each of these outputs allows for diverse applications in civil engineering and geospatial studies, solidifying the importance of effective data processing and analysis.

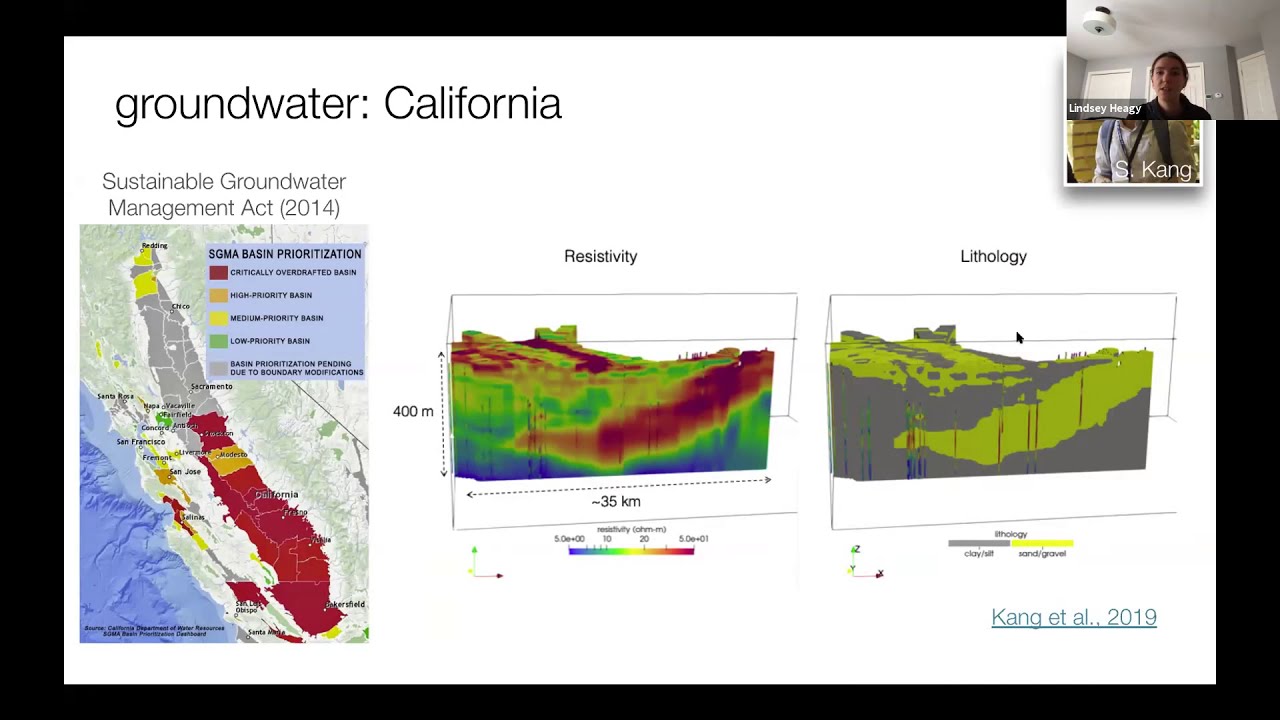

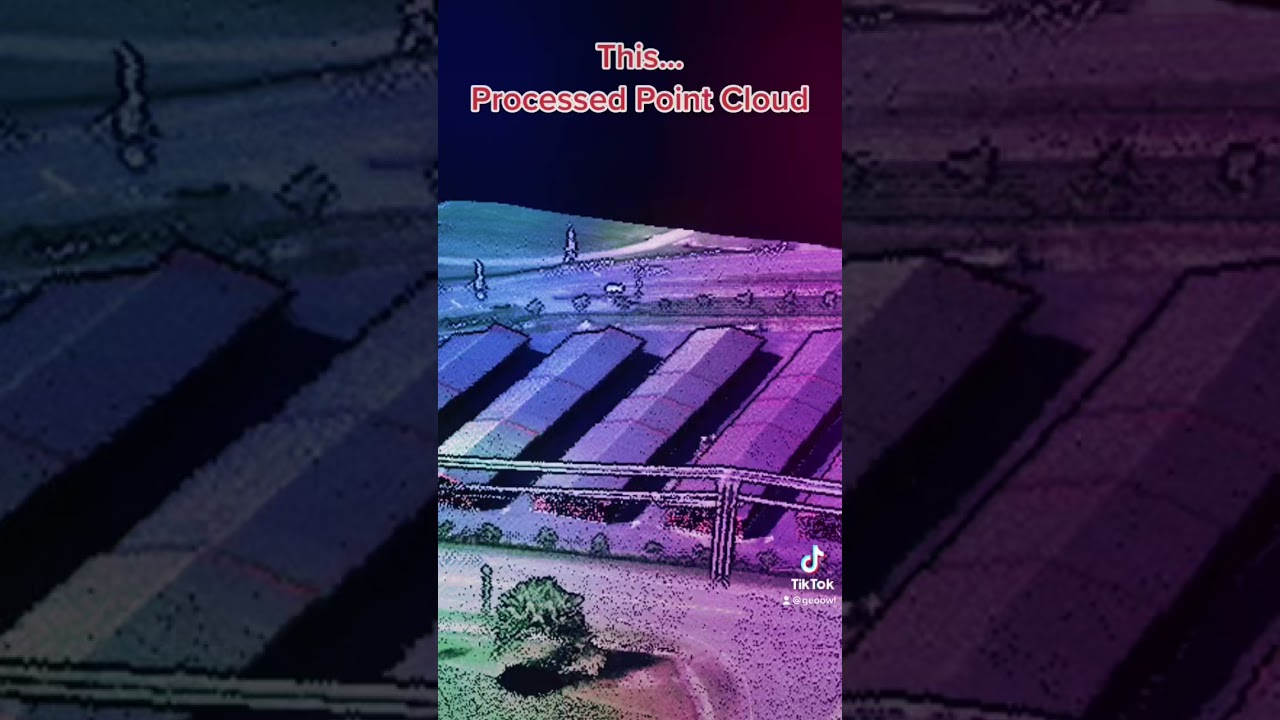

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Point Cloud Characteristics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- XYZ coordinates: Each point has a position in 3D space.
- Intensity values: Measure the reflectivity of the surface.
- Color attributes: Some scanners record RGB values from integrated cameras.
Detailed Explanation
Point clouds are collections of data points in a 3D space. Each point in a point cloud has specific characteristics:
- XYZ Coordinates: These are the three-dimensional coordinates (X, Y, Z) that define the position of each point in space. This allows us to know the exact location of a point in a 3D representation.
- Intensity Values: These values indicate how much light is reflected from the surface at the point where the laser pulse hit. A higher intensity means a more reflective surface, while a lower intensity indicates a less reflective one.
- Color Attributes: Some advanced laser scanners come with integrated cameras that capture colors (RGB values) of the surfaces they scan. This adds an extra layer of information, allowing users to see not just the form of physical structures but also their colors.
Examples & Analogies
Imagine you are creating a 3D model of your room using a paintball gun. Each time you shoot, the paint represents a point in space (XYZ coordinates). If the paint sticks more to certain surfaces (intensity values), you can tell which surfaces are more reflective or rough. Plus, if you have a camera to take snapshots of those surfaces, you can remember what colors they are when you look back at your model!
Preprocessing Steps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Noise removal
- Outlier filtering
- Data thinning or decimation
- Registration of scans
Detailed Explanation
Before analyzing point clouds, we go through several preprocessing steps to ensure the data is clean and usable. These steps include:
- Noise Removal: This involves eliminating random errors or 'noise' in the data that can distort the point cloud. Noise can be caused by various factors, like poor environmental conditions during scanning.
- Outlier Filtering: Outliers are points that do not represent the actual surface (for example, a point that appears very far from others). We filter these out to enhance the accuracy of our analysis.
- Data Thinning or Decimation: This step reduces the number of points in the cloud while keeping the essential information intact. It makes the data easier to work with by decreasing computational load without losing much detail.
- Registration of Scans: When multiple scans are taken from different positions, registration aligns them into a single coherent point cloud. This way, we have a comprehensive view of the scanned area.
Examples & Analogies
Think of making a fruit salad. First, you might wash and peel the fruits (noise removal), then cut away any bruised or rotten parts (outlier filtering). You might find that you have too much fruit, so you decide to use only your favorite pieces (data thinning). Finally, you mix everything in one bowl to create an appealing salad (registration). Each step is crucial to making a great fruit salad, just like preprocessing is critical for analyzing point clouds!
Point Cloud Classification
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Segmentation of features like ground, vegetation, buildings.
- Machine learning and rule-based algorithms are used for automated classification.
Detailed Explanation
After preprocessing, the next step is classifying the points in the point cloud into different categories based on what they represent:
- Segmentation of Features: This involves grouping points that share similar characteristics (like their height or reflectivity). For example, points representing the ground will be classified differently from those representing trees or buildings.
- Automated Classification: Using machine learning and rule-based algorithms, we can automatically assign points to categories based on training data. This makes the classification process faster and often more accurate compared to manual methods.
Examples & Analogies
Consider putting together a jigsaw puzzle but instead of pieces, you have various colored tokens that represent different objects. You sort the tokens into piles: one for trees (green), one for houses (brown), and one for roads (gray). You could manually look at each token or use a smart sorting machine programmed to sort based on color and shape. This is like how point clouds are classified into different segments automatically!
Generation of Outputs
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Digital Elevation Models (DEM)
- 3D city models
- Cross-sections and profiles
- Mesh models and CAD integration
Detailed Explanation
Once point clouds are processed and classified, they can be transformed into different types of outputs that serve various purposes:
- Digital Elevation Models (DEM): These are representations of the terrain's surface, providing topographic information for various applications like planning and environmental monitoring.
- 3D City Models: Detailed models of urban areas can be created to help in urban planning, simulations, and visualizations.
- Cross-sections and Profiles: These are used to understand the vertical structure of the scanned area, often helpful in engineering and geological assessments.
- Mesh Models and CAD Integration: The data can also be converted into mesh models, which can be used in Computer-Aided Design (CAD) software for engineering applications.
Examples & Analogies
Imagine that after cooking a meal, you plate it nicely for serving. You can serve it as an intricately arranged dish (3D city model), a simple plate showing layers (cross-section), or even a fancy, intricate platter (mesh model). Each presentation serves a different purpose and audience, just like point cloud outputs can address different needs in analysis or design.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Point Cloud: A dataset representing objects in 3D space via coordinates, intensity, and color.
-
Preprocessing: Steps of noise removal, filtering, and registration to prepare point cloud data for analysis.
-
Classification: The categorization of point cloud data into distinct features for further analysis.
-
Output Generation: The production of usable models such as DEMs, 3D models, or cross-sections from point cloud data.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In aerial surveys, point cloud data can be used to create high-resolution Digital Elevation Models (DEMs) of a landscape, accurately capturing terrain variations.
-
For urban mapping, point cloud classification can differentiate between buildings and vegetation, improving planning and development efficiency.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
A Point Cloud’s all around, with points to be found, with XYZ and colors, our analysis is sound!
📖 Fascinating Stories
-
Imagine a painter creating a landscape. Each color he used represents the intensity values. Similarly, each point in a point cloud paints a part of a 3D picture!
🧠 Other Memory Gems
-
Use the acronym 'PIC' to remember: Points, Intensity, Color attributes that make up a point cloud.
🎯 Super Acronyms
For preprocessing, think 'NORM'
- Noise
- Outlier
- Remove
- Merge - what we do to prepare the data.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Point Cloud
Definition:
A collection of points defined in a 3D coordinate space, typically representing the external surface of an object.
-
Term: Intensity Values
Definition:
Measurements that indicate the reflectivity of the surface from which the laser pulse was reflected.
-
Term: Registration
Definition:
The process of aligning multiple point clouds into a cohesive dataset.
-
Term: Preprocessing
Definition:
A series of steps applied to raw data to prepare it for analysis, including noise removal and outlier filtering.
-
Term: Classification
Definition:
The process of categorizing points in a point cloud into different segments based on characteristics such as terrain types.
