Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to CU Test
Unlock Audio Lesson
Today we are going to discuss the Consolidated-undrained test, or CU test, which is essential for understanding the behavior of saturated soils under loading conditions. Can anyone tell me what makes this test different from the others?
Is it because it measures the soil's response when it cannot drain?
Exactly! The CU test specifically assesses how saturated clays behave when they are loaded quickly, without drainage of pore water. This condition is crucial for applications in construction and stability analyses.
What types of tests are included in triaxial testing?
Great question! The triaxial tests consist of three primary types: Consolidated-drained (CD), Consolidated-undrained (CU), and Unconsolidated-undrained (UU). Each serves a different purpose in studying the soil mechanics.
How does the effective stress work in the CU test?
In the CU test, the effective stress at failure is calculated by deducting pore water pressure from the total stress. This is vital for accurate predictions of soil behavior. We can remember this with the mnemonic: Effective Stress = Total Stress - Pore Pressure.
What's the relationship between total stress and the failure envelopes?
Excellent point! The failure envelopes represent the soil's shear strength condition under different stress states, helping in planning and structural integrity assessments. Let's summarize: the CU test evaluates undrained conditions, effective stress, and reveals shear strength parameters.
Shear Strength Parameters in CU Test
Unlock Audio Lesson
Now, let’s dive into the shear strength parameters, cohesion (ccu) and angle of friction (ϕcu). Can someone explain why they are important?
They help us understand how much load the soil can bear before failing, right?
Exactly correct! In the CU test, we plot Mohr's circles to visualize these strengths at failure. When we draw a tangent to the circle, we define the failure envelope, indicating the limits at which the soil can safely operate.
What does the equation for the failure envelope look like?
The total stress failure envelope is expressed as s = ccu + σ tan(ϕcu). Remember, for normally consolidated clays, ccu is generally considered to be around zero. So, if ccu is low, what can we deduce about the soil's strength?
I guess it wouldn't take much load to reach failure?
Precisely! Their relation tells us about soil's cohesion and resistance. Well done everyone, let’s recap: We've learned about shear strength parameters, critical equations, and Mohr's circles in the context of CU tests.
Applications and Significance of CU Test
Unlock Audio Lesson
Finally, let’s talk about the applications of CU test results in real-world scenarios. Why do you think understanding shear strength is crucial in engineering?
It helps in designing stable structures and prevents failures like landslides or building collapses.
Absolutely! By knowing how much stress soil can withstand, engineers can design safe foundations and slopes. The CU test provides crucial data for sites where rapid loading occurs, such as during earthquakes or heavy rainfall.
Are there any limitations to the CU test?
Good question! One limitation is that it may not accurately represent soil behavior under fully drained conditions and may not consider the effects of time-dependent settlements.
So what’s the takeaway from all of this?
To summarize, the CU test offers vital insights into the behavior of saturated clay soils under undrained conditions. The understanding of cohesion, effective stress, and the shear strength parameters allows engineers to make informed decisions in construction and earthworks.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The CU test is part of triaxial testing methods used primarily for saturated clays, allowing for the determination of shear strength parameters under undrained conditions. By applying confining pressure and axial stress, the test helps to establish the failure envelope of the soil, represented through Mohr's circles and equations related to total and effective stresses.
Detailed
Detailed Summary of the Consolidated-undrained Test (CU Test)
The Consolidated-undrained (CU) test is one of the three primary tests performed using triaxial equipment on saturated clays. This test is conducted to evaluate the shear strength of soil under undrained conditions, specifically when it cannot drain while loading, a condition often seen in natural clay deposits.
In a CU test, a soil specimen is placed within a rubber membrane inside a Lucite chamber where confining pressure (σ3) is applied using a fluid, often water or glycerin. Subsequently, axial stress (Δσ) is applied until the specimen fails. At failure, key relationships are established:
1. Total Stress: Major principal total stress (σ1) and minor principal total stress (σ3) are measured.
2. Effective Stress: The relationship between total stresses and pore water pressures (uf) is critical, where the effective major principal stress (σ′1) can be defined as σ1 - uf and minor principal effective stress as σ′3 = σ3 - uf.
By altering the confining pressure (σ3) for various specimens, multiple tests can yield valuable information on the soil's shear strength parameters, such as cohesion (ccu) and the angle of friction (ϕcu). The resulting Mohr’s circles for both total and effective stresses at failure help in plotting the failure envelopes, allowing civil engineers to predict the soil behavior effectively under various stress conditions.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Consolidated-Undrained Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

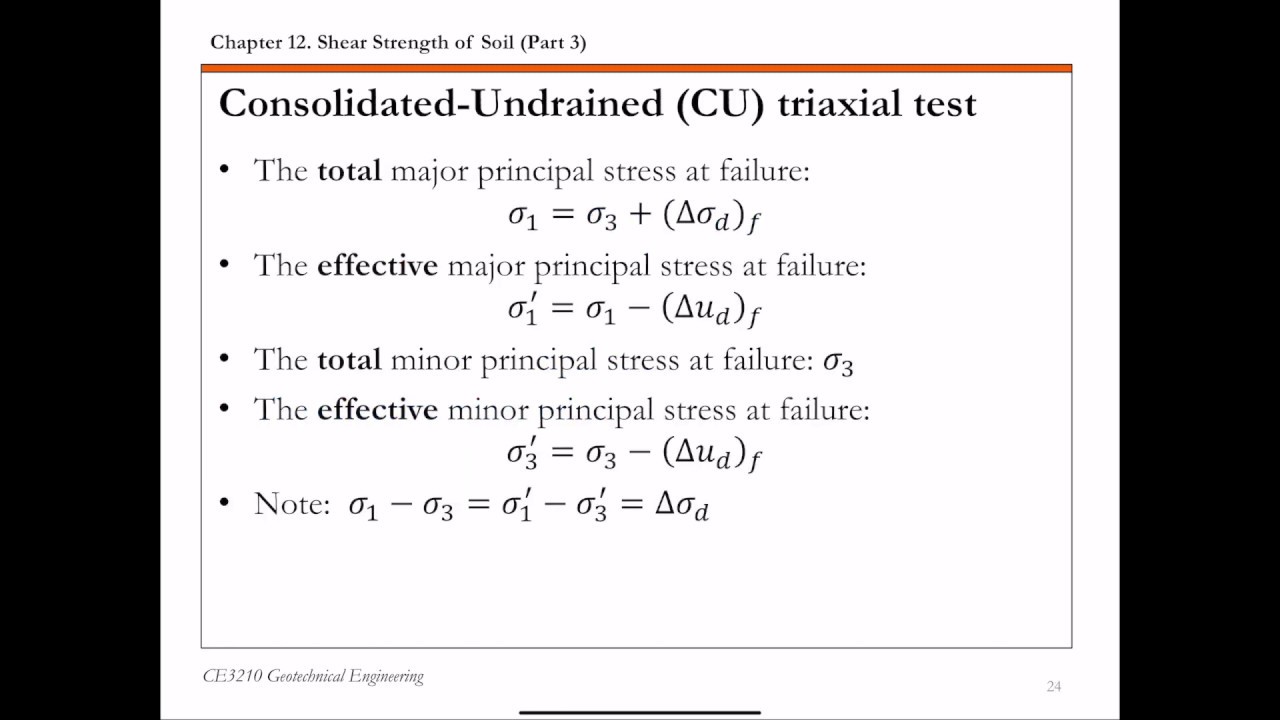

For consolidated-undrained tests, at failure,
Major Principal total stress =σ3=Δσf=σ1
Minor principal total stress =σ3
Detailed Explanation
In consolidated-undrained tests, the conditions for stress are defined during the test. The major principal total stress represents the stress experienced by the sample at failure, which is the point where the sample can no longer withstand the load. The formula indicates that at this point, the major principal total stress (σ1) equals the confining pressure (σ3) plus the change in stress (Δσf). At the same time, the minor principal total stress remains equal to the confining pressure (σ3), meaning it does not change despite the introduction of additional stress.
Examples & Analogies
Imagine trying to push down on a sponge that is already being squeezed in a container filled with water. The container’s pressure (σ3) is keeping the sponge from expanding, while your push is an added stress (Δσf). When you reach the point where the sponge compresses fully and can't take any more force, that's like reaching the failure point of the soil in a CU test. The internal pressure holding the sponge limits how much more pressure it can take from above.
Effective Stresses and their Importance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Major principal effective stress =(σ3+Δσf)−uf=σ′1
Under Revision
Minor principal effective stress =σ3− uf=σ′3
Detailed Explanation
In a CU test, understanding effective stresses is critical. Effective stress refers to the stress that contributes to the actual mechanical strength of the soil. For the major principal effective stress (σ′1), we deduct the pore water pressure (uf) from the total stress, which gives a clearer picture of how the soil will behave under load. The minor principal effective stress is similarly deduced from the total stress by the same pore water pressure. This distinction is crucial in geotechnical engineering as it influences the stability and load-bearing capacity of soil structures.
Examples & Analogies
Think of effective stress like a balloon filled with water. If you push down on the balloon, the pressure inside increases, but only a part of that pressure helps the balloon maintain its shape (the effective stress). The water within adds pressure but doesn't hold up the shape; if the balloon leaks, more pressure is needed from your push to keep it intact. The strength of the soil, like the integrity of the balloon, comes not just from the applied stress, but how much of that stress is 'effective' in resisting deformation.
Failure Envelope for Consolidated-Undrained Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

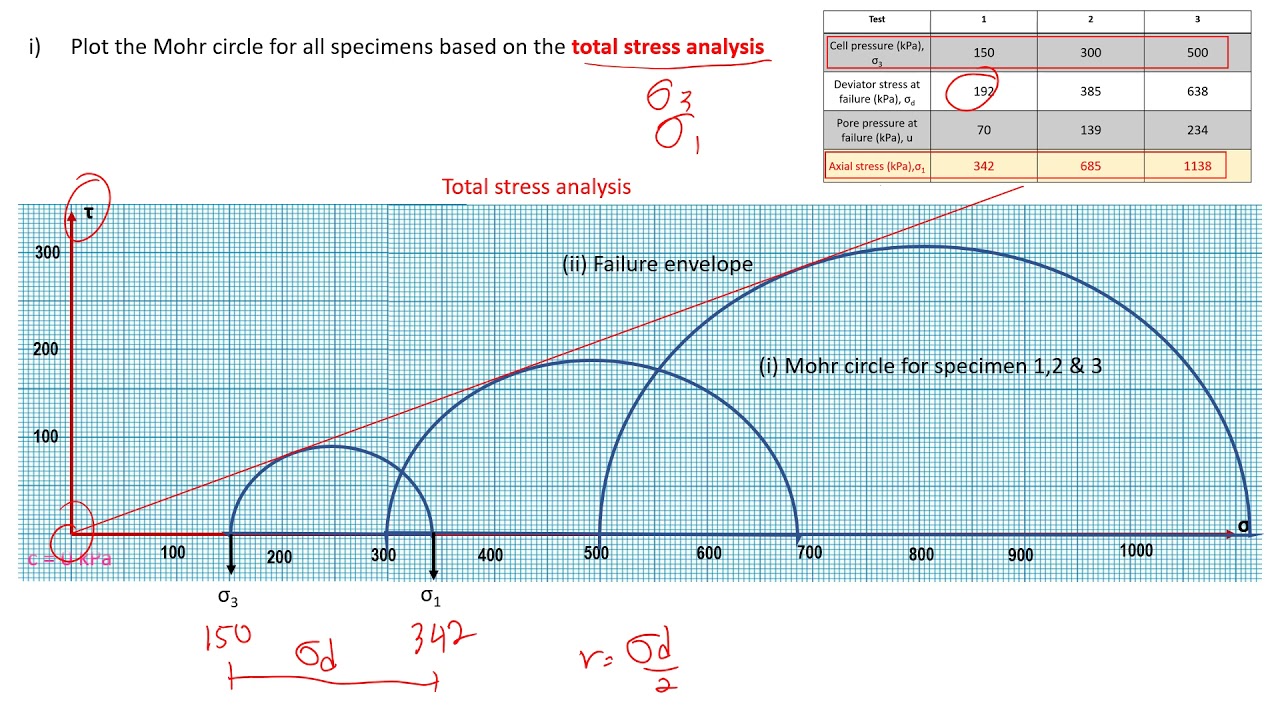

The total stress Mohr’s circles at failure can now be plotted, as shown in figure, and then a common tangent can be drawn to define the failure envelope. This total stress failure envelope is defined by the equation s=ccu+σtanϕcu
Where ccu and ϕcu are the consolidated-undrained cohesion and angle of friction respectively (Note: ccu≈0 for normally consolidated clays)
Detailed Explanation
In CU tests, plotting Mohr’s circles helps visualize stress states. The total stress failure envelope, represented by the equation, illustrates how the shear stress (s) is related to the cohesive strength (ccu) of the soil and its angle of internal friction (ϕcu). A tangent line drawn through the plotted stress points indicates the maximum shear stress the soil can withstand before failure, providing critical information for engineering applications.
Examples & Analogies
Imagine balancing a book on top of another book. The upper book can only be supported up to a point before it slips. The tangled interaction of the books represents the different stress states. The maximum angle at which they can stay balanced before sliding off is like the failure envelope; if you exceed this angle, the books fail to maintain balance, much like how soil fails under excessive stress.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Consolidated-undrained test: A triaxial test measuring the shear strength of saturated soil without drainage.
-
Shear strength parameters: Key factors like cohesion (ccu) and internal friction angle (ϕcu) that define soil failure limits.
-
Mohr’s circles: A graphical method to analyze the stress states and determine shear strength parameters.
-
Effective stress: The stress carried by the soil skeleton; critical for understanding soil behavior under load.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a construction project is planned on saturated clay, a CU test will provide essential data on its ability to bearing loads without failure.
-
After determining the shear strength of the clay using the CU test, engineers can use this data to design appropriate foundations that resist sliding or collapse.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soil so wet, it can sway, CU tests keep failure at bay.
📖 Fascinating Stories
-
Imagine a clay hillside after heavy rain, the CU test measures how much weight it can sustain without sliding into a reservoir.
🧠 Other Memory Gems
-
CUP - 'Cohesion Under Pressure' to remember the CU test's focus.
🎯 Super Acronyms
CU - Consolidated Undrained, remember this for shear strength tests.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Consolidatedundrained test (CU test)
Definition:
A triaxial test that measures the shear strength of saturated soils without drainage during loading.
-
Term: Shear strength
Definition:
The resistance of a soil to shear stress, often quantified by cohesion and internal friction angle.
-
Term: Mohr’s circle
Definition:
A graphical representation of stress states at failure, used to determine shear strength parameters.
-
Term: Total stress
Definition:
The sum of effective stress and pore water pressure within a soil mass.
-
Term: Effective stress
Definition:
The stress carried by the soil skeleton, calculated as total stress minus pore water pressure.
-
Term: Failure envelope
Definition:
A graphical representation showing the limit of shear strength for different stress states.
