Introduction to Triaxial Tests

Unlock Audio Lesson

0:00
Teacher
Teacher

Today, we’re going to delve into triaxial tests and how they are pivotal in determining soil strength. Who can tell me what triaxial tests involve?

Student 1
Student 1

Isn't it about testing soil samples under pressure in a chamber?

Teacher
Teacher

Exactly! In triaxial tests, we confine a soil specimen using a rubber membrane in a chamber. This arrangement allows us to apply an all-round confining pressure, often with the help of liquid, like water or glycerin. Can someone explain why that’s significant?

Student 2
Student 2

Because it helps us simulate the conditions the soil would experience underground?

Teacher
Teacher

Perfect! This simulation helps us understand how soil would behave under real-world conditions. Now, can anyone mention the different types of triaxial tests?

Student 3
Student 3

There are consolidated-drained, consolidated-undrained, and unconsolidated-undrained tests!

Teacher
Teacher

Correct! These different tests allow us to analyze soil behavior under varying drainage conditions. Remember, the type of test selected impacts our results! Let's summarize: Triaxial tests help simulate conditions to measure soil strength effectively.

Mohr’s Circles

Unlock Audio Lesson

0:00
Teacher
Teacher

Next, let’s talk about Mohr’s circles. Who can describe what Mohr’s circles are used for in our tests?

Student 4
Student 4

They help us visualize stress conditions at failure?

Teacher
Teacher

Yes! Mohr's circles allow us to plot the major and minor principal stresses. When we reach failure, we can locate these stresses on the circle. Why is this useful, do you think?

Student 1
Student 1

Because we can determine the effective stress and the shear strength parameters like cohesion and friction?

Teacher
Teacher

Exactly! By drawing a tangent to the Mohr's circles, we can derive the Mohr-Coulomb failure envelope. This aids in predicting when and how the soil will fail. What do you think the implication of this could be in engineering?

Student 3
Student 3

It helps ensure structures are built on stable ground!

Teacher
Teacher

Absolutely! Always remember, accurate understanding of these stresses is crucial for safe construction. To recap: Mohr’s circles help visualize stress conditions leading to soil failure.

Pore Water Pressure

Unlock Audio Lesson

0:00
Teacher
Teacher

Now, let’s explore pore water pressure and its impact on effective stress! Who can explain what pore water pressure is?

Student 2
Student 2

It's the pressure associated with water in the soil pores, right?

Teacher
Teacher

Exactly! Pore water pressure is critical, especially in saturated soils. It directly influences the total stress acting on the soil. Can anyone tell me about parameters A and B?

Student 4
Student 4

A is related to the change in stress, right? While B is Skempton's pore pressure parameter that helps define this in soft clays?

Teacher
Teacher

Perfectly put! When assessing pore pressures under different types of tests, we can see shifts in these parameters, impacting how we calculate effective stresses. Can someone summarize the importance of understanding pore water pressure?

Student 1
Student 1

It affects how we interpret soil strength and stability during construction.

Teacher
Teacher

Exactly! Understanding these pressures leads to better design and construction practices. To sum up: Pore water pressures are crucial in determining effective stress and, subsequently, soil behavior.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section introduces the concept of effective stress in soils and its graphical representation through Mohr’s circles during triaxial tests.

Standard

The section elaborates on triaxial tests for soil mechanics, detailing how to determine effective stresses and shear strength parameters using Mohr's circles. It categorizes tests into consolidated and unconsolidated types, allowing for deeper analysis of clay and sand soils under varying conditions.

Detailed

Effective Stress Mohr’s Circles

This section discusses the crucial concept of effective stress in soil mechanics, particularly through the lens of triaxial tests. Triaxial tests involve confining soil specimens within a Lucite chamber and applying pressure to understand soil behavior under stress. There are three primary types of consolidated tests: CD, CU, and UU tests. Each test approaches drainage differently and generates effective stress measurements, which are essential to understanding soil failure.

  1. Mohr’s Circles: The section emphasizes the use of Mohr's circles to represent stresses at failure. The major and minor principal stresses are crucial in calculating effective stresses via graphical methods. The general relationship is given as:
  2. Major Principal Effective Stress: D3f = Bf = D1= B1'1
  3. Minor Principal Effective Stress: B3 = B3B3f = B3'3
  4. Failure Criteria: The Mohr-Coulomb failure envelope defines the conditions leading to soil failure in terms of effective stresses. Various parameters of soil, including cohesion and angle of internal friction, become evident during these tests.
  5. Pore Water Pressure: Understanding pore water pressure and its effect during effective stress analysis is key, especially in saturated clays. The section defines the parameters A and B, which represent variations in pore pressure responses under different loading conditions.
  6. Implications: By evaluating the effective stresses using Mohr’s circles, engineers can predict the behavior of soil under varying loads, which is crucial for construction and design purposes in geotechnical engineering.

Youtube Videos

Understanding Stress Transformation and Mohr's Circle
Understanding Stress Transformation and Mohr's Circle
Geotechnical Engineering: Lecture 2: Shear Strength and Mohr Circles
Geotechnical Engineering: Lecture 2: Shear Strength and Mohr Circles
Numerical on Mohrs Circle (shear strength of soil)
Numerical on Mohrs Circle (shear strength of soil)
MOHR'S CIRCLE SOIL MECHANICS II CIVIL ENGINEERING II SOUMYADEEP HALDER
MOHR'S CIRCLE SOIL MECHANICS II CIVIL ENGINEERING II SOUMYADEEP HALDER
Non principal stresses video 2
Non principal stresses video 2

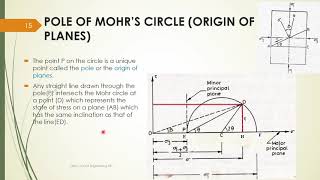

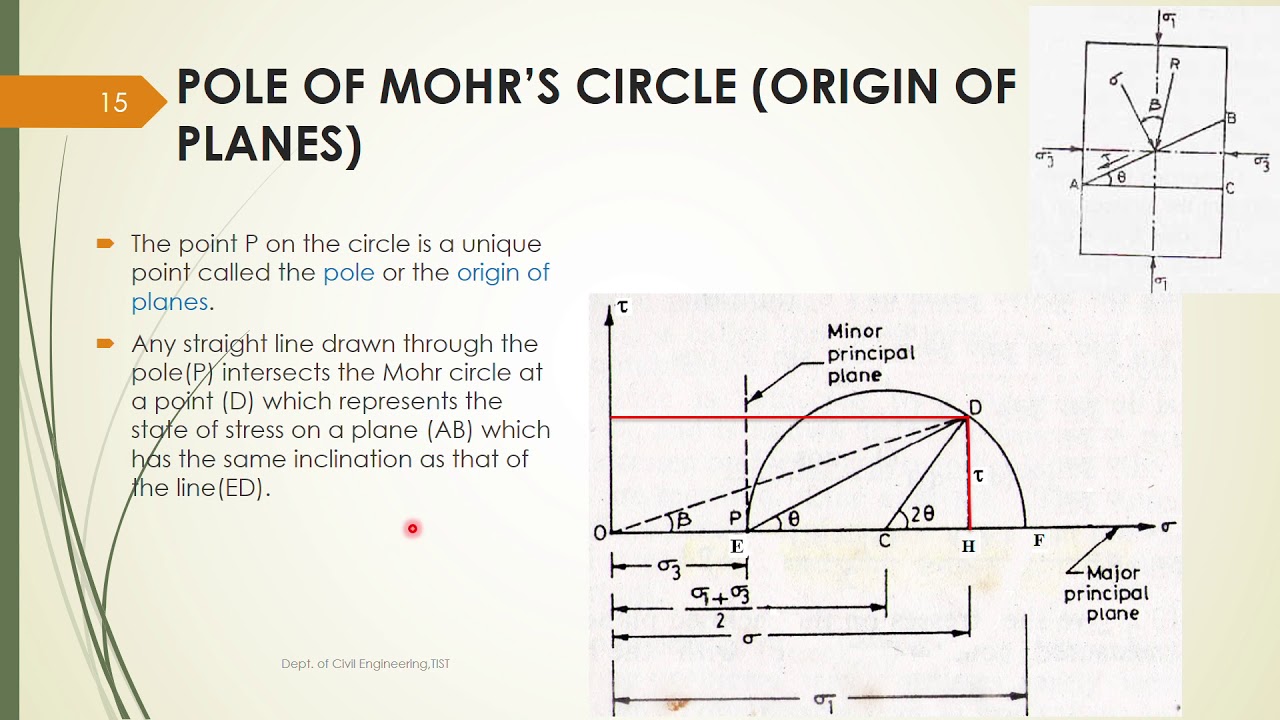

CE 208 Geotechnical Engineering I - Module 4 Shear Strength of Soil Part 2
CE 208 Geotechnical Engineering I - Module 4 Shear Strength of Soil Part 2
Mohr's Circle for Triaxial test
Mohr's Circle for Triaxial test

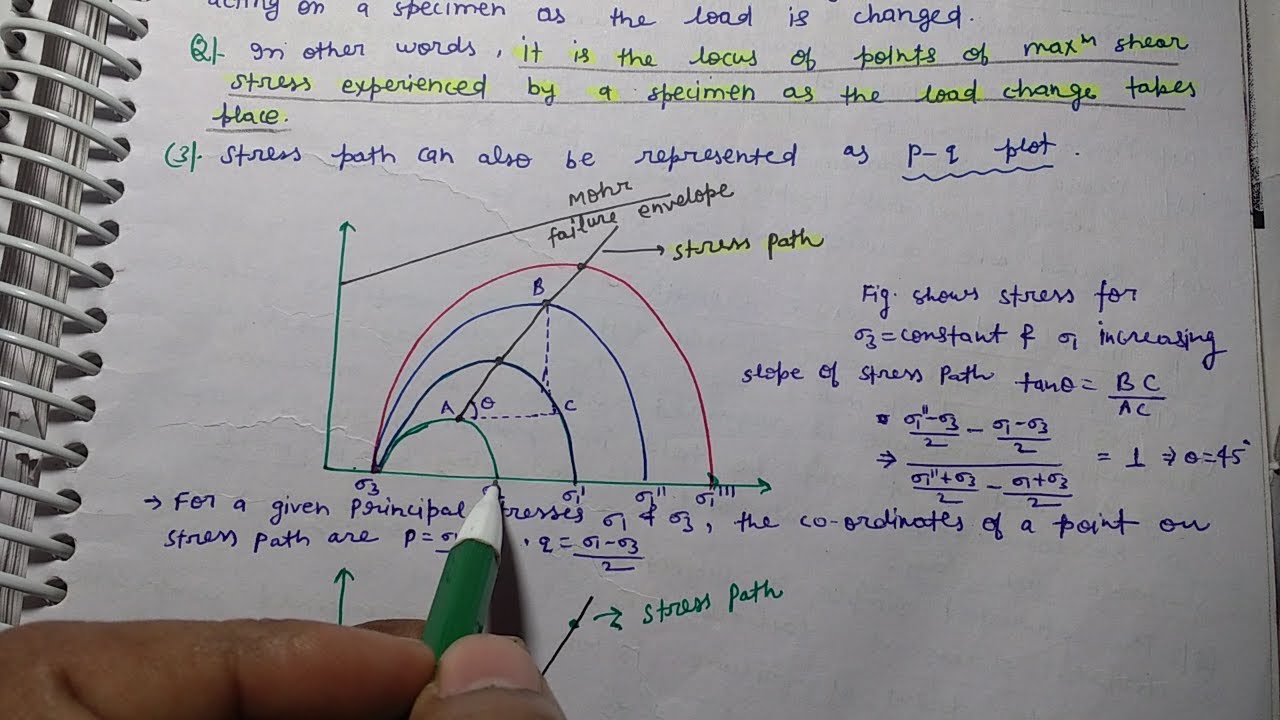

Stress Path And Types Of Mohr Failure Envelope | Shear Strength Of Soil | Soil Mechanics
Stress Path And Types Of Mohr Failure Envelope | Shear Strength Of Soil | Soil Mechanics
Total and Effective Stress in Soil
Total and Effective Stress in Soil
CEEN 641 - Lecture 11 - PQ Diagrams and Stress Paths
CEEN 641 - Lecture 11 - PQ Diagrams and Stress Paths

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Effective Stress Mohr's Circles

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Similarly, effective stress Mohr’s circles at failure can be drawn to determine the effective stress failure envelopes. They follow the relation expressed in equation.

Detailed Explanation

Effective stress Mohr's circles are a tool used to visualize and analyze the failure of soil under stress conditions. When soil fails, understanding the effective stress—the stress that contributes to soil strength—is crucial. The Mohr’s circle represents this effective stress and helps to identify the failure envelopes.

Examples & Analogies

Imagine you’re trying to crush a soft sponge. The pressure you apply represents the total stress, but how much of that pressure is effectively causing the sponge to deform? The effective stress is like understanding that only part of your pressing force is truly squeezing the sponge, while the sponge's internal structure (its pores filled with air or water) takes up the rest.

Equation for Effective Stress Failure Envelope

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

This total stress failure envelope is defined by the equation s=ccu+σtanϕcu where ccu and ϕcu are the consolidated-undrained cohesion and angle of friction respectively (Note: ccu≈0 for normally consolidated clays).

Detailed Explanation

The equation for the total stress failure envelope connects parameters of soil strength. Here, 's' represents the shear strength, 'ccu' denotes the consolidated-undrained cohesion, and 'ϕcu' is the angle of friction for that state of stress. The statement that 'ccu≈0 for normally consolidated clays' indicates that for certain types of clay, under certain conditions, cohesion does not significantly contribute to shear strength.

Examples & Analogies

Think about a pile of sand; if it’s too dry, it collapses easily just like normally consolidated clays lack significant internal bonding when applying stress. You can visualize it as a pile of loose sugar—the slightest bump can cause a cascade without much resistance.

Understanding Pore Pressure Effects

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The pore water pressure parameter B in soft saturated soils is 1, so u=σ3+A(σ1−σ3).

Detailed Explanation

This equation helps understand the effects of pore pressure on soil strength. In saturated soils, pore water pressure plays a significant role in how the soil reacts to external stresses. The parameters specify how the application of stress affects the pore pressure within the soil, which is crucial to predicting soil behavior.

Examples & Analogies

Consider a sponge saturated with water. If you step on the sponge (applying stress), the water inside doesn't just disappear; it redistributes. Similarly, in soil, stress changes lead to changes in pore water pressure, impacting how the soil behaves under load.

Pore Water Pressure Parameters

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The value of the pore water pressure parameter A at failure will vary with the type of soil. Following is a general range of the values of A at failure for various types of clayey soil encountered in nature.

Detailed Explanation

The pore water pressure parameter A reflects how different soils respond under stress. The variation in A shows the diversity of soil types and their response to loading conditions, indicating that not all soils behave the same way when water is involved.

Examples & Analogies

If you think of different types of sponges, some may hold more water and take longer to squeeze out, while others might be more porous and release water quickly. Each type of sponge (soil) has its unique properties that affect how they handle stress and pore pressure.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Effective Stress: The stress carried by the soil skeleton minus pore water pressure.

  • Mohr’s Circle: A graphical tool to determine the stress state of soil.

  • Pore Water Pressure: Pressure from water within soil that affects effective stress.

  • Failure Envelope: Indicates the conditions under which soil will fail.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of a triaxial test showing results of effective stress and how they relate to soil strength.

  • Case study where understanding pore water pressure led to successful construction.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When stress is a mess, find the effective best, subtract water's weight, and you'll ace the test!

📖 Fascinating Stories

  • Imagine a construction site where soil is king. Engineers plot stress using Mohr’s ring! With each drilling, they uncover the weight, using circles to see when soil meets fate!

🧠 Other Memory Gems

  • Remember to think of the term SWAG for effective stress (S-Soil stress, W-Water pressure, A-Add/Adjust to find effective, G-Give the soil's true strength).

🎯 Super Acronyms

PRES (Pore, Resistance, Effective Stress)

  • Keep in mind pore pressure affects resistance and effective stress!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Triaxial Test

    Definition:

    A method of assessing the mechanical properties of soil by applying controlled stress conditions.

  • Term: Effective Stress

    Definition:

    The stress carried by the soil skeleton, calculated as total stress minus pore water pressure.

  • Term: Mohr’s Circle

    Definition:

    A graphical representation of the state of stress at a point, used to assess failure conditions in materials.

  • Term: MohrCoulomb Failure Envelope

    Definition:

    A line that represents the shear strength of soils under different normal stresses.

  • Term: Pore Water Pressure

    Definition:

    The pressure exerted by water within the soil pores.
