Introduction to Triaxial Tests
Unlock Audio Lesson
Alright class, today we’re diving into the triaxial compression tests. Can anyone tell me what the purpose of these tests might be?
To determine the strength of soil?
Exactly! The triaxial test is crucial for understanding how soils behave under different stress conditions. It gives insights into shear strength, particularly for clays. Now, who can describe the basic setup of a triaxial test?
It involves placing a soil sample in a chamber and applying pressure?
Correct! A soil specimen is confined in a rubber membrane inside a Lucite chamber. It’s subjected to all-around confining pressure. Let's remember it as 'CRISP' – Confined Rubber Inside Substratum Pressure. Is everyone clear on that?
Yes, that helps!
Great! So, what are the three types of tests we conduct?
Consolidated-drained, consolidated-undrained, and unconsolidated-undrained?
Exactly! The CD, CU, and UU tests all assess soil behavior differently. Let's do a quick recap: what does 'CD', 'CU', and 'UU' stand for?
Consolidated-drained, consolidated-undrained, and unconsolidated-undrained!
You all are doing great! Remember, each type gives us different insights into soil mechanics.
Understanding Mohr’s Circles
Unlock Audio Lesson

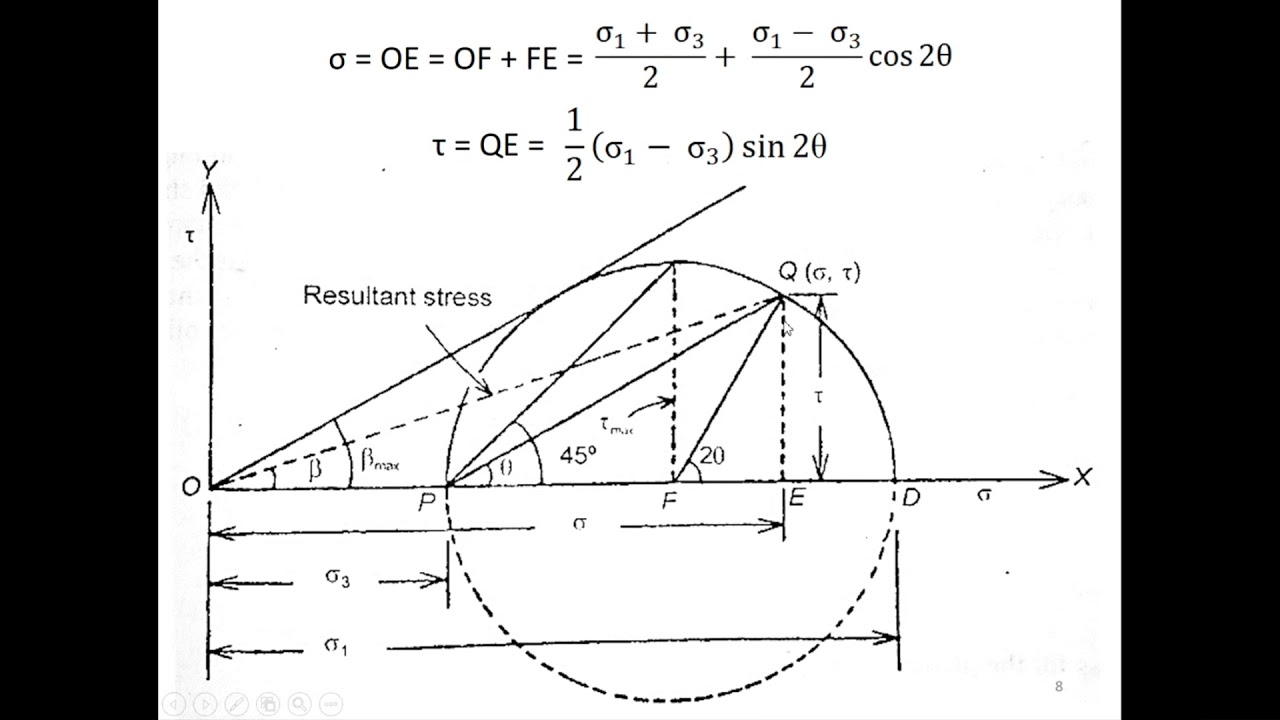

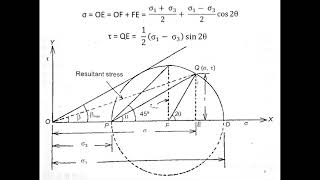

Now that we understand the triaxial test setup, let’s talk about Mohr’s circles. Who can explain what a Mohr’s circle represents?
It’s a graphical representation of stress states!
Exactly! And we use it to determine failure envelopes in our soil tests. Can anyone tell me about the significance of the major and minor principal effective stresses?
The major principal stress is the stress causing failure, and the minor principal stress is the confining pressure?
Correct again! The major principal effective stress is where failure occurs, and we denote these stresses as σ₁ and σ₃. Let's remember 'PES' - Principal Effective Stresses. How does that sound?
It sounds good to me!
Fantastic! Now, on the Mohr’s circle diagram, we can plot these stresses to visualize our results. The tangent line represents the failure envelope. What do we call this equation that defines the envelope?
It’s the Mohr-Coulomb failure envelope!
Correct! Now let’s summarize—what are the key points we discussed about Mohr’s circles?
They help visualize the relationship between stresses and define the failure envelope.
You all are getting it! This understanding is fundamental in soil mechanics.
Total Stress vs. Effective Stress
Unlock Audio Lesson
Today, we’ll compare total stress and effective stress in triaxial tests. Who can define total stress?
Total stress includes all the forces acting on a soil element?
Yes! And effective stress takes into account pore pressure. Can anyone explain how we calculate these in a triaxial test?
For effective stress, we take total stress and subtract pore water pressure?
Exactly! So, the effective stress is crucial in assessing soil strength. Let’s remember it as 'EPS' for Effective Pressure Stresses. Why do we determine both total and effective stresses?
To understand the actual strength of the soil under different conditions, right?
That’s spot on! Different conditions change how we interpret results. It’s essential to remember the variation in shear strengths affected by these stresses.
So we can design better foundations?
Exactly! Summed up — total stress and effective stress guide our foundation design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses the procedure and significance of triaxial compression tests on soils, particularly clays, highlighting the types of tests - consolidated-drained, consolidated-undrained, and unconsolidated-undrained. It explains how Mohr's circles are utilized to derive the failure envelopes and shear strength parameters necessary for soil analysis.
Detailed
Total Stress Mohr’s Circles
This section focuses on the concept of Total Stress Mohr's Circles in the context of triaxial tests performed on soil specimens, particularly clays.
Triaxial Compression Tests
The triaxial compression test is a fundamental method used in geotechnical engineering to investigate the strength of soil. A soil sample is confided within a rubber membrane inside a Lucite chamber, where it is subjected to an all-around confining pressure () applied through a fluid, typically water or glycerin. An additional axial stress (9) is then applied to assess the point of failure.
Types of Tests
There are three primary types of tests that can be conducted:
1. Consolidated-Drained Test (CD Test): Allows drainage from the specimen.
2. Consolidated-Undrained Test (CU Test): No drainage relies on the pore water.
3. Unconsolidated-Undrained Test (UU Test): Conducted without any consolidation or drainage feature.
Mohr’s circles are plotted at failure, wherein the major principal effective stresses ( = 9 = = 1) and minor principal effective stresses ( = 3) are analyzed. A common tangent, denoting the Mohr-Coulomb failure envelope, helps determine shear strength parameters such as cohesion (c) and angle of internal friction (ϕ).
Effective Stress Mohr’s Circles
Effective stress circles can also be plotted, demonstrating their failure envelopes. For the unconsolidated-undrained test, the principal stresses and associated pore pressures yield a consistent shear resistance setting identified as the ϕ=0 condition in saturated clays. Additional equations represent the pore water pressure related to added axial stress and reveal the dependence of various soil types on the pore pressure parameters.
Such analytical methods enrich the understanding of soil behavior under stress, making the Mohr’s circles essential tools in soil mechanics.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

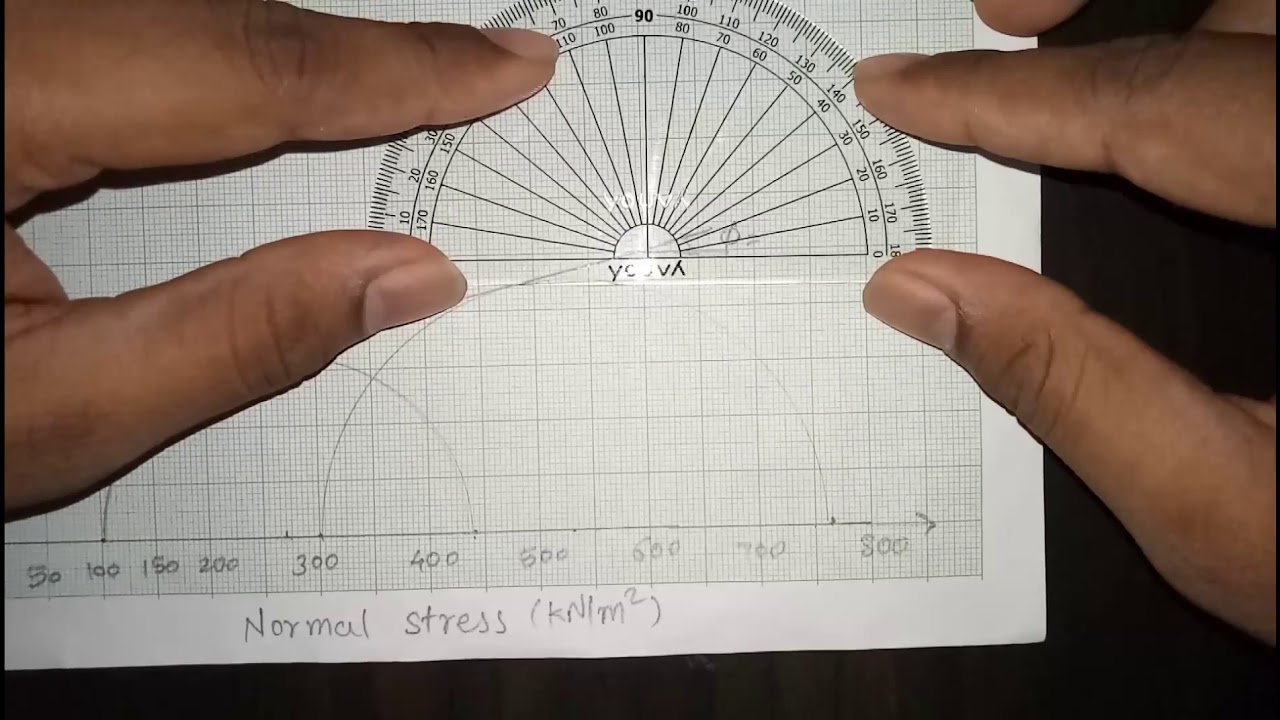

Overview of Mohr's Circle in Triaxial Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

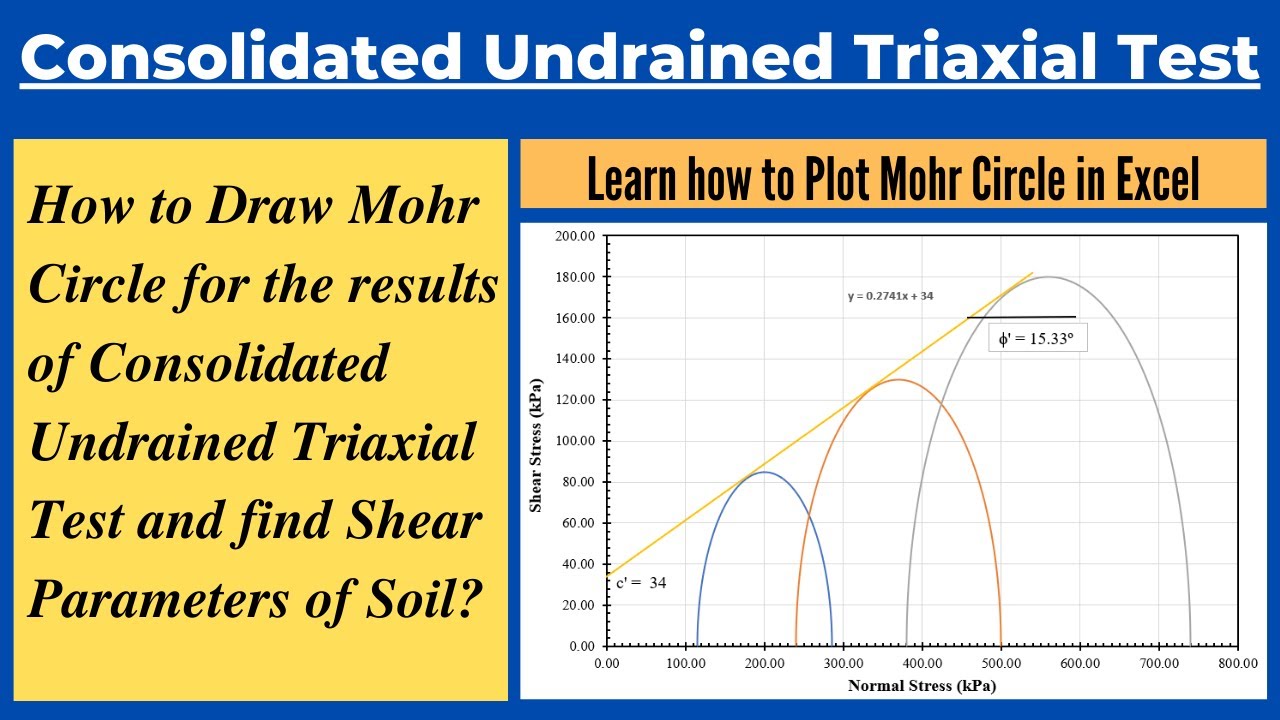

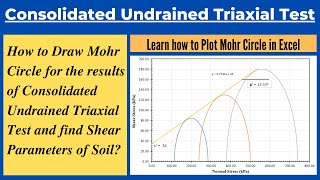

Changing σ3 allows several tests of this type to be conducted on various clay specimens. The shear strength parameters (c and ϕ) can now be determined by plotting Mohr’s circle at failure, as shown in figure and drawing a common tangent to the Mohr’s circles. This is the Mohr-Coulomb failure envelope. (Note: For normally consolidated clay, c≈0).
Detailed Explanation
This chunk discusses how varying the confining pressure (σ3) during triaxial tests permits the evaluation of different soil specimens. By plotting the Mohr’s Circle at the point of failure, engineers can identify the shear strength parameters called cohesion (c) and the angle of internal friction (ϕ). The Mohr-Coulomb failure envelope is a critical concept, representing the relationship between shear stress and normal stress at failure. Notably, for normally consolidated clays, the cohesion is approximately zero, which simplifies the analysis.
Examples & Analogies
Think of Mohr's Circle like a balancing act on a seesaw. As you change the weight on one side (σ3), you need to see at what point the seesaw tips (failure) and how it relates to the weight distribution (c and ϕ). Just as a seesaw will tip differently based on the weights used, the Mohr’s Circle shows us how soils fail under different stress conditions.
Total Stress Mohr’s Circle Equation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This total stress failure envelope is defined by the equation s=ccu+σtanϕcu, Where ccu and ϕcu are the consolidated-undrained cohesion and angle of friction respectively (Note: ccu≈0 for normally consolidated clays).
Detailed Explanation
This chunk introduces the total stress failure envelope equation. Here, 's' represents the shear stress at failure, 'ccu' is the cohesion of the soil, and 'ϕcu' is the angle of internal friction in consolidated-undrained conditions. Understanding this equation is crucial for assessing soil stability, especially in scenarios without drainage. The note that ccu is approximately zero for normally consolidated clays is essential, as it highlights that these types of soils behave differently compared to well-consolidated soils.
Examples & Analogies
Imagine you are pushing a book across the table. The force needed to push the book represents the shear stress. The roughness of the table surface is akin to cohesion. In this scenario, knowing how much force (shear stress) is needed at different angles helps us understand how easily the book will move – reflecting what engineers do with soil using the total stress failure envelope.
Effective Stress Mohr’s Circle
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Similarly, effective stress Mohr’s circles at failure can be drawn to determine the effective stress failure envelopes. They follow the relation expressed in equation.
Detailed Explanation
This section mentions the effective stress Mohr’s circles, which are used to determine the effective stress conditions in soils at failure. The effective stress is critical in geotechnical engineering, as it accounts for the pore water pressures acting within the soil and helps predict how it will behave under load. The specific equations are important to derive these envelopes, although the exact equations aren't included here.
Examples & Analogies
Think of effective stress like the pressure you feel when you push down on a sponge submerged in water. The sponge (soil) feels a certain amount of weight (effective stress) from above, but the water inside (pore pressure) pushes back, affecting how the sponge reacts. Understanding this relationship is essential in preventing soil failure and ensuring structures remain stable.
Unconsolidated-Undrained Triaxial Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For unconsolidated-undrained triaxial tests, Major principal total stress=σ3=Δσf=σ1, Minor principal total stress =σ3.
Detailed Explanation
This section clarifies the conditions for unconsolidated-undrained tests where the total stresses are described. Here, major principal total stress equates the applied stress and the total stress conditions, indicating that the soil undergoes failure without any consolidation or drainage. These conditions are essential for understanding soil behavior immediately after a disturbance.
Examples & Analogies
Consider a balloon filled with water. If you puncture the balloon quickly (applying stress), the pressure inside (total stress) is immediately released, and the water squirts out without any chance for the water to escape slowly. This is similar to what happens in unconsolidated-undrained tests where conditions dictate an instant reaction to applied stresses.
Pore Water Pressure in Soils
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The pore water pressure parameter B in soft saturated soils is 1, so u=σ3+A(σ1−σ3). The value of the pore water pressure parameter A at failure will vary with the type of soil.
Detailed Explanation
This chunk explores pore water pressure in saturated soils and how it is accounted for during triaxial tests. The pore water pressure parameter impacts how the soil responds to additional stress. When the parameter B is equal to 1, we have a simplified relationship that emphasizes the interaction between confining pressure (σ3) and the shear stresses. The variability of parameter A indicates that soil types respond differently under similar conditions, which is important for geotechnical design.
Examples & Analogies
Think of pore water pressure like a sponge soaking up water. As more water is absorbed, the pressure within the sponge increases, changing how easily it can deform. The equations describing this pressure help engineers predict how soils will behave under stress, just like knowing how much water a sponge can hold helps you understand its limitations.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Triaxial Test: A fundamental soil testing method used to determine shear strength.
-
Mohr’s Circle: A graphical tool in soil mechanics for stress state visualization.
-
Shear Strength Parameters: Cohesion and internal friction angle derived from stress tests.
-
Effective Stress Theory: The principle explaining the relationship between total stress and pore pressure.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Conducting a CU test can reveal how clays behave under undrained conditions and inform foundation design.
-
Using Mohr's Circle, engineers can illustrate how increasing axial stress changes failure conditions for saturated soils.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Mohr's Circle spins round and round, showing where stresses can be found!
📖 Fascinating Stories
-
Imagine a soil sample dressed in rubber armor in a Lucite chamber, bravely facing the pressures around it while seeking strength to hold up the buildings above.
🧠 Other Memory Gems
-
To remember the test types, think 'C-C-U': Consolidated-Drained, Consolidated-Undrained, and Unconsolidated-Undrained.
🎯 Super Acronyms
Use 'PES' for Principal Effective Stresses when referencing the major and minor effective stresses in Mohr's Circle.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Triaxial Test
Definition:
A laboratory test used to determine the strength and deformation characteristics of soil by applying controlled axial and confining stresses.
-
Term: Mohr’s Circle
Definition:
A graphical representation of the state of stress at a point, used to find principal stresses and visualize failure criteria.
-
Term: Shear Strength
Definition:
The resistance of soil to shearing forces, characterized by parameters like cohesion and angle of internal friction.
-
Term: Pore Pressure
Definition:
The pressure of groundwater held within a soil or rock, affecting its effective stress.
-
Term: Failure Envelope
Definition:
A boundary on the Mohr's circle representing failure conditions of materials under applied stresses.
-
Term: Effective Stress
Definition:
The stress carried by the soil skeleton, which governs the soil's mechanical behavior.
-
Term: Total Stress
Definition:
The combined stress acting on a given soil mass, including both effective stress and pore water pressure.
