Introduction to Triaxial Tests
Unlock Audio Lesson
Welcome everyone! Today we will be diving into triaxial tests. Can anyone tell me what they think these tests are used for?
Are they for measuring how strong soils are?
Exactly! Triaxial tests help us determine the shear strength of soil. They are crucial for understanding how soil behaves under pressure. Now, let’s explore how these tests are set up.
How is the soil specimen prepared?
Great question! A soil sample is placed in a rubber membrane within a Lucite chamber, and we can apply pressure all around it. We will discuss the types of pressures used in these tests and how they affect the soil.
What kind of soil can we test?
Primarily sands and clays. Different types of tests are designed for these soils. Now, what do you think happens to the soil when we apply pressure?
It might fail or change shape?
Correct! That leads us to understand how we can apply different stresses to see how soil fails under different conditions. We will be looking into Mohr's circles later.
In summary, triaxial tests are essential for evaluating soil strength under pressure, allowing us to predict how soil will behave in real-world situations.
Types of Triaxial Tests
Unlock Audio Lesson
Now that we've set the stage, let’s discuss the three main types of triaxial tests. Who remembers what they are?
Consolidated-drained, consolidated-undrained, and unconsolidated-undrained?
That's right! Let's break these down. The consolidated-drained test allows drainage of pore water. Why do you think that might be important?
It helps see how the soil settles over time?
Absolutely! This tells us how well the soil can handle loads over time. The CU test also involves consolidation, but we don't allow drainage. What effect does that have?
Maybe it keeps the pore pressure high?
Precisely. High pore pressures can lead to different failure mechanisms. The UU test is the most straightforward, where we don't allow drainage or consolidation. Why is this significant?
It would show how the soil behaves instantly?
Exactly! In critical scenarios like landslides, we need to understand those immediate responses. Let’s summarize: CD tests monitor long-term stability, CU tests balance pressures, and UU tests reveal immediate behavior.
Understanding Mohr's Circle
Unlock Audio Lesson
Now, let’s delve into Mohr's circle. Who can tell me what it represents?
Isn't it a way to visualize stress in materials?
Exactly! Mohr's circle helps us visualize the state of stress and failure criteria. When we apply axial stress and confining pressure, we can plot that circle. Why do you think it's beneficial?
It helps determine shear strength parameters?
Yes! We can derive parameters like c and ϕ from the tangents we draw, called the failure envelope. This envelope is crucial for predicting soil behavior. Can anyone recall what c represents?
Cohesion?
Correct! And ϕ is the friction angle. Combining these helps engineer design solutions for building foundations or slopes! Let’s recap: Mohr's circle aids in visualizing stress and determining critical soil properties.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the methodology of triaxial compression tests, which are performed on soils like sands and clays. It explains the test arrangements, pressure applications, and the different types of tests used to determine shear strength parameters through Mohr's circle analysis.
Detailed
Triaxial Tests
Triaxial compression tests are critical for evaluating the shear strength of soils such as sands and clays. The tests are conducted by confining a soil specimen within a rubber membrane in a Lucite chamber, where an all-round confining pressure (σ3) is applied through a fluid, typically water or glycerin. Additionally, an axial stress (Δσ) can be exerted to induce failure. The drainage of the specimen can be controlled based on the testing conditions.
Types of Triaxial Tests
There are three main types of triaxial tests conducted on clay specimens:
1. Consolidated-Drained (CD) test: Maximizes drainage, allowing pore water pressure to dissipate.
2. Consolidated-Undrained (CU) test: Tests conducted without drainage, but after consolidation.
3. Unconsolidated-Undrained (UU) test: No drainage, and the stress state is determined immediately.
The shear strength parameters, cohesion (c) and angle of internal friction (ϕ), are derived from Mohr's circle analysis at failure conditions. This relationship is vital for geotechnical engineering applications, particularly in understanding soil behavior under different stress states. The study of effective and total stresses is essential in this context for interpreting soil mechanics successfully.

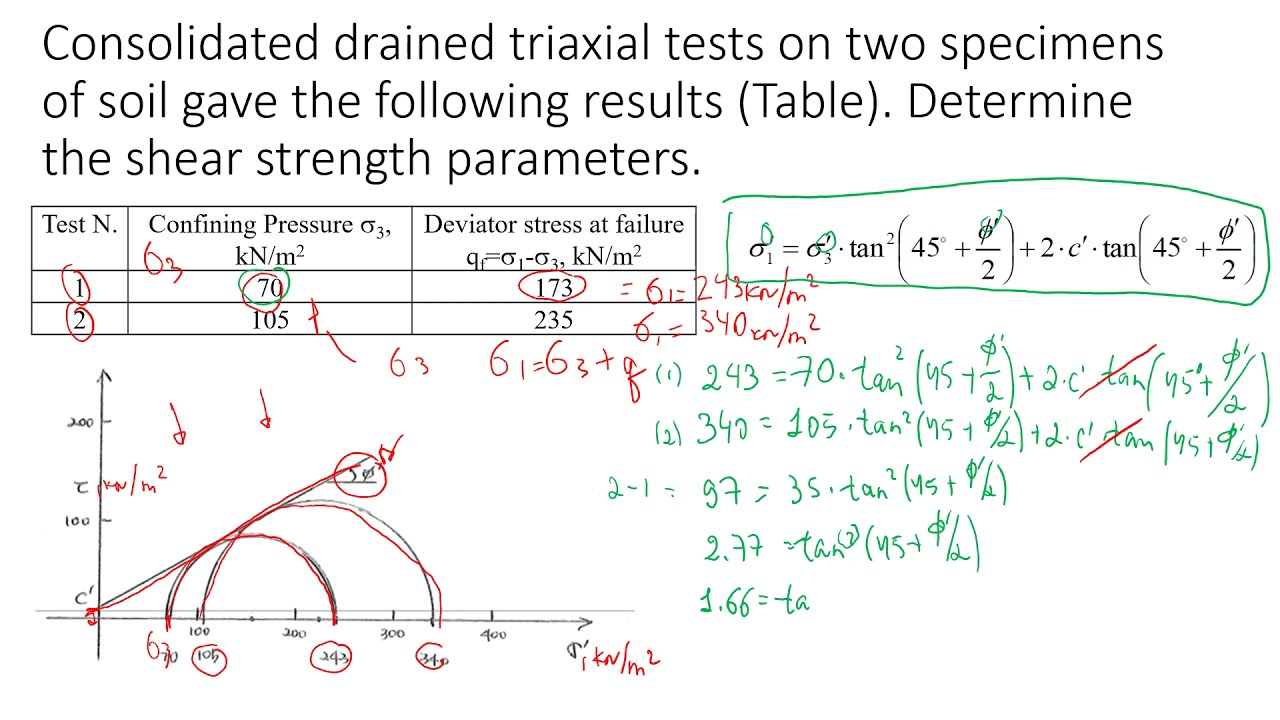

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Triaxial Compression Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Triaxial compression tests can be conducted on sands and clays. The Triaxial test arrangement consists of placing a soil specimen confined by a rubber membrane in a Lucite chamber. An all-round confining pressure (σ3) is applied to the specimen by means of the chamber fluid (generally water or glycerin). An added stress (Δσ) can also be applied to the specimen in the axial direction to cause failure (Δσ=Δσf at failure). Drainage from the specimen can be allowed or stopped, depending on the test condition.
Detailed Explanation
Triaxial tests are essential for understanding how soil behaves under stress. In this test, a soil sample is placed in a chamber and is subjected to lateral pressure from the fluid around it. This lateral pressure is symbolized by σ3. Additionally, a vertical stress is applied until the sample fails, indicated by Δσ. Importantly, the test can be performed with or without allowing drainage from the sample, which influences the test conditions and results.
Examples & Analogies
Imagine a balloon. If you fill it with water and then squeeze it from all sides, you're simulating the confining pressure. If you then poke it with a finger to burst it, you're applying additional stress. The way the balloon pops gives insights into how soil behaves under similar conditions.
Types of Triaxial Tests for Clay
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For clays, three main types of tests can be conducted with Triaxial equipment:
1. Consolidated-drained test (CD test)
2. Consolidated-undrained test (CU test)
3. Unconsolidated-undrained test (UU test)
Detailed Explanation
There are three primary variants of the triaxial test, which differ based on how the soil is allowed to behave during the test:
- Consolidated-drained test (CD test): The soil consolidates (settles under pressure) and drains excess water.
- Consolidated-undrained test (CU test): The soil consolidates but does not drain, meaning pore water pressure builds up.
- Unconsolidated-undrained test (UU test): The soil does not have time to consolidate or drain. Each test provides different information about the soil's strength and behavior under stress.
Examples & Analogies
Think of a sponge. If you press it and allow the water to escape (CD test), it gets smaller and stays dry. If you press it without letting water escape (CU test), it gets tighter but retains water. If you press it quickly without giving it time to react at all (UU test), it might squirt water out but remains very compacted. Each action reveals different insights about the sponge’s material properties.
Shear Strength Parameters and Mohr-Coulomb Failure Envelope
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The shear strength parameters (c and ϕ) can now be determined by plotting Mohr’s circle at failure and drawing a common tangent to the Mohr’s circles. This is the Mohr-Coulomb failure envelope. (Note: For normally consolidated clay, c≈0).
Detailed Explanation
In triaxial tests, the concept of shear strength plays a critical role. By analyzing the stress states during failure, we can derive two important parameters – cohesion (c) and the angle of internal friction (ϕ). We use Mohr’s circle, a graphical representation of the stress states, to visualize these relationships and define a failure envelope. For normally consolidated clay, cohesion is very low, approaching zero.
Examples & Analogies
Envision pulling a rubber band. To find out how much you can stretch it before it snaps, you measure the tension and the angle at which it starts to deform significantly. The point at which it breaks tells you about its strength, similar to how we determine the limits of soil strength using Mohr's circle.
Effective Stress in Consolidated-Undrained Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For consolidated-undrained tests, at failure,
- Major Principal total stress = σ3 = Δσf = σ1
- Minor principal total stress = σ3
- Major principal effective stress = (σ3 + Δσf) − uf = σ′1
- Minor principal effective stress = σ3 − uf = σ′3
Detailed Explanation
During consolidated-undrained tests, understanding effective stress is crucial. At the point of failure, total stress consists of both the external stress applied (σ1) and the pore water pressures (uf) within the soil. The effective stress reflects the true stress that contributes to soil strength. For instance, the major principal effective stress represents the total stress minus the pore pressure, impacting the ability of the soil to support loads.
Examples & Analogies
Think of a sponge again. When you squeeze it, water is pushed out – this water inside can weaken the sponge's ability to hold weight (just like pore pressure in soil). The effective stress, in this case, is the pressure your hand applies minus the 'pressure' created by water pushing back, which ultimately tells you how much weight the sponge can support.
Pore Water Pressure in Unconsolidated-Undrained Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For unconsolidated-undrained triaxial tests, the major principal total stress = σ3 = Δσf = σ1 and minor principal total stress = σ3. The total stress Mohr’s circle at failure can now be drawn. For saturated clays, the value of σ1−σ3 = Δσf is a constant, irrespective of the chamber confining pressure, σ3.
Detailed Explanation
In unconsolidated-undrained tests, the behavior of the soil can be quite different. Here, the major principal total stress is equal to the difference between the stresses (Δσf), and this remains consistent across varying confining pressures. This uniformity simplifies analysis, allowing for a straightforward representation using Mohr's circles. Essentially, the soil’s behavior under rapid loading without drainage is characterized, which is critical in many real-world scenarios involving saturated soils.
Examples & Analogies
Imagine pouring water over a sponge quickly. If you press down on it without letting the water escape, no matter how firmly you press (the confining pressure), the sponge will maintain a constant internal pressure from the trapped water. This consistent response indicates its behavior under stress, similar to that of saturated clay in these tests.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Triaxial Tests: Vital for measuring soil strength under controlled conditions.
-
Mohr's Circle: A graphical method to analyze stresses and failure conditions.
-
Types of Tests: CD, CU, and UU tests address different drainage conditions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A construction project on clay soil might utilize a CU test to understand strength under rapid loading conditions.
-
Mohr's Circle analysis reveals that increasing axial stress beyond a specific point will lead to failure in saturated clays.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To find if soil will crack, triaxial holds the knack.
📖 Fascinating Stories
-
Imagine a giant sponge in a liquid room, where we gently squeeze, and it releases gloom. That's how we test soil's strength, pushing it until at length!
🧠 Other Memory Gems
-
CUD and UUU help us remember the tests: CU for drained but consolidated, UU for undrained – simple as that!
🎯 Super Acronyms
C.U.U. for 'Consolidated-Undrained' paired with the 'U.U.' for 'Unconsolidated-Undrained.'
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Triaxial Test
Definition:
A laboratory test used to determine the shear strength and behavior of soil under controlled conditions of stress and drainage.
-
Term: ConsolidatedDrained Test (CD)
Definition:
A triaxial test where pore water can drain and effective stress is considered.
-
Term: ConsolidatedUndrained Test (CU)
Definition:
A triaxial test conducted after consolidation where drainage is not allowed during loading.
-
Term: UnconsolidatedUndrained Test (UU)
Definition:
A triaxial test where neither consolidation nor drainage is permitted during the test.
-
Term: Mohr's Circle
Definition:
A graphical representation of the state of stress at a point and the failure envelope which relates to shear strength.
-
Term: Shear Strength
Definition:
The maximum resistance of a material to shear stress.
