Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Triaxial Testing
Unlock Audio Lesson
Today, we will delve into the triaxial compression tests, a fundamental method for analyzing soil behavior under stress. Can anyone tell me what we will be testing?
I think we're testing the strength of soils, like sands and clays.
Correct! The triaxial test helps us understand how different soils respond to stress. The setup includes a soil sample enclosed in a rubber membrane placed inside a Lucite chamber.
What do we use to apply pressure to the soil sample?
Great question! We apply an all-around confining pressure, typically using water or glycerin. This is crucial for simulating real-world conditions.
Can we also test how the soil responds when we push down on it?
Yes! We apply added stress, known as axial stress, to determine when the sample fails. This aspect is key to understanding shear strength.
What happens to the water during these tests?
Excellent point! Depending on the test, we can allow drainage or stop it. This leads us to different testing conditions.
Let's summarize: The triaxial test measures soil strength via confining pressures and axial stress. There are different drainage conditions we can employ. Does everyone feel clear on this?
Types of Triaxial Tests
Unlock Audio Lesson
Now that we've covered the basics, let's discuss the three main types of triaxial tests. Who can name one of the test types?
Is it the Consolidated-Drained test?
Correct! The Consolidated-Drained test, or CD test, allows drainage during shearing. What do you think this means for the soil's behavior?
It probably means the soil will reach a stable state before the tests, right?
Exactly! Now, what about the second type? Who can help with that?
The Consolidated-Undrained test?
Yes! The CU test is interesting because it allows consolidation but prevents drainage during shearing. Why do you think we would want to do that?
To simulate conditions where the soil is saturated and can’t drain?
Exactly! Lastly, we have the Unconsolidated-Undrained test, or UU. Does anyone remember how this one differs?
Yes, it doesn’t allow for any drainage at all.
Correct! The UU test provides insights into the soil's immediate response to conditions, particularly for saturated soils. Let's recap the test types: CD allows drainage, CU allows consolidation but restricts drainage, and UU restricts drainage entirely.
Mohr’s Circle and Shear Strength
Unlock Audio Lesson
Let's now explore how we use Mohr’s Circle in triaxial tests. Can anyone tell me what Mohr’s Circle helps us determine?
It helps determine the shear strength parameters of soils.
That's right! We can calculate parameters like cohesion (c) and the angle of internal friction (ϕ). How do you think plotting these circles can help us?
I think it shows the relationship between the normal stress and shear stress at failure?
Exactly! When we plot the Mohr’s circles of failure, we can draw a tangent, known as the failure envelope. What shape do you think this envelope might resemble?
Maybe a straight line that gets steeper as we increase stress?
Yes! This linear relationship helps define the failure criteria for different soils. Can anyone summarize why plotting Mohr’s circles is important?
It visually represents how the soil fails under different stresses and helps us understand the shear strength parameters.
Exactly! Let's recap: Mohr’s Circle is crucial in identifying shear strength parameters by illustrating stress relationships during failure conditions.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the triaxial test setup, including the use of a rubber membrane and a Lucite chamber to apply confining and axial stresses on soil specimens. It details the three main types of triaxial tests: consolidated-drained, consolidated-undrained, and unconsolidated-undrained, as well as the importance of plotting Mohr’s circles for understanding shear strength parameters.
Detailed
Triaxial Test Equipment Overview
The triaxial compression test is designed to evaluate the mechanical properties of soil, particularly sands and clays. The test setup comprises a soil specimen encased in a rubber membrane, situated inside a Lucite chamber. The chamber allows for the application of an all-around confining pressure (σ3), typically using water or glycerin. Additionally, an axial stress (Δσ) is applied to induce failure at Δσ = Δσf. Depending on the testing conditions, drainage from the soil specimen can either be allowed or restricted.
Types of Triaxial Tests
The main types of triaxial tests used for clay samples include:
1. Consolidated-Drained Test (CD): In this test, soil specimens are consolidated under the confining pressure before being sheared, allowing drainage throughout the test.
2. Consolidated-Undrained Test (CU): Here, specimens are allowed to consolidate with drainage before shear, but drainage is restricted during shearing, thus evaluating the undrained strength of the soil.
3. Unconsolidated-Undrained Test (UU): This variant tests soil without allowing any drainage during the consolidation or shearing phases, focusing on the short-term responses of saturated soils.
The test allows engineers to ascertain crucial shear strength parameters (cohesion, c, and angle of internal friction, ϕ) by plotting Mohr’s circles and determining failure envelopes for each test type. Understanding these parameters helps predict how soils will behave under applied stresses, critical for construction and geotechnical engineering.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

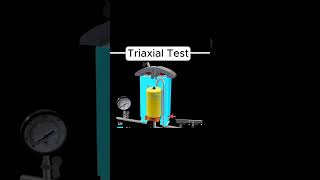

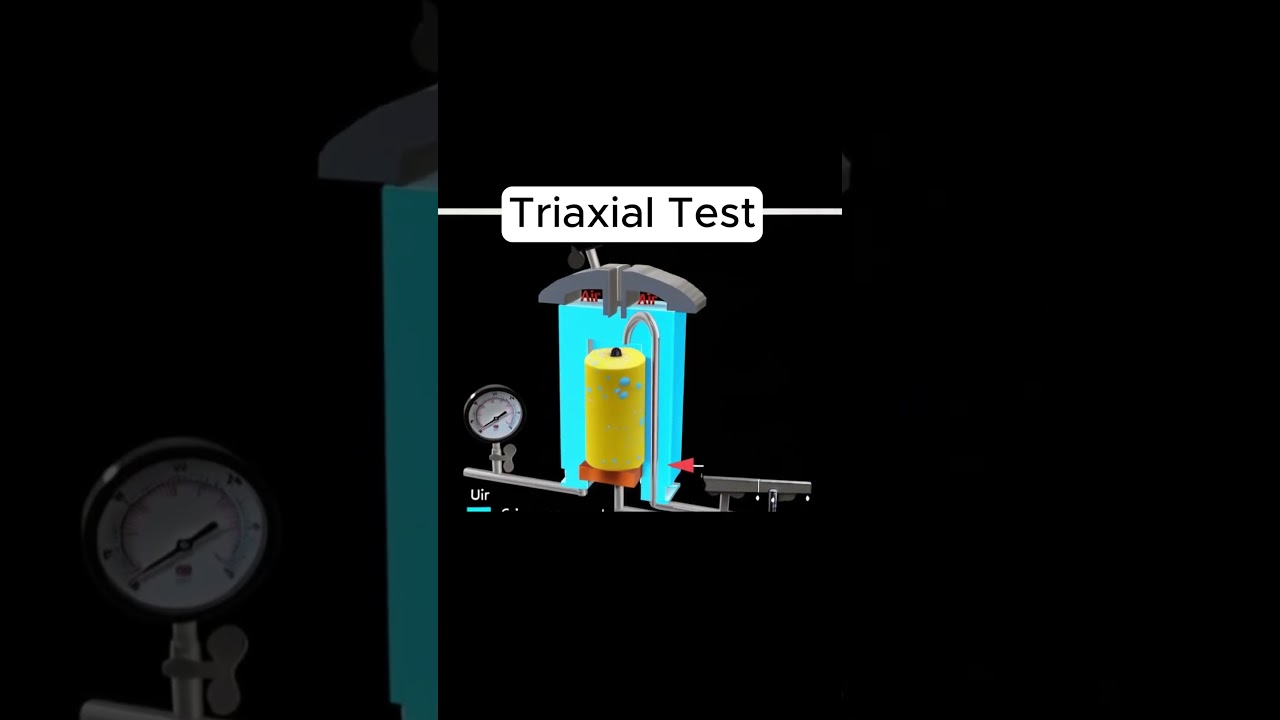

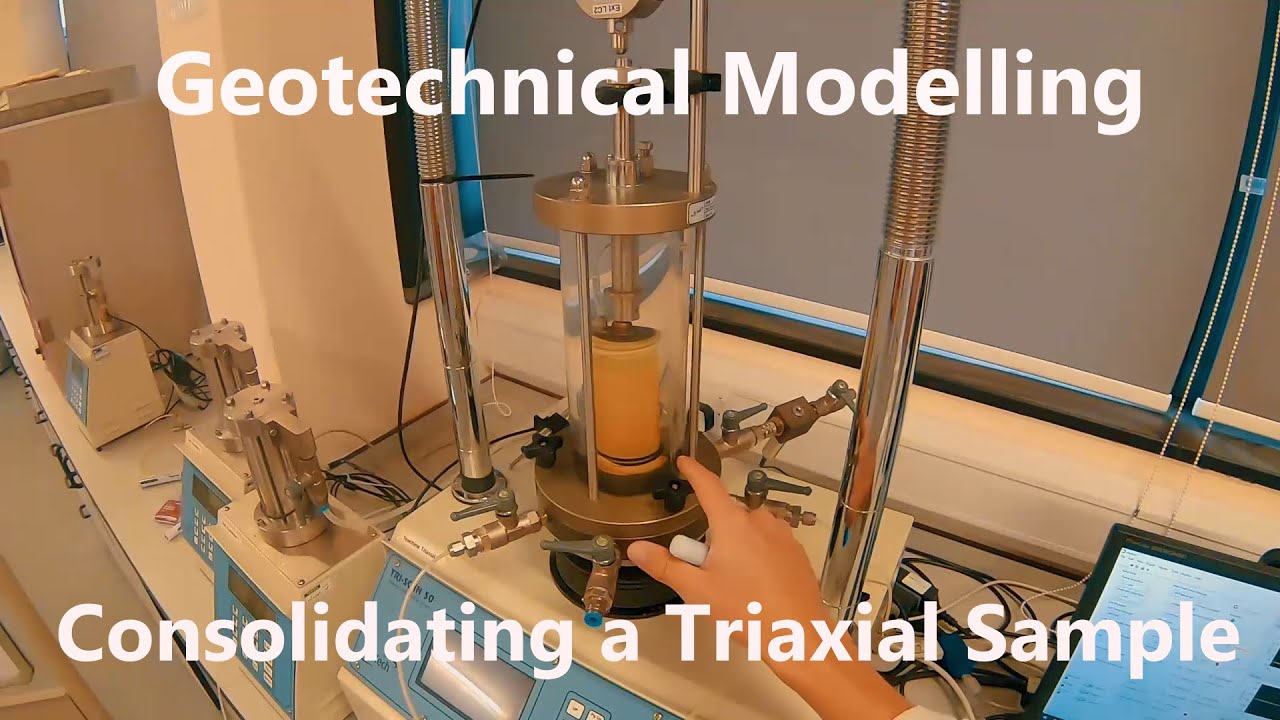

Overview of the Triaxial Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Triaxial compression tests can be conducted on sands and clays. Essentially, it consists of placing a soil specimen confined by a rubber membrane in a Lucite chamber. An all-round confining pressure (σ3) is applied to the specimen by means of the chamber fluid (generally water or glycerin). An added stress (Δσ) can also be applied to the specimen in the axial direction to cause failure.
Detailed Explanation
The triaxial test is a laboratory test used to assess the mechanical properties of soil. It involves placing a soil sample enclosed in a rubber membrane inside a transparent chamber made of Lucite. This chamber is filled with a fluid, usually water or glycerin, which applies uniform pressure around the soil sample, known as the confining pressure (σ3). Additionally, an axial stress (Δσ) can be applied along the length of the specimen until it fails, giving insights into its strength characteristics.
Examples & Analogies
Imagine you have a balloon filled with water (the soil sample) and you press evenly on its surface (the confining pressure). If you push down from the top (axial stress), at some point, the balloon will pop (failure), which helps us understand the balloon's capacity to withstand pressure before bursting.

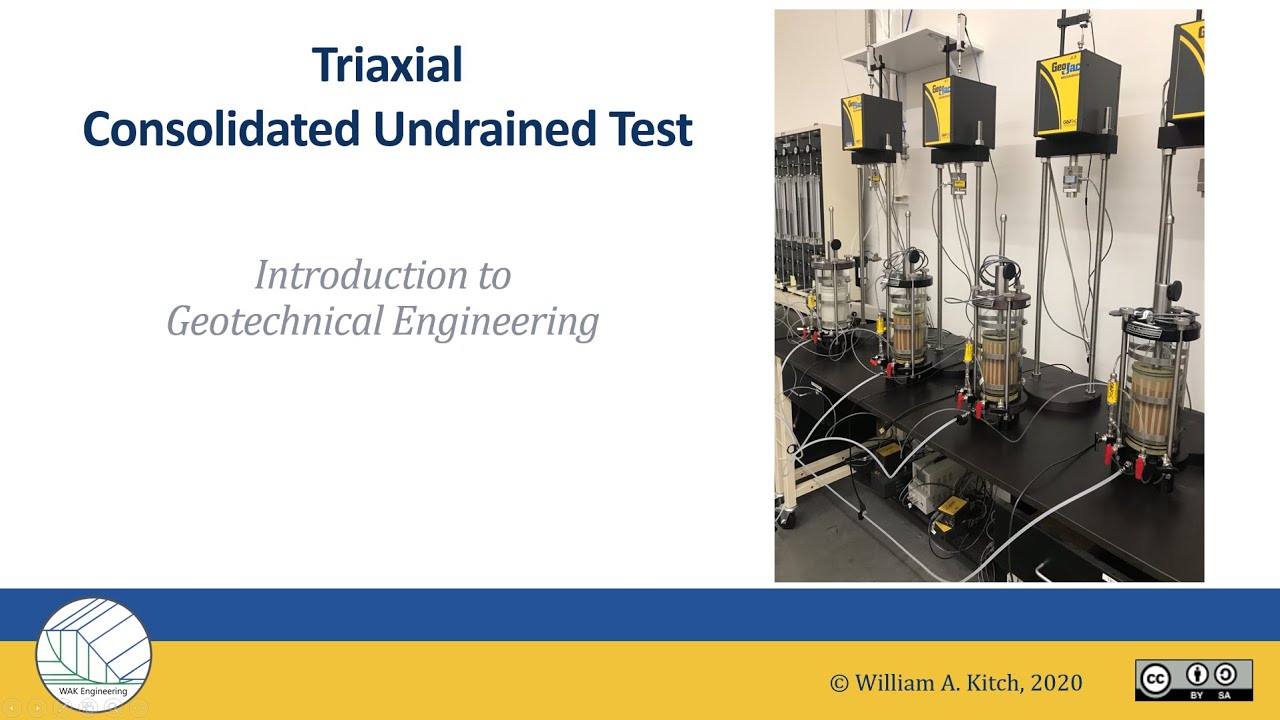

Types of Triaxial Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For clays, three main types of tests can be conducted with Triaxial equipment: 1. Consolidated-drained test (CD test) 2. Consolidated-undrained test (CU test) 3. Unconsolidated-undrained test (UU test)
Detailed Explanation
There are three primary types of triaxial tests, each tailored to assess different conditions of the soil: the Consolidated-Drained Test (CD), where drainage is allowed during loading; the Consolidated-Undrained Test (CU), where consolidation occurs before applied loading, but drainage is not allowed during testing; and the Unconsolidated-Undrained Test (UU), where neither consolidation nor drainage is permitted. Each test provides distinct insights into the soil's behavior under various loading scenarios.
Examples & Analogies
Think of making a cupcake (the soil). In the CD test, you let the batter drain for a while before baking (allowing for adjustments). In the CU test, you mix the batter and pour it into the pan but don't let it rest before baking (consolidation happens beforehand but no drainage). In the UU test, you bake the batter immediately after mixing (no time for either drainage or consolidation), so you see how the batter holds up under sudden heat.
Understanding Principal Stresses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Major Principal effective stress = σ3 = Δσf = σ1 = σ′1. Minor Principal effective stress = σ3 = Δσ′3.
Detailed Explanation
In the context of the triaxial test, there are two principal stresses: major and minor principal effective stresses. The major principal effective stress (σ′1) is the stress at failure, while the minor principal effective stress (σ′3) reflects the confining pressure. Understanding these stresses is crucial for analyzing soil stability and performance during construction or excavation.
Examples & Analogies
Picture a car driving on a bridge. The major principal effective stress is like the weight of the car causing pressure on the bridge (soil), while the minor stress is the support from the bridge itself (confined pressure). If the car becomes too heavy (increasing stress), it might cause the bridge to fail if it reaches its limits.

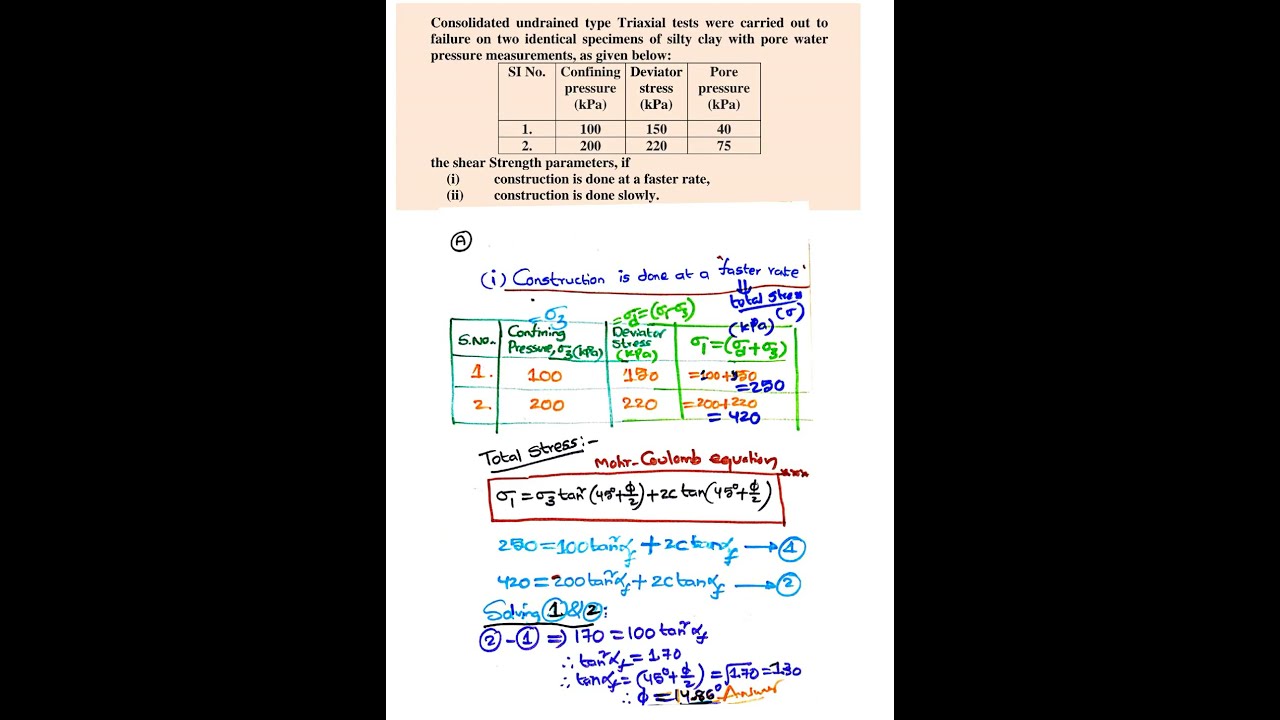

Plotting Mohr's Circle
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The shear strength parameters (c and ϕ) can now be determined by plotting Mohr’s circle at failure and drawing a common tangent to the Mohr’s circles. This is the Mohr-Coulomb failure envelope.
Detailed Explanation
After conducting the triaxial test, engineers use the data to create Mohr's circle, a graphical representation of the state of stress at failure. By plotting the effective stresses, one can determine the shear strength parameters (cohesion, c, and angle of internal friction, ϕ). The intersection of the tangents of the circles creates the Mohr-Coulomb failure envelope, which indicates the maximum stress before failure occurs.
Examples & Analogies
Imagine an artist sketching circles on a canvas, each circle representing different stress configurations. The tangents that the artist draws between them create a boundary line, showing them where the paint might spill out if too much pressure is applied. Similarly, in soils, this boundary indicates the limit before failure.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Triaxial Test: A fundamental method to assess soil strength under controlled stress.
-
Consolidation: The process through which soil volume decreases under pressure over time.
-
Mohr's Circle: A crucial tool for visualizing stress relationships and determining shear strength.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a construction project on clayey soil, engineers might conduct a triaxial test to determine the soil's failure characteristics before laying a foundation.
-
When designing a retaining wall, understanding the shear strength of the soil using triaxial test data helps in predicting how the soil will react under stress.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In triaxial, we confine the clay, stress it right, and see how it plays.
📖 Fascinating Stories
-
Imagine a clay building site where engineers gently squeeze the soil inside a chamber—watching as pressure reveals how strong or weak it really is.
🧠 Other Memory Gems
-
TRIAX: T represents testing strength, R represents rubber membrane, I for inward pressure, A for axial stress, and X for the various test types.
🎯 Super Acronyms
CDA
- Consolidated-Drained
- Consolidated-Undrained
- Unconsolidated-Undrained.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Triaxial Test
Definition:
A method used to measure the mechanical properties of soil by applying controlled stress.
-
Term: Confining Pressure (σ3)
Definition:
The pressure applied uniformly around the soil specimen during a triaxial test.
-
Term: Axial Stress (Δσ)
Definition:
The stress applied in the axial direction to the soil specimen during testing.
-
Term: Mohr's Circle
Definition:
A graphical representation of the state of stress at a point, aiding in the analysis of shear strength.
-
Term: Shear Strength Parameters
Definition:
The values of cohesion (c) and angle of internal friction (ϕ) that describe the resistance of soil to shear.
