Introduction to Triaxial Tests
Unlock Audio Lesson
Today, we're going to explore triaxial tests. Can anyone tell me what their main purpose is?
To test the shear strength of soils, right?
Exactly! The triaxial tests help us understand how different soil types respond under stress. We use a soil specimen within a rubber membrane in a chamber, and we apply confining pressure—this is known as σ3. Can anyone tell me what happens next?
We apply additional axial stress to cause failure?
Right again! This axial stress is often denoted as ∆σ, and when we reach failure, we refer to it as ∆σf. Remember that understanding the type of test we are conducting is crucial for interpreting our results.
In summary, triaxial tests are essential for assessing soil strength under simulated conditions and involve measuring the confining pressure and axial stress.
Types of Triaxial Tests
Unlock Audio Lesson
Let's break down the three types of triaxial tests. Can someone name these?
Consolidated-drained, consolidated-undrained, and unconsolidated-undrained, right?
Correct! The CD test allows drainage throughout testing, while the CU allows drainage only until consolidation. Can anyone think of a scenario where using the CU test would be appropriate?
Maybe in situations where we expect the soil to consolidate before being loaded, like in some construction projects?
That's a great example! The UU test is often used for rapid assessments when we can't allow drainage at all, which is common in saturated clays.
So remember, understanding the conditions under which we conduct these tests helps us interpret soil behavior accurately.
Understanding Pore Water Pressure Parameters
Unlock Audio Lesson
Now, let's shift our focus to pore water pressure, which plays a major role in these tests. What do you think the term 'pore water pressure parameter' refers to?
Is it how water pressure in the soil affects its strength?
Exactly! There are two parameters of interest, A and B, which pertain to the changes in pore water pressure resulting from stress changes. For most soft saturated clays, what’s the value of B?
Is it often 1?
Yes! And that suggests that pore pressure increases directly with the confining pressure σ3. On the other hand, the value of A can vary. Who can explain how these parameters influence soil strength?
If we apply more axial stress, it increases the pore pressure, and that influences how the soil behaves under load.
Absolutely! Understanding these parameters allows us to predict soil behavior under different loading scenarios. Great discussion, everyone!
Plotting Mohr’s Circles
Unlock Audio Lesson
Next, let's look at how we plot Mohr’s circles. Can someone remind us what a Mohr's Circle represents?
It's a way to visualize the stresses acting in the soil!
Exactly! At failure, we can connect these Mohr’s circles to create a failure envelope, which is pivotal in understanding shear strengths. What does the Mohr-Coulomb criterion tell us?
It helps us find the relationship between the normal stress and shear strength?
Yes! Notice that for normally consolidated clays, the cohesion c is often close to 0. This aids in simplifying how we analyze failure conditions.
To sum up, plotting Mohr’s circles gives us vital insights into how soils will behave under different stresses.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section elaborates on how triaxial tests are used to measure the shear strength of soils and how pore water pressure is influenced by applied axial stress, highlighting the significance of Skempton's pore pressure parameters A and B.
Detailed
Detailed Summary
The pore water pressure parameter, denoted B, is critical in understanding the behavior of saturated soils, primarily clays, during triaxial tests. The triaxial compression test features a rubber membrane-soil specimen within a confining chamber where water or glycerin applies lateral pressure (σ3). An axial stress (Δσ) is subsequently exerted to induce failure at Δσf. There are three primary types of consolidated tests ensuring differential drainage conditions:
- Consolidated-Drained Tests (CD): Allow drainage throughout the test, leading to effective stress conditions.
- Consolidated-Undrained Tests (CU): Drainage occurs only during consolidation but is blocked during shear, affecting pore pressure measurements significantly.
- Unconsolidated-Undrained Tests (UU): No drainage allowed from the start, providing direct insights into undrained shear strength.
The Mohr-Coulomb failure criterion is used to determine shear strength parameters (c and φ) by plotting the failure envelopes. For saturated clays during effective stress analysis, the relationship is defined by the equations: through changes in pore water pressure influenced by added axial stress. The parameter B is central to Skempton's equations involving pore pressure, particularly significant in applications dealing with soft saturated soils, where B typically is one. Understanding these relationships aids engineers to predict soil behavior under loading conditions, making these tests essential for geotechnical engineering.

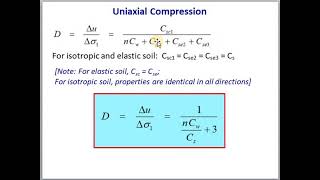

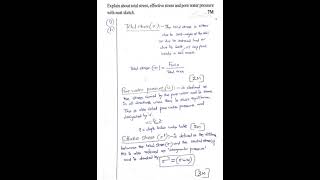

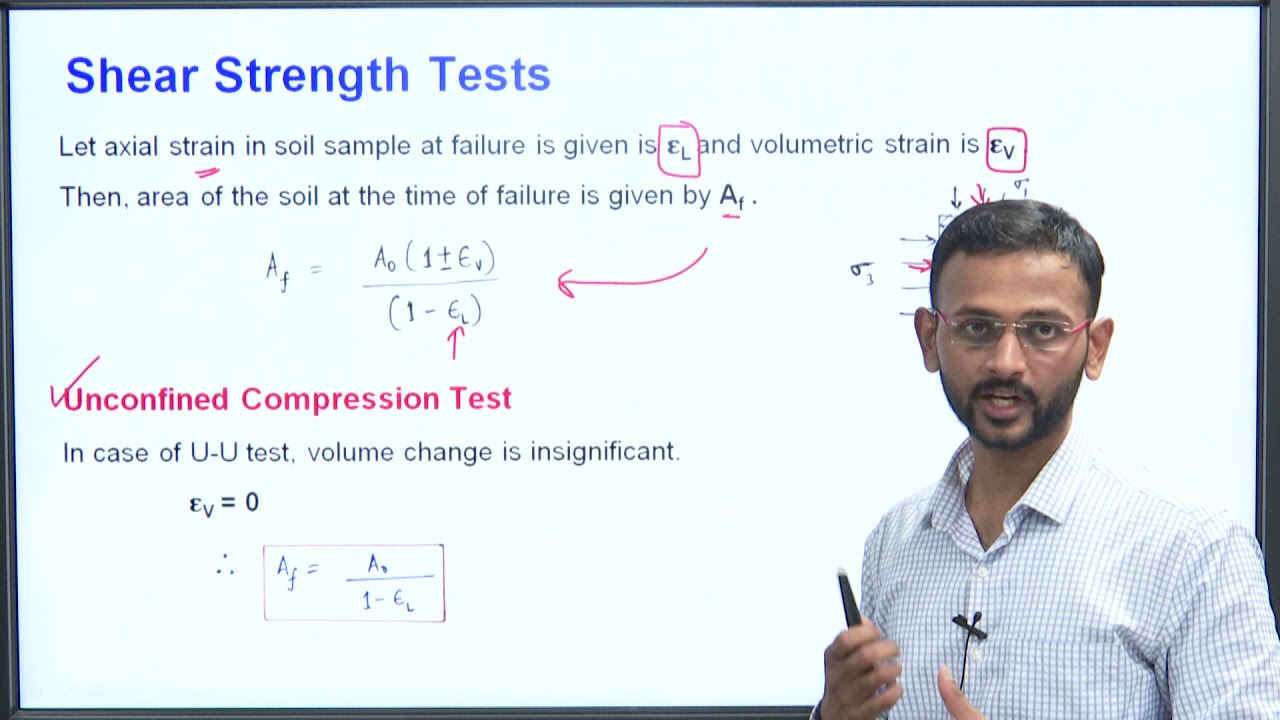

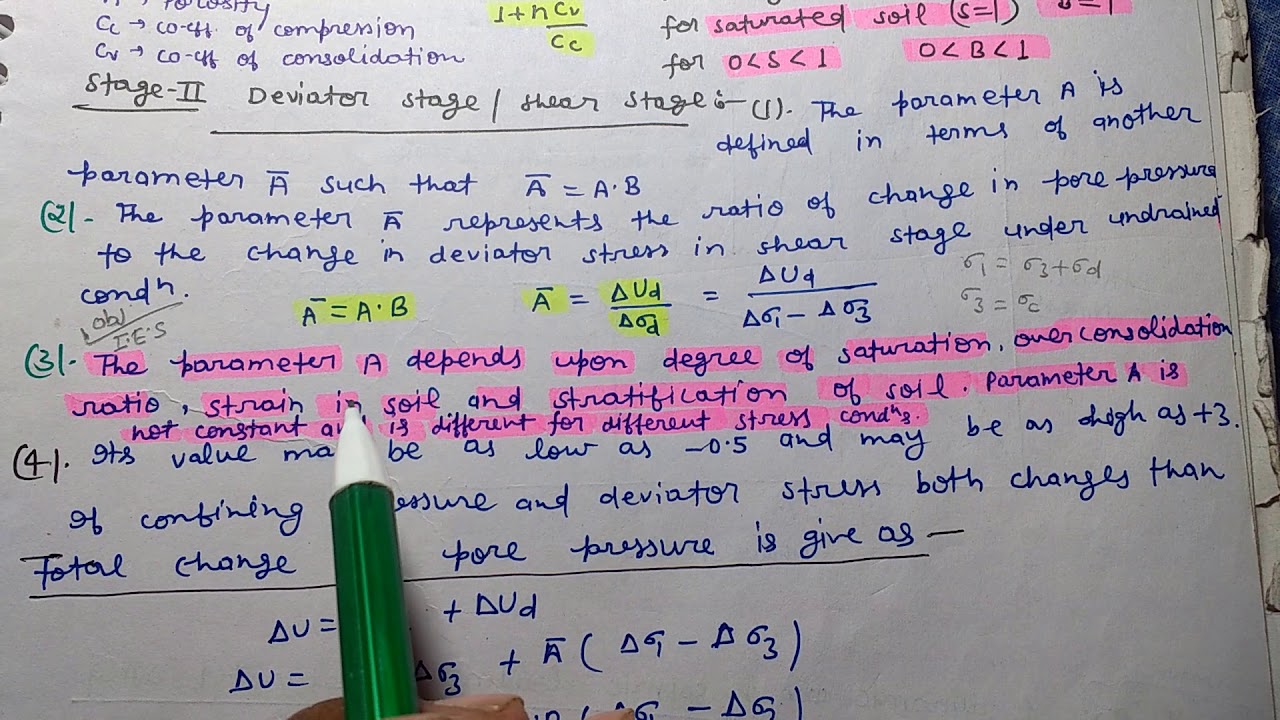

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Pore Water Pressure Parameters
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The shear stress for the condition is given by the equation, where B=Skempton's pore pressure parameter.
Detailed Explanation
In this context, the equation represents how the shear stress in a saturated soil can be characterized by a parameter known as Skempton's pore pressure parameter, denoted as B. This parameter is essential in understanding how soil behaves under different loading conditions. It helps in evaluating the effective stress and the behavior of the soil when subjected to changes in pore water pressure.
Examples & Analogies
Imagine a sponge saturated with water. When you apply pressure on the sponge, the water inside adjusts and can make it harder or easier for the sponge to compress. Similarly, in soil, when water is added or pressure is applied, the pore pressure changes, altering how the soil will behave in construction or in natural settings.
Understanding Pore Water Pressure Features
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The pore pressure ud is the result of added axial stress, Δσ, so ud=A Δσ, where A=Skempton′s pore pressure parameter.
Detailed Explanation
In this equation, ud represents the pore water pressure that develops due to additional axial stress (Δσ) applied to the soil. The parameter A is also a function of how the specific type of soil responds to changes in stress. Thus, applying stress on the soil not only affects the immediate state of the soil but also changes the pore water pressures, leading to varying stability conditions in the soil structure.
Examples & Analogies
Think of a balloon filled with water. When you squeeze the balloon, the water pressure inside increases. In a similar way, when extra weight is applied to the soil, the internal pore pressures adjust, affecting the soil behavior just like the water pressure inside the balloon.
Combining Pressure Equations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Combining equations gives u=ua+ud=Bσ3+Aσ1−σ3.
Detailed Explanation
Here, the equation combines different components of pore pressure into a single expression. The total pore water pressure 'u' is found to be the sum of 'ua' (another pore pressure term) and 'ud'. This equation highlights the interaction between the confining pressure (σ3) and the axial stress (σ1), giving insight into how both contribute to overall pore pressure in different soil scenarios.
Examples & Analogies
Imagine measuring your overall weight on a scale that allows you to add weights from different sources. Just as each weight contributes to the total, in this equation, each type of pressure contributes to the soil's pore water pressure, affecting overall stability.
Pore Water Pressure Parameter Values
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The pore water pressure parameter B in soft saturated soils is 1, so u=σ3+A(σ1−σ3).
Detailed Explanation
This chunk notes that in soft saturated soils, the pore water pressure parameter B is considered to be 1, simplifying our calculations for total pore water pressure. As a result, we can see that the total pressure depends primarily on the confining pressure (σ3) and the difference between axial stress and confining pressure (σ1 − σ3). This highlights the significance of understanding soil types in geotechnical engineering.
Examples & Analogies
Think of soft clay as a very wet sponge. The parameter B being equal to 1 means that for practical purposes, the sponge responds in a uniform way to pressure. This property simplifies how we calculate and predict the sponge's behavior under varying conditions, similar to how we treat saturated clay in engineering situations.
Variability of Parameter A
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The value of the pore water pressure parameter A at failure will vary with the type of soil.
Detailed Explanation
The pore water pressure parameter A is crucial in defining how different soil types react under stress. When the soil fails, which means it can no longer support applied loads, A will impact the behavior of the pore pressures significantly. Understanding these variations helps engineers predict soil performance better and design more effective foundations and structures.
Examples & Analogies
Think of different types of dough. Each dough type reacts differently when pressure is applied—some may spread out more while others hold their shape. Similarly, soil types with different parameters will react uniquely under force, emphasizing the need for tailored approaches in construction and soil management to ensure safety and efficacy.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Triaxial Tests: Laboratory method for testing soil strength.
-
Pore Water Pressure: Pressure exerted by water in soil, influencing its effective stress.
-
Skempton's Parameters: A and B, critical for understanding pore pressure behavior in soils.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A construction project on soft clay may involve conducting a CU test to evaluate the soil’s strength before laying a foundation.
-
Understanding the pore water pressure can aid in predicting soil liquefaction during seismic events.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Triaxial tests, we must confess, help find soil stress success.
📖 Fascinating Stories
-
Imagine a soil testing lab where the scientist observes the reaction of clay as it yields to pressure, revealing its strength when water pressure, the competing force, rises.
🧠 Other Memory Gems
-
Remember A and B: A for Axial stress effect and B for the Bound pressure increase when soil is stressed.
🎯 Super Acronyms
CU
- C: for Consolidation
- U: for Un-drain as it relates to stress management in soils.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Pore Water Pressure
Definition:
The pressure of water within the pores of soil, which affects its effective stress and shear strength.
-
Term: Triaxial Test
Definition:
A laboratory testing method in which a cylindrical soil sample is subjected to controlled loading conditions to determine its mechanical properties.
-
Term: ConsolidatedDrained Test (CD)
Definition:
A triaxial test that allows drainage during the entire process, enabling measurement of effective stress.
-
Term: ConsolidatedUndrained Test (CU)
Definition:
A triaxial test that permits drainage during consolidation but maintains it during shear, impacting pore pressure behavior.
-
Term: UnconsolidatedUndrained Test (UU)
Definition:
A triaxial test that prevents drainage throughout, which is critical for determining undrained shear strength.
-
Term: MohrCoulomb Failure Criterion
Definition:
A model describing the response of material to shear stress, emphasizing the relationship between normal stress and shear strength.
-
Term: Skempton's Pore Pressure Parameters
Definition:
Parameters (A and B) that relate changes in pore pressure to changes in total and effective stress in saturated soils.
