Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to the Wave Equation
Unlock Audio Lesson
Today, we will delve into the two-dimensional wave equation. This equation describes how membranes vibrate. Can anyone recall what the wave equation looks like?
Is it something like ∂²u/∂t² = c²(∂²u/∂x² + ∂²u/∂y²)?
Exactly! Great job! Now, let’s break it down. Here, 'u' represents the displacement, and 'c' is the wave speed. Understanding these components helps us know how membranes react to disturbances.
What kind of boundaries are we talking about for these membranes?
We consider fixed boundaries, which means the edges of the membrane cannot move. This is crucial for the boundary conditions we'll work with later.
And these conditions lead us to solutions, right?
Yes, exactly! These conditions guide our approach using separations of variables to find solutions.
In summary, the wave equation is pivotal in describing vibrations in membranes, and fixed boundaries shape our solutions.
Separation of Variables Technique
Unlock Audio Lesson
Let's explore the technique of separation of variables. We start by assuming a solution of the form: $u(x, y, t) = X(x)Y(y)T(t)$. Why do you think this is an effective approach?
Because it breaks down the complex equation into parts we can solve independently?
Exactly! Once we substitute this form into the wave equation and rearrange, we can set each part equal to a constant. We denote this constant as $-\lambda$. Can anyone tell me what this leads us to?
It gives us individual equations for X, Y, and T?
Correct! We get separate ordinary differential equations. This separation is the key to finding solutions effectively. Remember 'XYZ' for X, Y, and T—think of this as your 'solution trio'.
So, to summarize, separation of variables simplifies our task by splitting the equation, making it easier to solve.
Eigenvalues and Eigenfunctions
Unlock Audio Lesson
Now, let's discuss eigenvalues. We derived forms for our equations that led us to values like $α = nπ/a$ and $β = mπ/b$. What is the significance of these eigenvalues?
They help us identify different modes of vibration, don't they?
Absolutely! Each pair $(m,n)$ corresponds to a unique mode, and this is essential for understanding the behavior of our membrane.
So, how do we visualize these modes?
Great question! The vibration patterns become evident when we graph these functions. We encounter nodal lines that illustrate where the membrane doesn't move.
Can you give an example of a mode?
Sure! The fundamental mode $(1,1)$ has no interior lines and is crucial to design considerations in engineering.
To wrap this up, eigenvalues lead us to key insights on membrane behavior through different vibration modes.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section introduces the separation of variables technique used to find a solution to the two-dimensional wave equation for rectangular membranes. It explains how the solution can be expressed as a product of functions that depend on individual variables, allowing the problem to be decomposed into simpler parts that can be solved independently.
Detailed
Detailed Summary
In this section, we examine the method of separation of variables as a powerful technique to solve the two-dimensional wave equation for a rectangular membrane. The equation governs the motion of a membrane, modeled as:
$$
\frac{\partial^2 u}{\partial t^2} = c^2 \left( \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} \right)
$$
where $u(x,y,t)$ denotes the displacement of the membrane at point $(x,y)$ and time $t$, with $c$ representing the speed of waves on the membrane.
The approach begins by assuming a solution of the form:
$$
u(x,y,t) = X(x)Y(y)T(t)$$
This equation is then substituted back into the wave equation. By isolating variables through division and equating them to a constant (denoted as $-\lambda$), we can separate the equation into individual parts:
- The spatial variables $X(x)$, $Y(y)$ lead to eigenvalue problems with boundary conditions that yield sine function solutions.
- The time-dependent part $T(t)$ involves a simple harmonic motion equation, leading to solutions involving sine and cosine functions.
Consequently, the general solution of the wave equation can be expressed in a double Fourier series, comprising individual modes of vibration. Each mode corresponds to different frequency pairs $(m,n)$, with physical significance in engineering applications such as structural analysis in civil engineering. Thus, using separation of variables, we not only simplify the complexity of the wave equation but also gain insight into the vibrational behavior of membranes in practical scenarios.

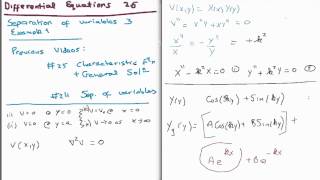

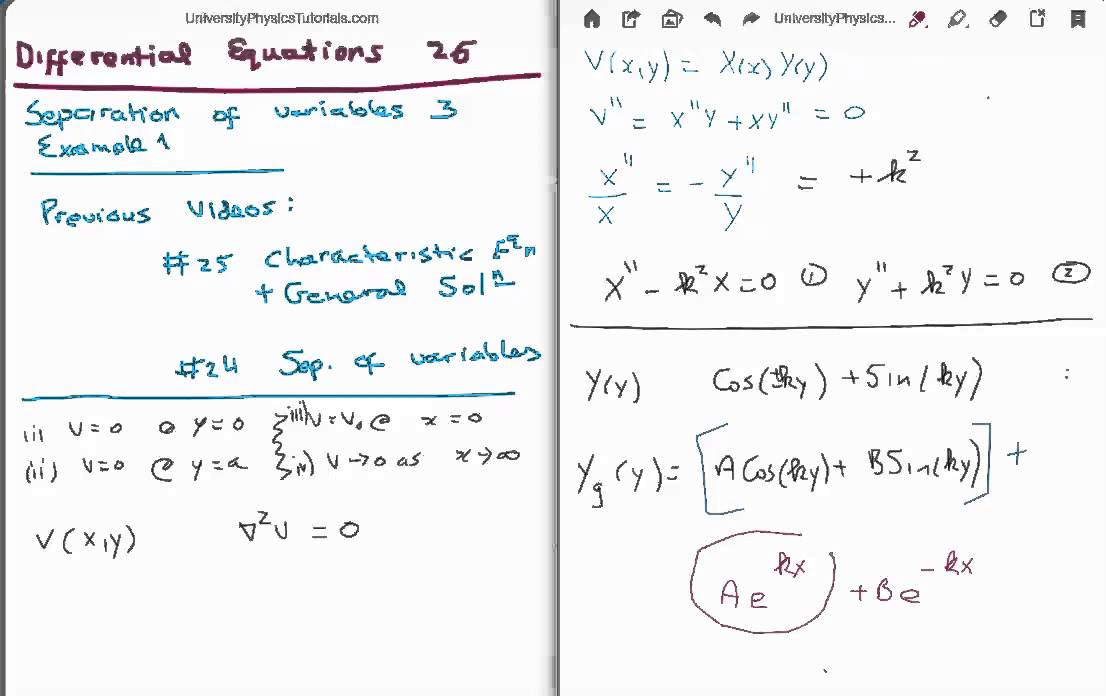

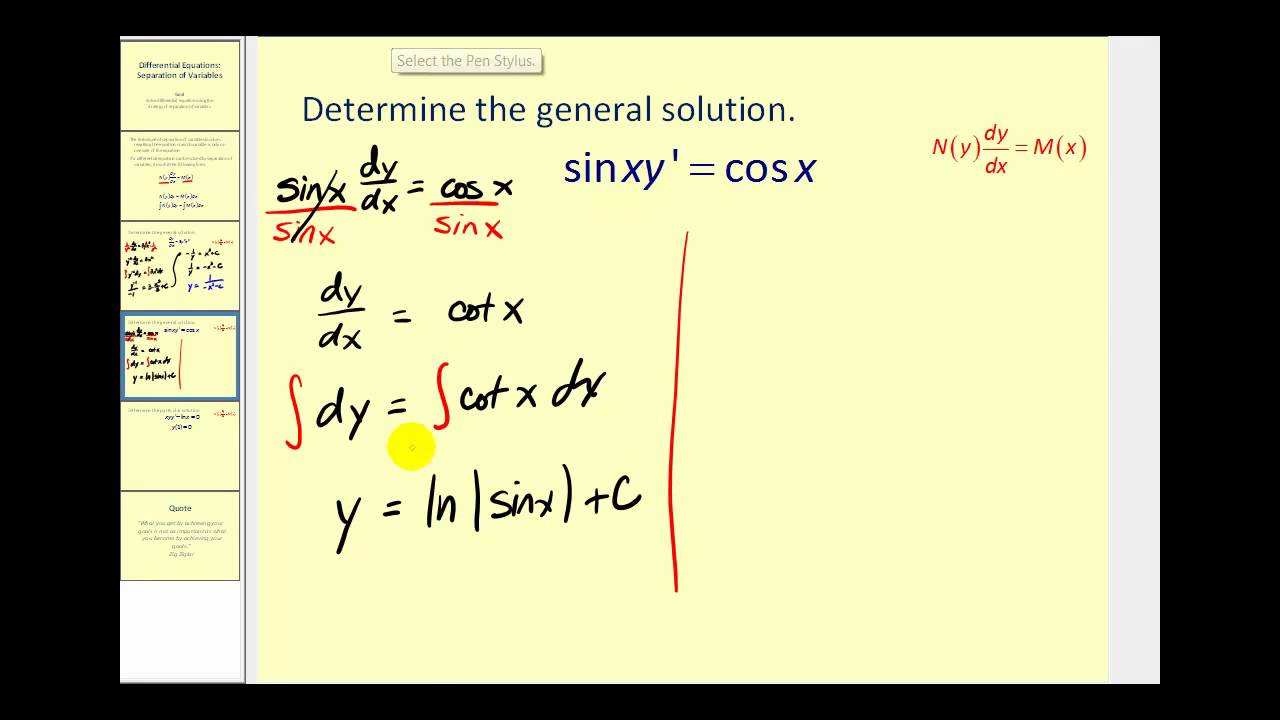

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Assuming a Solution Form
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We assume a solution of the form:
u(x,y,t)=X(x)Y(y)T(t)
Detailed Explanation
In this section, we start by proposing a specific form for the solution of the two-dimensional wave equation. We express the displacement function, u(x,y,t), as a product of three separate functions: X(x), which depends only on the x-coordinate; Y(y), which depends only on the y-coordinate; and T(t), which depends only on time. This method is known as 'separation of variables.' By assuming such a form, we can simplify the problem into smaller, more manageable equations that can be solved individually.
Examples & Analogies
Think of a musician playing a stringed instrument, where the sound can be broken down into different components: the vibration of the string (X), the way the instrument body resonates (Y), and the timing of the strumming or plucking (T). Just like how each part contributes to the overall sound, each function in our solution contributes to the overall displacement of the membrane.
Substituting into the Wave Equation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Substituting into the wave equation:
d²T (cid:18) d²X d²Y (cid:19)
= c²T Y + X
dt² dx² dy²
Detailed Explanation
After assuming the solution form, we substitute it into the two-dimensional wave equation. This substitution results in an equation that relates the individual components of time and space. The left side corresponds to the time dependence, while the right side relates to the spatial functions. This sets us up for the next step where we will separate the variables further to isolate terms depending only on time from those depending on space.
Examples & Analogies
Imagine you have a jigsaw puzzle, and you start placing pieces into a framework; each piece fits into one specific spot, leading to a clearer picture. Similarly, by substituting our assumed solution into the wave equation, each function starts to find its place, revealing the overall dynamic behavior of the membrane.
Separating Variables and Setting Constants
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dividing both sides by XYT:
1 d²T (cid:18) 1 d²X 1 d²Y (cid:19)
= c² +
T dt² X dx² Y dy²
Since the left side depends only on t and the right side only on x and y, both must equal a constant, say −λ.
Detailed Explanation
Next, we divide the entire equation by the product XYT to isolate the variables completely. This separation results in an equation where the left side depends entirely on T (time) and the right side only on X (space in x-direction) and Y (space in y-direction). To balance the equation, we set both sides equal to a constant, which we denote as −λ. This step leads us towards establishing relationships between the spatial and temporal components, leading to the formation of ordinary differential equations for each variable.
Examples & Analogies
Picture cooking in a kitchen with different ingredients. To get a well-balanced dish, you separate the ingredients according to their type and then measure each one precisely to ensure perfect ratios. Similarly, here, we are separating time and space components to cleanly and accurately analyze their individual effects on the membrane's vibration.
Equations for Spatial Variables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Further separation gives:
1 d²X 1 d²Y
=−α², =−β², so that λ=α²+β²
X dx² Y dy²
Detailed Explanation
In this step, we further separate the equations into distinct parts: one for the function X and another for Y. We express these relationships as second-order ordinary differential equations. By introducing constants α² and β², we relate them back to our original constant λ: λ = α² + β². This indicates that the spatial components are now defined by these new constants, setting the stage for solving these resulting differential equations individually.
Examples & Analogies
Think of how you might segment a complex task into simpler, digestible parts. A student might break down studying for an exam into smaller sections — one for math, another for science, and so forth. Each section gets its attention and methods, just as we are breaking down the vibration problem into equations that can each be solved step-by-step.
Time Equation Formation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then the time equation becomes:
d²T + c²(α²+β²)T =0
dt²
Detailed Explanation
After separating the spatial variables, we derive the equation for the time-dependent part (T). It comes out to be a second-order ordinary differential equation that includes the constant terms α² and β², along with a wave speed factor, c. This form implies harmonic motion, leading to solutions involving sine and cosine functions, which are essential in modeling vibrational behavior.
Examples & Analogies
A pendulum swinging back and forth exhibits simple harmonic motion. If we analyze its movement over time, we can represent its position as a function of time in terms of sine and cosine. Similarly, our equation implies that the displacement of the membrane over time will also exhibit periodic behavior, characterized by these functions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Separation of Variables: A method that leads to simpler ordinary differential equations by assuming solutions as products of independent functions.
-
Eigenvalues and Eigenfunctions: Key components that describe the different vibration modes of the membrane.
-
Nodal Lines: Positions in the vibrating surface where there is zero displacement.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When a rectangular membrane is fixed at its boundaries, applying separation of variables allows engineers to derive displacement equations for various modes of vibration.
-
In practice, understanding vibration modes assists in designing structures to avoid resonance during seismic events.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In the membrane, waves do play, governed by the wave equation's sway.
📖 Fascinating Stories
-
Imagine a musician stretching a string; as they pluck, vibrations travel through, resonating distinct notes, each tied to a specific frequency.
🧠 Other Memory Gems
-
Remember 'Mope' for Modes, Eigenvalues, & Properties of the equation.
🎯 Super Acronyms
SVE
- Separation of Variables and Eigenfunctions are keys to solving.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Wave Equation
Definition:
An equation that describes the relationship between the spatial and temporal changes in a wave disturbance.
-
Term: Eigenvalue
Definition:
A scalar value associated with a linear transformation that provides insight into the dynamics of the system.
-
Term: Eigenfunction
Definition:
A function associated with an eigenvalue that represents a mode of vibration in the system.
-
Term: Separation of Variables
Definition:
A mathematical method for solving partial differential equations by separating variables into individual components.
-
Term: Nodal Lines
Definition:
Lines in a vibrating medium that experience no displacement during vibration.
