20.1 - The Two-Dimensional Wave Equation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to the Two-Dimensional Wave Equation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome class! Today, we're diving into the two-dimensional wave equation. This equation describes how a rectangular membrane vibrates when disturbed. Can anyone tell me what variables this equation involves?
It involves the displacement of the membrane and time!
Exactly! We denote the displacement as **u(x,y,t)**, where x and y are the spatial dimensions, and t is time. Now, does anyone know what determines how fast these waves travel in the membrane?
The wave speed, which depends on factors like tension and mass density!
Spot on! The wave speed is represented by **c**, and it plays a crucial role in how the wave propagates through the membrane. To remember this, think of **C** for **C**ontrol in wave motion.
Boundary and Initial Conditions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand the wave equation, let's discuss boundary and initial conditions. Why are boundary conditions important?
They define the limits of the system!
Correct! For our rectangular membrane, the boundaries are fixed, meaning the displacement at the edges is zero. Can someone state these boundary conditions?
u(0, y, t) = u(a, y, t) = 0 and u(x, 0, t) = u(x, b, t) = 0!
That's perfect! Also, we have initial conditions: **u(x,y,0) = f(x,y)** for initial displacement and **∂u/∂t|_{t=0} = g(x,y)** for initial velocity. Remember, **F** for initial shape and **G** for initial velocity to help you memorize!
Applications of the Two-Dimensional Wave Equation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's connect our understanding to real-world applications! How do you think the wave equation is applied in civil engineering?
It helps in analyzing vibrations in structures, like bridges!
Exactly, vibrations in bridge decks or floors are analyzed using this equation. Can anyone think of other applications?
Maybe in seismic analysis of building structures?
Correct! Understanding how membranes like roofs respond to vibrations is crucial to design safe structures. To remember this, think of **S** for **S**tructure safety related to wave analysis.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The two-dimensional wave equation describes the vibrations of a rectangular membrane under fixed boundary conditions. It involves the displacement of the membrane and includes parameters like wave speed. The section also outlines initial conditions for solving the equation.
Detailed
Two-Dimensional Wave Equation
The two-dimensional wave equation, represented as
$$ \frac{\partial^2 u}{\partial t^2} = c^2 \left( \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} \right), $$
governs the transverse vibration of a rectangular membrane fixed at the boundaries. Here, u(x,y,t) denotes the displacement at position (x, y) and time t, while c represents the wave speed determined by the membrane's tension and mass density.
The rectangular membrane is defined within the dimensions 0 < x < a and 0 < y < b, with fixed boundaries leading to boundary conditions specified as:
- u(0, y, t) = u(a, y, t) = 0
- u(x, 0, t) = u(x, b, t) = 0
Additionally, the section introduces initial conditions which state that at time t = 0:
- The displacement is given by u(x, y, 0) = f(x, y), the initial shape of the membrane.
- The initial velocity distribution is expressed as ∂u/∂t|_{t=0} = g(x, y).
Understanding this wave equation is crucial in applications within civil engineering, as it allows for the analysis and design of structures that involve vibrating membranes.

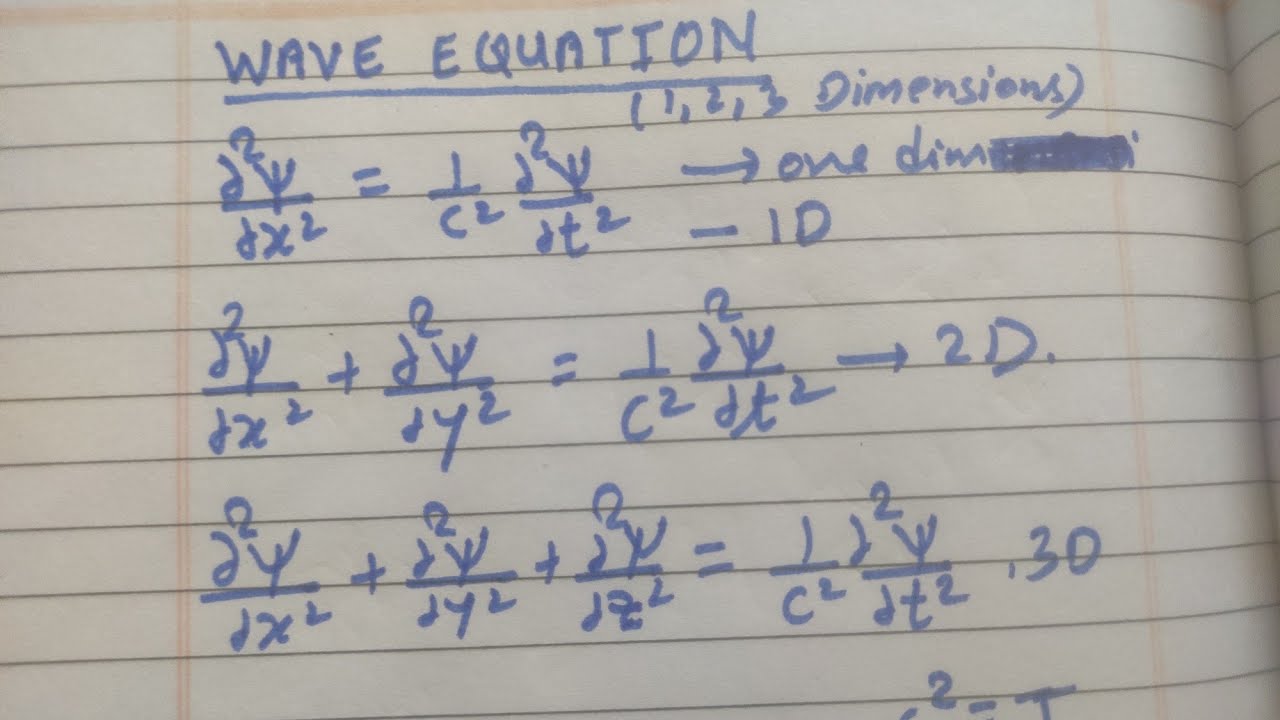

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Wave Equation
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The transverse vibration u(x,y,t) of a rectangular membrane stretched tightly and fixed at the boundary is governed by the two-dimensional wave equation:
∂²u / ∂t² = c² (∂²u / ∂x² + ∂²u / ∂y²)
where:
• u(x,y,t): displacement of the membrane at point (x,y) and time t,
• c: wave speed, depending on the tension and mass density of the membrane.
Detailed Explanation
This section introduces the two-dimensional wave equation that describes how the displacement of a rectangular membrane—like a taut sheet or a vibrating plate—changes over time and space. The equation involves second derivatives with respect to time (t) and spatial dimensions (x and y), indicating that it models acceleration. Here, u(x,y,t) represents the displacement of the membrane at a specific point (x,y) and time (t), and c is the speed of the wave, which is influenced by how tense the membrane is and its mass density.
Examples & Analogies
Imagine a trampoline—when you jump on it, the surface vibrates. The way it vibrates depends on how tightly the trampoline is stretched and how heavy you are. Similarly, the two-dimensional wave equation helps us predict how the membrane vibrates under disturbance.
Boundary Conditions
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The rectangular membrane has dimensions 0 < x < a, 0 < y < b, and its edges are held fixed, leading to boundary conditions:
u(0,y,t) = u(a,y,t) = u(x,0,t) = u(x,b,t) = 0
Detailed Explanation
In this chunk, we learn about the boundary conditions that apply to our rectangular membrane. These conditions stipulate that the displacement (u) at the edges of the membrane remains zero at all times. This means that the edges of the membrane do not move—they're fixed in place—while the middle can oscillate. This is crucial for accurately modeling physical behavior since the boundary conditions help define how the system will respond to disturbances.
Examples & Analogies
Think of a tent anchored to the ground at its corners. Those anchor points (the edges of the tent) stay put, but the middle can flap up and down when the wind blows. The fixed edges of the membrane behave similarly, providing a stable reference point as the center vibrates.
Initial Conditions
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Additionally, the initial conditions are:
u(x,y,0) = f(x,y),
∂u / ∂t |_{t=0} = g(x,y)
where f(x,y) is the initial shape and g(x,y) is the initial velocity distribution.
Detailed Explanation
Initial conditions are important in any wave equation and refer to the state of the system at the beginning of observation (the moment t=0). Here, f(x,y) describes how the membrane is shaped initially (like its form before any disturbance), and g(x,y) indicates how fast different parts of the membrane are initially moving. Together, these conditions provide the needed information to understand how the wave will evolve over time.
Examples & Analogies
Imagine plucking a guitar string. The initial shape of the string after being plucked is not flat; it has an initial displacement. The speed it starts moving at (how fast it moves up and down) gives us the initial velocity. These initial conditions will determine how the sound waves produced travel and how the guitar resonates.
Key Concepts
-
Wave Equation: Governs how a rectangular membrane vibrates.
-
Boundary Conditions: Constraints ensuring fixed edges where displacement is zero.
-
Initial Conditions: Specifications on the starting state of the vibration.
Examples & Applications
A rectangular membrane in a drum vibrates according to the two-dimensional wave equation, illustrating how sound is produced.
In bridge design, engineers analyze vibrations due to wind or traffic loads, applying the two-dimensional wave equation to ensure structural integrity.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When the membrane is tight and fixed all around, waves travel swiftly without a sound!
Stories
Imagine a drum stretched tight, its skin vibrating under the night. When struck, it sings with a wave, reflecting the rules that engineers crave.
Memory Tools
Remember the acronym BIF: Boundary conditions, Initial conditions, and the Frequency of vibrations.
Acronyms
Use **DWT** to recall
Displacement
Wave speed
Time!
Flash Cards
Glossary
- Transverse Vibration
Oscillation of a membrane perpendicular to its plane.
- Wave Speed (c)
Speed at which waves travel through the membrane, determined by tension and mass density.
- Boundary Conditions
Constraints applied to the edges of the membrane, here defined where displacement is zero.
- Initial Conditions
Defined states of displacement and velocity at the start of observation.
- Displacement (u)
The distance any point on the membrane moves from its equilibrium position.
