4.3.2.4. CBR Laboratory Test

The California Bearing Ratio (CBR) Laboratory Test involves the same procedure as field CBR but is conducted under controlled moisture and compaction.

The primary aim of the CBR Laboratory Test is to evaluate the strength of subgrade soils accurately. Unlike field tests, which can have varying moisture and compaction conditions, laboratory tests allow for controlled environments. This ensures that results are more consistent and reliable for pavement design purposes. Basically, it simulates real-world conditions in a more regulated setting, which helps engineers understand how different soils perform under load.

Think of it like cooking. When you're testing a recipe at home, you might not measure all the ingredients precisely, leading to varied results. However, if you're baking in a controlled kitchen with perfect measurements, your cake will come out consistently perfect every time. The same applies to the CBR Lab Test – it provides more consistent 'recipes' for predicting soil behavior.

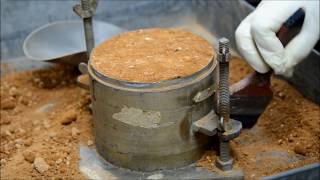

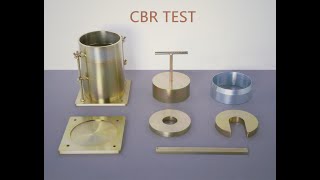

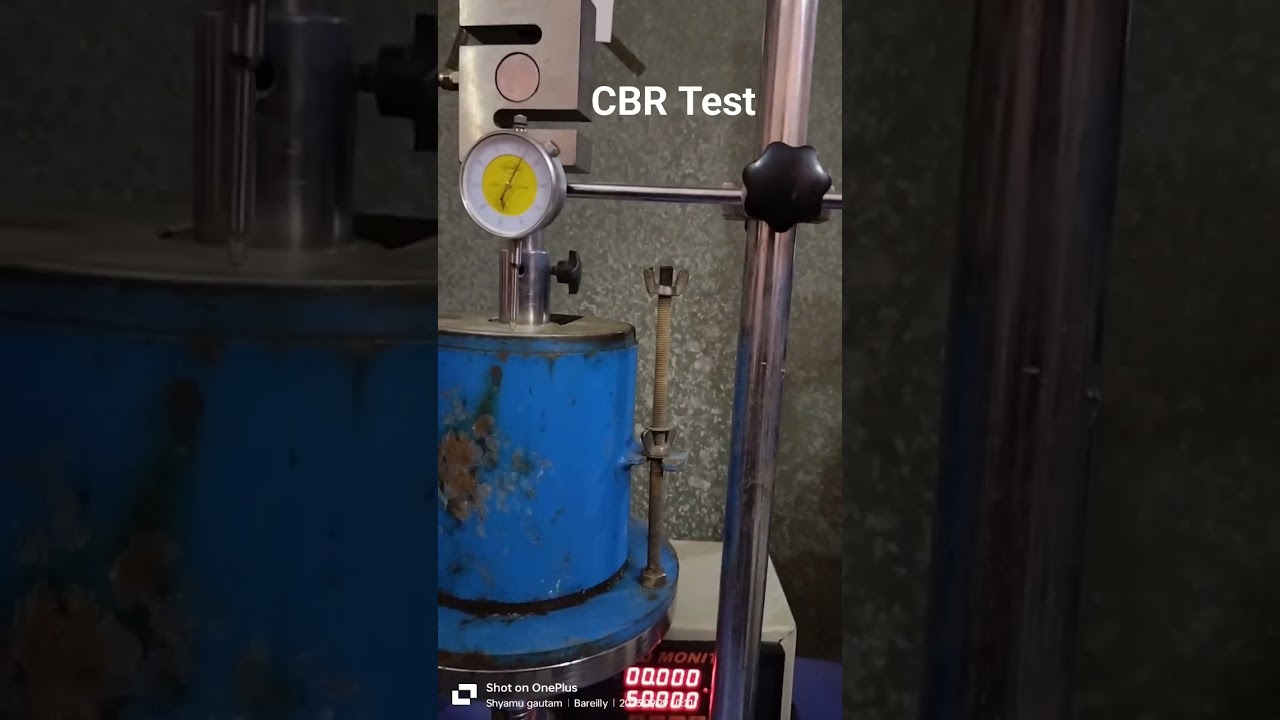

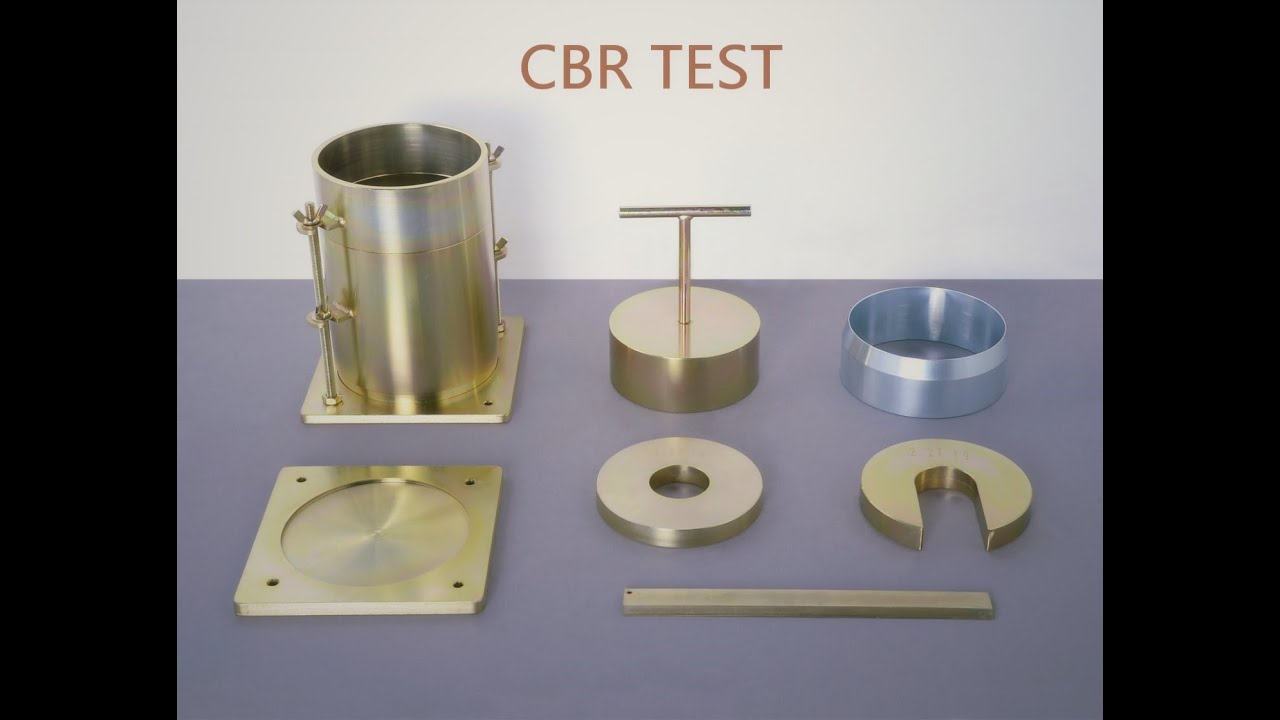

The CBR Laboratory Test procedure involves compacting a soil specimen in a cylindrical mold, saturating it to the required moisture content, and then applying a load using a plunger until failure occurs.

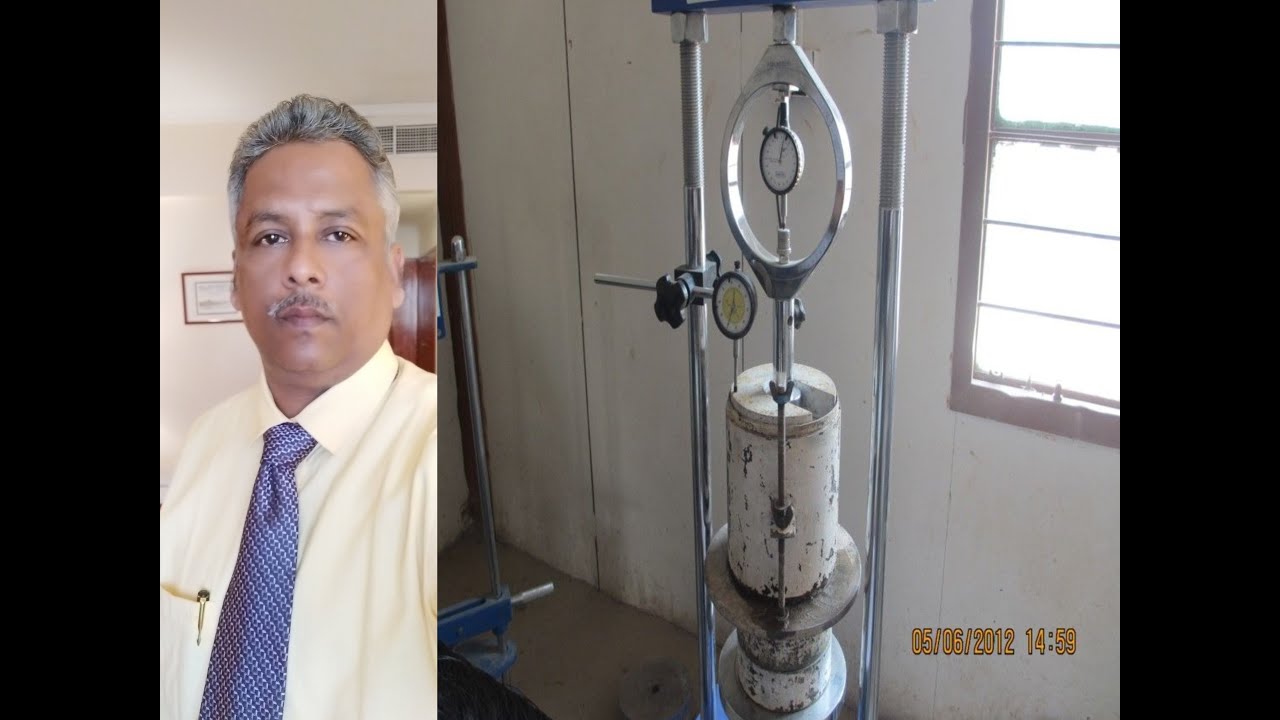

In the CBR Laboratory Test, the soil is first compacted into a mold to achieve a certain density, simulating how it would be in the field. After compacting, the soil is saturated to reach the optimum moisture content. Then, the test apparatus applies a load at a constant rate using a plunger, measuring how much the soil can resist before it starts to fail. By recording the force at which failure occurs, engineers can determine the CBR value, expressed as a percentage, which reflects the soil's ability to support loads.

Imagine pressing down on a sponge. The harder you push, the more the sponge compresses, until it can’t hold any more weight. The CBR Test works similarly by pressing down on the compacted soil: as pressure increases, it measures the point right before the soil can’t hold any more load and starts to fail.

The CBR value obtained from this test is expressed as a percentage, indicating the strength of the soil relative to a standard crushed stone base.

Once the test is completed, the CBR value is calculated as a percentage of the resistance of the soil to that of a standard material, typically crushed stone. For example, a CBR value of 20% means that the soil can support 20% of the load that a standard crushed stone can bear. This is crucial information that helps in the design of pavements, as higher CBR values indicate stronger subgrade conditions which typically require thinner pavement layers.

Consider comparing the strength of a sponge to a piece of cardboard. If the sponge can only hold a small weight compared to the cardboard, its 'CBR value' is low. If it can hold much more, its CBR value is higher. This direct comparison helps engineers decide how robust the pavement should be based on the underlying soil's properties.

--
