Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Triaxial Compression Test
Unlock Audio Lesson
Today, we'll be discussing the Triaxial Compression Test, a pivotal method in assessing soil strength. Can anyone explain why understanding soil strength is critical in pavement engineering?
It's important because weak or poorly evaluated soil can lead to pavement failures like cracking.
Exactly! The strength of soil directly impacts the design and longevity of pavement structures. Let's dive into how this test works. Can anyone describe the basic setup of a triaxial test?
Isn't it where a cylindrical soil sample is loaded under confined conditions?
Right! The soil sample is confined and subjected to axial loading, which simulates how it would behave under real-world conditions. This leads us to understand the main parameters measured.
What are those parameters?
Great question! We primarily measure cohesion and the angle of internal friction. These parameters help us predict how the soil will behave under stress.
Can you explain what cohesion and friction angle are?
Certainly! Cohesion is the measure of how well soil particles stick together, while the friction angle reflects how particles resist sliding over one another. Both are crucial for stability analysis.
To summarize, the Triaxial Test is essential for simulating real conditions in soil, enabling us to derive critical strength parameters that guide pavement design.
Types of Triaxial Tests
Unlock Audio Lesson
Now that we understand the importance of the Triaxial Test, let's discuss its types. Can anyone name the three main types of triaxial tests?
Unconsolidated Undrained, Consolidated Undrained, and Consolidated Drained?
Perfect! Let's break these down. What do you think the ‘Unconsolidated Undrained' test implies?
I think it means the soil doesn't have time to drain before the test, so pore pressure stays high.
Exactly! This makes it relevant in sudden loading conditions, like during construction. How about the 'Consolidated Undrained' test?
That one allows the sample to consolidate first, right?
Yes! And this makes it better for scenarios with slower loading. Now, what about the 'Consolidated Drained' test?
I believe it lets the water escape so the sample can fully consolidate and drain!
Exactly! This test is for analyzing soils that will be loaded over a longer period. To summarize today’s topic, remember the three types of tests and under what conditions they apply.
Analyzing Strength Parameters
Unlock Audio Lesson
Let’s focus more on the strength parameters derived from the Triaxial Test. What are the two primary parameters we look for?
Cohesion and internal friction angle.
Correct! Can anyone explain why we need these parameters in pavement design?
They help us predict how well the soil can handle traffic loads.
Exactly! Without knowing these values, we can't accurately design pavements that will last. Are there formulas to estimate these parameters?
I think they relate to Mohr's Circle?
Yes! Mohr’s Circle is a graphical representation used to determine these stresses. Always look to connect the concepts! Remember, both cohesion and friction angle enable us to apply soil mechanics principles to civil engineering projects.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section covers the Triaxial Compression Test, explaining its types, procedures, and the significance of strength parameters obtained such as cohesion and internal friction angle, which are crucial for understanding soil behavior in pavement design.
Detailed
Triaxial Compression Test
The Triaxial Compression Test is essential in geotechnical engineering, particularly for understanding soil strength and behavior under loading conditions. In this test, a cylindrical soil sample is subjected to confining pressure and an axial load until failure occurs. The primary types of triaxial tests include:
- Unconsolidated Undrained (UU) Test: This test is performed without allowing the soil to drain, which means pore pressures are not dissipated. It's crucial in scenarios where rapid loading occurs, such as during construction.
- Consolidated Undrained (CU) Test: This test allows the soil sample to consolidate under drained conditions before the axial loading, making it applicable to scenarios with slow loading practices.
- Consolidated Drained (CD) Test: This test is used for fully consolidated samples that allow full drainage throughout the loading phase. It's beneficial for assessing long-term stability under undisturbed field conditions.
The outcomes of the triaxial test yield important strength parameters such as cohesion (c) and the internal friction angle (ϕ), helping in the design and analysis of pavements and earth structures. Understanding these parameters is vital for predicting the soil's performance under various loading conditions, particularly in developing safe and efficient pavement designs.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Types of Triaxial Compression Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Types: Unconsolidated Undrained (UU), Consolidated Undrained (CU), and Consolidated Drained (CD).
Detailed Explanation
The Triaxial Compression Test is categorized into three main types based on how the soil sample is treated and the conditions under which the test is performed.

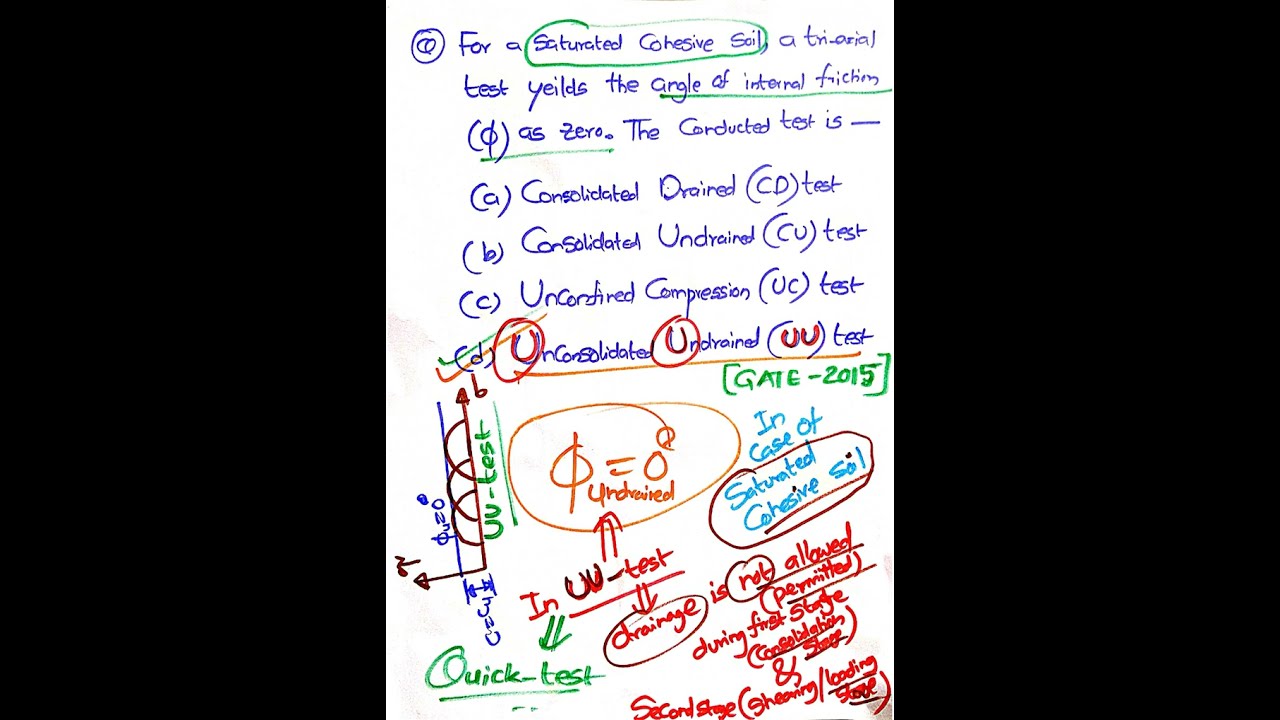

1. Unconsolidated Undrained (UU): This type measures soil strength without allowing drainage and is done quickly, making it useful for conditions where immediate loading occurs, such as during flash floods.
2. Consolidated Undrained (CU): In CU tests, the soil is allowed to consolidate under a specified confining pressure before being tested under undrained conditions. This mimics situations where drainage is slow but consolidation occurs, like clay soils under building foundations.
3. Consolidated Drained (CD): The CD test involves allowing the soil to drain fully, reflecting long-term load conditions. It is helpful for understanding how soils behave under prolonged exposure to stress, such as in the foundation of roads or buildings.
These variations allow engineers to select the most appropriate test based on the soil type and expected conditions in the field.
Examples & Analogies
Imagine a sponge (representing soil) that can hold water. If you squeeze it quickly without letting any water escape (UU), it can give you an idea of its immediate strength. If you let it sit and drain a bit before squeezing (CU), you'll see how it behaves under slower, long-term pressure. Lastly, if you leave it to drain completely before squeezing (CD), you are testing its strength under completely dry conditions, giving a clearer picture of how it would perform over time in a stable environment.
Procedure of the Triaxial Compression Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Procedure: Soil sample is subjected to confining pressure and axial load.
Detailed Explanation
In the Triaxial Compression Test, the procedure involves several steps to properly assess the strength of the soil sample:
1. Preparation of the Sample: A cylindrical soil sample is prepared with a specific height-to-diameter ratio for consistency in testing.

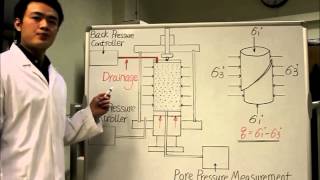

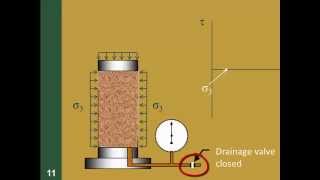

2. Placement in the Apparatus: The sample is placed in a cylindrical chamber where it is surrounded by a fluid to provide confining pressure. This simulates the pressure exerted on the soil by the surrounding layers in real-world conditions.
3. Application of Confining Pressure: This pressure is applied evenly around the sample to mimic the earth pressure acting on it. The amount of pressure can be adjusted based on the expected conditions.
4. Application of Axial Load: An axial load is then applied on the top of the soil sample until it fails. This load simulates the vertical stress applied to a soil layer in practical scenarios.
5. Recording Measurements: During the test, both the load and the deformation of the soil sample are recorded to determine how much stress the soil can withstand before failure occurs. This data is crucial for calculating strength parameters like cohesion and friction angle.
Examples & Analogies
Consider the test like a pressure test on a balloon. First, you prepare the balloon (soil sample), then place it in a container where you gradually add water (confining pressure) all around it. Once it's sealed in, you start pushing down on the top (axial load) to see how much pressure the balloon can withstand before it pops (failure). Each step mimics real conditions encountered by the soil in the ground.
Strength Parameters Measured
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Strength Parameters: Cohesion (c) and internal friction angle (φ).
Detailed Explanation
The Triaxial Compression Test yields important strength parameters which are vital for characterizing soil behavior:
1. Cohesion (c): This is the measure of how well the particles of the soil stick together. High cohesion means the soil particles have strong bonds that help resist external forces.
2. Internal Friction Angle (φ): This angle quantifies the frictional resistance between soil particles when loaded. It describes how much stress is needed to make the soil particles slide against one another, which is crucial for understanding stability during loading.
Together, these parameters help engineers predict how soil will behave under different loading scenarios, making them essential for safe and effective design in civil engineering projects.
Examples & Analogies
Think of cohesion and friction angle as how well a stack of books stays together on a shelf. If the books are stuck together with glue (high cohesion), they won’t easily fall off the shelf. If the shelf is tilted, the angle at which the books start to slide off represents the internal friction. Understanding both properties helps in designing shelves that can hold heavy books without collapsing.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Triaxial Compression Test: A test for soil strength under controlled loading.
-
Cohesion (c): A parameter indicating the stickiness of soil particles.
-
Internal Friction Angle (ϕ): A parameter indicating the resistance to sliding between soil particles.
-
Types of Tests: UU Test, CU Test, and CD Test, each relevant under different conditions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In pavement design, a Triaxial Test on clay soil revealed a cohesion of 20 kPa and a friction angle of 25 degrees, guiding the structural design to ensure stability.
-
A CU Triaxial Test failure occurred at a confining pressure of 50 kPa, indicating design adjustments were needed for supporting heavier loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Cohesion's a stick, friction's the slide, in triaxial tests, the forces collide.
📖 Fascinating Stories
-
Imagine a soldier standing firm in the face of pressure – that’s cohesion, while his comrades must work together to stay upright; they represent friction among soil particles.
🎯 Super Acronyms
To remember the types of tests, remember
- *U*ndrained is fast
- *C*onsolidated needs time
- *C*onsolidated Drained allows all to unwind.
Remember UCC for Unco@nd, Consolidated Consumed, Consolidated Drained.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Triaxial Compression Test
Definition:
A laboratory test to measure the strength and deformation properties of soil under controlled conditions.
-
Term: Cohesion
Definition:
The measure of how well soil particles stick together, impacting its load-bearing capacity.
-
Term: Internal Friction Angle (ϕ)
Definition:
The angle that measures the resistance to sliding between soil particles, crucial for understanding soil's shear strength.
-
Term: Confining Pressure
Definition:
The pressure applied uniformly around the soil sample during the triaxial test.
-
Term: Pore Pressure
Definition:
The pressure of groundwater held within a soil or rock, influencing its effective stress.
