Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Plasticity Index and Liquid Limit
Unlock Audio Lesson
Today, we will explore how the Plasticity Index, or PI, and Liquid Limit, LL, relate to the strength of our soil samples. Can someone tell me what the Plasticity Index indicates about a soil?
Isn't it about how plastic or workable the soil is?
Exactly! A higher PI means that the soil is more plastic, which often means it’s weaker. What about the Liquid Limit? How does that affect soil strength?
I think a higher Liquid Limit would mean the soil can hold more water and would be less strong, right?
Right again! A higher LL typically results in a lower CBR, indicating weaker soil strength. So both these properties actually work together to tell us how strong our soil might be.
Can we remember that with a rhyme? Like, 'High PI and LL, lead to CBR’s fall'?
Great idea! Rhymes can be really helpful for memorization. Let’s summarize: Higher plasticity index and liquid limit can indicate lower strength due to decreased CBR.
Dry Density and its Role
Unlock Audio Lesson
Now, let’s talk about dry density. Who can explain how dry density influences strength?
Higher dry density means more compacted soil, which I think makes it stronger.
Correct! Higher density usually leads to enhanced strength. If we compact the soil properly, how would we estimate that strength?
We can use the correlation with CBR to test it!
Absolutely! Higher CBR values correlate with higher dry densities. So, keep in mind that when you see high dry density, strength generally improves.
Is there a specific formula that ties those two together?
Yes! For fine-grained soils, the resilient modulus is approximately ten times the CBR value! That's crucial for pavement design.
Dynamic Cone Penetration Test (DCPT)
Unlock Audio Lesson
Let’s discuss the Dynamic Cone Penetration Test, commonly known as DCPT. Can anyone summarize its purpose?
It tests the strength of the soil quickly in-situ, right?
Correct! The cone gets driven into the soil and measures penetration resistance. How do you think that might correlate to CBR?
There’s an equation we can use! I think CBR can be estimated from the log of penetration resistance.
Exactly! This relationship is quite useful for rapid assessment. It reflects how we can utilize empirical relationships effectively.
So it’s like a fast track to get strength data?
Precisely! Using tools like the DCPT can significantly speed up our evaluation processes.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses how specific soil index properties, such as Plasticity Index (PI) and Liquid Limit (LL), inversely correlate with strength parameters like California Bearing Ratio (CBR). It further explores the relationship between dry density, CBR, and resilient modulus (MR), providing essential principles for evaluating soil strength effectively.
Detailed
Correlation between Soil Properties and Strength Parameters
This section emphasizes the significance of empirical relationships in estimating the strength properties of soil based on its index properties. Understanding these correlations assists engineers in predicting the strength of subgrade soils used in pavement systems, ensuring their design adheres to durability and performance standards.
Key Relationships:
- Plasticity Index (PI): A higher PI indicates lower CBR values in clayey soils, reflecting that as clay content and its plastic nature increase, the shear strength decreases.
- Liquid Limit (LL): Similar to PI, a higher LL results in lower CBR values, indicating weaker soil strength in saturated conditions.
- Dry Density: An increase in dry density leads to a corresponding increase in soil strength. This relationship is essential for achieving the desired compaction in pavement design.
- California Bearing Ratio (CBR) and Resilient Modulus (MR): A notable approximation exists where MR (in MPa) approximately equals ten times the CBR value for fine-grained soils. This relationship aids in translating CBR values into a resilient modulus for enhanced pavement performance evaluation.
- Dynamic Cone Penetration Test (DCPT): CBR can also be predicted using empirical relationships derived from DCPT penetration resistance, providing a practical approach for engineers in assessing subgrade strength quickly.
These correlations underpin the methodological approaches in both field and laboratory testing, essential for accurate soil strength evaluation and the subsequent design of reliable pavement systems.
Youtube Videos

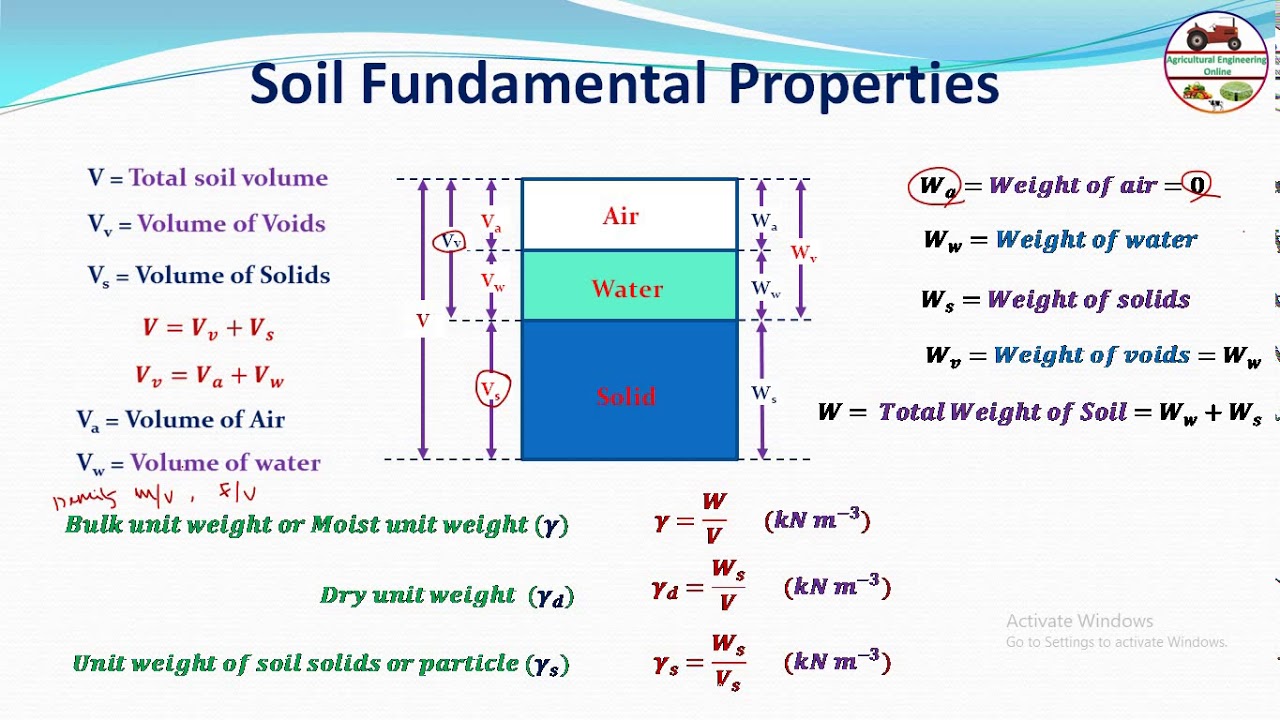

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Estimated Strength Properties based on Soil Index Properties
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Empirical relationships are often used to estimate strength properties based on soil index properties:
Detailed Explanation
This introduction lays the groundwork for understanding how various soil characteristics can predict strength. In pavement engineering, 'soil index properties' refer to specific measurable attributes of soil, such as the plasticity index and liquid limit. These properties are critical when engineers need to estimate the soil's capacity to support structures like pavements.
Examples & Analogies
Think of it like using a recipe to bake a cake—certain ingredients will give you an idea of how the cake will turn out. Similarly, by examining soil index properties, engineers can predict how the pavement will perform.
Plasticity Index (PI) and CBR Relationship
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Estimated Strength Property Correlation
Plasticity Index (PI) PI ↑ → CBR ↓ (in clays)
Detailed Explanation
This relationship indicates that as the plasticity index increases, the California Bearing Ratio (CBR) decreases for clay soils. The plasticity index reflects how much the soil can change its shape under stress without breaking. In practical terms, a higher plasticity index suggests a soil that's more likely to deform under load, which is less favorable for pavement support.
Examples & Analogies
Imagine a piece of clay. When it’s soft and moldable (high PI), it doesn’t support much weight before it starts to deform—like a weak foundation for a building. In contrast, a firmer clay (low PI) provides better support.
Liquid Limit (LL) and CBR Relationship
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Liquid Limit (LL) LL ↑ → CBR ↓
Detailed Explanation
This chunk discusses the relationship between the liquid limit of soil and its CBR value. The liquid limit indicates the moisture content at which soil transitions from a plastic to a liquid state. A higher liquid limit means more moisture, which can reduce the soil's strength and, consequently, its CBR value, making it less suitable for supporting pavements.
Examples & Analogies
Think about a sponge. A dry sponge holds its shape and is firm (high CBR), but when soaked in water, it becomes floppy and less supportive (low CBR). Similarly, as the liquid limit of soil rises with water content, its ability to support pavement decreases.
Dry Density and Strength Correlation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dry Density Higher density → Higher strength
Detailed Explanation
This point indicates that the overall strength of soil is positively correlated with its dry density. Denser soil has more particles packed into a given volume, providing greater resistance to loads, which is crucial for pavement performance.
Examples & Analogies
Consider a box of rocks. If the rocks are tightly packed, the box will resist deformation under pressure better than if the rocks are loosely arranged. Similarly, well-compacted soils are stronger and better support pavements.
CBR and MR Relationship
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
CBR and MR MR (MPa) ≈ 10 × CBR (approximate, for fine-grained soils)
Detailed Explanation
This formula provides an approximate way to relate the California Bearing Ratio (CBR) to the Resilient Modulus (MR) for fine-grained soils. The resilient modulus reflects how soil behaves under load and how quickly it can return to its original shape after the load is removed. The higher the CBR, the greater the MR, suggesting better stability and support for pavement.
Examples & Analogies
Think of it like a spring: the firmer the spring (higher MR), the better it can support weight without compressing too much. Using the CBR allows engineers to estimate this property and design pavements accordingly.
DCPT vs. CBR Relationship
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
DCPT vs. CBR CBR (%) = a × log(Penetration resistance) (empirical)
Detailed Explanation
This section introduces an empirical relationship between the Dynamic Cone Penetration Test (DCPT) results and the CBR values. The equation shows that the CBR percentage can be calculated from the penetration resistance recorded during the DCPT, which provides a quick in-situ assessment of soil strength. This relationship is significant as it helps determine the suitability of soil for pavement design without extensive laboratory tests.
Examples & Analogies
Imagine measuring how deep a stick can penetrate into mud. The deeper it goes, the softer the ground. Similarly, in DCPT, the resistance gives hints of how strong or weak the soil is, allowing quick evaluations for pavement projects.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Plasticity Index (PI): A higher PI indicates weaker soil strength, especially in clay.
-
Liquid Limit (LL): Higher LL correlates with a decrease in CBR value, indicating lower strength.
-
Dry Density: Increased dry density leads to stronger soil.
-
California Bearing Ratio (CBR): A critical measure of subgrade strength, related to density and moisture.
-
Dynamic Cone Penetration Test (DCPT): A method to quickly assess soil strength based on penetration resistance.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
For instance, a clay soil with a PI of 30 is likely to have a lower CBR, indicating weaker performance under load.
-
In a field test, it was found that increasing the dry density of a soil sample led to an observed increase in CBR from 15 to 25.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
High PI and LL, strength will drop as well.
📖 Fascinating Stories
-
A farmer noticed that his clay soil held water better as the PI increased, but his crops began to struggle, indicating the soil's loss of strength.
🧠 Other Memory Gems
-
For soil strength remember: PLD = CBR; where PLD stands for Plasticity Index, Liquid Limit, and Dry Density showing impact on CBR.
🎯 Super Acronyms
Remember CBL = 10 × MR, where CBL equals CBR linked to Resilient Modulus.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Plasticity Index (PI)
Definition:
A measure of the plasticity of soil, calculated as the difference between the Liquid Limit and the Plastic Limit.
-
Term: Liquid Limit (LL)
Definition:
The water content at which the soil changes from a plastic state to a liquid state.
-
Term: California Bearing Ratio (CBR)
Definition:
An empirical test that measures the strength of subgrade soil, expressed as a percentage.
-
Term: Dynamic Cone Penetration Test (DCPT)
Definition:
A field test that measures the penetration resistance of soil to assess its strength in-situ.
-
Term: Resilient Modulus (MR)
Definition:
A measure of the elastic response of soil under repeated loading, related to its strength.
-
Term: Dry Density
Definition:
The mass of soil per unit volume when dried, influencing strength properties.
