Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Soil Strength Evaluation Methods
Unlock Audio Lesson
Today, we're going to talk about methods for evaluating soil strength which is essential for pavement design. Why do you think soil strength is so important?
I think it's because it affects how well the pavement will hold up over time.
Exactly! A weak soil can lead to issues like cracking and rutting in pavements. Let's talk about the main categories of tests we can perform.
Are there specific tests we do in the field versus the lab?
Yes! We primarily have Field Tests and Laboratory Tests. Let's get started with the field tests.
Field Tests for Soil Strength
Unlock Audio Lesson
First, let’s explore the **California Bearing Ratio**, or CBR, test. Who can tell me what this involves?
Isn’t that where we use a plunger to penetrate the soil?
Correct! The CBR test measures resistance to penetration. CBR values are crucial for designing pavements. What do you think a higher CBR value indicates?
It probably means the soil is stronger and can support a thinner pavement.
Exactly! Other methods include the **Plate Load Test** and **Dynamic Cone Penetration Test (DCPT)**. Let's discuss these further.
Laboratory Tests for Soil Strength Evaluation
Unlock Audio Lesson
Now, shifting to laboratory tests, what can you tell me about the **Unconfined Compressive Strength (UCS)** test?
This test seems to measure how much load a soil sample can handle under pressure without lateral support.
Exactly! It essentially helps us understand the strength of cohesive soils. There are also the **Triaxial Compression Test** and the **Direct Shear Test** to consider.
How do the triaxial and direct shear tests differ?
Good question! The triaxial test exposes soil to confining pressures while the direct shear test focuses on shear strength. Very important for different soil behaviors. Remember these key tests!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore multiple evaluation methods for soil strength, including both field tests like the California Bearing Ratio (CBR) and laboratory tests such as the Unconfined Compressive Strength (UCS) test. Each method serves distinct purposes and involves specific procedures that contribute to effective pavement design.
Detailed
Methods for Soil Strength Evaluation
Understanding soil strength is crucial for pavement design, as it influences the structural integrity and longevity of pavement systems. The evaluation methods can be broadly categorized into two types: Field Tests and Laboratory Tests.
Field Tests:
- California Bearing Ratio (CBR) Test: This empirical test determines the bearing capacity of subgrade soil by measuring the resistance of soil to penetration from a standard plunger. The CBR value, expressed as a percentage, is critical in empirical pavement design.
- Plate Load Test: This test helps determine the soil’s modulus of subgrade reaction by applying load to a circular plate incrementally and measuring the corresponding settlements. It’s particularly important for design of rigid pavements.
- Dynamic Cone Penetration Test (DCPT): Conducted to quickly assess in-situ soil strength, this test correlates well with CBR values, making it a useful tool for evaluating subgrade conditions rapidly.

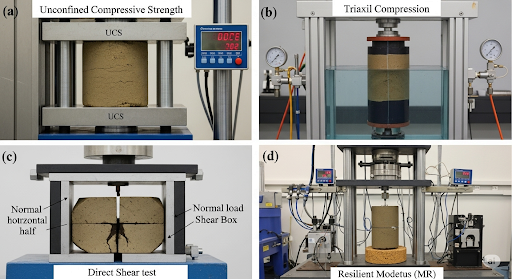

Laboratory Tests:
- Unconfined Compressive Strength (UCS) Test: Applied primarily to cohesive soils, this test involves compressing a cylindrical soil specimen until failure, providing a peak stress value representative of the soil's strength.
- Triaxial Compression Test: Used to determine soil strength parameters such as cohesion and internal friction, this involves applying confining pressure on a soil sample and measuring its response.
- Direct Shear Test: This method assesses soil strength by shearing a sample along a defined plane under a prescribed normal load.
- Resilient Modulus (MR) Test: This test measures the elastic response of soil under repeated loading, which is important for mechanistic-empirical pavement design.
Overall, these methods help engineers predict long-term pavement performance, optimize designs, and ensure durability.

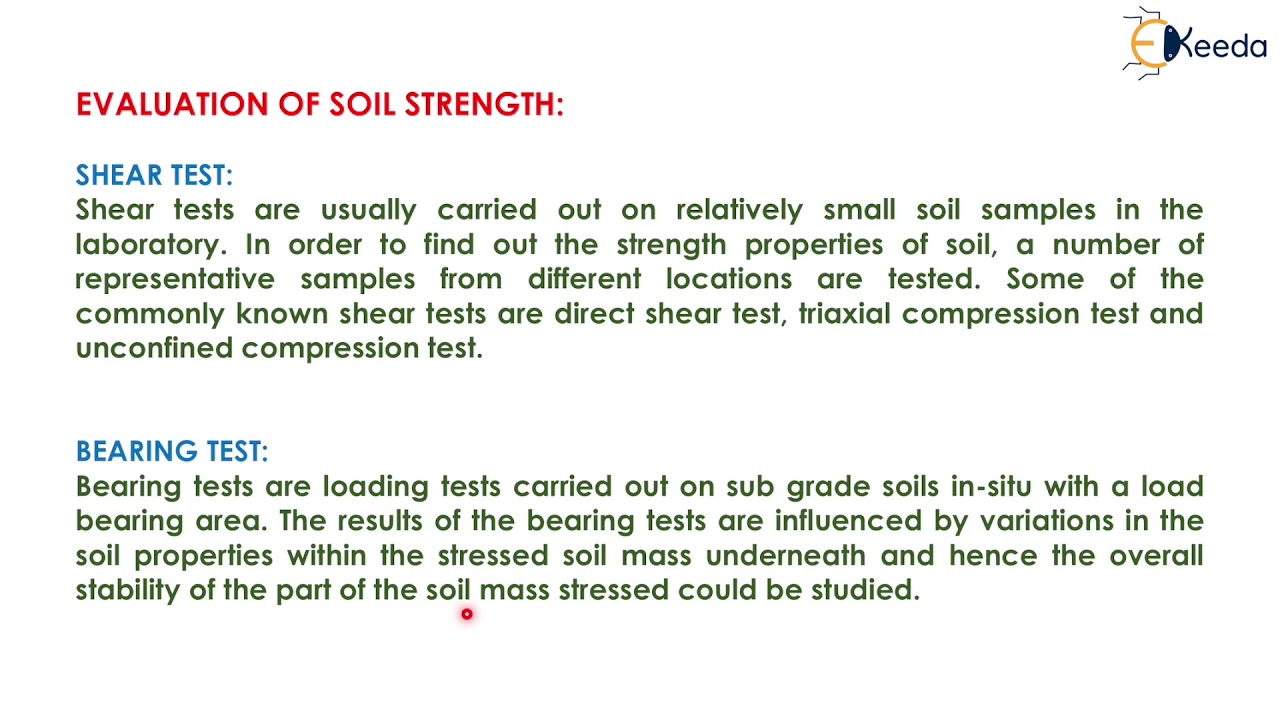

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Field Tests Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Methods of strength evaluation can be classified into field tests and laboratory tests.
Detailed Explanation
Field tests are conducted directly in the ground to assess the strength of soil in its natural state. These tests are usually quicker and provide immediate information about the site. They include various empirical methods designed to determine how well the soil can support loads applied by the pavement.
Examples & Analogies
Imagine testing the strength of a sponge by pressing down on it with your hand. Instead of taking the sponge to a lab, you simply apply your weight on it at that moment to see how it handles it. Field tests are similar; they give instant feedback on how the subgrade soil will perform when pavement is placed on top.
California Bearing Ratio (CBR) Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
California Bearing Ratio (CBR) Test
- Purpose: Empirical test to determine the supporting capacity of subgrade soil.
- Procedure: Penetration of a standard plunger into a compacted soil specimen at a rate of 1.25 mm/min.
- Interpretation: CBR value expressed as a percentage of the resistance compared to standard crushed stone.
- Usage: Widely used in empirical pavement design (e.g., IRC:37).
Detailed Explanation
The California Bearing Ratio (CBR) test evaluates the strength of soil subgrades, which is vital when designing road pavements. In this test, a plunger pushes into a compacted soil sample at a controlled speed. The resistance encountered by the plunger is measured and compared to a standard material, like crushed stone. The resulting CBR value indicates the soil's load-bearing capability, with higher values indicating better support.
Examples & Analogies
Think of the CBR test like trying to push a finger into a cake. A firm cake resists your finger better than a soft one. Just as the firmness of the cake tells you how well it stands up to weight, the CBR test tells engineers how well the soil can support pavement.
Plate Load Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Plate Load Test
- Purpose: Determines modulus of subgrade reaction (k-value).
- Procedure: Circular plate is loaded in increments; settlements are recorded.
- Application: Useful for rigid pavement design.
Detailed Explanation
The Plate Load Test helps engineers determine how much load a particular area of soil can bear before it starts to settle. Engineers place a circular plate on the soil and apply weight in increments, measuring how much the soil settles with each addition of weight. The k-value derived from this test is crucial for designing rigid pavements, as it indicates the stiffness of the soil.
Examples & Analogies
Imagine standing on a sheet of ice. If the ice is thin, it might crack or bend under your weight. The Plate Load Test is like testing how much weight the ice can hold before it cracks, giving you vital information about its strength and how much load it can safely carry.
Dynamic Cone Penetration Test (DCPT)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dynamic Cone Penetration Test (DCPT)
- Purpose: Quick in-situ test to assess subgrade strength.
- Procedure: Cone is driven into soil using a standard hammer; penetration per blow is recorded.
- Advantage: Correlated with CBR values.
Detailed Explanation
The DCPT is a rapid method for evaluating the strength of subgrade soils. In this test, a cone is driven into the soil using a hammer, and the depth of penetration for each blow is recorded. This data helps engineers estimate the soil's strength and its potential bearing capacity, which can be correlated to CBR values for further analysis.
Examples & Analogies
Consider how you would poke a sponge with a stick; the harder you poke, the deeper it goes. The DCPT works similarly by using a hammer to push a cone into the soil. The way the soil responds to each hit tells us how strong and supportive the soil is, just like how a sponge's resistance helps us understand its texture.
Laboratory Tests Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In addition to field tests, various laboratory tests are employed to evaluate soil strength more precisely.
Detailed Explanation
Laboratory tests are conducted on soil samples extracted from the field to provide detailed information on their strength properties. These controlled conditions allow for more precise measurements and analysis than field tests. Common methods include the Unconfined Compressive Strength test, the Triaxial Compression test, and others, each designed to reveal specific characteristics of the soil under different conditions.
Examples & Analogies
Think of laboratory tests like a cooking show where the chef tries different cooking techniques on a recipe to see which achieves the best flavor. Just as the chef can tweak and carefully measure ingredients to get perfect results, engineers can replicate soil conditions in the lab to understand how well different soils will support pavement.
Unconfined Compressive Strength (UCS) Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Unconfined Compressive Strength (UCS) Test
- Applicable to: Cohesive soils.
- Procedure: A cylindrical soil specimen is compressed axially without lateral support until failure.
- Output: Peak stress is taken as UCS.
Detailed Explanation
The UCS test measures the strength of cohesive soils under unconfined conditions. In this test, a cylindrical soil sample is placed in a machine that applies axial pressure until the sample fails or crumbles. The peak stress reached before failure is documented as the UCS, which helps predict how well the soil will hold up under the weight of pavement.
Examples & Analogies
Imagine squeezing a balloon. As you apply pressure, you see how tight you can make it before it pops. The UCS test is similar; by applying pressure on a soil sample until it breaks, we understand its strength and durability, just like assessing how much pressure a balloon can withstand.
Triaxial Compression Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Triaxial Compression Test
- Types: Unconsolidated Undrained (UU), Consolidated Undrained (CU), and Consolidated Drained (CD).
- Procedure: Soil sample is subjected to confining pressure and axial load.
- Strength Parameters: Cohesion (c) and internal friction angle (φ).
Detailed Explanation
The Triaxial Compression Test allows for a comprehensive analysis of soil behavior under different conditions of stress. In this test, a cylindrical soil sample is placed within a chamber that applies both vertical load and lateral confining pressure, simulating real-world conditions. The results reveal the soil's shear strength parameters – cohesion and internal friction angle, which are essential for evaluating how soil will perform under load.
Examples & Analogies
Think of the triaxial test like a person tightly hugging a stuffed animal while also trying to press down on it. The lateral squeeze represents the confining pressure, while the downward force simulates the weight of pavement above. By observing how the stuffed animal resists both pressures, we can understand the soil's behavior under similar stresses.
Direct Shear Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Direct Shear Test
- Procedure: Soil sample is sheared along a predefined plane under a normal load.
- Strength Parameters: c and φ obtained from failure envelope.
Detailed Explanation
The Direct Shear Test measures the shear strength of soil by pushing two halves of a soil sample apart along a defined plane, applying a normal load to imitate the pressure from above. The amount of force required to cause failure or sliding along this plane reveals important strength parameters, crucial for understanding how soil behaves in slopes or layers.
Examples & Analogies
Imagine trying to slide a book across a table while pressing down on it. The friction between the book and the table will determine how easily it slides. The Direct Shear Test is similar; it helps determine the 'sliding resistance' of the soil, which informs how well it can hold up under real-world pressures.
Resilient Modulus (MR) Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Resilient Modulus (MR) Test
- Significance: Represents the elastic response of soil under repeated loading.
- Test: Repeated load triaxial test.
- Application: Used in mechanistic-empirical pavement design (e.g., AASHTO M-E).
Detailed Explanation
The Resilient Modulus (MR) Test assesses the elastic behavior of soil when subjected to repeated loading, which is common in areas with heavy traffic. This test mimics the cyclic loading of vehicles over time, helping engineers understand how soil will respond to those stresses and how it will affect long-term pavement performance. The MR value is a critical input in mechanistic-empirical pavement design.
Examples & Analogies
Imagine repeatedly jumping on a trampoline. The way the trampoline flexes and then bounces back illustrates the resilient properties of the soil; it's how well the soil can 'recover' after repeated loads. Just like a trampoline needs to support many jumps while still maintaining its shape, the MR test evaluates how the soil will hold up over time under the stresses of traffic.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Field Tests: Methods like CBR, Plate Load, and DCPT evaluate soil strength in situ.
-
Laboratory Tests: Tests such as UCS, Triaxial, and Direct Shear provide controlled evaluations of soil strength.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In construction, a CBR value of 20% is often required for flexible pavements, suggesting a significant strength of subgrade.
-
The UCS test may show a result of 200 kPa indicating the capacity of cohesive soil under axial load.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To test the soil’s might, CBR’s the fight, with a plunger at first light.
📖 Fascinating Stories
-
Imagine a construction site where soil strength means the difference between a stable road or a bumpy ride. Engineers use tests like the CBR to find the perfect foundation!
🧠 Other Memory Gems
-
For field tests, remember C-PD: CBR, Plate Load, Dynamic Cone.
🎯 Super Acronyms
CLUB
- CBR
- Load Test
- UCS
- and other vital tests ensure pavement remains upright.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: California Bearing Ratio (CBR)
Definition:
A measure of the strength of subgrade soil based on its resistance to penetration.
-
Term: Plate Load Test
Definition:
A test used to determine the modulus of subgrade reaction by loading a circular plate on soil.
-
Term: Dynamic Cone Penetration Test (DCPT)
Definition:
An in-situ test for evaluating subgrade strength by measuring penetration per blow of a cone.
-
Term: Unconfined Compressive Strength (UCS) Test
Definition:
A laboratory test measuring the axial compressive strength of a cylindrical soil specimen without lateral support.
-
Term: Triaxial Compression Test
Definition:
A test determining soil strength parameters under different confining pressures.
-
Term: Direct Shear Test
Definition:
A laboratory test measuring the shear strength of a soil sample along a predefined plane.
-
Term: Resilient Modulus (MR) Test
Definition:
A laboratory test representing the elastic response of soil under repeated loading.
