Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Importance of Soil Strength Evaluation
Unlock Audio Lesson
Today, we're going to discuss why evaluating soil strength is so important in pavement design. Can anyone tell me what role the soil plays?
Isn't it the foundation that supports the pavement?
Exactly! The strength of the subgrade soil determines the required thickness and type of pavement structure. How do you think this affects the long-term performance of the pavement?
If the soil is weak, the pavement might crack or fail, right?
Yes! That's why accurate evaluations are essential for ensuring durability and serviceability. A quick acronym to remember this is 'DURABLE' for Durability, Underlying Support, Required Thickness, Assessment, Load-bearing, Evaluation.
So, the evaluation helps predict how the pavement will perform over time?
Correct! Evaluating the soil helps us predict long-term behavior under various conditions. Keep this in mind as we explore other aspects of soil strength evaluation.
Factors Affecting Soil Strength
Unlock Audio Lesson
Now, let's talk about the factors that affect soil strength. Who can share one factor they think might be important?
I think moisture content is important. It can change how strong the soil is.
Good point! Increased moisture can reduce the strength, especially in clayey soils. Does anyone know another factor?
Soil type must matter too, right? Clays and sands behave differently.
Exactly! Cohesive soils behave differently from cohesionless soils. Remember this with the phrase 'Cohesion Creates Clays'. What about compaction?
Higher compaction leads to more strength, right?
Yes! It increases dry density. Using the mnemonic 'Compact to Empower' can help you remember this! So, moisture, type, and compaction are crucial factors.
Methods for Soil Strength Evaluation
Unlock Audio Lesson
Let's explore the methods for evaluating soil strength. What are some field tests you are aware of?
I’ve heard of the California Bearing Ratio test. What is it exactly?
Great question! The CBR test assesses soil's supporting capacity through penetration of a plunger into compacted soil. What about other tests?
Is the Plate Load Test one of those too?
Yes! It helps determine the modulus of subgrade reaction. Remember, the acronym 'PLATE' – Pressure Load Assessment To Evaluate. And can someone explain a laboratory test?
The unconfined compressive strength test? It looks at soil’s strength by compressing a cylindrical sample.
Perfect! These various methods help us ascertain the soil's behavior under different conditions.
Improving Subgrade Strength
Unlock Audio Lesson
What happens if the existing subgrade does not meet strength requirements?
We need to improve it somehow!
Correct! Improvement techniques include compaction, chemical stabilization, and drainage improvements. What does compaction do specifically?
It increases the density and strength of the soil.
Yes, also remember 'Strength by Chemistry' for chemical stabilization techniques using lime or cement! Who can remember another method?
Geosynthetics might be an option?
Exactly! Geogrids and geotextiles help reinforce soil. It’s important to choose suitable techniques to ensure long-lasting pavement.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In pavement engineering, evaluating the strength of subgrade soil is essential to ensure durability and performance. This section covers key factors affecting soil strength, various evaluation methods, and the relationships between soil properties and strength parameters.
Detailed

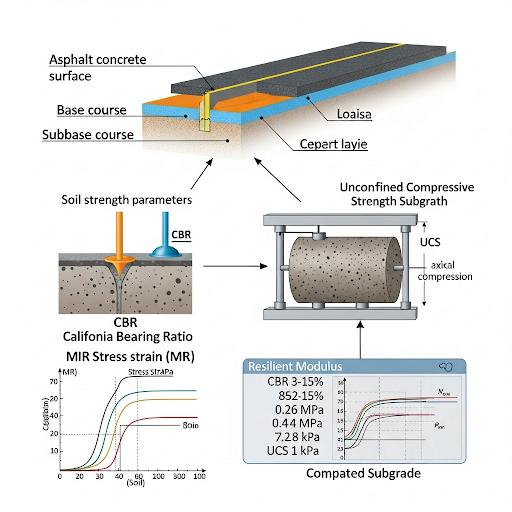

Evaluation of Soil Strength for Pavements
Overview
Evaluating soil strength is a vital part of pavement design. The subgrade soil underlies the pavement, providing load-bearing support. If improperly evaluated or weak, this can lead to pavement distress such as cracking or rutting, affecting the asphalt or concrete layers above.
Importance of Soil Strength Evaluation
- Foundation Role: The strength of the soil directly influences the necessary thickness and type of pavement.
- Design Input: Key parameters such as the California Bearing Ratio (CBR), Resilient Modulus (MR), and Unconfined Compressive Strength (UCS) are essential for accurate pavement design.
- Performance Prediction: Evaluating soil strength allows for long-term performance predictions of pavements against traffic loads and environmental conditions.
Factors Affecting Soil Strength
Various factors like moisture content, soil type, compaction level, soil structure, and previous loading history can affect soil strength significantly.
Methods for Soil Strength Evaluation
Methods can be categorized into field tests (like CBR and Plate Load tests) and laboratory tests (like UCS and Triaxial tests).
Interpretation of Soil Strength Parameters
Knowledge of CBR and modulus-based designs is necessary for appropriate pavement design and ensuring the subgrade's capabilities under load.
Seasonal and Environmental Considerations
Factors such as rainfall, frost, and capillarity can significantly affect soil strength, necessitating careful evaluation.
Improving Subgrade Strength
Techniques like compaction, chemical stabilization, and drainage improvements are effective methods for enhancing soil strength.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Soil Strength
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The strength of subgrade soil is a fundamental parameter in pavement design and performance. Pavement structures, whether flexible or rigid, transfer loads from the surface to the underlying layers, with subgrade soil acting as the ultimate load-bearing stratum. A weak or improperly evaluated subgrade can lead to pavement distress such as rutting, cracking, or complete failure. Hence, accurate evaluation of soil strength is essential for ensuring durability, serviceability, and cost-effectiveness of pavement systems.
Detailed Explanation
This chunk introduces the concept of soil strength as a critical factor in the design of pavements. Subgrade soil supports the entire structure of the pavement, meaning it must be strong enough to bear loads without serious deformation or failure. If the soil is weak or not evaluated properly, it can result in issues like surface damage, significantly impacting the pavement's durability and functionality over time. Thus, assessing soil strength properly is necessary to make sure that the structure remains stable and cost-effective.
Examples & Analogies
Imagine building a house on sand. If the sand is not compacted and strong enough, the foundation will shift, leading to cracks in the walls and possibly a collapse. The same principle applies to pavements; without a solid foundation like strong subgrade soil, the pavement will fail under the stresses of traffic and weather.
Importance of Soil Strength Evaluation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Foundation Role: Soil serves as the foundation for all types of pavements. Its strength determines the required thickness and type of the pavement structure.
- Design Input: Parameters like California Bearing Ratio (CBR), Resilient Modulus (MR), and unconfined compressive strength (UCS) directly influence the pavement design models.
- Performance Prediction: Proper evaluation helps in predicting the long-term behavior of pavement under traffic loading and environmental effects.
Detailed Explanation
In this section, three key points highlight why it's essential to evaluate the strength of soil. First, the foundation role indicates that the type of soil directly affects how thick or what type of pavement can safely be constructed. Second, specific parameters like CBR and MR are critical metrics that influence how engineers design pavements. Lastly, understanding soil strength enables predictions about how the pavement will perform over time, including its ability to handle loads and withstand environmental conditions like rain or freezing.
Examples & Analogies
Think of it like baking a cake. If you use too much flour (weak soil), the cake won’t hold its shape (pavement won't support loads). Knowing the right ingredients (soil evaluation parameters) allows you to create a cake that's not only delicious but can also stand tall and look good over time.
Factors Affecting Soil Strength
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Moisture Content
- Soil strength decreases with an increase in moisture content, particularly in clayey soils.
- Saturated conditions significantly reduce the shear strength due to pore water pressure.
- Soil Type and Classification
- Cohesive soils (clays) exhibit plastic behavior and strength is dependent on cohesion.
- Cohesionless soils (sands, gravels) derive strength from inter-particle friction.
- Compaction Level
- Higher compaction leads to increased dry density and strength.
- Optimum moisture content (OMC) during compaction ensures maximum strength.
- Soil Structure and Fabric
- The orientation of particles, stratification, and bonding impact strength.
- Stress History and Overconsolidation
- Soils with a history of higher loading (overconsolidated soils) tend to exhibit higher strength.
Detailed Explanation
This chunk outlines the various factors that influence soil strength. It begins with moisture content, explaining that as soil becomes wetter, particularly clay soils, they lose strength. Next, it differentiates between soil types like cohesive and non-cohesive soils, illustrating how their structures impact strength. Compaction level points out that densifying soil increases its strength, and there’s an optimal moisture level for achieving this. Soil structure refers to how soil particles align and bond, while stress history suggests that previously loaded soils tend to be stronger because they've adapted to certain pressures.
Examples & Analogies
Picture trying to build a sandcastle. If the sand is too dry, it collapses easily (weak soil). If it’s too wet, it can’t hold its shape (also weak). However, when it’s at the right moisture level and compacted together, it forms strong walls (strong soil) capable of withstanding the waves. Various factors like water, type of sand, and how tightly packed it is all play significant roles in the castle's strength.
Methods for Soil Strength Evaluation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
4.3.1 Field Tests
(a) California Bearing Ratio (CBR) Test
- Purpose: Empirical test to determine the supporting capacity of subgrade soil.
- Procedure: Penetration of a standard plunger into a compacted soil specimen at a rate of 1.25 mm/min.
- Interpretation: CBR value expressed as a percentage of the resistance compared to standard crushed stone.
- Usage: Widely used in empirical pavement design (e.g., IRC:37).
(b) Plate Load Test
- Purpose: Determines modulus of subgrade reaction (k-value).
- Procedure: Circular plate is loaded in increments; settlements are recorded.
- Application: Useful for rigid pavement design.
(c) Dynamic Cone Penetration Test (DCPT)
- Purpose: Quick in-situ test to assess subgrade strength.
- Procedure: Cone is driven into soil using a standard hammer; penetration per blow is recorded.
- Advantage: Correlated with CBR values.
Detailed Explanation
This part introduces key field tests used to evaluate soil strength. The California Bearing Ratio (CBR) test assesses how well soil can bear loads by pushing a plunger into it and comparing its resistance to that of standard materials. The Plate Load Test evaluates soil reaction by applying a load to a circular plate and measuring how much the soil settles. The Dynamic Cone Penetration Test (DCPT) provides a quick assessment of strength by driving a cone into the ground and measuring the resistance experienced.
Examples & Analogies
Think of it like testing the thickness of ice before walking on a frozen lake. Just as you might poke the ice with a stick to see how thick or solid it is, engineers perform these tests to ensure the ground can support the heavy material that will be placed on it, preventing any accidents or failures in the future.
Laboratory Tests for Soil Strength
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
4.3.2 Laboratory Tests
(a) Unconfined Compressive Strength (UCS) Test
- Applicable to: Cohesive soils.
- Procedure: A cylindrical soil specimen is compressed axially without lateral support until failure.
- Output: Peak stress is taken as UCS.
(b) Triaxial Compression Test
- Types: Unconsolidated Undrained (UU), Consolidated Undrained (CU), and Consolidated Drained (CD).
- Procedure: Soil sample is subjected to confining pressure and axial load.
- Strength Parameters: Cohesion (c) and internal friction angle (φ).
(c) Direct Shear Test
- Procedure: Soil sample is sheared along a predefined plane under a normal load.
- Strength Parameters: c and φ obtained from failure envelope.
Detailed Explanation
In the laboratory, several methods are used to evaluate soil strength. The Unconfined Compressive Strength (UCS) test compresses a soil sample from the top until it fails, giving a direct measure of its strength. The Triaxial Compression Test changes how the sample is loaded, allowing for detailed analysis of soil behavior under pressure, giving values for cohesion and friction. The Direct Shear Test then examines soil’s ability to resist shear stress on a specified plane, resulting in additional strength parameters.
Examples & Analogies
Imagine squishing a ball of play-dough. The UCS test is like pressing down on it until it flattens (failure). The Triaxial Compression Test is similar to wrapping the dough in wax paper and squishing from multiple angles to see how it holds together under pressure. The Direct Shear Test is like pulling the dough apart at a specific point to see how easily it breaks. Each of these tests helps understand how the soil will behave under weight and pressure.
Interpretation of Soil Strength Parameters
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- CBR-based Design:
- Used in empirical methods like IRC:37 or AASHTO 1993.
- Higher CBR implies thinner pavement crust.
- Modulus-based Design:
- Mechanistic-empirical methods require resilient modulus.
- MR can be estimated from CBR or determined via lab test.
- Shear Strength Parameters (c, φ):
- Important for slope stability and layered system analysis.
- UCS for Stabilized Soils:
- Used to verify strength gain in chemically stabilized subgrades (lime, cement).
Detailed Explanation
This section discusses how engineers interpret the results from soil strength tests for pavement design. A higher CBR value means a thinner top layer of pavement can be designed, saving materials and cost. The resilient modulus (MR) is another important parameter that helps in understanding how soil will deform under repeated loads and can be derived from CBR values or lab tests. Shear strength parameters are crucial for assessing how soil behaves when under stress, especially for slopes or layered pavements. Finally, evaluating UCS is essential for checking the performance of chemically treated soils, ensuring that they meet strength requirements.
Examples & Analogies
Think about planning a road trip with a car. If you know the roads (CBR and MR), you can decide whether your car needs off-road tires (thicker pavement) or if normal tires will suffice (thinner pavement). Just as you adjust your car based on your understanding of the road conditions, engineers modify pavement designs based on these soil tests to fit the expected traffic loads.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Subgrade Soil: Refers to the soil layer that directly supports the pavement.
-
Soil Strength: The maximum load that soil can support without failure.
-
Pavement Distress: Structural failures like cracking or rutting, commonly caused by inadequate soil strength.
-
Compaction: The process of increasing soil density to improve strength.
-
Chemical Stabilization: The use of chemical agents to enhance soil properties.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A road being constructed over clay soil may experience accelerated distress if the soil's CBR is low, warranting additional depth or different materials in the pavement design.
-
A test site for a proposed highway shows a high moisture content, indicating that soil strength evaluations must consider seasonal fluctuations in moisture to avoid future pavement failure.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For strong ground, pack it tight, avoid the wet to keep it right.
📖 Fascinating Stories
-
Imagine a farmer needing to plant crops. He has to prepare the soil by compacting it and checking moisture to ensure his harvest is abundant—this reflects how we prepare subgrade for long-lasting pavements.
🧠 Other Memory Gems
-
Use 'C-R-E-A-M' to remember: Compaction, Resistance (Soil Types), Evaluation (Methods), Assessment (Parameters), Moisture (Impact).
🎯 Super Acronyms
REMEMBER - Rigid Evaluations Make Effective Roads Avoid Improper Maintenance.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: California Bearing Ratio (CBR)
Definition:
A measure of the strength of subgrade soil relative to crushed stone used in pavement design.
-
Term: Resilient Modulus (MR)
Definition:
A measure of the elastic response of soil under repeated loading, crucial for mechanistic-empirical pavement design.
-
Term: Compaction
Definition:
The process of increasing soil density by mechanically reducing voids.
-
Term: Unconfined Compressive Strength (UCS)
Definition:
The maximum axial compressive stress that a soil sample can withstand without lateral support.
-
Term: Triaxial Compression Test
Definition:
A laboratory test that measures the strength of soil under controlled conditions by applying confining pressure and axial loads.
