Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Performance-Graded (PG) Binder
Unlock Audio Lesson
Today, we will discuss Performance-Graded binders. Can anyone tell me what the term 'Performance-Graded' refers to?
Does it mean that binders are evaluated based on how they perform under different temperatures?
Exactly! The binder's performance is classified using a system that indicates Maximum and Minimum pavement temperatures. This is expressed as PG XX-YY, where XX is the maximum and YY the minimum pavement temperature. Can anyone give me an example of a PG binder?
PG 64-22! It means the binder performs well up to 64°C and down to -22°C.
That's correct! Remember this format helps us select the right binder for specific climate conditions. A helpful mnemonic to recall it is 'XX means Maximum, YY means You can Go low!'
Binder Testing and Equipment
Unlock Audio Lesson
Next, let's discuss the equipment used for testing these binders. What do you think is essential for evaluating an asphalt binder's performance?
Maybe a machine that can test how flexible it is or how it responds to heat?
Right! The Dynamic Shear Rheometer, or DSR, is used for that purpose. It checks for rutting and fatigue. Another crucial equipment is the Bending Beam Rheometer, which focuses on low-temperature cracking. Can anyone explain why we need to simulate aging?
We need to see how the binder conditions over time with different environmental factors.
Exactly! The Rolling Thin Film Oven Test simulates short-term aging while the Pressure Aging Vessel simulates long-term aging. A good way to remember the testing methods is by the acronym D.R.B.P: DSR, RTFO, BBR, PAV.
Importance of PG Bindings
Unlock Audio Lesson
Now that we know how binders are tested, can anyone explain why these tests and the PG system are so important for asphalting projects?
It's because using the right binder ensures the pavement lasts longer and performs well!
Great point! Using appropriate PG binders can enhance durability and reduce life-cycle costs. It minimizes future repairs. Would anyone like to challenge this idea?
What happens if we use the wrong binder?
Using an inappropriate binder can lead to increased cracking or rutting, causing early pavement failure. So, understanding the performance characteristics of binders is essential for effective pavement design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Superpave Asphalt Binder Specification classifies binders based on performance at specific temperature ranges. It highlights the format PG XX-YY for indicating maximum and minimum temperatures, and outlines key testing equipment like the Dynamic Shear Rheometer and Bending Beam Rheometer used to assess binder performance.
Detailed
Superpave Asphalt Binder Specification
The Superpave Asphalt Binder Specification relates to performance-based characteristics of asphalt binders essential for modern pavement designs. Binders are categorized using a Performance-Graded (PG) system, where the designation PG XX-YY indicates the expected performance based on temperature ranges. Here, XX represents the average 7-day maximum pavement temperature, and YY denotes the minimum design temperature.
For instance, PG 64-22 implies the binder is suitable for a maximum of 64°C and a minimum of -22°C. This classification provides engineers with a clearer understanding of how binders will perform under different environmental conditions.
The section also discusses various testing protocols and equipment necessary for evaluating the performance of these binders:
- Dynamic Shear Rheometer (DSR) is utilized to evaluate rutting and fatigue performance,
- Bending Beam Rheometer (BBR) assesses low-temperature cracking,
- Rolling Thin Film Oven Test (RTFO) simulates short-term aging, and
- Pressure Aging Vessel (PAV) simulates long-term aging. Understanding these testing methods and their purposes ensures correct binder selection for optimal pavement performance.

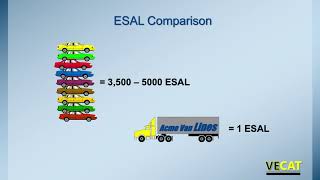

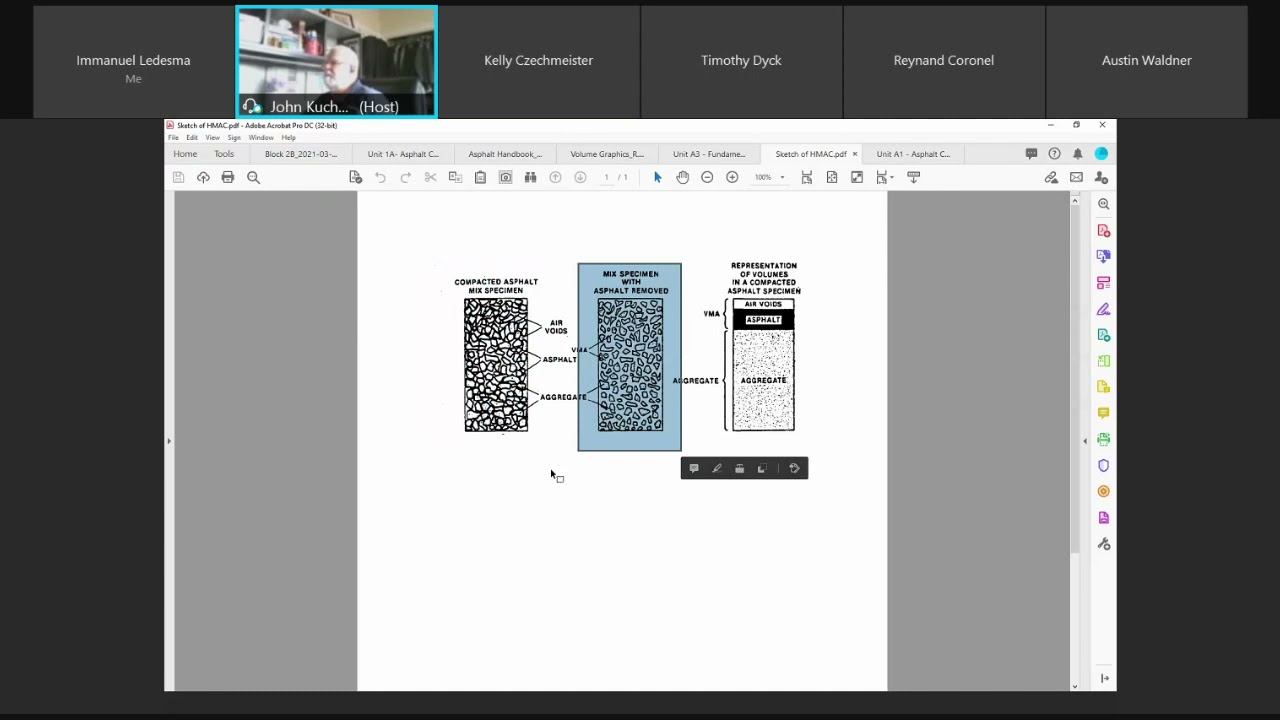

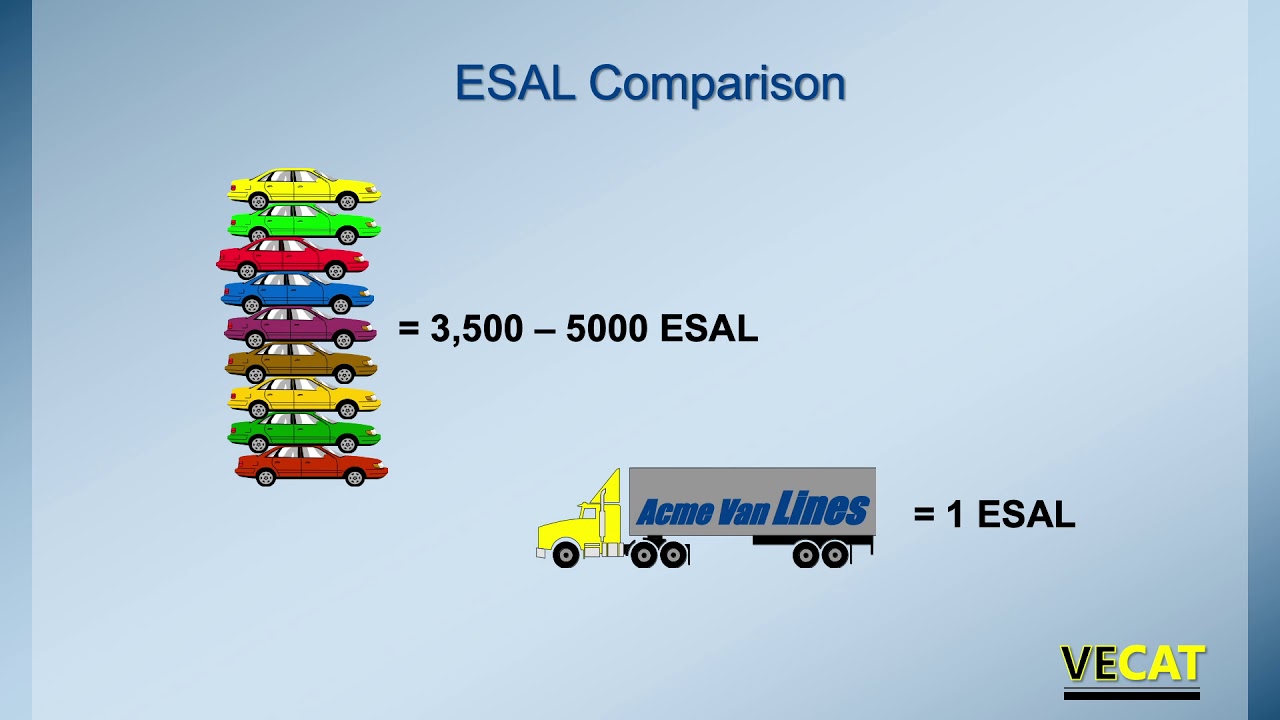

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Performance-Graded (PG) Binder
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Binders in the Superpave system are classified based on their performance at specific temperature ranges:
• Format: PG XX-YY
– XX = average 7-day maximum pavement temperature (°C)
– YY = minimum pavement design temperature (°C)
Example: PG 64-22 indicates suitability for 64°C max and -22°C min.
Detailed Explanation
In the Superpave system, asphalt binders are categorized according to how well they perform under certain temperature conditions. The classification system uses the Performance-Graded (PG) format, where 'XX' represents the average highest temperature the pavement is expected to experience over a week, and 'YY' indicates the lowest temperature that the pavement must withstand. For instance, a PG 64-22 binder is suitable for environments reaching up to 64 degrees Celsius and as low as -22 degrees Celsius. This classification helps engineers choose the right binder according to local climate conditions, ensuring the pavement remains durable throughout varying weather.
Examples & Analogies
Think of choosing a winter coat. Just like you wouldn't wear a lightweight coat in freezing weather, engineers need to select the right asphalt binder for specific temperature ranges. A PG 64-22 binder is like a good all-weather coat – it protects against both heat and cold effectively.
Binder Testing and Equipment
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Dynamic Shear Rheometer (DSR): Evaluates rutting and fatigue performance.
• Bending Beam Rheometer (BBR): Assesses low-temperature cracking.
• Rolling Thin Film Oven Test (RTFO): Simulates short-term aging.
• Pressure Aging Vessel (PAV): Simulates long-term aging.
Detailed Explanation
Various tests and equipment are employed to evaluate the performance of asphalt binders. The Dynamic Shear Rheometer (DSR) measures how the binder behaves under shear stress, which helps predict its resistance to rutting and fatigue. The Bending Beam Rheometer (BBR) tests the binder's ability to withstand cracking at low temperatures. To assess how binders age, the Rolling Thin Film Oven Test (RTFO) simulates short-term aging by subjecting the binder to heat and air, while the Pressure Aging Vessel (PAV) simulates long-term aging under conditions similar to those found in service. These tests ensure that the chosen binder will perform well over its intended lifespan.
Examples & Analogies
Imagine you are testing different materials for a new winter jacket. Just as you would pull and stretch the fabric to see how well it holds up under pressure (like the DSR test) and check how it performs in low temperatures (like the BBR test), highway engineers conduct similar tests to ensure asphalt binders can withstand the stresses of road usage and weather conditions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Performance-Graded Binder: A classification system based on performance at specific temperatures.
-
Temperature Ranges: Understand how binders perform under varying climatic conditions.
-
Testing Equipment: Knowledge of DSR, BBR, RTFO, PAV is crucial for binder evaluation.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a PG binder: PG 64-22 can perform well at temperatures up to 64°C and as low as -22°C.
-
When using a Dynamic Shear Rheometer, an asphalt binder can be tested for resistance to deformation under load.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
PG binders are clever, they stand the heat and cold, their performance is tailored, as their story unfolds.
📖 Fascinating Stories
-
Once in a city, there were roads that cracked in winter and melted in summer. The wise engineers started using Performance-Graded binders, ensuring roads stayed strong no matter the weather.
🧠 Other Memory Gems
-
To recall the binders' grades, remember: 'Max and Min, XX and YY.', linking it to their temperature preferences.
🎯 Super Acronyms
For equipment, remember D.B.P.A.
- DSR
- BBR
- RTFO
- PAV – the must-haves for binder tests.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: PerformanceGraded (PG) Binder
Definition:
A classification system for asphalt binders based on their expected performance at specific temperature ranges.
-
Term: Dynamic Shear Rheometer (DSR)
Definition:
A testing device used to determine the rutting and fatigue resistance of asphalt binders.
-
Term: Bending Beam Rheometer (BBR)
Definition:
A device that evaluates the low-temperature cracking resistance of asphalt binders.
-
Term: Rolling Thin Film Oven Test (RTFO)
Definition:
A test that simulates short-term aging in asphalt binders.
-
Term: Pressure Aging Vessel (PAV)
Definition:
A device used to simulate long-term aging of asphalt binders.
