15.5 - Superpave Mix Design Procedure
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Material Selection
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will start with Material Selection in the Superpave Mix Design Procedure. Why do you think it's important to choose the right binder and aggregates?
Maybe because different materials perform differently under stress?
Exactly! The right binder and aggregates ensure that our pavement can endure the expected traffic and environmental conditions. Can anyone tell me the term used for the binder classification in this method?
It's called Performance-Graded (PG) binder, right?
Correct! PG binders are classified based on their performance in specific temperature ranges. Remember the format PG XX-YY, where XX is the max temperature. Can you give me an example?
PG 64-22 would be suitable for up to 64°C!
Great job! So the optimal selection of materials leads to better durability and performance throughout the pavement's lifecycle.
Sample Preparation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let's discuss Sample Preparation. Why might we need to heat and mix materials at controlled temperatures?
To ensure that the binder and aggregates mix well, right?
Exactly! Proper mixing under controlled temperatures enhances binder absorption and helps achieve the desired properties. After mixing, what comes next?
Short-term aging!
Correct! This step simulates the initial aging that occurs in the field. What do you think might happen if we skip this aging step?
The mixture might not perform as expected in real conditions?
Absolutely! Sample preparation is crucial for ensuring that our design reflects in-road performance.
Volumetric Analysis
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's delve into Volumetric Analysis. Can anyone tell me what we determine during this phase?
We check the air voids and other properties, right?
That's correct! We measure Voids in Mineral Aggregate (VMA), Air Voids (Va), and Voids Filled with Asphalt (VFA). Why are these metrics so important?
They help us understand how well the mixture will perform in terms of stability and durability?
Exactly! It's essential to achieve the right balance to prevent issues like rutting and cracking later on. Is there a target for the air voids?
Yes, it’s typically around 4%!
Spot on! Monitoring these aspects ensures our designs meet performance specifications.
Moisture Susceptibility Testing
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, we have Moisture Susceptibility Testing. Can anyone explain why this is a critical step in the Superpave procedure?
To see how the asphalt mixture holds up against water damage?
Exactly! We use tests like the Tensile Strength Ratio (TSR) to evaluate this. What issues can we prevent by ensuring good moisture resistance?
Potential cracking or structural failure due to water infiltration?
Yes! This step is crucial for longevity, especially in areas with heavy rainfall. Remember, implementing a solid design now saves money on repairs later!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section details the Superpave Mix Design Procedure, which includes crucial steps such as material selection, sample preparation, compaction, volumetric analysis, optimum binder content selection, and moisture susceptibility testing, ensuring the designed mixtures can withstand traffic loads and varying climate conditions.
Detailed

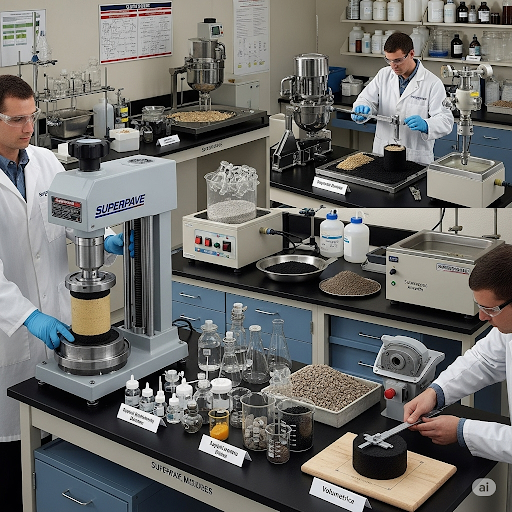

Superpave Mix Design Procedure
The Superpave Mix Design Procedure is a systematic approach aimed at creating high-performance asphalt mixtures suitable for varying traffic and environmental conditions. The process consists of several steps:
- Material Selection: This involves choosing the appropriate performance-graded (PG) binder and aggregates that meet Superpave criteria to ensure optimal pavement performance.
- Sample Preparation: The materials are heated and mixed at controlled temperatures, followed by short-term aging to simulate field conditions.

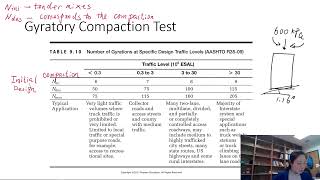

- Compaction Using the Superpave Gyratory Compactor (SGC): This step simulates field conditions by compacting the asphalt mixture through a specified number of gyrations, which varies according to anticipated traffic loads.

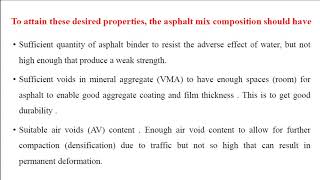

- Volumetric Analysis: In this step, key volumetric properties are determined, including Voids in Mineral Aggregate (VMA), Air Voids (Va), and Voids Filled with Asphalt (VFA), which are crucial for assessing mixture performance.
- Selection of Optimum Binder Content: Based on achieving target air voids (typically 4%), the optimum binder content is selected to satisfy volumetric criteria and enhance durability.
- Moisture Susceptibility Testing: Finally, tests such as the Tensile Strength Ratio (TSR) are performed to evaluate the resistance of the mixture to water damage, crucial for ensuring longevity in moist conditions.
Overall, the Superpave procedure is integral to advancing asphalt mix designs that prioritize performance and reliability in road construction.
