Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Purpose of the Ductility Test
Unlock Audio Lesson
Today, we are going to explore the Ductility Test of bitumen. Can anyone tell me why ductility is a critical property for pavement materials?
Isn't it because the pavement needs to be flexible and can't just crack easily?
Exactly! High ductility means the material can stretch without breaking, which is essential, especially with temperature fluctuations. It allows the pavement to adapt to various stresses.
So, if it doesn't have enough ductility, wouldn't it crack when it gets too cold or too hot?
Yes! Great point. If the bitumen is too stiff, it won't perform well under thermal movements. Now, let's discuss how we actually measure ductility.
Ductility Testing Procedure
Unlock Audio Lesson
The Ductility Test uses a specific apparatus. Can anyone name some of the equipment we need?
I think we need a ductility testing machine and a briquette mold?
Correct! We use a ductility testing machine, a briquette mold, and we conduct the test at 27°C while stretching the briquette at a rate of 5 cm per minute.
What do we do with the sample during the test?
Excellent question! We stretch it until it breaks and record the distance it has elongated. This gives us the ductility value.
So a higher distance means better ductility?
Exactly! Higher ductility means better crack resistance for the bitumen.
Significance of Ductility Values
Unlock Audio Lesson
Now, let's talk about why the results matter. If a bitumen sample has a high ductility reading, what implications does that have?
It means the bitumen is good for flexible pavements, right?
Exactly! High ductility indicates the bitumen has excellent performance characteristics under thermal changes. Conversely, low ductility could lead to cracking and premature pavement failure.
I see, so the ductility test really helps us choose the right materials for road construction.
Correct! Therefore, testing ductility is a crucial part of quality control in bitumen production.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Ductility Test (IS: 1208) assesses how much bitumen can be stretched before it fails. Using a ductility testing machine, a briquette of bitumen is elongated at a controlled rate, and the distance it stretches before breaking is recorded. This property is vital for ensuring the durability of bituminous pavements under thermal movements and minor deformations.
Detailed
Ductility Test (IS: 1208)
The ductility test is an essential procedure in evaluating the performance characteristics of bitumen, specifically its ability to accommodate elongation prior to failure. The process involves measuring how far a molded briquette of bitumen can be stretched under controlled conditions at a temperature of 27°C and a stretching rate of 5 cm/min.
Key Points:
- Purpose: To evaluate the elongation capability of bitumen before it breaks.
- Significance: Higher ductility values indicate better crack resistance, which is crucial for maintaining the integrity of asphalt pavements. The results help in determining if the bitumen is suitable for use in different climatic and loading conditions in road construction.
Overall, the ductility test is pivotal in assessing the adaptability of bitumen to changes in temperature and structural loads, ensuring longevity and performance in pavement applications.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose of the Ductility Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Purpose: Measures the elongation of bitumen before it breaks.
Detailed Explanation
The ductility test is designed to assess how much bitumen can be stretched before it breaks. This property is essential because it indicates the bitumen's ability to accommodate movements and stresses that occur in pavement over time, such as thermal expansion or contraction due to temperature changes.
Examples & Analogies
Imagine a rubber band; when you stretch it, it can expand to a certain length before snapping. Similarly, bitumen needs to stretch under traffic and temperature variations without cracking, just as a rubber band needs to stretch without breaking.
Apparatus Required for the Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

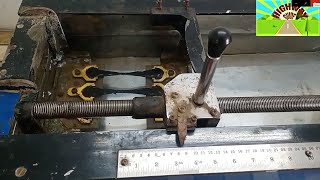

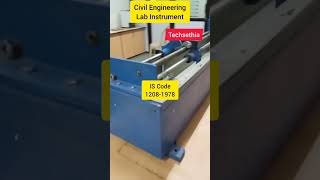

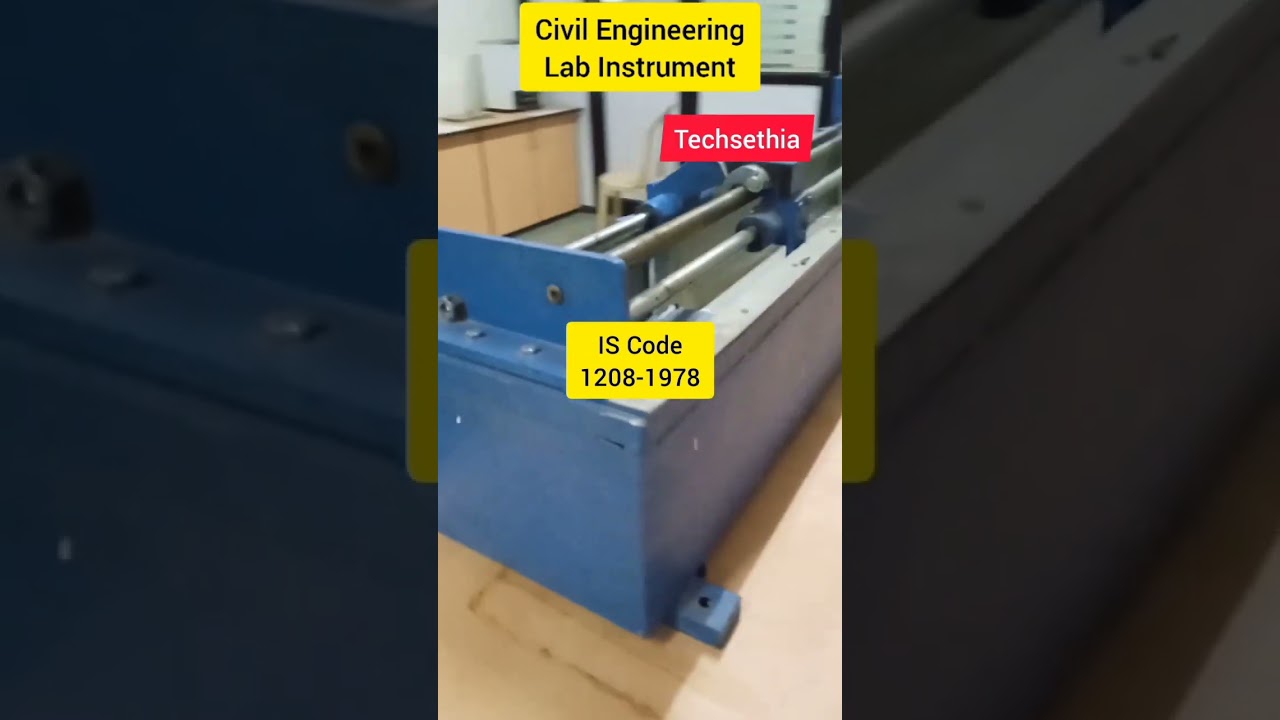

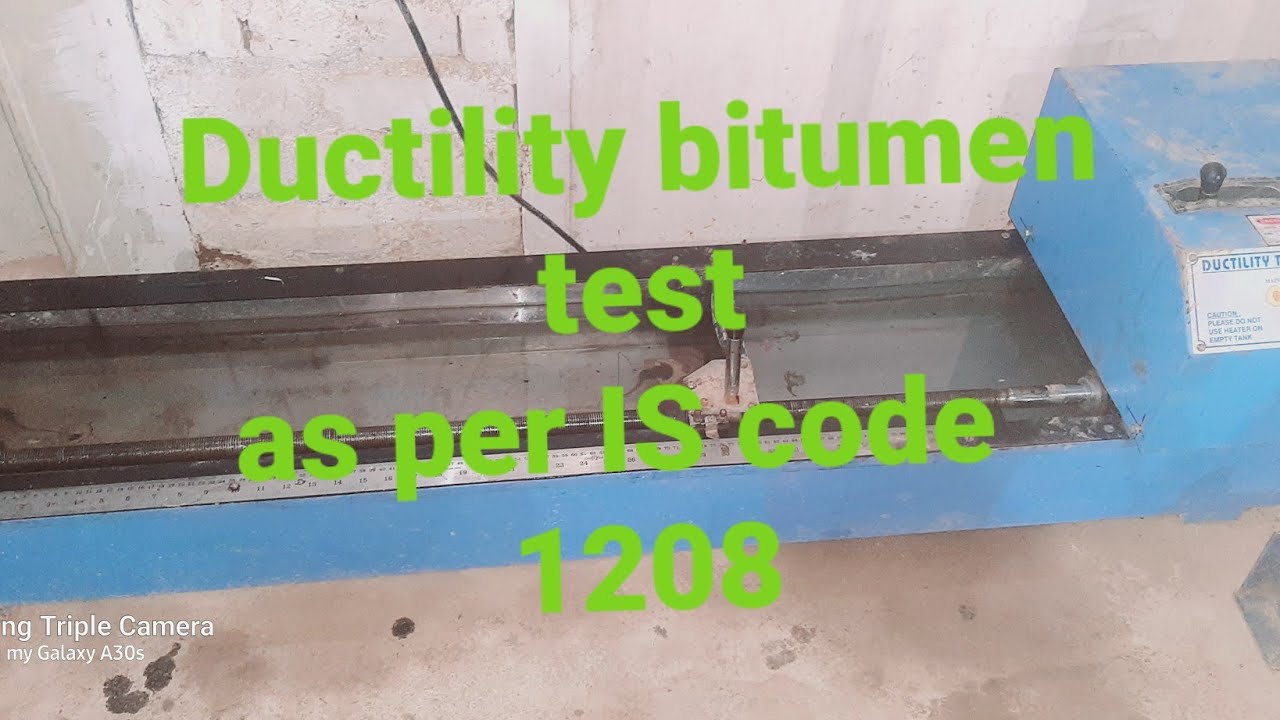

Apparatus:
- Ductility testing machine
- Briquette mold
Detailed Explanation
The ductility test requires a specific setup, namely a ductility testing machine and a briquette mold. The mold shapes the bitumen sample into a defined form before testing. The testing machine then pulls the briquette apart at a controlled speed, measuring how far it can stretch under tension before it breaks.
Examples & Analogies
Think of molding playdough into different shapes. Just like the playdough must be shaped before it's used, bitumen is also shaped into a briquette so that it can be tested uniformly for ductility.
Testing Procedure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Procedure:
- A molded briquette of bitumen is stretched at 5 cm/min at 27°C.
- Distance stretched before breaking is recorded.
Detailed Explanation
In the procedure, the molded briquette of bitumen is placed in the testing machine, which stretches the briquette at a constant speed of 5 centimeters per minute while maintaining a temperature of 27 degrees Celsius. The process continues until the bitumen breaks, and the total distance it was stretched before breaking is then recorded as a measure of its ductility.
Examples & Analogies
Picture pulling a piece of taffy candy. The speed and method you pull it can affect how far it stretches. In this test, the controlled speed and temperature help ensure accurate results, similar to ensuring the candy is pliable enough to stretch.
Significance of Ductility
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Significance:
- Higher ductility → Better crack resistance
Detailed Explanation
The results of the ductility test play a significant role in understanding how suitable a particular bitumen is for road construction. A higher ductility value indicates that the bitumen can stretch more before breaking, which means it has better resistance to cracking under stress. This is particularly important for pavements that endure repeated loading and temperature fluctuations.
Examples & Analogies
Think about wearing a high-quality stretchy pair of jeans versus a pair that has no stretch. The stretchy jeans can accommodate movement without tearing, similar to how ductile bitumen can handle thermal expansion and traffic loads without cracking.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Ductility: A critical measure of how much bitumen can stretch before breaking.
-
Testing Procedure: Involves a briquette stretched at 5 cm/min at 27°C.
-
Significance: Higher ductility values indicate better resistance to cracking.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a bitumen sample stretches to 40 cm before breaking, it indicates excellent ductility.
-
Low ductility (e.g., 5 cm) suggests that the bitumen may crack under stress.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When bitumen's ductile, it stretches wide, / Keeps cracks at bay, during temp changes, side by side.
📖 Fascinating Stories
-
Imagine a stretchy rubber band—when you pull it, it elongates. Just like bitumen, the more it can stretch without breaking, the better it can handle the weight of traffic and changes in weather.
🧠 Other Memory Gems
-
E.B.E.: Elongation Before Elimination (to remember Ductility: how much before it breaks).
🎯 Super Acronyms
D.C.R.
- Ductility Contributes to Resistance (of cracking in pavements).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Ductility
Definition:
The ability of a material to deform under stress, particularly how much it can stretch before breaking.
-
Term: Briquette
Definition:
A molded sample of bitumen used for testing its ductility.
-
Term: Thermoplastic
Definition:
Materials that become pliable or moldable upon heating.
-
Term: Viscoelastic
Definition:
Materials that exhibit both viscous and elastic characteristics when undergoing deformation.
